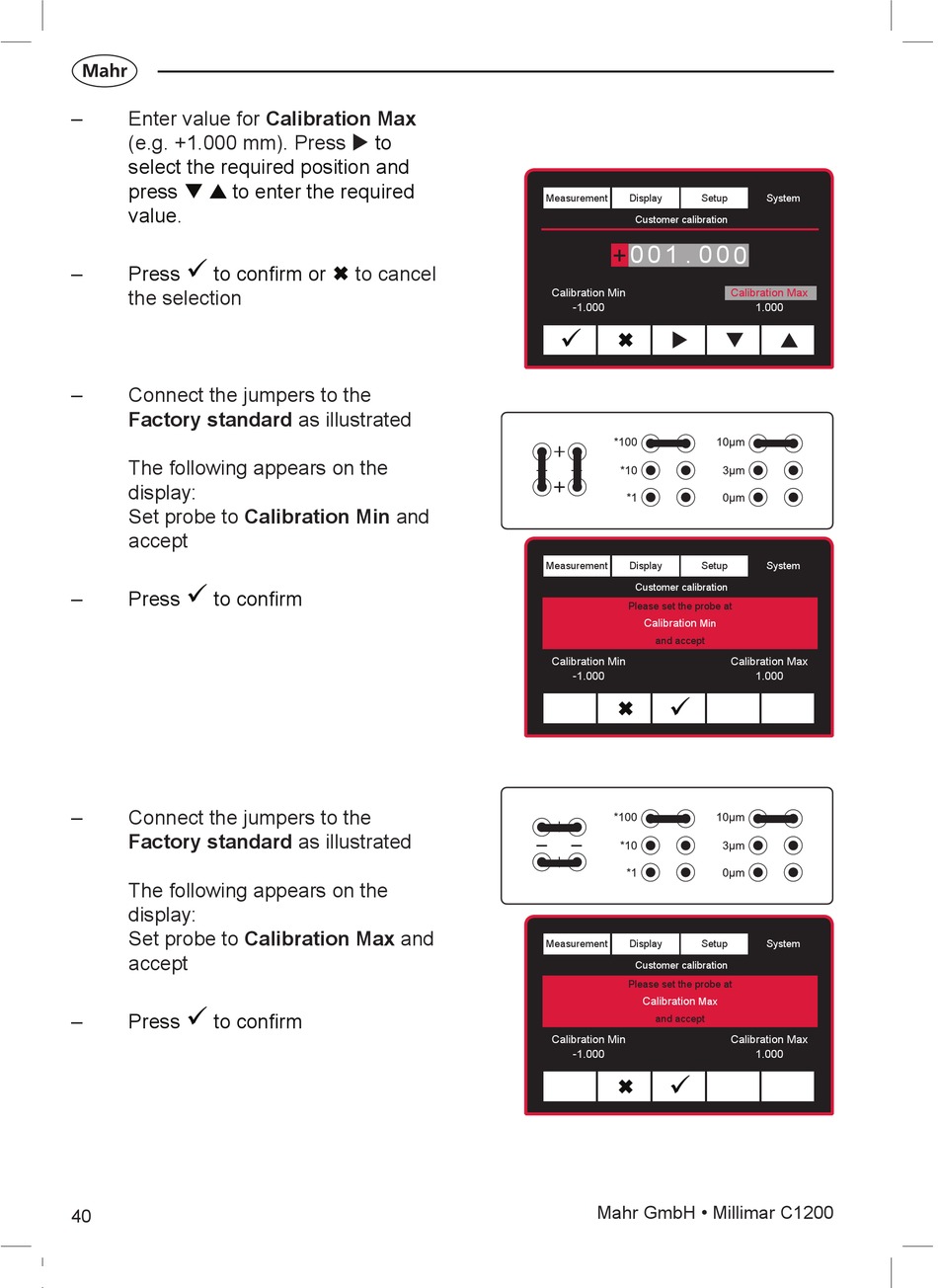

– Enter value for Calibration Max
(e.g. +1.000 mm). Press u
select the required position and
press q p to enter the required
value.
ü
– Press to confirm or Ó
the selection
– Connect the jumpers to the
Factory standard as illustrated
The following appears on the
display:
Set probe to Calibration Min and
accept
ü
– Press to confirm
– Connect the jumpers to the
Factory standard as illustrated
The following appears on the
display:
Set probe to Calibration Max and
accept
ü
– Press to confirm
