SeeMeCNC Rostock MAX v2 User Manual page 90

If you didn't already have the example cube loaded, you may only see one object in the center
of the bed. If this is the case, go ahead and load another Ignite object. If you can't see the object
you've just loaded, click the Arrange button to automatically move the objects to the virtual bed.
You'll end up with something similar to the figure below after clicking on Arrange.
Object selected.
confines of the virtual bed and they will not be printable outside of those limits.
You'll notice that you've got some new controls along the bottom of the 3D View window –
Ungroup, Group, Align, Arrange, Copy, Remove, Cancel, and Save.
The Ungroup button will undo the "grouping" done by the Group and Align buttons.
Clicking Group will virtually connect all the objects on the print bed so they can be moved all
at the same time.
The Align button has the same effect as the Auto-Arrange button, but the resulting group of
objects are not centered on the virtual print bed.
Arrange will auto-arrange the parts in a grid pattern.
Copy allows you to create duplicates of objects that are on the print bed as shown below. Make
sure that you've got the object you want to copy selected before you click the Copy button.
Be aware that if you've got your objects
grouped, clicking on Copy will result in the entire
group being copied.
The Remove button works as you'd expect.
Select an object and click Remove to remove it from
the virtual build surface.
Rostock MAX v2 User's Guide

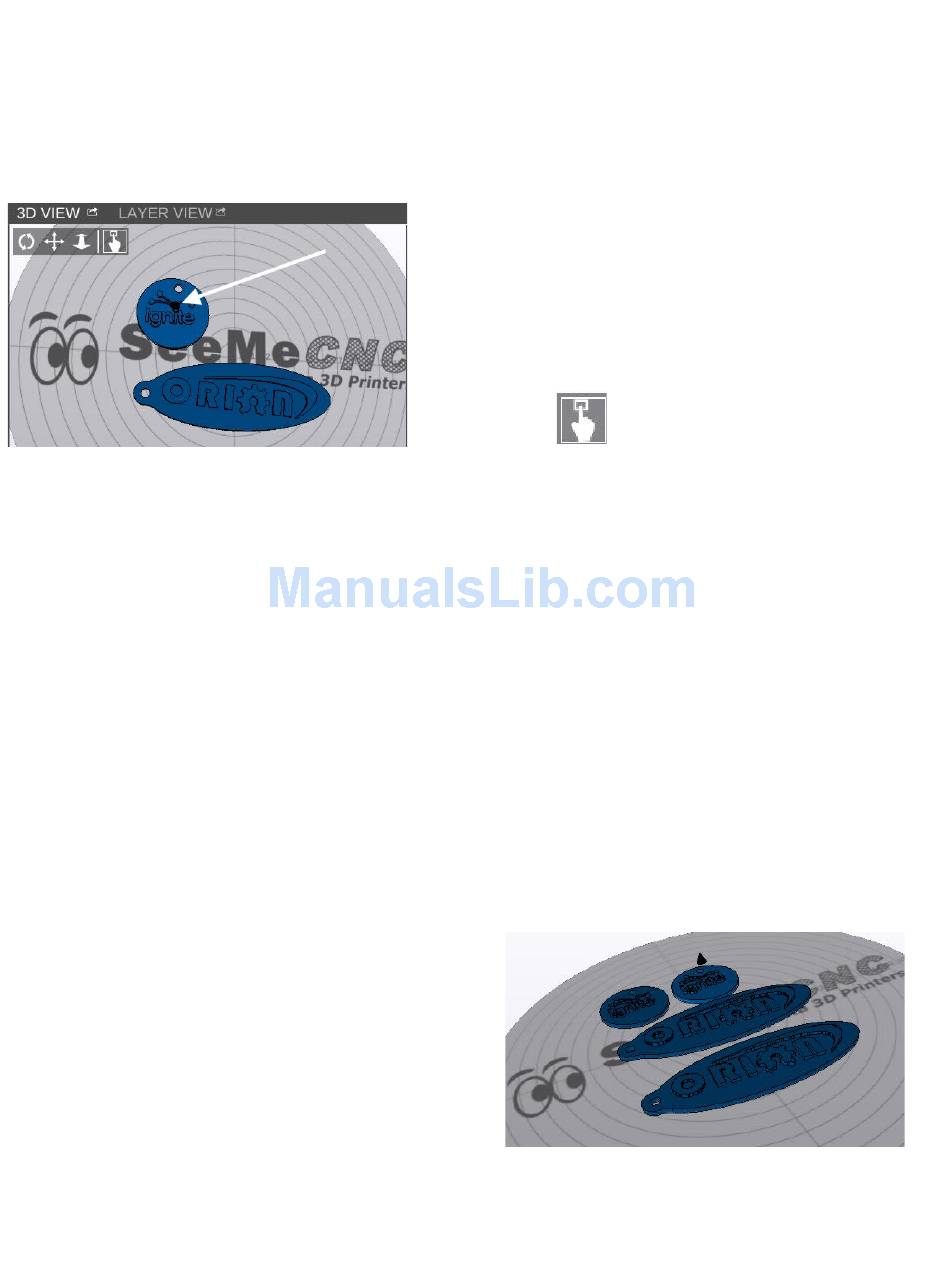

The white arrow points to a tiny icon that indicates which
is the currently selected object. If you tilt the platform
(right-click and drag your mouse), you can see that the icon
is actually a tiny cone or arrow.
In order to move an object around manually, you'll need to
make sure that the "picker" icon has been selected.
Once you've clicked on that icon, you'll be able to move
the parts any where you like. However, be aware that the
software will allow you to move the objects outside the
11 – Using the 3D and Layer Views - 90
Copied objects.
