SeeMeCNC Rostock MAX v2 User Manual page 17

When you save the new profile, you'll be prompted to install a driver. Since you've already
installed the RAMBo driver to load the firmware on your new Rostock MAX v2, you can safely click
"Skip".

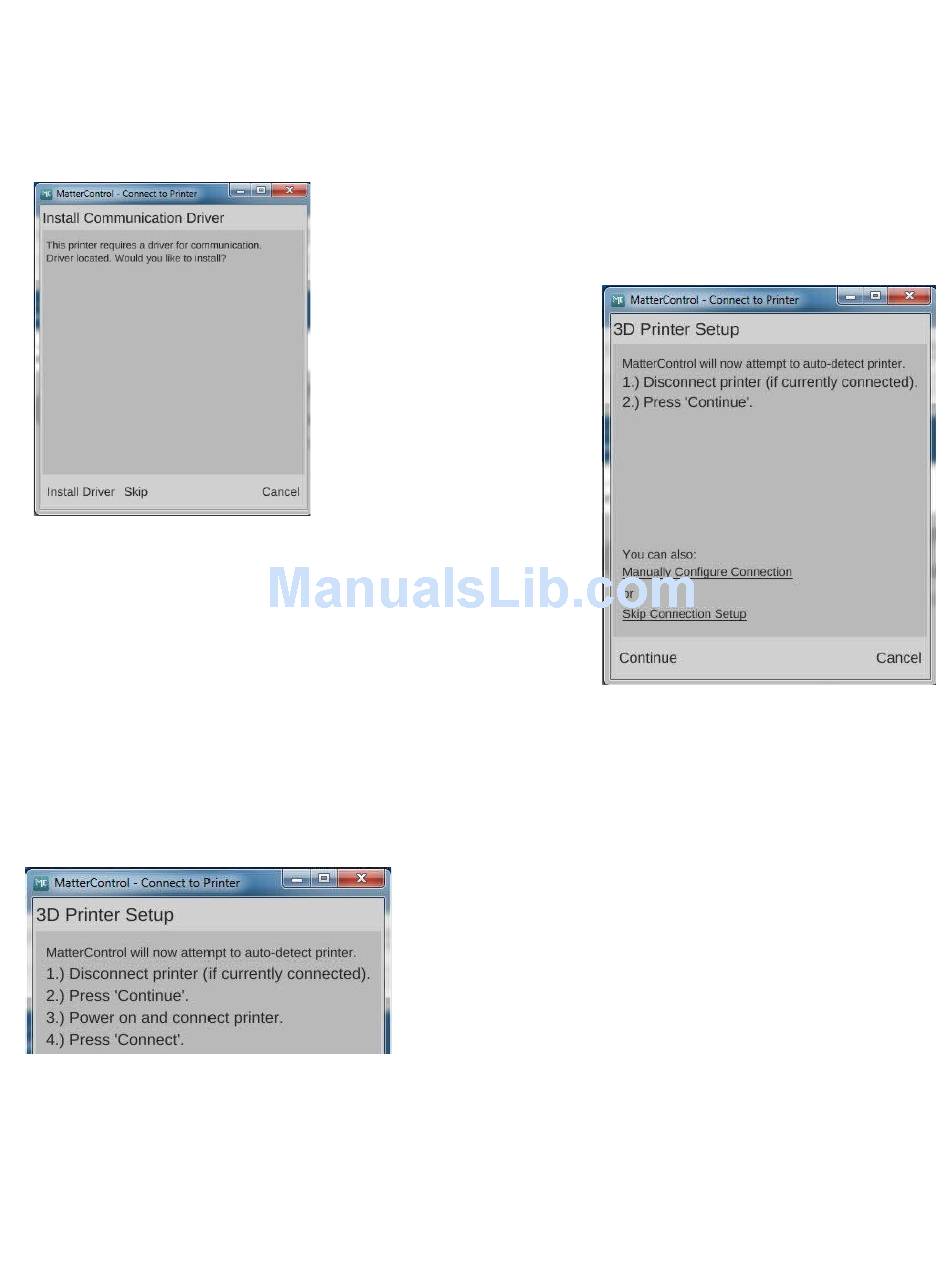

Fig 2.1.-2: Driver dialog.
MatterControl can detect what kind of firmware it's
talking to based up on the response it gets for this step.
The dialog shown on the right is a bit unclear – the
MatterControl guys are assuming that you might have gotten
ahead of yourself. If you DID connect MatterControl (using the
CONNECT button), go ahead and click the DISCONNECT button and then bring the 3D Printer Setup
dialog to the front by clicking on it in the task bar.
Go ahead and click the Continue button. You'll be presented with a new dialog as shown below
on the left.
Fig. 2.1-4: 3D Printer Setup.
Rostock MAX v2 User's Guide
MatterControl will then try to auto-detect the printer. It does this
by attempting to interrogate printers on each serial port present on
your computer.
2 – Installing MatterControl and Calibrating the Printer - 17
When the new printer configuration is saved,
Make sure you've got the USB cable connected to
the RAMBo and your computer. Power on your Rostock
MAX v2 and then click the "Connect" button.
Fig. 2.1-3: Connecting to the printer.
