4 – Second Print: Layer Fan Shroud
If you plan on printing in PLA or other materials that can
benefit from a cooling fan (NOT ABS!), you'll want to print the layer
fan shroud. The layer fan model can be downloaded from Repables,
http://repables.com/r/621/.
It's specifically designed to mount on the effector platform
and uses the included 30mm squirrel cage fan.
Download, extract and load the layer fan model into MatterControl, just as you did for the
PEEK fan. The printing parameters are the same. Make sure you've got the same slicing configuration
you used as last time and hit the Print button!

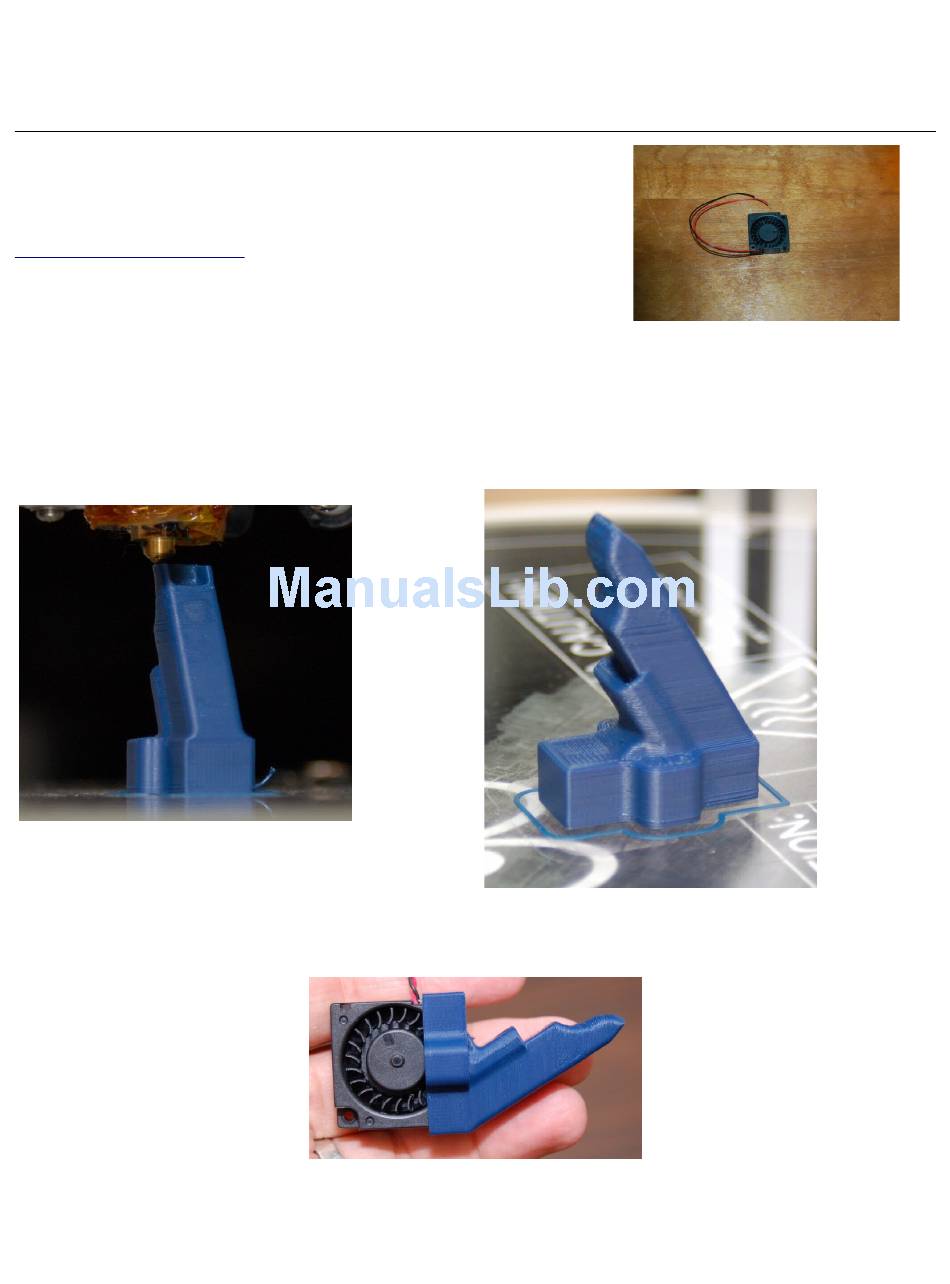

Fig. 4.1-1: Almost done!
When you're able to remove the part from
the print bed, insert the tiny squirrel cage fan into the shroud as shown below.
Rostock MAX v2 User's Guide
Fig. 4.1-3: Fan installed in the duct.
4 – Second Print: Layer Fan Shroud - 44
The Layer Fan.
Fig. 4.1-2: Completed fan duct.
