Scroll down until you find a small section marked "// Inverting axis direction".
Once you've located this area, I want you to change the entry that corresponds to your
misbehaving motor to the opposite of its current setting. If it's currently true set it to false and vice-
verse. If you have more than one, change those as well. For example, if your Y axis Cheapskate
headed for the floor when you hit the reset button, you'll change INVERT_Y_DIR to true. Once
you've made your changes, click "File", "Save" and then hit the Upload icon to send your updated
firmware to the RAMBo controller.
Once the upload finishes, click the CONNECT button in MatterControl to reconnect to the
printer. You'll need to click on the Advanced Controls button in order to return to the control screen.
The next test involves moving the axes around to make sure they're free and clear and there's no
"bad" noises going on. Make sure that you're on the CONTROLS screen and hit the Home All icon
line you did before. All three axes should travel to the top of the machine and "bounce" off the end
stop switches.
Click the OPTIONS button and then click the SHOW TERMINAL button.
Send "G0 Z200 F3500". This will move the effector platform down a few centimeters. The
idea is to get them off the end stops so we can move things around a bit.
Rostock MAX v2 User's Guide

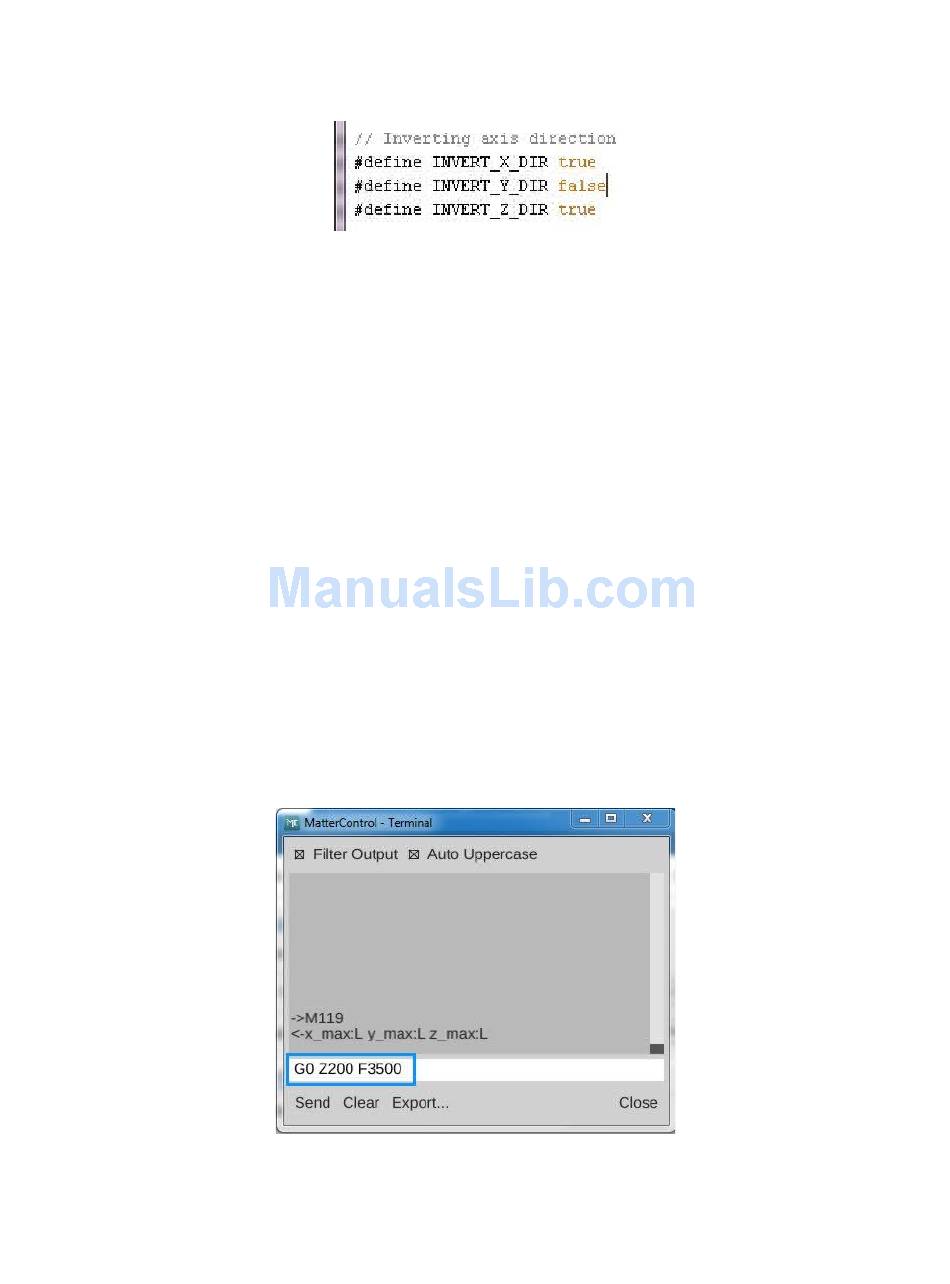

Fig. 2.2-6: Axis directions.
Fig. 2.2-7: Getting some room to move!
2 – Installing MatterControl and Calibrating the Printer - 24
