1.5 – Uploading Repetier-Firmware
Now it's time to load Repetier-Firmware into the Arduino IDE and upload it to the RAMBo
controller! Click "File", "Open" and browse to where you unpacked the master.zip file you
downloaded from the SeeMeCNC github repository. Select the file "Repetier.ino" and click the Open
button. Note that Windows may hide the program suffix (.ino) from you.

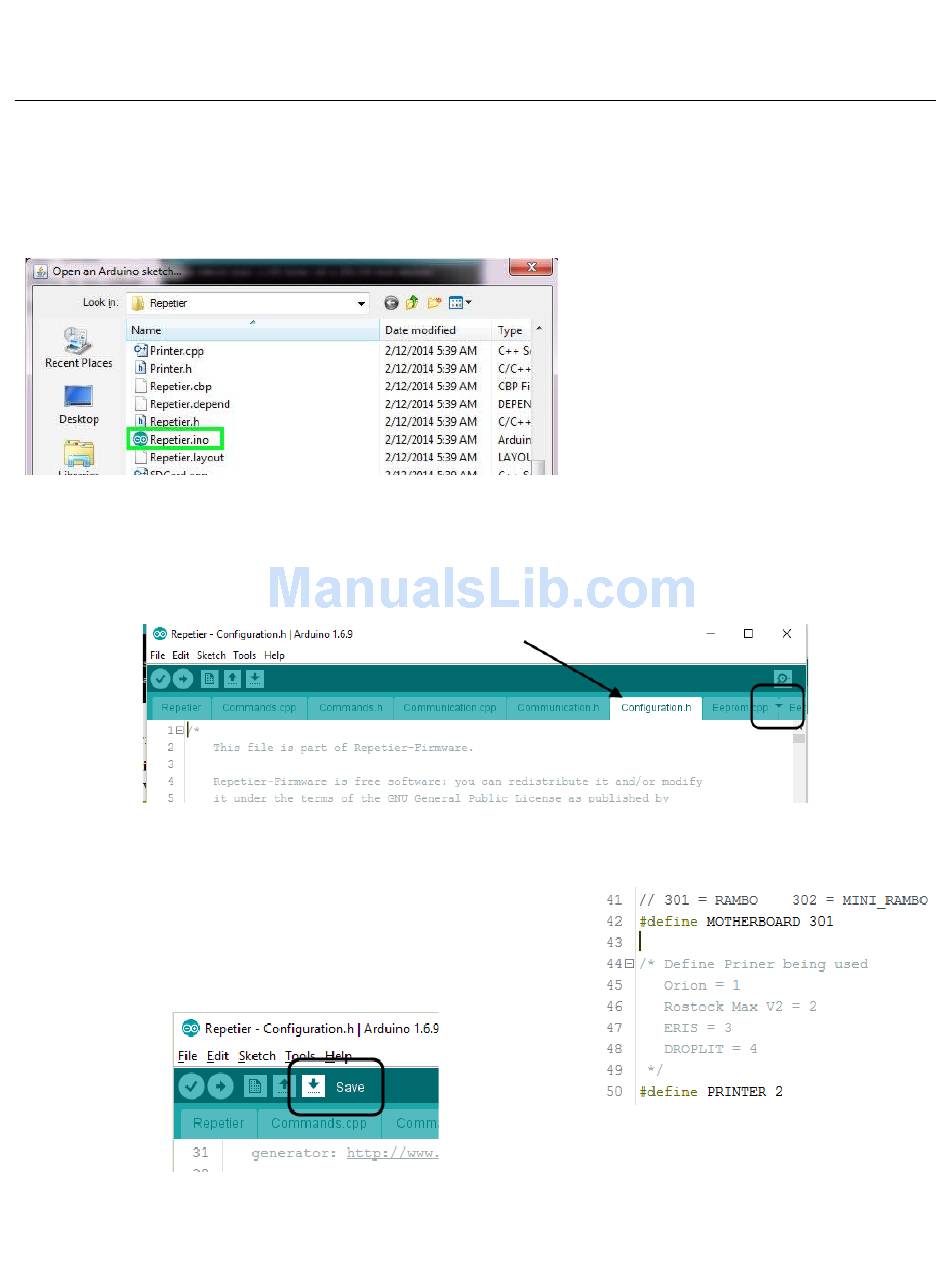

Fig. 1.5-1: Opening Repetier.ino
Before you can upload the firmware to the RAMBo, you're going to need to make two small
changes to how the firmware is configured. Once you have the firmware loaded in the Arduino IDE,
click on the tab marked Configuration.h.
Fig. 1.5-2: The Configuration.h tab in the editor.
Now scroll down a short way until you see the section that matches the figure below.
You'll need to make sure that the MOTHERBOARD
definition is set to "301" for the RAMBo board and the
PRINTER option is set to "2" for the Rostock MAX v2. Click
on the Save icon to save your changes.
Fig. 1.5-4: Save changes!
Rostock MAX v2 User's Guide
1 – Driver and Software Installation - 11
Fig. 1.5-3: Configuration options.
