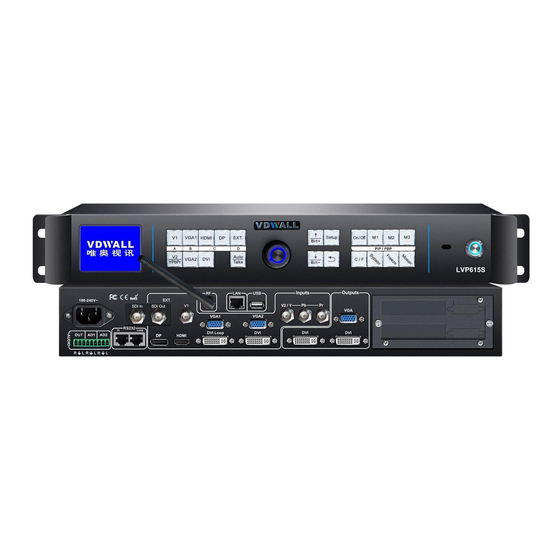

Vdwall LVP615U User Manual

Led hd video processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

LVP615U
LED HD Video Processor
User Manual
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVP615U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vdwall LVP615U

Summary of Contents for Vdwall LVP615U

  • Page 1 LVP615U LED HD Video Processor User Manual V1.0...

  • Page 2: Table Of Contents

    LVP615U 使用说明 Contents Chapter 1: Safety precautions -------------------------------------------------- 4 Chapter 2: Item list -------------------------------------------------------------------- 5 Chapter 3: Hardware connection Rear view-------------------- --------------------------------------------------- 6 Port description----------------------------------------------------------------- 6 Hardware connection diagram----------------------------------------------- 8 Specifications---------------------------------------------------------------------9 Product dimensions------------------------------------------------------------11 Chapter 4: Front panel and remote control instructions...
  • Page 3 Chapter 7: Remote control instructions Hardware communication-------------------------------------------------- 48 7.1.1 RS232 and USB-------------------------------------------------------------- 49 7.1.2 Wired network---------------------------------------------------------------- 50 7.1.3 WIFI connection--------------------------------------------------------------- 51 LVP615U series PC control software instructions---------------------- 7.2.1 Control method---------------------------------------------------------------- 58 7.2.2 Software interface instructions-------------------------------------------- 59 APP remote control---------------------------------------------------------- 76 7.3.1 Connection----------------------------------------------------------------------- 77 7.3.2...

  • Page 4: Chapter 1: Safety Precautions

    LVP615U 使用说明 Chapter 1: Safety precautions ！Danger There is high voltage in the processor, to prevent any unexpected hazard, unless you are maintenance, please do not open the cover of the device. ！Warning 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device.

  • Page 5: Chapter 2 Item List

    LVP615U 使用说明 8. Please immediately unplug power cord and have the device repaired, when Liquid splashes to the device. The device is dropped down or cabinet is damaged. Obvious malpractice is found or performance degrades. Chapter 2 Item List Please unpack the product carefully, then check whether all the following things are included in the package.

  • Page 6: Chapter 3 Hardware Connection

    LVP615U 使用说明 Chapter 3 Hardware connection 3.1 Rear view 3.2 Ports description 3.2.1 Video signal inputs (INPUT) LVP615U supports 8 video signals input as follows: Port Description...
  • Page 7 1* Extended PAL/NTSC composite video input 3.2.2Audio input signals（AUDIO） LVP615U supports 5-channel stereo audio inputs switching. Of which, 3channels are DP, HDMI and USB input. The other 2 channels are AD1, AD2 external audio input. AD1 and AD2 can be mapped to any one of signal inputs, and will be switched synchronous to the selection of video input signals.

  • Page 8: Hardware Connection Diagram

    LVP615U 使用说明 3.2.4 Other ports Port Description TCP/IP local area network control interface USB communication port Serial communication interface, used to RS232 IN connect the RS232 port of PC to realize PC software control. Serial communication cascading output for connecting the RS232 IN of next unit,...

  • Page 9: Specifications

    LVP615U 使用说明 3.4 Specifications...
  • Page 10 LVP615U 使用说明 Inputs 2×Video 1×YPbPr 2×VGA（RGBHV） Nums / Type 1×DVI（VESA /CEA-861） 1×HDMI（VESA /CEA-861） 1×DP（VESA） 1*EXT ( USB) Video system PAL/NTSC Composite Video 1V（p_p）/ 75Ω Amplitude Impedance VGA format PC（VESA standard） ≤2048×1152_60Hz Amplitude R、G、B = 0.7 V（p_p）/ 75Ω Impedance SD/HD（CEA -861）...
  • Page 11 LVP615U 使用说明 JPG 、 PNG 、 BMP ， max Picture format resolution 15million. Video：BNC YPbPr：BNC×3 VGA：15pin D_Sub(female) Input connectors DVI：24+1 DVI_D HDMI：HDMI port A type DP：Display Port USB:USB A type 1024×768_60Hz/75Hz 1280×1024_60Hz/75Hz 1600×1200_60Hz 1920×1080p_50Hz/60Hz 1366×768_60Hz 1440×900_60Hz 2048×1152_60Hz VGA/DVI format 2560×816_60Hz 2304×1152_60Hz...

  • Page 12: Product Dimensions

    LVP615U 使用说明 Product Size 483(L) x 274(W) x 66.6(H)mm Weight G.W.：5.7 Kg, N.W.：4.2Kg 3.5 Product dimensions...
  • Page 13 LVP615U 使用说明 RS232 cable order：...

  • Page 14: Chapter 4 Front Panel And Remote Control Instructions

    LVP615U 使用说明 Chapter 4 Front panel and remote control instructions LVP615U supports front panel button, remote control, RS232 and LAN control. Same printing on remote control buttons and front panel buttons,same button functions. The instructions are as below. 4.1 Front panel buttons and remote control schematic...
  • Page 15 LVP615U 使用说明 The buttons on remote control have the same functions as the relative buttons on front panel. 4.1.1Input signal selection buttons ） ：select the （ ， input signal. 4.1.2 Setup buttons( ), Set the output ， image parameters. 4.1.3...
  • Page 16 LVP615U 使用说明 4.1.5 PC signal bypass output ( )：Switch between part and full display of PC signal. The indicator shows the current state of the input signal. 4.1.6 PIP/PBP keys（ ， ， ， ） ： :PIP/PBP turn on/ off button. When the indicator is on, press input signal selection to choose different group input or current input itself as the PIP signal.

  • Page 17: Remote Control Operation Instructions

    4.2.1 Open the battery compartment on the back of the remote control, make sure the battery effective contact 4.2.2 Please aim remote control to the sensor area of LVP615U, if there is obstacle between them, LVP615U may not receive command.

  • Page 18: Input Signals Selection

    LVP615U 使用说明 5.1 Input signals selection LVP615U supports two signal switching methods including“One key switching”and“Pre.+Take switching”. The switching method can be set in user setup menu “2.6 switch mode”. “One key switch” is default method. One key switch to new input signal through input signal selection buttons. ；...
  • Page 19 LVP615U 使用说明 Input signal selection as follows： Buttons Description 1* Composite video signal input (PAL/ NTSC) 1* Composite video (PAL/ NTSC) or analog component video input 2 * PC analog signal input 1*DVI digital signal input 1 * HDMI digital signal input...
  • Page 20 LVP615U 使用说明 Input： HDMI In Status： 1080p_60Hz -------------------------------------- Output Size： 1920x1080 Output Start： （0，0） -------------------------------------- Switch Mode： One Key SW. Switch Time： 1.5 Sec After select input signal, The first line on the LCD display the current input signal. Like：“ Input：HDMI ” 。The second line on the LCD display the signal status.If no active input, display”...
  • Page 21 Note ： Pre.+Take switch only available for seamless switching. LVP615U supports seamless switching between any two different input groups as follow.
  • Page 22 Switching effect includes seamless switching (0s), Fade in/ Fade out (o.5s 1s 1.5s) and blend switching. Seamless switching（Cut） ：On the LCD“Switch time” is 0s. LVP615U default switching is CUT. Fade in fade out （ Fade） ： On the LCD“Switch time”is 0.5s、 1.0s or 1.5s. In this mode, different group signals support fade in fade out switching.

  • Page 23: Pip/Pbp Operation

    LVP615U 使用说明 5.2 PIP/PBP operation LVP615U allows to insert PIP window on the current display signal. That is dual image display function(PIP/PBP)。PIP signal can be any input signal from other input groups or current input signal itself. （signal group refer to page 19signal group list）Dual image size can...

  • Page 24: Mosaic Operation

    M2、M3 directly to select display mode fast. 5.3 Mosaic operation Multiple units LVP615U cascading can drive huge resolution LED screen. Only when the current input is DVI, press Mosaic button and the indicator is on. LVP615U enters to Mosaic operation. Press the button again and the indicator is off, LVP615U exits Mosaic.

  • Page 25: Other Basic User Operation

    64 or 100. 5.4.2 VGA input auto adjustment (Auto) When LVP615U is in one key switch status and current valid input signal is VGA, press Auto button to adjust VGA input signal sampling parameters. Then the VGA output image can be clear and full.
  • Page 26 Note:When the width and height of input image are lower than the LED screen real width or height value. Part display is invalid. 5.4.4 Text overlay LVP615U allows for overlapping text, logo or flash on the current image. The operation is as below. When the current input display properly, enter setup menu“3.Text overlay”...

  • Page 27: Chapter 6: Setup Menu Instructions

    Press Freeze button and the indicator is on, the current image is frozen. Press Freeze button again or switch to another signal to exit Freeze status. 5.4.6 Device information view (OK) In signal switching status, press OK to check the LVP615U current setting and information. System info -------------------------------------- model：...

  • Page 28: Output Image Setting

    LVP615U 使用说明 setup -------------------------------------- 1. Out Image ＞＞ 2. Input Video Signal ＞＞ 3. Text Overlay ＞＞ 4. Color&Brightness,etc ＞＞ 5. Audio ＞＞ 6. Communication ＞＞ 7. 语言/Language ＞＞ 8. Advance ＞＞ After the system starts，Press Setup to enter the setup menu.Then button to select the corresponding menu item to be set.
  • Page 29 1.6 Test Pattern 6.1.1 Set output format LVP615U can output image from the VGA OUT and 2 DVI OUT. There are 16 fixed output format and custom output format.（ refer to page 9specifications ） . Users can select fixed output format not less...
  • Page 30 LVP615U 使用说明 tips -------------------------------------- Data will reset Press <OK> to reset Press <return> to cancel Note: to custom output format，after selection，need further set 1.1.1 custom width、1.1.2 custom height and 1.1.3 custom V frequency. Press ↓ button to 1.1.4 Apply ， Press “OK”to make parameters effective.
  • Page 31 LVP615U 使用说明 6.1.2 Set output image parameters LED screen real resolution can be arbitrary. So we need set LVP615U to output the same image as the led screen. Then the LED screen can display whole image. （0，0） Out hori start_LL Out_hori_width...
  • Page 32 LVP615U 使用说明 6.1.3 Test pattern LVP615U can generate 36test patterns for LED screen testing. If this item value is “off”, turn off Test pattern. Select other number and confirm.Then one corresponding test pattern of 36 pcs will be selected. Operation steps：...

  • Page 33: Input Video Signal Setting

    LVP615U supports custom DVI EDID. In concert with “custom output format” ， LVP615U can realize DVI input image and output image pixel to pixel display. LVP615U supports 16 fixed DVI EDID and custom EDID. Normally the parameters setting should be consistent with“custom output...
  • Page 34 V1 signal is lost, processor will switch to V2 automatically. 6.2.3 V2 or YPbPr selection V2 and YPbPr of LVP615U share the same port and button. Need configure. Default input is V2. If need YPbPr input, then need set this...
  • Page 35 LVP615U 使用说明 port to YPbPr. Operation steps： In the menu of 2.5 V2 or YPbPr，rotate knob to select needed parameters and press “OK” to make them effective. 6.2.4 Signal switch mode Press Setup to enter setup menu， press ↓ to select “2. Input video signal”，Then press OK to enter“2.input video signal ”，and press ↓...

  • Page 36: Text Overlay Setting

    If need turn it off, enter 3.1 text overlay and switch it off. 6.3.2 Text overlay parameters setting 3.1Text mode ： LVP615U can custom text mode < threshold or > threshold. < threshold means text signal image which is less than the current threshold value will overlay on the current signal.
  • Page 37 LVP615U 使用说明 text signal image which is bigger than the current signal will overlay on the current signal. Threshold R /G/B ： This is used to set three thresholds subtitles red, green and blue respectively for a particular value between 0 to 248.
  • Page 38 Default -------------------------------------- 4.1 Input color V1=50 V2=50 HDMI=50 DVI=50 DP=50 EXT=50 V1=50 All=50 4.2 Sharpness normal 4.Color&Brightness Default -------------------------------------- 4.3 Brightness LVP615U supports custom color,sharpness and brightness setting. List as follow: Item name Definition 4.1 color Adjustment range：0~100， default 50...

  • Page 39: Audio Setting

    5.1 AD1 Config 5.2 AD2 Config LVP615U supports 4 channels of stereo audio input signals. Three of them are HDMI and DP audio. The other two AD1 and AD2 are external input. Audio input signals for AD1 and AD 2 can be configured...

  • Page 40: Communication Setting

    LVP615U can be remotely controlled via Ethernet. Communication setting menu is used to set network parameters including IP address, mask, gate, MAC and number the multiple LVP615U under the same IP. The following is the method of operation： In the menu of “6. Communication”,press ↓...

  • Page 41: Language Setting

    OK to save. The LCD screen will give tips to restart the system and do according to the prompt. 6.7 Language setting LVP615U supports Chinese and English language.Rotate knob to select one and press OK to save. 7. Language -------------------------------------- 7.1 语言...

  • Page 42: Advance Setting

    LVP615U 使用说明 2、 6.8 Advance setting 8.advance default -------------------------------------- 8.1 ADC calibration OK to apply 8.2 Bias 8.3 EXT.Input model EXT.VIDEO 8.4 De-Interlace 8.5 Bright level 0-64 8.6 DVI hotplug 8.7 Wifi reset OK to apply 8.8 Device reset OK to apply 6.8.1 ADC Calibration...
  • Page 43 But this will also bring information loss of images, especially dark images like night scenes. LVP615U can adjust“ 8.2 Bias ” parameters to adjust. The value range is ：0— 100. In the case dark image information lost, adding this value will bring back the lost information and fully display the image on LED display.
  • Page 44 LVP615U 使用说明 This option is used to remove trembles, which might happen when inputs are CVBS/S-Video/HDMI/SDI signals interlace signals (e.g.: 1080i) and used as PIP. Operation is as below: Enter “8.4 De-Interlace”, rotate knob to select “On”, press “OK” button to make setting active.
  • Page 45 LVP615U 使用说明 1） 6.8.7 Wifi reset The menu item is used for resetting LVP615U’s Wifi module parameter. Operations as below: Enter “8.7 Wifi Reset”, press “OK” button, there is one information on LCD screen to remind you data will reset. Press OK button to apply.

  • Page 46: Pip/Pbp Setting

    1080 D.7 MAIN H_Start D.8 MAIN V_Start The setup option is used to set LVP615U’s three user defined PIP/PBP mode. Operation as below: When LVP615U’s PIP/PBP status is open (the indicator light on “On/Off” button is lit up), press Setup button, LVP615U enters “D. PIP/PBP” menu. Then press...

  • Page 47: Mosaic Setting

    PIP Width main H_start Main V_start Pip out image PIP height Main out image Main height 1920×1080 LVP615U output resolution = Main width 1920 6.10 Mosaic setting E.Mosaic（Video Wall App） -------------------------------------- E.1 LED Total Width 3840 E.2 LED Total Height 2160 E.3 Unit Width...
  • Page 48 LED screens can be integrated into a large display. For example, if the output definition of LVP615U is set as 1920×1080, and we put 2 sets of LVP605 together horizontally in parallel, it will be able to connect any LED display of up to 3840×1080 pixels.
  • Page 49 4.2 sharpness and 8.2 bias must be same. Operation is as below: When the input signal of LVP615U is DVI format and the splicing mode is open (Mosaic indicator lit up), press Setup, LVP615U enters splicing menu. Press ↓button to select setup option needed to adjust, rotate knob to change parameter, press OK button to save.
  • Page 50 Observing image splicing effect. If any problem, enter fine adjustment menu option E.9~E.16 to adjust image. Below is a 2×2 mosaic example using 4 sets of LVP615U, telling us how to use multi-units cascade of LVP615U and what we should pay attention to.
  • Page 51 #0 LVP615U. The 2 same DVI outputs of #0 LVP615U are connect to #1 LVP615U and #2 LVP615U. Then DVI loop to #3 and #4. After that, the output signal of #0 LVP615U is cropped and scale up in #1 LVP615U, #2 LVP615U, #3 LVP615U and #4 LVP615U.
  • Page 52 LVP615U 使用说明 Unit vertical start E.8 Synchronization splicing In order to ensure all output images are synchronous to each other, please note the following settings: 1. The input signals can be only DVI signals, and if the processor is in mosaic mode, it will be unable to switch input signals;...

  • Page 53: Chapter 7 Remote Control Instructions

    Here we instruct the hardware connection and software operation as below. 7.1 Hardware communication LVP615U remote control ports include RS232, USB, Wired network and Wifi control. As below we illustrate hardware communication connection and setup respectively.

  • Page 54: Rs232 And Usb

    LVP615U 使用说明 7.1.1 RS232 and USB RS232 is common port for remote control. When use RS232 control, we only need to use an RS232 cable to connect PC to processor’s RS232 port, then we can use software to remote control processor. When PC does not have RS232 port, USB control method can be used.

  • Page 55: Wired Network

    LVP615U built-in network convert RS232 module, after wired network connecting LAN and setting relative network configuration parameters (refer user manual page 38 “6. Communication ”), LVP615U has been a work station in the local area network. So another terminal device in the local area network can control the LVP615U through software.

  • Page 56: Wifi Connection

    LVP615U 使用说明 7.1.3 WIFI connection LVP615U is built in WIFI module. Through this module, user can achieve WIFI remote control of LVP615U. The module supports 2 WIFI connection methods: First., Wireless Router, another wireless device connects the module directly and control.
  • Page 57 LVP615U 使用说明 7.1.3 WIFI connection Using laptop with wireless network, open network and share center, search and connect the wireless network named LVP615U, the default WIFI password is 88888888 Configuring network be automatically obtain IP address and DNS server address, show as the picture below:...
  • Page 58 LVP615U 使用说明 Configuring network be automatically obtain IP address and DNS server address, show as the picture below:...
  • Page 59 Note: if can’t connect, entering setup menu “8.7Wifi reset” to reset WIFI module (refer user manual page 48), then restart and connect. 7.1.4 Wireless Module Configuration 1) Running wireless scan configuration software “LVP615U WIFI Config Tool.exe”, the application software is as below.
  • Page 60 LVP615U 使用说明 2) Click “Scan” to search LVP615U in the local area network, after searching module the information display as below.
  • Page 61 LVP615U 使用说明 (3) In scan list click relative WIFI module, when appear dialog box, type in user name (default name is admin) and password (default password is admin), software will remind “module identify successfully” and “obtain configuration parameter successfully”, meanwhile software interface will display relative information.
  • Page 62 Mainly used to reset module, or control WIFI in the status of no local area network. (Recommended) Make the LVP615U as a work station, configure and join a wireless network. It can be realized by typing in router name and password.
  • Page 63 LVP615U 使用说明 AP setting...
  • Page 64 LVP615U 使用说明 Click search key to find the around wireless network. STA setting Notice: Better use manual method instead of automatic method to avoid disconnection due to IP address changes.
  • Page 65 LVP615U 使用说明 c. Serial Port Parameter Setting This step is for setting basic parameters of serial port, after modifying configuration, click “save” button to save change. As the picture below shows, the boardrate should be 9600. d. Socket Setting This step is for Setting basic parameter of Socket. Single or Double Socket are supported, After setting configuration, click “Save”...
  • Page 66 LVP615U 使用说明 E. A super manage Super manage includes modifying user name and password of module (Identification information), name and group name of module, reset module and reset to default, Please set according to needs. See the picture below:...
  • Page 67 LVP615U 使用说明 7.2 PC control software instructions LVP615U’s control software used to control LED HD video processor LVP615U. Through the software, we can realize:  Selecting input signal switch by seamless switching or fade in fade out mode  3 user defined modes of double picture display or test overlay ...

  • Page 68: Control Method

    LVP615U 使用说明 7.2.1 Control method As illustrated above, the PC remote control of LVP615U can realize connection by RS232, USB, LAN or WIFI. After connecting and needed configuration, we can run the control software: “LVP615U Control Software.exe” 1、 Introduction of Software Interface...
  • Page 69 LVP615U 使用说明 As shown above, there are 9 main parts of the software: Communication Setting Language Setting Signal Switch Function and Mode Selection Information Timing Control Setting Output Parameters Setting(Screen Setting) Multi Units Cascading Splicing Setting(Quick Mosaic) Output Resolution Setting...
  • Page 70 COM port number can be checked in PC’s “device manager”, show as the picture below: The device ID number you select must be as same as the LVP615U’s which you need to controlled. If select network connection, firstly must set the network connected being correct, the relative setup about wired network prefer 6.
  • Page 71 LVP615U 使用说明 。 After the device connecting successfully, every function button in software inter face has been activated. Information area on main interface displays reminder connecting successfully. Setting timer automatically start: to select whether the processor automatically connect serial port and automatically open the timing control in next starting up.
  • Page 72 LVP615U 使用说明 however, if the blue indicator blinks, it means there are no valid signal input. AUTO： VGA automatically adjust button, only available for VGA1, VGA2 and EXT.VGA. Switching effect selection, can select cut (seamless switching) and fade in / fade out (0.5s 1s 1.5s) switching.
  • Page 73 If operation is unsuccessfully, the information area will display the reason of failing. 6) Timing control setup The Timer of the Control Software can switch the input signal source of LVP615U as per the preset timer plan. The system provides four cycle timer modes, i.e.: Day, Week, Month, Once.
  • Page 74 LVP615U 使用说明 Setting timing parameter In user interface click Program, appear setup interface of timer, show as the picture below: Show as the picture above, there are two types of plan: （1） Cycle Plan （2）Once plan Cycle Plan is sub-divided into three types: （1）Day plan（timing in one day）...
  • Page 75 LVP615U 使用说明 Each month has maximum 31 days, so the plan items of Month Plan define date, hours, minutes, seconds; The plan items of Once Plan define year, date, hours, minutes, seconds; Cycle plan and once plan can work together.
  • Page 76 LVP615U 使用说明 7) Output date setup In user main interface click Setup, appearing the setup interface of output parameter, in the interface user can set output parameters of processor. As shown in above figure, the button “Refresh” is used to update the information of currently processing parameters after parameters configuration is finished.
  • Page 77 LVP615U 使用说明 Show as the picture Screen output parameters include these parts as below: Image input/output parameters configuration and mosaic mode setup The parameters of output windows should be configured to the actual pixels of the screen to be driven.
  • Page 78 LVP615U 使用说明 (2)PIP/PBP display setup (location and size of PIP windows) This menu is used to set the three PIP/POP display modes of LVP605,first, select a PIP mode to be adjusted, then enter the parameters of background, location and size of PIP windows, then click “Save”...
  • Page 79 LVP615U 使用说明 (4)Brightness, color, bias, sharpness setup These options is used to set brightness, color, bias and sharpness of output image, after save reset typing in desired parameter click button to save, or click button to reset parameters being default value. Directly click “Normal” or “Sharp”, the parameters will be saved.
  • Page 80 LED driven by each set of processor, the program will automatically calculate the mosaic parameters of each set of processor and save them in the corresponding processor. Enter Fast Mosaic Menu: after entering main menu of LVP615U, click “rapid splicing”, the menu as below will pop up.
  • Page 81 LVP615U 使用说明 Caution: before making the mosaic settings, please make sure the following conditions have been met: (1)All processors are the same with each other in brightness, color, contrast and definition. All processors must use the same output resolution, and make sure it the same with that of input DVI signals.
  • Page 82 LVP615U 使用说明 a full picture independently. Connect all the processors or the first processor to be adjusted via serial ports. (1)Using software connect processors Select the device ID of the first processor to be adjusted (from user setup item 6.5 “Device ID”), click “Connect”, the processor will automatically connect the processor, the software...
  • Page 83 Caution: both input and output parameters of LVP615U must be even, but the results of auto calculation may be odd, if so, it is necessary to set an adjusted value to correct the parameters to be even, then you can click “Set”...
  • Page 84 LVP615U 使用说明 At the main interface of LVP615U control software，Click Resolution And then the above interface will appear.In this interface ，the user can set the output resolution. Setting output resolution: click downward triangle to select a proper output resolution, processor will apply the resolution selected automatically. If select custom resolution, you need to set the width, height and frame, after configuring click OK to apply the resolution.

  • Page 85: Connection

    Firstly, through local area network (LAN interface) or WIFI connect LVP615U and mobile device installed APP. In here we illustrate by using router function of LVP615U’S wifi module. Open wireless LAN switch of IOS device, in the network searched out, connect the WIFI hot point named LVP615U, the default password is 88888888.
  • Page 86 LVP615U 使用说明 Connection button Click connect ，If the communication is normal，this button’s color will change into green from gray.
  • Page 87 LVP615U 使用说明 If connect unsuccessfully, click communication option in adjustment setup, to make sure the setup is correct or not.
  • Page 88 LVP615U 使用说明 2、 APP Operation...
  • Page 89 LVP615U 使用说明 After connection is successful, through software, users can control LVP615U, displaying as the guide interface above, APP has four function areas: operation control, setting, Mosaic setting and information. Single click guide interface, the corresponding buttons will enter selected function interface. We illustrate the four function areas respectively as below.
  • Page 90 LVP615U 使用说明 The main functions of operation control interface include: signal switch, PIP/PBP, Text overlay and other functions. （1） Signal Selection&Switch LVP615U could support one key switch and Preselect+Take Switch.
  • Page 91 LVP615U 使用说明...
  • Page 92 LVP615U 使用说明 Signal Switching Mode Selection In operation interface click signal switch mode, pop the interface as below, click to select appropriate switch mode. Switching Time Selection In operation interface, click switching time, popping the interface as below, click appropriate switching time.
  • Page 93 LVP615U 使用说明 One key switch LVP615U’s default signal switching mode is that clicking corresponding button in signal source selection area to switch signal. Preselect+Take Switch The switch method’s interface as below, preselect firstly through signal source button,then through TAKE button to switch input signal source;...
  • Page 94 LVP615U 使用说明...
  • Page 95 LVP615U 使用说明 （2） PIP Display...
  • Page 96 LVP615U 使用说明 PIP operation interface as the picture above, operation steps: Firstly in operation interface click PIP to open PIP function, then click PIP...
  • Page 97 LVP615U 使用说明 signal in popping PIP signal selection interface; through mode button （ M1,M2,M3 ） , Users could select corresponding display mode. Click PIP setting in popping setting interface, users can set the location and size of main signal and PIP signal.
  • Page 98 LVP615U 使用说明 User input specific parameters of main window and PIP window. Press + and - to adjust. Sketch map of main and PIP window’s location size. By multi-point touching in the area, user could zoom in and zoom image;...
  • Page 99 LVP615U 使用说明 Firstly in operation interface click text overlay to open the function, then click text signal select relative input signal in popping interface; if needy to set the text threshold and other parameters, users could click text setting in popping interface.
  • Page 100 LVP615U 使用说明 （4） Other Functions Bypass: Corresponding with the button BYPASS on front panel, namely part or full display function button. Freeze: Corresponding with the button Freeze on front panel; namely image freeze function button. Mosaic: Corresponding with the button Mosaic on front panel,namely splicing function button.
  • Page 101 LVP615U 使用说明 （1） Output Resolution...
  • Page 102 LVP615U 使用说明 Select the appropriate resolution in output resolution menu. And click setting, the processor will change to new resolution. If selecting custom resolution, user needs to set the corresponding width, height and frame frequency. （2）Output Image Parameter...
  • Page 103 LVP615U 使用说明 The interface is used to set the location and size of output image, user could enter parameter manually, then through + and - to adjust parameters, in diagram area of output parameters, through multiple-point touching to zoom in or zoom out image size, single-point touching to drag and adjust image location.
  • Page 104 LVP615U 使用说明 （4）Image quality...
  • Page 105 LVP615U 使用说明 Reset is used to return to default value In image quality interface, users could set LVP615U output brightness, sharpness, bias and set every input signal’s color independently.
  • Page 106 Audio setting interface could set LVP615U’s corresponding input signals of two audio inputs, in order to achieve audio and video synchronous switch. （6） Network Setting Network setting menu is used to input network parameter of LVP615U, this is the premise of remote control. （7） Language Setting...
  • Page 107 LVP615U 使用说明 LVP615U remote control APP only support Chinese and English interface presently, click language and exit language setting interface, then the language selected will be applied. Mosaic setting 3） Step1. Enter the size of whole screen, and the size and location of the processor in use Step2.
  • Page 108 LVP615U 使用说明 To achieve splicing function before entering Mosaic, need to make sure these settings as below. （1） The current input signal is DVI （2） The resolution of DVI input signal must be as same as the output resolution of processor （3）...
  • Page 109 LVP615U 使用说明 4） Information display The interface includes the APP-controllable model, APP version information and company information.

  • Page 110: Chapter 8 Copyright Information

    LVP615U 使用说明 Chapter 8 copyright information The copyright of this Manual is owned by SHENZHEN VDWALL CO.,LTD., unless with prior consent of VDWALL, nobody is permitted to copy or use any part or all of the information contained herein. This Manual is provided for reference only, VDWALL reserves...

  • Page 111: Appendix: Modify The Record Table

    LVP615U 使用说明 Appendix：modify the record table version time description draft V1.0 2017.5.24 LVP615U first release...
