The quick use guide is for user can learn how to use LVP605 series LED HD video processor
quickly, about further setup, performance and operating method of LVP605, please refer
"LVP605 User's Manual".

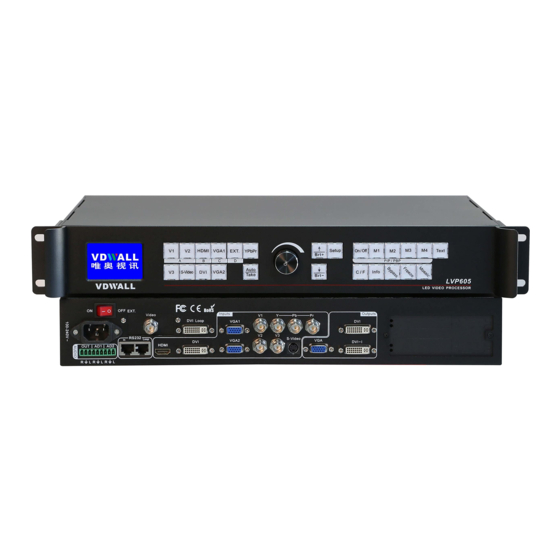

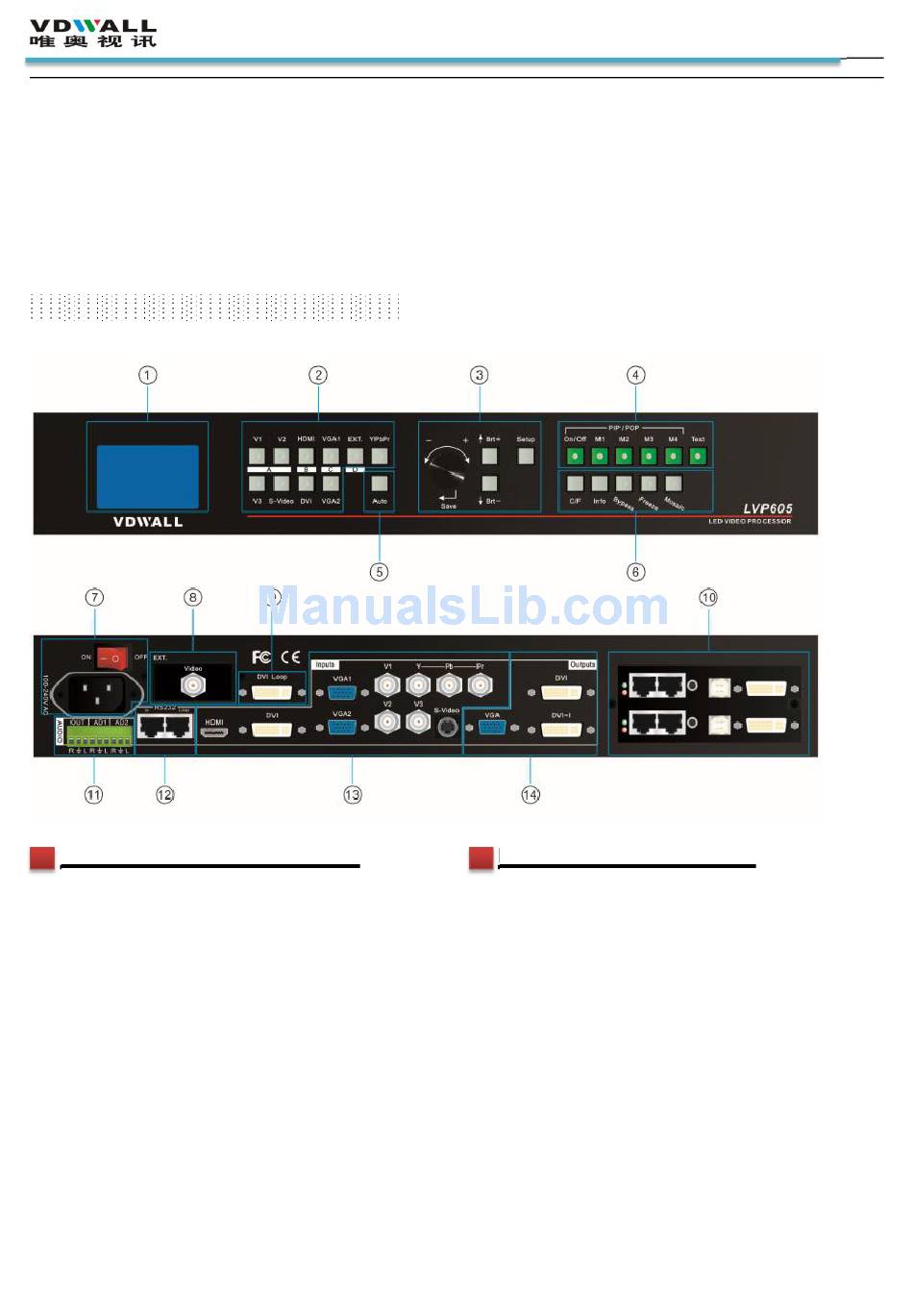

Frontal\Rear panel introduction

Frontal panel introduction
○
1 LCD screen (displays parameters
and information)
○
2 Input signal select
○
3 Parameter setup
○
4 PIP/POP and text overlay
○
5 VGA auto
Add: Room B, 5 th Floor, Bldg. C, Tongfang Information Harbor, Nanshan Hi-tech Park, Nanshan District,
Shenzhen, China
Tel：+86-755-2675 0210
LVP605 series quick use guide
Fax：+86-755-2675 0185
LVP605 series quick use guide
Rear panel introduction
○
7 AC power jack and switch
○
8 Extended input port (optional)
○
9 DVI loop
○
10 Sending card slots(cards are optional)
○
11 External audio input and output ports
○
12 RS232 control ports
Web：www.videowall.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVP605 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vdwall LVP605

Summary of Contents for Vdwall LVP605

  • Page 1 LVP605 series quick use guide LVP605 series quick use guide The quick use guide is for user can learn how to use LVP605 series LED HD video processor quickly, about further setup, performance and operating method of LVP605, please refer “LVP605 User’s Manual”.
  • Page 2 1 ) All devices you need to operate should be power off. 2 ) The output port of all players connect to relevant input port of LVP605, for example: PC Graphic Card’s DVI output port connects to LVP605’s DVI input port.
  • Page 3 Step 5: Output resolution setup After LVP605 starting up normally (PIP and Mosaic is closed) 1 ) Press Setup key, then press Knob (Save key), LVP605 enters setup menu. The first option: Language 2 ) Rotate Knob can choose “Chinese” or “English”, press Knob (Save key) to save.
  • Page 4 Setting multi-displayer, select “Copy mode” ,“Extend mode” or “double display mode” etc. 2 ) In Modify resolution, setting displayer LVP605’s resolution as same as the resolution you have set in step 5. At this time LVP605’s LCD displays current output resolution of Computer Graphic Card.
  • Page 5 3 ) At the moment press signal key to choose signal for PIP/POP. 4 ) When PIP/POP is open, press PIP ON/OFF key to exit the function. 5 ) LVP605 can save 4 different PIP/POP modes, press mode key M1 M2 M3 M4 to choose. Step 10: Setting PIP/POP parameter 1 ) When PIP/POP is in open status, press mode key M1 M2 M3 M4 to save setup parameters to the mode.
