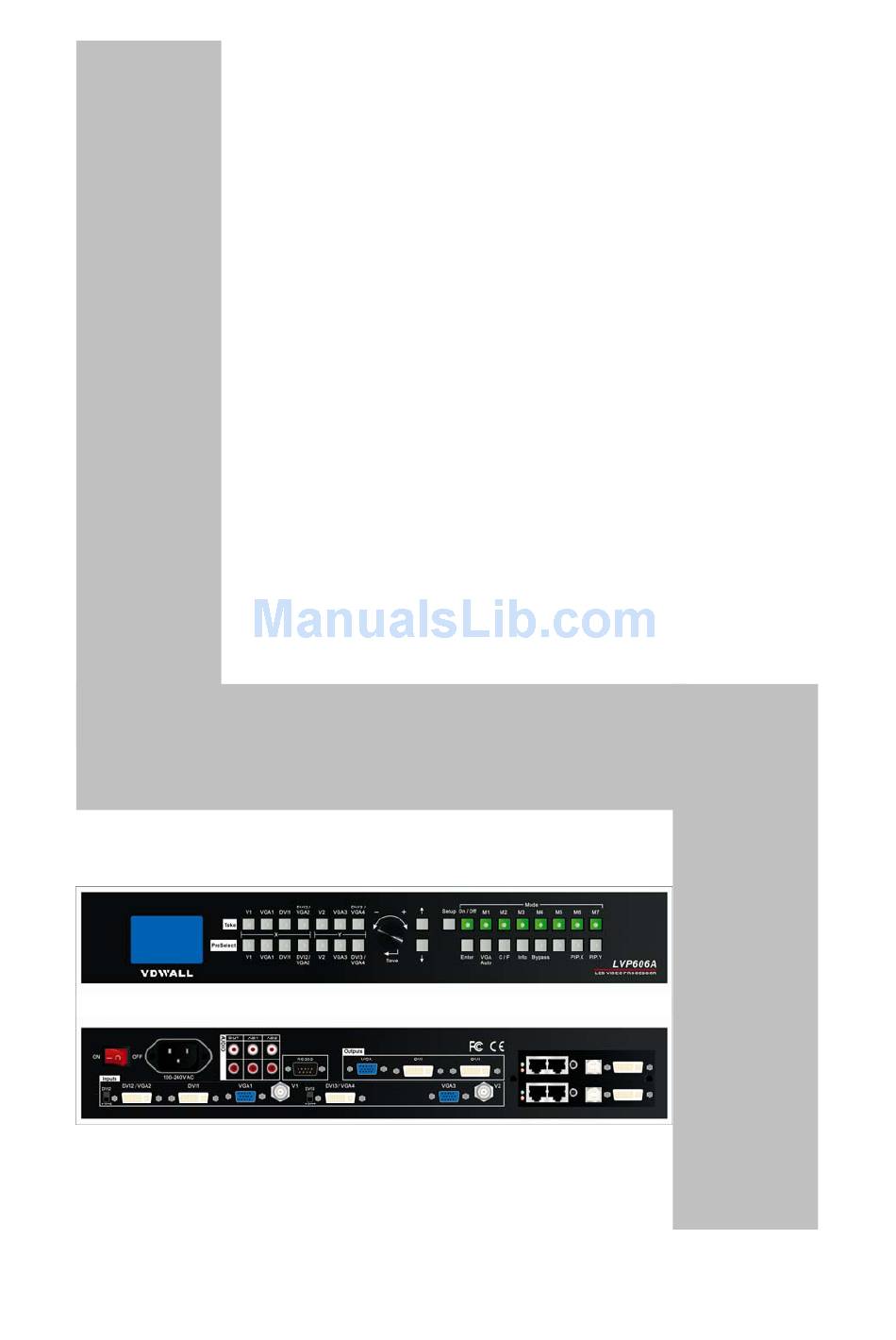

- Page 1 LVP606A LED HD Video Processor USER’S MANUAL...
-
Page 2: Table Of Contents
3. Connection diagram IV. Frontal panel operations 1. Diagram of frontal panel 2. Button instructions (operation mode) V. Setup 1. Enter setup of LVP606A 2. Select language 3. Output image setup 4. Brightness / color / definition 5. Audio configurations 6. -
Page 3: Safety Precautions
LVP606A User’s Manual I. Safety Precautions Danger! There is high voltage in the processor, to prevent any unexpected hazard, unless you are maintenance, please do not open the cover of the device. Warning! 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device. -
Page 4: Packing List
LVP606A User’s Manual II. Packing list Please unpack the product with care, then check whether all the following things are included in the package. If anything is found missing, please contact the dealer. Standard accessories The accessories supplied with this LED Video Processor may differ from the figures contained in the User’s Manual, but they are applicable for the regions... -
Page 5: Connections Of Hardware
2-channel VGA, DVI or HDMI digital HD signal input DVI3/VGA4 2） Audio Input LVP606A supports 3-channel stereo audio switch. among which, 1 channel is DVI/HDMI audio, the other 2 channels are AD1, AD2 external input audio. AD1 and AD2 can be mapped to anyone of the video inputs, and will be switched synchronous to the audio of corresponding video input signals. -
Page 6: Connection Diagram
VGA OUT be connected to a local display device and used as monitor (it is strongly recommended to use this port when operating and setting LVP606A). 2 same DVI digital graphic signal output, it can DVI OUT1 / be connected with external LED transmission... -
Page 7: Frontal Panel Operations
LVP606A User’s Manual IV. Frontal panel operations 1. Diagram of frontal panel Figure 3 1） Input preselecting button (Preselect): While in non-PIP mode, the buttons are used to preselect the input signals, so as to display the status of current signal and preselected signal. -
Page 8: Button Instructions (Operation Mode)
Indicator lights display the codition of the mode. And other buttons are used for mode setting or switching. 2. Button instructions (operation mode): There are 32 buttons on the frontal panel of LVP606A, all these buttons will be operable after start. they have the following functions as described below:... - Page 9 3) Information display (Info) Press this button to view current settings and information of LVP606A, it consists of 46 items. If you press “Info” again before LVP606A exit information display, LVP606A will continue to display the next item of information.
- Page 10 Press buttons to select appropriate input signal as main picture, then enter PIP mode again, and select a new PIP picture. Change location of PIP: LVP606A allows for presetting 9 PIP sizes and locations (namely 9 windows), including the locations of the output window for the LED display and 8 PIP windows.
-
Page 11: Setup
For ordinary users, unless they have received adequate technical training, they shouldn’t attempt to make the following settings! There are 48 items in 5 categories available for you to set in LVP606A. Technicians can set these items as necessary, for details see the table below:... -
Page 12: Enter Setup Of Lvp606A
1. Enter Setup of LVP606A While in operation mode, continuously press “Setup” for 8 times, “Password: 8 Enter Setup …” will appear in LCD, LVP606A will enter No.1 setup item. After LVP606A enters setup mode, the 3 buttons and the knob on... -
Page 13: Select Language
？: ask you whether to save the adjustment； ！: The adjustment already be saved and takes effect. Newly adjusted value Name of current setting item 2. Select language Item 1: “Language 语言 ” After entering setting mode, LVP606A will enter the first setting --------------------------------------------------------------------------------------------------- LED VIDEO PROCESSOR... -
Page 14: Output Image Setup
3. Output image setup LVP606A outputs images from DVI and VGA output ports. There are 9 output formats as listed in the table below. User can enter the No.2 setting item “Out Format” to select one of them. - Page 15 LVP606A User’s Manual Figure 7 As above figure shows: the size and location of the images in LVP606A output window for the LED display are defined by the following 4 groups of parameters: Item No. Parameters Description Output width Out_Width...
-
Page 16: Audio Configurations
LVP606A User’s Manual As above figure shows: the size and location of the images of LVP606A PIP window are defined by the following 4 groups of parameters: Parameters Definition Winx_Width Window x width Winx_Hori_Start Window x horizontal start Winx_Height Window x height... -
Page 17: Exit Setup
LVP606A User’s Manual otherwise the audio signals contained in DVI1 signals（only for HDMI input） will be chosen as input signals. Item Description Definition Audio1 Config Audio configuration option for AD1 port Audio2 Config Audio configuration option for AD2 port Notes: AD1, AD2 can’t be allocated to the video input signals in the same channel! 6. -
Page 18: Specifications
LVP606A User’s Manual some bad phenomena, such as color cast, extreme-darkness. LVP606A can solve the above problems by automatically calibrating white balance based on the input analog signals (CVBS, VGA). Operating procedures: Switch to the corresponding analog input signal, enter Item No. 47 after the processor detects input signals and exports the signals to the display, press the knob to calibrate white balance. - Page 19 LVP606A User’s Manual DVI Format 1024×768@60Hz/75Hz 1280×1024@60Hz/75Hz 1600×1200@60Hz 1920×1080p@50Hz/60Hz 1366×768@60Hz 1440×900@60Hz Output Connectors VGA OUT: 15pin D_Sub(Female) DVI OUT:24+1 DVI_D Others Control Panel Button,RS232 Power 100-240VAC 60W 50/60Hz Operating Temp 5-40 ℃ Humidity 15-85% dimensions 158 mm (height) ×370mm (width) ×535mm...
-
Page 20: Copyright Info
VII. Copyright info The copyright of this Manual is owned by SHENZHEN VDWALL CO.,LTD., unless with prior consent of VDWALL, nobody is permitted to copy or use any part or all of the information contained herein. This Manual is provided for reference only, VDWALL reserves right to change the product appearance, dimensions and specifications from time to time without notice to users.
