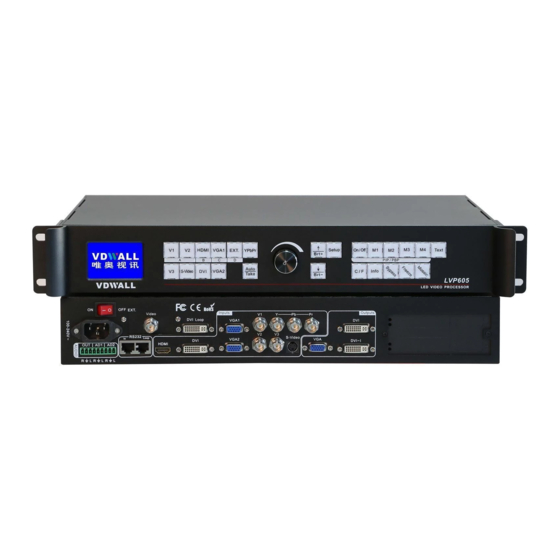

Vdwall LVP605 SERIES User Manual

Led hd video processor
Hide thumbs Also See for LVP605 SERIES:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Quick User Manual
LVP605 SERIES
LED HD Video Processor
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVP605 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vdwall LVP605 SERIES

Summary of Contents for Vdwall LVP605 SERIES

  • Page 1 LVP605 SERIES LED HD Video Processor USER’S MANUAL...

  • Page 2: Table Of Contents

    LVP605 Series User’s Manual TABLE OF CONTENTS I. Safety precautions II. Packing list III. Connections of hardware 1. Rear view 2. Port description 3. Connection diagram IV. Frontal panel operations 1. Diagram of frontal panel 2. Button instructions (operation mode) V.

  • Page 3: Safety Precautions

    LVP605 Series User’s Manual I. Safety Precautions Danger! There is high voltage in the processor, to prevent any unexpected hazard, unless you are maintenance, please do not open the cover of the device. Warning! 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device.

  • Page 4: Packing List

    LVP605 Series User’s Manual II. Packing list Please unpack the product with care, then check whether all the following things are included in the package. If anything is found missing, please contact the dealer. Standard accessories The accessories supplied with this LED Video Processor may differ from the figures contained in the User’s Manual, but they are applicable for the regions...

  • Page 5: Connections Of Hardware

    LVP605 Series User’s Manual III. Connections of hardware 1. Rear view Figure 1 2. Port description 1） Video Input LVP605 supports 10-channel signal input, including: Port name Description V1~V3 3-channel PAL/NTSC composite video input S-Video 1-channel PAL/NTSC S-video input YPbPr...

  • Page 6: Connection Diagram

    LVP605 Series User’s Manual it can be connected to a local display device and used as monitor (it is strongly recommended to use this port when operating and setting LVP605). DVI OUT1 / 2 same DVI digital graphic signal output,...

  • Page 7: Frontal Panel Operations

    LVP605 Series User’s Manual IV. Frontal panel operations 1. Diagram of frontal panel 1） Input selecting buttons (V1, V2, V3, S-Video, DVI, VGA1, VGA2, YPbPr, EXT.): They are used to select input signals 2） Setup buttons (Setup, Save, ↑,↓,←,→) They are used to set the image output parameters of the processor.

  • Page 8: Button Instructions (Operation Mode)

    LVP605 Series User’s Manual To automatically adjust VGA input signals 4） Cut / Fade switching mode (C/F): It is used to select signal switching effects, including seamlessly switching (CUT)， 0.5s, 1.0s and 1.5s Fade in / Fade out and blend.
  • Page 9 LVP605 Series User’s Manual of LCD, while the status of current input signals will appear in the second line of LCD. If there are no valid signals entered, the message “no signal” will appear in LCD, and the corresponding indicator will blink and dark screen appear; if the signal is valid, the format of input signals such as “...
  • Page 10 LVP605 Series User’s Manual appear in the third line of LCD, the system can seamlessly switch between different signals. It is also the default mode of LVP605 after startup. Fade (fading in fading out): while in this mode, “Fade=1.0s” will...
  • Page 11 LVP605 Series User’s Manual Press buttons to select appropriate input signal as background, then enter PIP mode again, and select a new PIP picture. Switch PIP/POP display mode: LVP605 allows for presetting 4 PIP/POP display modes, each mode allows for setting its own background and PIP sizes and locations.

  • Page 12: Setup

    LVP605 Series User’s Manual 2. BYPASS function has been switched on; 3. The definition of DVI input signals is different from the preset output definition of the processor. 9) Text LVP605 can add Text, company logo or animation onto current...

  • Page 13: Output Image Setup

    LVP605 Series User’s Manual Category Items Language Language 语言 Output image setup Out Format Out_Hori_Width Out_ Hori _Start Out_Vert_Height Out_Vert_Start text overlay setup Text Mode Threshold Red Threshold Green 10 Threshold Blue Brightness/Color 11 Brightness /Definition setup 12 Saturation 13 Sharpness...
  • Page 14 LVP605 Series User’s Manual Name Functions Speed The step value in proportion to the knob speed of knob Turn Decrease value or select previous value clockwise Knob Turn Increase value or select next value anticlockwise Press it Save the adjustment or selected values Move to previous item ↑...

  • Page 15: Brightness / Color / Sharpness

    LVP605 Series User’s Manual 3. Output image setup LVP605 outputs images from VGA and two DVI output ports. There are 10 output formats as listed in the table below. User can enter the No.2 setting item “Out Format” to select one of them.

  • Page 16: Text Overlay Setup

    LVP605 Series User’s Manual （0，0） Out_Hori_Start Out_Hori_Wi Out_Vert_Start LVP605 Out Image Area Out_Vert_Height LED Dispaly Screen 1920×1080 LVP605 Out Format = 1920 As above figure shows: the size and location of the images in LVP605 output window for the LED display are defined by the following 4 groups of parameters: Item No.
  • Page 17 LVP605 Series User’s Manual LVP605 allows user to set caption knock-out “< threshold” or “>threshold”. If it is less than threshold value, it means that the image of caption signal less than current color threshold value will be added to background, while the part greater than threshold will be automatically filtered.

  • Page 18: Audio Configurations

    LVP605 Series User’s Manual output parameters are usually set as default values ！ (2). The color parameters only apply to V1、 V2、 V3、 S-Video、 YPbPr、SDI and HDMI signals. 6. Audio configurations LVP605 supports 3-channel stereo audio switch. Of which, 3...

  • Page 19: Factory District Setup

    LVP605 Series User’s Manual As above figure shows, if ”Hot spare < V1→V3>” is turned on, the processor will automatically switch the output image to backup port V3 once signal V1 is lost. 8. Factory district setup The following are factory district setups, users are recommended to make these setups under the guidance of manufacturer’s technicians,...

  • Page 20: (Ii) Pip/Pop Setup

    LVP605 Series User’s Manual standard value is set as 50! Item 23: “De interlace” When CVBS/S-Video/HDMI/SDI signals are interlace input formats (e.g.: 1080i) and used as PIP, due to limits of the processor, tremble may take place, it can be dispelled by setting the option “De interlace”.
  • Page 21 LVP605 Series User’s Manual LVP605 allows for presetting 4 PIP/POP display modes, each mode allows for setting any background and PIP/POP size and location you need. （0，0） PIP_Vert_Start PIP_Hori_Start PIP_Width Main _Vert_Height Main_Hori_Start PIP Window PIP_Height Main window Main_Vert_Height 1920×1080...

  • Page 22: (Iii) Mosaic Setup

    LVP605 Series User’s Manual appear in LCD: Main_Hori_width 1216 ？ PIP/POP Mode=M1 Switch current PIP modes: press mode buttons (i.e.: M1, M2, M3, M4), the processor will directly switch current PIP modes. Switch adjustment items: press ” ↑” and ” ↓” to switch current adjustment items.
  • Page 23 LVP605 Series User’s Manual The maximum output definition of LVP605 is 2048×1152 or 1600×1200, to drive so high definition, LED display requires two transmission cards in cascade, so LVP605 provides two locations to hold two built-in transmission cards; if the actual definition of LED...
  • Page 24 LVP605 Series User’s Manual 3456 System Topology Input signals 1920 LVP605#0 LVP605#1 LVP605#3 LOOP OUT LVP605#2 LVP605#4 LOOP OUT As above figure shows, all input signals are connected to and switched by #0 LVP605, the DVI signals exported by this machine are...
  • Page 25 LVP605 Series User’s Manual setup item. Exit setup: press “Setup” button while in setup mode, LVP605 will directly exit setup. The setup of 5 PCS LVP605 is as follow:： Setup items parameters of processor Out_Hori_Width 1920 1728 Out_ Vert_Height 1080 Out Format 1920×1080...
  • Page 26 LVP605 Series User’s Manual 1# LVP605 2# LVP605 Input image （0,0） （960,0） （0,540） （960,540） 1080 1920 3# LVP605 4# LVP605 LED Screen 1728 Figure 5 Item 5：“In_Hori_Width ” It is used to set the horizontal width of input image from which LVP605 will capture.As shown in Figure 5, the width of input image for...

  • Page 27: Specifications

    LVP605 Series User’s Manual 1# LVP605 In_ Hori _Start = 0 2# LVP605 In_ Hori _Start = 960 3# LVP605 In_ Hori _Start = 0 4# LVP605 In_ Hori _Start = 960 Item 7：“ In_ Vert_Height ” It is used to set the vertical height of input image from which LVP605 will capture.
  • Page 28 LVP605 Series User’s Manual S-VIDEO Y：1.0V（p_p）/ 75Ω，C：0.35V（p_p）/ 75Ω Scope/Impedance VGA Format PC（VESA） ≤2048x1152 @60Hz VGA Scope/Impedance R、G、B = 0.7 V（p_p）/ 75Ω SD/HD（CEA-861） ≤1920x1080P @60Hz DVI Format PC（VESA） ≤2048x1152 @60Hz HDMI 1.3 Format SD/HD（CEA-861） ≤1920x1080P @60Hz ( HDCP ) PC（VESA） ≤2048x1152 @60Hz YPbPr Format SD/HD（CEA-861）...
  • Page 29 LVP605 Series User’s Manual Operating Temp 5-40 ℃ Humidity 15-85% Dimensions（Package） 145 mm (height) × 370mm (width) × 535mm (length) Weight（G.W.） 5.0 Kg Weight（N.W.） 3.2Kg Dimensions： SPEC. of RS232 cable: --------------------------------------------------------------------------------------------------- LED VIDEO PROCESSOR...

  • Page 30: Viewrgb Lvp605 Control Software User's Manual

    LVP605 Series User’s Manual VII. ViewRGB LVP605 Control Software User’s Manual ViewRGB LVP605 Control Software is used to control LED HD Video Processor. With this software, we can:  Select input signal source in Cut or Fade mode.  Realize 4 custom double-picture display and Text Overlay functions ...
  • Page 31 LVP605 Series User’s Manual As shown in above figure, the main menu consists of the following parts:  RS232 COM port setup  Select signal source  Switching mode setup  Information field  Timer control setup  Select function modes ...
  • Page 32 LVP605 Series User’s Manual The device ID you selected (from user setup item 21 “Device ID”) must be identical to the device ID of LVP605 to be controlled. Click button “Connect”, following message will appear After the device is successfully connected, the function keys in the...
  • Page 33 LVP605 Series User’s Manual 5) Select function modes This menu provides the following options: PIP, TEXT (Text Overlay), BYPASS, FREEZE, MOSAIC, VGA-AUTO (VGA automatic adjustment). PIP/POP modes: while in one picture display mode, click blue indicators before button corresponding mode buttons will blink, select PIP as input signal source in the field “Select signal source”.
  • Page 34 LVP605 Series User’s Manual input signal is valid, click , the processor will sample the current input signals to make the output pictures full and clear. 6) Timer control setup The Timer of the Control Software can switch the input signal source of LVP605 as per the preset timer plan.
  • Page 35 LVP605 Series User’s Manual Other parameters configuration PIP setup Mosaic setup As shown in above figure, the button “Refresh” is used to update the information of currently processing parameters after parameters configuration is finished. Any abnormal of parameter will be reminded in info field.
  • Page 36 LVP605 Series User’s Manual to set whether the processor adopts synchronous or non-synchronous mosaic mode. Input image parameters are used to set the location and size of the images to be captured from input image based on the actual size of the screen.
  • Page 37 LVP605 Series User’s Manual 4) Brightness, color, contrast, sharpness setup This option is used to set brightness, color, contrast, sharpness of output images, enter the desired parameters, then click “Save” button. To set sharpness, directly click “Normal” or “Sharp”, the parameters will be saved.
  • Page 38 LVP605 Series User’s Manual 3. Timer setup menu Click in main menu, the system will enter Timer setup menu as shown below: As shown in above figure, there are two types of plans:  Cycle Plan  Once Plan Cycle Plan is sub-divided into three types: ...
  • Page 39 LVP605 Series User’s Manual deleted. For example, the figure below shows how to add plan items to a day plan. Select the plan already added, then you can modify or delete it. 4. Fast Mosaic menu LVP605 can drive ultra high-definition LED display through multi-machine cascade mosaic.
  • Page 40 LVP605 Series User’s Manual Caution: before making the mosaic settings, please make sure the following conditions have been met: All processors are the same with each other in brightness, color, contrast and definition. All processors must use the same output resolution, and make sure it the same with that of input DVI signals.
  • Page 41 LVP605 Series User’s Manual display the current parameters (e.g.: output resolution) of the processor. 2) Select mosaic mode Select current mosaic mode in “Specification” field, namely set how many rows and columns the divided pieces of smaller LED will be arranged. User can also manually enter the number of rows and columns then click “OK”.

  • Page 42: Notes To Model

    IX. Copyright info The copyright of this Manual is owned by SHENZHEN VDWALL CO.,LTD., unless with prior consent of VDWALL, nobody is permitted to copy or use any part or all of the information contained herein. This Manual is provided for reference only, VDWALL reserves right to change the product appearance, dimensions and specifications from time to time without notice to users.
