LVP603 series
LED HD Video Processor
User Manual
SHENZHEN VDWALL CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVP603 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vdwall LVP603 series

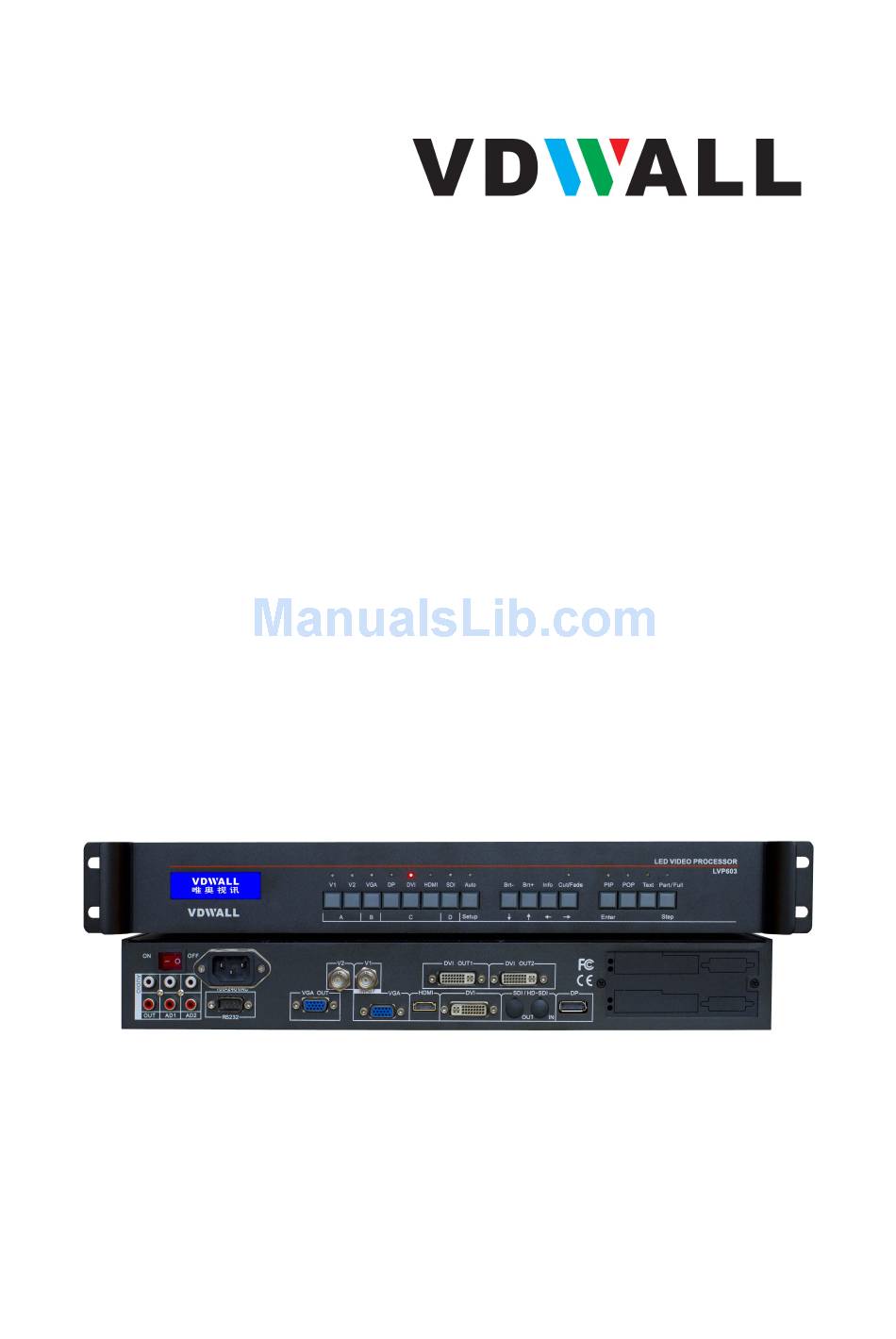

  • Page 1 LVP603 series LED HD Video Processor User Manual SHENZHEN VDWALL CO., LTD.
  • Page 2: Table Of Contents

    LVP603 series User Manual Contents Chapter 1 Safety precautions.................3 Chapter 2 Connections of hardware..............4 2-1 Rear view...................4 2-2 Port description................4 2-3 Connection diagram..............5 Chapter 3 Frontal panel operations...............6 3-1 Diagram of frontal panel.............6 3-2 Button instructions (operation mode).........6 Chapter 4 Setup....................9 4-1 Enter setup of LVP603.............10...
  • Page 3: Chapter 1 Safety Precautions

    LVP603 series User Manual Chapter 1 Safety Precautions Danger! There is high voltage in the processor, to prevent any unexpected hazard, unless you are maintenance, please do not open the cover of the device. Warning! 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device.
  • Page 4: Chapter 2 Connections Of Hardware

    LVP603 series User Manual 3) Obvious malpractice is found or performance degrades. Chapter 2 Connections of hardware 2-1 Rear view Figure 2-1 Rear view 2-2 Port description 1) Video Input LVP603 supports 6-channel signal input, including: Port name Description V1~V2...
  • Page 5: Connection Diagram

    LVP603 series User Manual 2 same DVI digital graphic signal output, it can DVI OUT 1 / be connected with external LED transmission DVI OUT 2 card or LED transmission box 5) Audio Output (AUDIO OUT) Corresponds to the selected video input signal, output this channel audio input signals.
  • Page 6: Chapter 3 Frontal Panel Operations

    LVP603 series User Manual Chapter 3 Frontal panel operations 3-1 Diagram of frontal panel Figure 3-1 Diagram of frontal panel 3-2 Button instructions (operation mode): There are 16 buttons on the frontal panel of LVP603, all these buttons will be operable after start. they have the following functions as described...
  • Page 7 LVP603 series User Manual VGA signals, so as to make VGA picture clean and complete. In general, this operation is made only when new VGA signal source is to be connected in. Sometimes user need repetitively do such adjustment till VGA picture looks clean, complete and stable.
  • Page 8 LVP603 series User Manual V1,V2 DP,DVI,HDMI Cut: the moment the LED indicator above the button is off. In this mode, user can transiently shift picture seamlessly without flickering, tremble, stasis, delay, black screen occurring. Cut is the default special effect switching mode of LVP603.Fade (Fading-in/out mode):...
  • Page 9: Chapter 4 Setup

    LVP603 series User Manual User can shift PIP and PBP modes by pressing PBP button. 7) Text Overlay mode(Text) LVP603 can add caption, company logo or animation onto current picture, while current picture is normally displayed, press Text button to go to caption adding mode, then select the signal source of caption.
  • Page 10: Enter Setup Of Lvp603

    LVP603 series User Manual Category Items Description Language Language 语言 Selection Hori_Start Output horizontal start Hori_Width Output width Output Image Vert_Start Output vertical start Setup Vert_Height Output height Out Format Output resolution Brightness Brightness / Color Color Definition PIP_ H_Start...
  • Page 11: Select Language

    LVP603 series User Manual the functions as defined in table below: Name Functions Step Select step value 1 or 10 Move to next item ↑ Move to last item ↓ Decrease value or select last value ← Increase value or select next value →...
  • Page 12: Output Image Setup

    LVP603 series User Manual 4-3 Output image setup LVP603 outputs images from VGA OUT, DVI OUT1 and DVI OUT2. There are 7 output formats as listed in the table below. User can enter the No.6 setting item “Out Format” to select one of them.
  • Page 13 LVP603 series User Manual (0,0) Vert_Str Hor_Str Hor_Width LVP603 Out Image Area Vert_Height LED Dispaly Screen 1024×768 LVP603 Out Format = 1024 Figure 4-2 As above figure shows: the size and location of LVP603 output images are defined by 4 groups of parameters, which correspond to four setting items respectively, for details of their relationship see Table 5 below: No.
  • Page 14: Brightness / Color / Definition

    LVP603 series User Manual 4-4 Brightness / Color / Definition Item 7: “Brightness” LVP603 supports 32 levels Brightness, “0” represents the lowest brightness, and 64 represents the highest brightness. Press “←” or “→” to increase or decrease the values of brightness. Press “Enter”...
  • Page 15 LVP603 series User Manual (provided “Out_Format” adopts 1920×1080 mode). PIP_ H_Start PIP horizontal start PIP_H_Width PIP width PIP_V_Start PIP vertical start PIP_V_Heigh PIP height Note: the minimum values of PIP_H_Width and PIP_V_Heigh are both 128. (0,0) H_Width_PIP V_Start_PIP H_Start_PIP PIP Window V_Heigh_PIP 1920×1080...
  • Page 16: Text Overlay Setup

    LVP603 series User Manual (0,0) Vert_Str Hor_Str Hor_Width LVP603S Out Image Area Left Image Vert_Height LED Dispaly Screen 1024 4-6 Text Overlay Setup 15 Text Mode 16 Text_Thd_RGB 17 Text_Thd_R 18 Text_Thd_G 19 Text_Thd_B Item 15: “Text Mode” LVP603 allows user to set caption knock-out “< threshold” or “>threshold”.
  • Page 17: Input Image Setup

    LVP603 series User Manual The three options are used to set R, G, B values respectively as a certain value within 0~252. The following figure shows an example of caption adding function. The caption document in this sample is made using Powerpoint. Its parameters...
  • Page 18 LVP603 series User Manual Caution: When work together in parallel, each set of LVP603 should retain the same data in set-up of brightness, bias and Definition as a result to keep the image compatibility. Figure below shows the example of a 2×2 sets of LVP603 connected in parallel, in which 4 small LEDs make up a large screen.
  • Page 19 LVP603 series User Manual 1# LVP603 2# LVP603 Input image (0,0) (960,0) (0,540) (960,540) 1080 1920 3# LVP603 4# LVP603 LED screen 1728 Figure 5 Item 21: “Input_Width” This item has four values for your choice, i.e.: 100%, 1/2 , 1/3 and 1/4.
  • Page 20 LVP603 series User Manual Item 22: “Input_Height” This item has four values for your choice, i.e.: 100%, 1/2, 1/3 and 9/16. 100% means that 100% images in vertical direction are input; 1/N(N=2,3) means only 1/N image are input. If 3 sets of LVP603 are connected in parallel in horizontal direction, each set of LVP603 will capture 1/3 of input image.
  • Page 21: Audio Configurations

    LVP603 series User Manual 4-8 Audio configurations LVP603 supports 4-channel stereo audio switch. Of which, 2 channels are DP and HDMI audios, the other 2 channels are AD1, AD2 external input audio. AD1 and AD2 can be mapped to the anyone of all video inputs, and will be switched synchronous to the selection of video input signals.
  • Page 22: Factory District Setup

    LVP603 series User Manual 4- 10 Factory district setup The following setups must be made by relevant qualified technicians or follow the guidance of the plant technician. otherwise the incorrect and improper operation will result to abnormal situation. Item 28: “Device_Init”...
  • Page 23: Chapter 5 Specifications

    LVP603 series User Manual Item, press “ ←”or “ →” to select “ Yes”, at last, press “ Enter” to carry on auto ADC. Caution: All video processors have gone though the auto ADC, please use this item delicately! Chapter 5 Specifications Inputs 2×Composite video...
  • Page 24 LVP603 series User Manual DVI OUT2:24+1 DVI_D Others Control Panel Button Power 100-240VAC 60W 50/60Hz Operating Temp 5-40 ℃ Humidity 15-85% 155 mm (high) ×350mm (wide) × Size 485mm (length) Weight 5.6 Kg www.videowall.cn...
