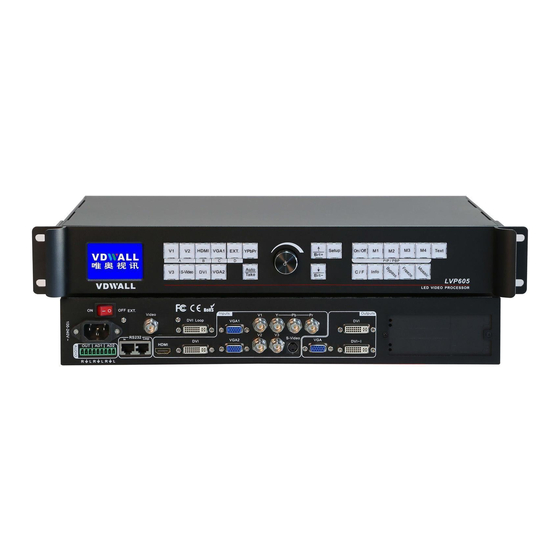

Vdwall LVP605S User Manual

Led hd video processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

LVP605
LED HD Video Processor
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LVP605S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vdwall LVP605S

Summary of Contents for Vdwall LVP605S

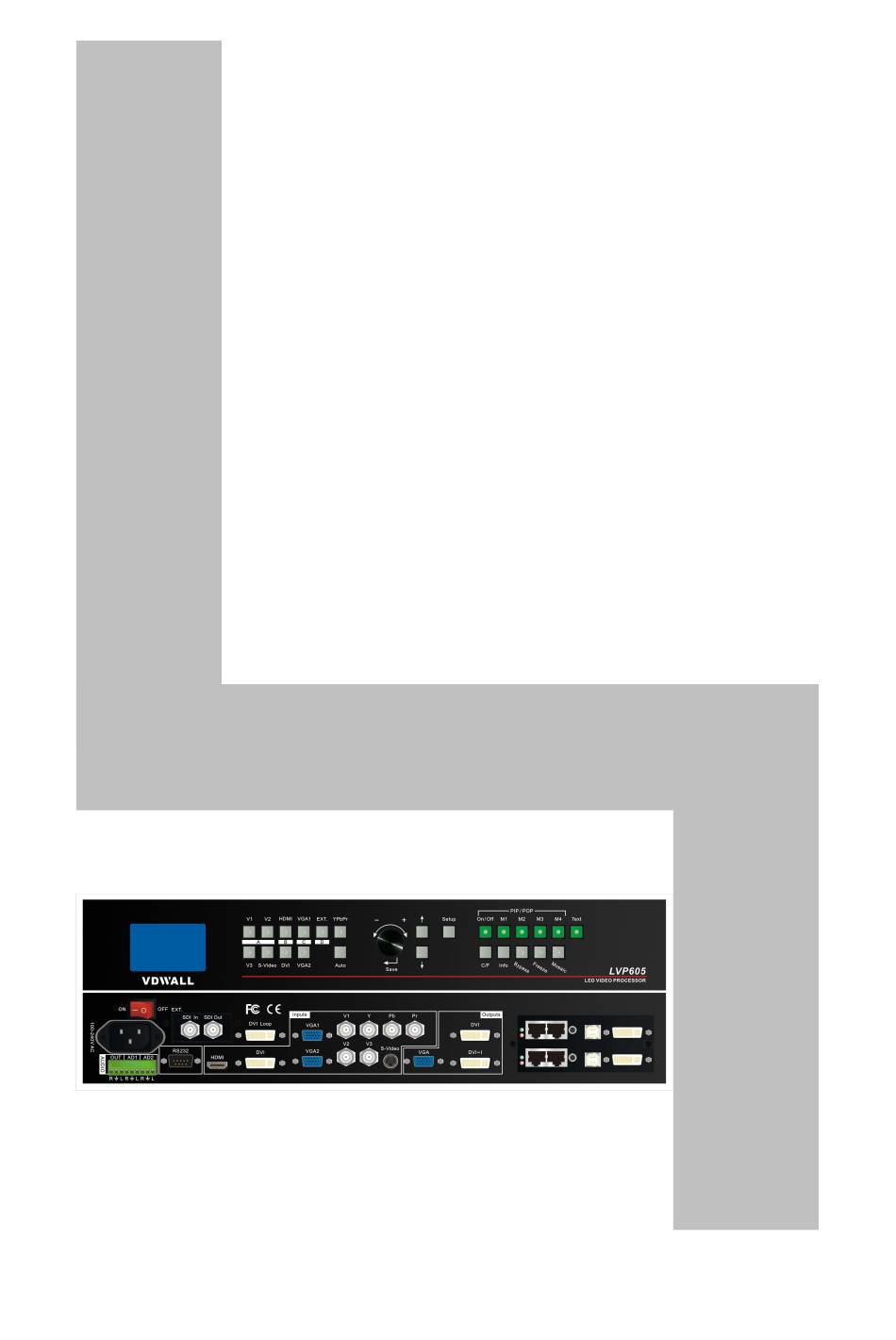

  • Page 1 LVP605 LED HD Video Processor USER’S MANUAL...

  • Page 2: Table Of Contents

    LVP605 User’s Manual http://www.cnledsourcing.com TABLE OF CONTENTS I. Safety precautions II. Packing list III. Connections of hardware 1. Rear view 2. Port description 3. Connection diagram IV. Frontal panel operations 1. Diagram of frontal panel 2. Button instructions (operation mode) V.

  • Page 3: Safety Precautions

    LVP605 User’s Manual http://www.cnledsourcing.com I. Safety Precautions Danger! There is high voltage in the processor, to prevent any unexpected hazard, unless you are maintenance, please do not open the cover of the device. Warning! 1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device.

  • Page 4: Packing List

    LVP605 User’s Manual http://www.cnledsourcing.com II. Packing list Please unpack the product with care, then check whether all the following things are included in the package. If anything is found missing, please contact the dealer. Standard accessories The accessories supplied with this LED Video Processor may differ from the figures contained in the User’s Manual, but they are applicable for the regions where you live.

  • Page 5: Connections Of Hardware

    LVP605 User’s Manual http://www.cnledsourcing.com III. Connections of hardware 1. Rear view Figure 1 2. Port description 1） Video Input LVP605 supports 10-channel signal input, including: Port name Description V1~V3 3-channel PAL/NTSC composite video input S-Video 1-channel PAL/NTSC S-video input YPbPr 1-channel component HD signal input 2-channel computer analog signal input VGA1~VGA2...

  • Page 6: Connection Diagram

    LVP605 User’s Manual http://www.cnledsourcing.com recommended to use this port when operating and setting LVP605). 2 same DVI digital graphic signal output, DVI OUT1 / it can be connected with external LED DVI OUT2 transmission card or LED transmission SDI / HDSDI（OUT） 1-channel digital video signal loop output 1-channel DVI Loop OUT computer DVI digital signal loop...

  • Page 7: Frontal Panel Operations

    LVP605 User’s Manual http://www.cnledsourcing.com IV. Frontal panel operations 1. Diagram of frontal panel 1） Input selecting buttons (V1, V2, V3, S-Video, DVI, VGA1, VGA2, YPbPr, EXT.): They are used to select input signals 2） Setup buttons (Setup, Save, ↑,↓,←,→) They are used to set the image output parameters of the processor. --------------------------------------------------------------------------------------------------- LED VIDEO PROCESSOR...

  • Page 8: Button Instructions (Operation Mode)

    LVP605 User’s Manual http://www.cnledsourcing.com 3） VGA auto adjustment (Auto) To automatically adjust VGA input signals 4） Cut / Fade switching mode (C/F): It is used to select signal switching effects, including seamlessly switching (CUT) and 0.5s, 1.0s and 1.5s Fade in / Fade out. 5）...
  • Page 9 LVP605 User’s Manual http://www.cnledsourcing.com currently selected such as “input=HDMI” will appear in the first line of LCD, while the status of current input signals will appear in the second line of LCD. If there are no valid signals entered, the message “no valid signal input”...
  • Page 10 LVP605 User’s Manual http://www.cnledsourcing.com after startup. Fade (fading in fading out): while in this mode, “Cut: 1.0s” will appear in the third line of LCD, the system can realize fading in fading out switching effect between the signals coming from different groups.
  • Page 11 LVP605 User’s Manual http://www.cnledsourcing.com Press this button to switch between Part / Full display mode. This function is only available when the current input signal is PC (VGA 1/ VGA 2/ DVI /HDMI) signal, while other signals can only be displayed in the Full display mode. Mode Description Full screen display.

  • Page 12: Setup

    LVP605 User’s Manual http://www.cnledsourcing.com of caption. The captions can be made by office software such as Powerpoint. V. Setup The following settings must be made by relevant qualified technicians. For ordinary users, unless they have received adequate technical training, they shouldn’t attempt to make the following settings! There are 3 categories available for you to set in LVP605.

  • Page 13: Enter Setup Of Lvp605

    LVP605 User’s Manual http://www.cnledsourcing.com Category Items Language Language 语言 Output image setup Out Format Out_Hori_Width Out_ Hori _Start Out_Vert_Height Out_Vert_Start text overlay setup Text Mode Threshold Red Threshold Green 10 Threshold Blue Brightness/Color 11 Brightness Contrast/Definition 12 Contrast setup 13 Saturation 14 Sharpness Audio configuration 15 Audio1 Config...

  • Page 14: Select Language

    LVP605 User’s Manual http://www.cnledsourcing.com knob speed of knob Turn Decrease value or select previous value clockwise Turn Increase value or select next value anticlockwise Press it Save the adjustment or selected values Move to previous item ↑ Move to next item ↓...
  • Page 15 LVP605 User’s Manual http://www.cnledsourcing.com LVP605 outputs images from VGA and two DVI output ports. There are 10 output formats as listed in the table below. User can enter the No.2 setting item “Out Format” to select one of them. Format 1024×768_60 1024×768_75 1280×1024_60...

  • Page 16: Text Overlay Setup

    LVP605 User’s Manual http://www.cnledsourcing.com （0，0） Out_Hori_Start Out_Hori_Wi Out_Vert_Start LVP605 Out Image Area Out_Vert_Height LED Dispaly Screen 1920×1080 LVP605 Out Format = 1920 As above figure shows: the size and location of the images in LVP605 output window for the LED display are defined by the following 4 groups of parameters: Item No.
  • Page 17 LVP605 User’s Manual http://www.cnledsourcing.com LVP605 allows user to set caption knock-out “< threshold” or “>threshold”. If it is less than threshold value, it means that the image of caption signal less than current color threshold value will be added to background, while the part greater than threshold will be automatically filtered.

  • Page 18: Audio Configurations

    LVP605 User’s Manual http://www.cnledsourcing.com Caution: (1). In order to ensure output images in complete gray, the output parameters are usually set as default values ！ (2). The color parameters only apply to V1、 V2、 V3、 S-Video、 YPbPr、SDI and HDMI signals. 6.

  • Page 19: Factory District Setup

    LVP605 User’s Manual http://www.cnledsourcing.com As above figure shows, if ”Hot spare < V1→V3>” is turned on, the processor will automatically switch the output image to backup port V3 once signal V1 is lost. 8. Factory district setup The following are factory district setups, users are recommended to make these setups under the guidance of manufacturer’s technicians, any improper setting or operation may result in abnormal happening to the processor.

  • Page 20: (Ii) Pip/Pop Setup

    LVP605 User’s Manual http://www.cnledsourcing.com Item 24: “Device Init” After entering item No. 21 “Device ID”, press “V1” for 5 times, then press “↑” to shift to Item 24: “Device Init”, turn knob to select “Yes”, then press knob to reset the factory settings, the moment the system will remind you “Please restart.”, just follow the instruction.
  • Page 21 LVP605 User’s Manual http://www.cnledsourcing.com Figure 5 As above figure shows: the size and location of the images in LVP605 background and PIP output window for the LED display are defined by the following 8 groups of parameters: Item Description Main_ Hori_Width Main_ Hori_Start Main_Vert_Height Main_Vert_Start...

  • Page 22: (Iii) Mosaic Setup

    LVP605 User’s Manual http://www.cnledsourcing.com (III) Mosaic setup Category Items Input image setup Out_Hori_Width Out_ Hori _Start Out_ Vert_Height Out_Vert_Start In_Hori_Width In_ Hori _Start In_ Vert_Height In_Vert_Start Mosaic Mode The maximum output definition of LVP605 is 2048×1152 or 1600×1200, to drive so high definition, LED display requires two transmission cards in cascade, so LVP605 provides two locations to hold two built-in transmission cards;...
  • Page 23 LVP605 User’s Manual http://www.cnledsourcing.com four small pieces of LED of 1728×960 pixels as shown in figure below, each piece of small LED is driven by a set of LVP605. With total 4 sets of LVP605, the large display of 3456×1920 pixels is able to display a full picture.
  • Page 24 LVP605 User’s Manual http://www.cnledsourcing.com In_Hori_Width In_ Hori _Start In_ Vert_Height In_Vert_Start Mosaic Mode Caution: while in Mosaic mode, in order to keep the consistency of the image, each processor must be set to be identical in the parameters of brightness/color/gray/definition. Enter setup: While in operation mode (mosaic mode is turned on), press “Setup”...
  • Page 25 LVP605 User’s Manual http://www.cnledsourcing.com parameters adjusted are the data in the same group. 1# LVP605 2# LVP605 Input image （0,0） （960,0） （0,540） （960,540） 1080 1920 3# LVP605 4# LVP605 LED Screen 1728 Figure 5 Item 5：“In_Hori_Width ” It is used to set the horizontal width of input image from which LVP605 will capture.As shown in Figure 5, the width of input image for the 4 sets of LVP605 should be set as: In_Hori_Width...
  • Page 26 LVP605 User’s Manual http://www.cnledsourcing.com of the four sets of LVP605 are set as below respectively: 1# LVP605 In_ Hori _Start = 0 2# LVP605 In_ Hori _Start = 960 3# LVP605 In_ Hori _Start = 0 4# LVP605 In_ Hori _Start = 960 Item 7：“...

  • Page 27: Specifications

    LVP605 User’s Manual http://www.cnledsourcing.com VII. Specifications Inputs Nums/Type 3×Composite 1×S-Video 1×YPbPr 2×VGA（RGBHV） 1×HDMI（1.3a with HDCP ） 1×DVI（HDMI） 1×EXT.（Extended） Video system PAL/NTSC Composite Video 1V（p_p）/ 75Ω Scope/Impedance S-VIDEO Y：1.0V（p_p）/ 75Ω，C：0.35V（p_p）/ 75Ω Scope/Impedance VGA Format PC（VESA） ≤2048x1152 @60Hz VGA Scope/Impedance R、G、B = 0.7 V（p_p）/ 75Ω DVI Format SD/HD（CEA-861）...
  • Page 28 LVP605 User’s Manual http://www.cnledsourcing.com VGA/DVI Format 1024×768@60Hz/75Hz 1280×1024@60Hz/75Hz 1600×1200@60Hz 1920×1080p@50Hz/60Hz 1366×768@60Hz 1440×900@60Hz 2048×1152@60Hz VGA Scope/Impedance R、G、B = 0.7 V（p_p）/ 75Ω Output Connectors VGA OUT：15pin D_Sub(Female) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D Others Control Panel Button,RS232 Power 100-240VAC 35W 50/60Hz Operating Temp 5-40 ℃...

  • Page 29: Copyright Info

    VIII. Copyright info The copyright of this Manual is owned by SHENZHEN VDWALL CO.,LTD., unless with prior consent of VDWALL, nobody is permitted to copy or use any part or all of the information contained herein. This Manual is provided for reference only, VDWALL reserves right to change the product appearance, dimensions and specifications from time to time without notice to users.
