3.0

Configuration

To configure the 880 indicator, the indicator must be placed in setup mode. The setup switch is accessed through a
small hole on the enclosure backplate, insert a nonconductive tool into the access hole and press the configuration
switch. Indicator display changes to show
Use caution when inserting the nonconductive tool into the backplate, press the tool in about 3/4 inch,
Important
using the board as a guide, until the switch is engaged. Do not use excessive force, the switch may be
damaged.
Note
If the audit trail is enabled,setup mode may be accessed by pressing
displayed, then press
.
When the indicator is placed in setup mode, the word
of eight top-level menus used for configuring the indicator. Detailed descriptions of these menus are given in
Section 3.2.
When configuration is complete, press
3.1

Configuration Methods

The 880 indicator can be configured by using the front panel keys to navigate through a series of configuration
menus or by sending commands or configuration data to any communication port. Configuration using the menus
is described in Section 3.1.3.
Configuration using the communication port can be accomplished using either the EDP command set described in
Section 6.0 or Version 3.0 or later of the Revolution
3.1.1

Revolution Configuration

The Revolution configuration utility provides the preferred method for configuring the 880 indicator. Revolution
runs on a personal computer to set configuration parameters for the indicator (see Section 5.0). When Revolution
configuration is complete, configuration data is downloaded to the indicator.
3.1.2

EDP Command Configuration

The EDP command set can be used to configure the 880 indicator using either a personal computer or terminal.
Like Revolution, EDP command configuration sends commands to the indicator EDP port; unlike Revolution, EDP
commands can be sent using any external device capable of sending ASCII characters over a serial connection.
EDP commands duplicate the functions available using the indicator front panel and provide some functions not
otherwise available. EDP commands can be used to simulate pressing front panel keys, to configure the indicator,
or to dump lists of parameter settings. See Section 6.0 for more information about using the EDP command set.
22 880 Installation Manual
.
SCALE
to SCALE.
J1 J2 J3

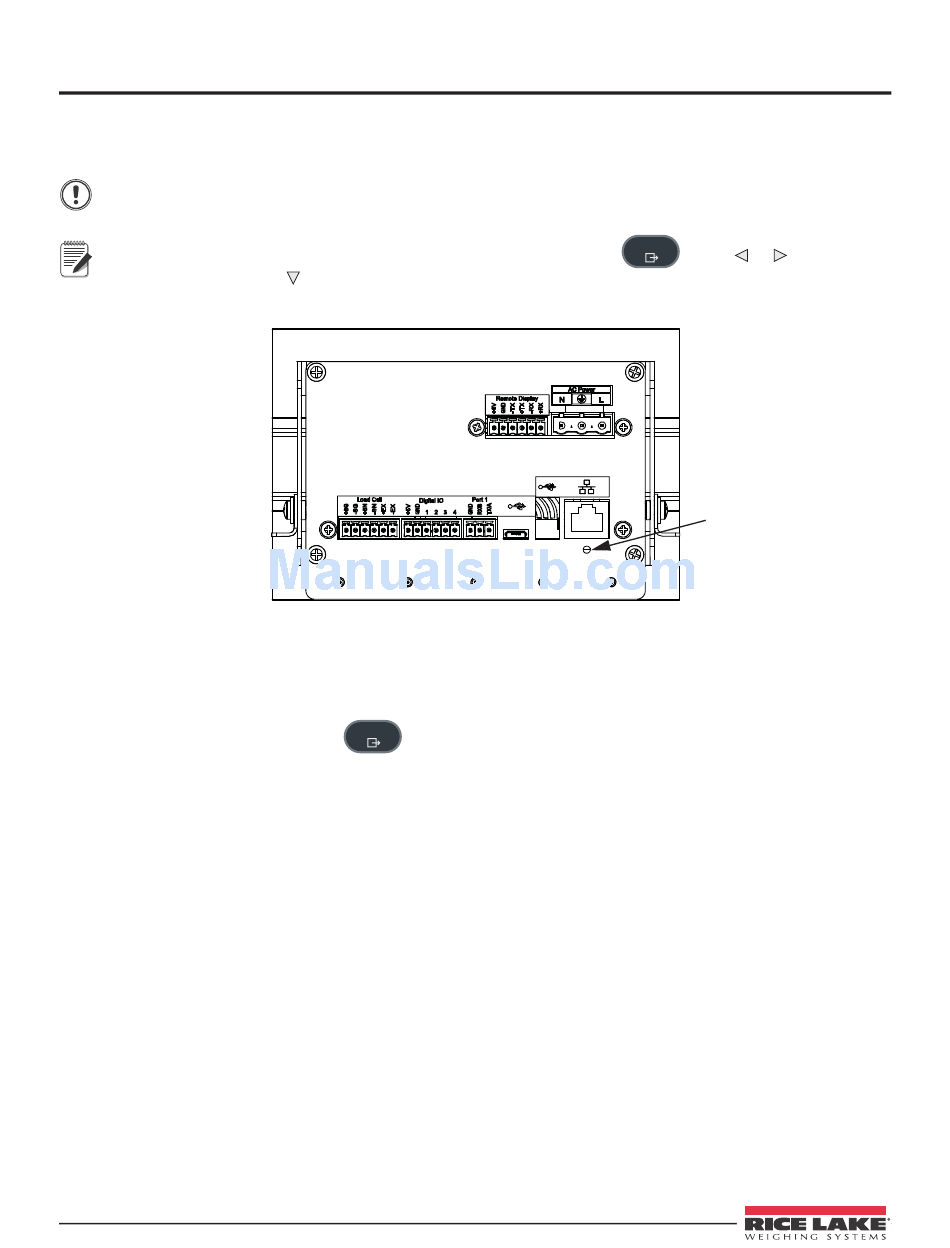

Figure 3-1. Back View – Setup Switch Access
SCALE
MENU
to return to the weigh mode.
®
configuration utility.
MENU
.
J6
is shown on the display. The SCALE menu is the first
Press or until SETUP is
Setup Switch Access
