Rice Lake Performance 880 Installation Manual

880 Performance
Analog Output Option Card Installation
The Analog Output Option Card provides a single analog output port for an 880 indicator when installed. The Analog Output
Option Card attaches to the 880 CPU board and is configured in the Analog Output Menu (ALGOUT) within the Setup Menu of
the 880. Configuration and calibration instructions for analog output are provided in the 880 Technical Manual (158387).
NOTE: The Analog Output Option Card requires the 880 CPU firmware to be updated to Version 4 or newer.
The indicator automatically recognizes all installed option cards when the unit is powered on. No hardware-specific
configuration is required to identify an installed option card to the system.
Manuals are available from Rice Lake Weighing Systems at
Warranty information is available at
WARNING: Always disconnect power before opening an enclosure or controller assembly. Option card is not hot
swappable. Procedures requiring work inside the indicator must be performed by qualified service personnel only.
CAUTION: A grounding wrist strap must be worn to protect components from electrostatic discharge (ESD) when working
inside an enclosure or controller assembly.
Parts Breakdown
The Analog Output Option Card kit (179156) contains the necessary items used for installation of the option card.
May 6, 2024
Series
™
www.ricelake.com/warranties
2

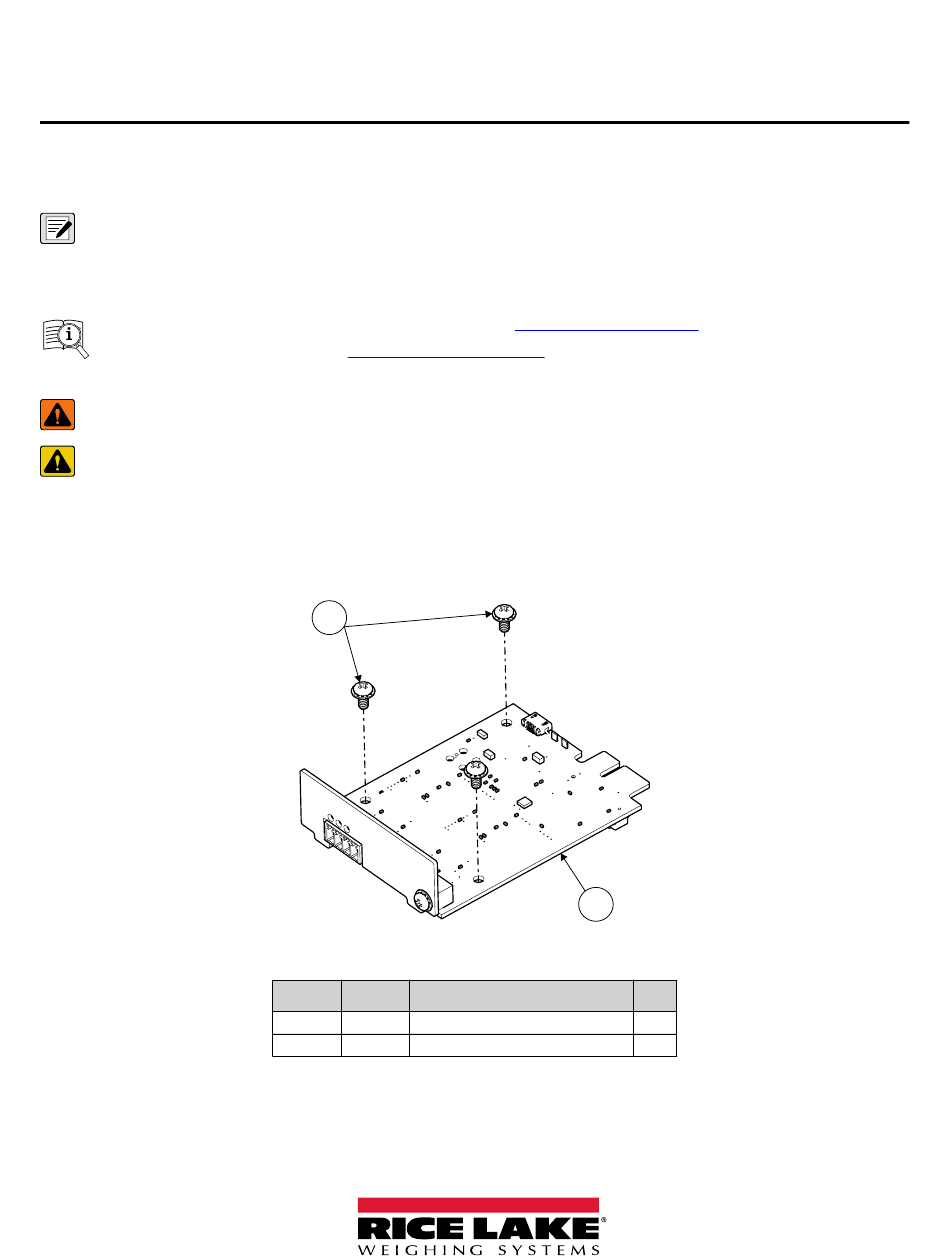

Figure 1. Analog Output Option Card Parts Breakdown
Item No. Part No.
1 164704
2 14822
Table 1. Analog Output Option Card Parts List
www.ricelake.com/manuals
1
Description
Board Assembly, Analog Output
Screw, Machine 4-40 x 1/4
Qty.
1
3
PN 200273 Rev E
