880 Performance
Relay Option Card Installation
The Relay Option Card provides four normally open relays for an 880 indicator when installed. The Relay Option Card attaches
to the 880 CPU board. Depending on the desired output of the Relay Option Card, SLOT 1 must be configured in the Setpoints
Menu (SETPTS) and BIT 1-4 in the Digital I/O Menu (DIGIO) within the Setup Menu of the 880 indicator. Refer to the 880
Technical Manual (158387) for additional information on the configuration of relays.
The indicator automatically recognizes all installed option cards when the unit is powered on. No hardware-specific
configuration is required to identify an installed option card to the system.
Manuals are available from Rice Lake Weighing Systems at
Warranty information is available at
WARNING: Always disconnect power before opening an enclosure or controller assembly. Option card is not hot
swappable. Procedures requiring work inside the indicator must be performed by qualified service personnel only.
CAUTION: A grounding wrist strap must be worn to protect components from electrostatic discharge (ESD) when working
inside an enclosure or controller assembly.
Parts Breakdown
The Relay Option Card kit (179157) contains the necessary items used for installation of the option card.
May 6, 2024
Series
™
www.ricelake.com/warranties
2

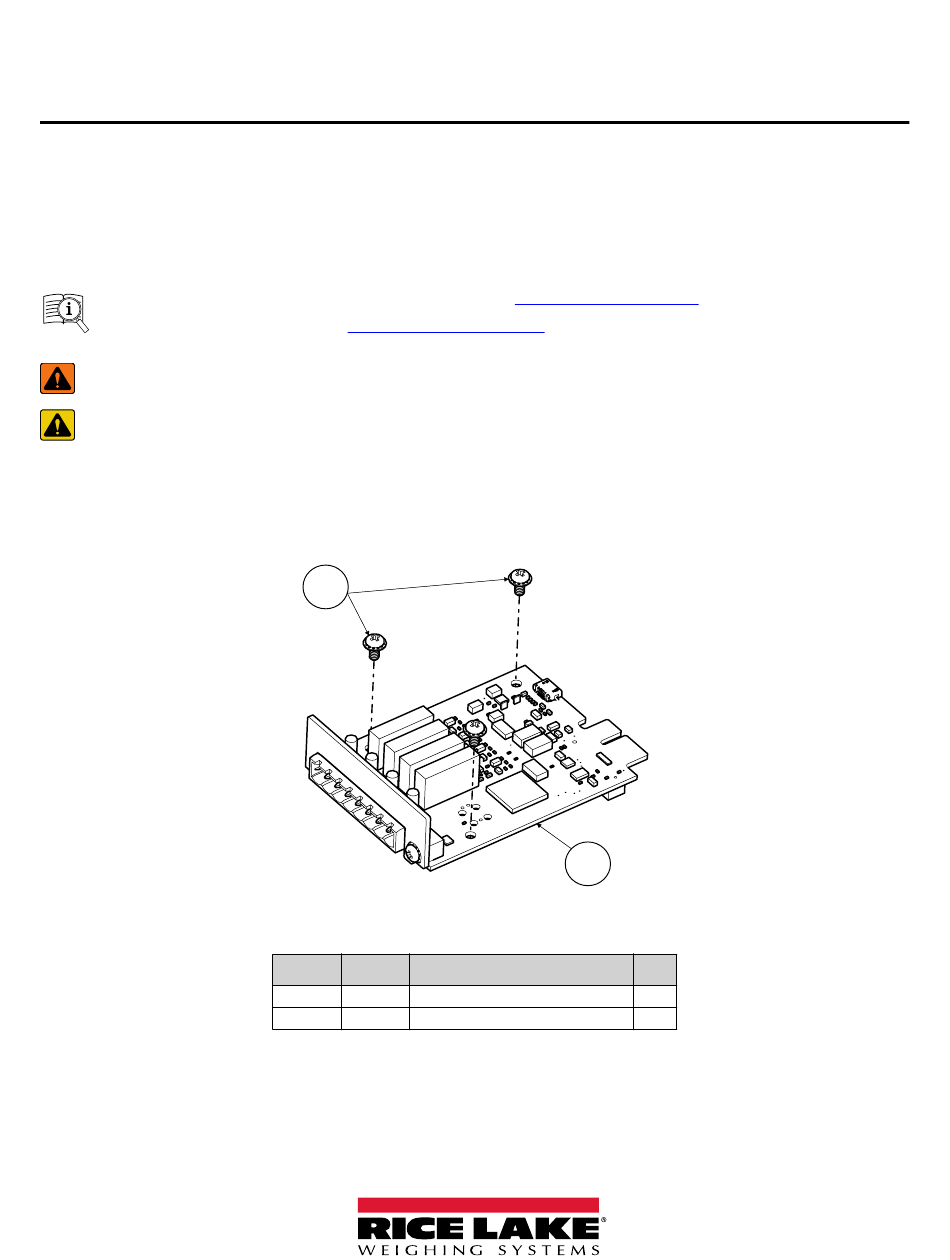

Figure 1. Relay Option Card Parts Breakdown
Item No. Part No.
1
164974
2
14822
Table 1. Relay Option Card Parts List
www.ricelake.com/manuals
1
Description
Board Assembly, Relay
Screw, Machine 4-40 NC x 1/4
Qty.
1
3
PN 200274 Rev B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rice Lake Performance 880
Summary of Contents for Rice Lake Performance 880
- Page 1 The indicator automatically recognizes all installed option cards when the unit is powered on. No hardware-specific configuration is required to identify an installed option card to the system. Manuals are available from Rice Lake Weighing Systems at www.ricelake.com/manuals Warranty information is available at www.ricelake.com/warranties...
-
Page 2: Panel Mount Installation
880 Performance Series Relay Option Card Installation Board Generation Identification Push Button Figure 2. First Generation (left) and Second Generation (right) Boards Card Generation Identifying Characteristics First Generation green board Second Generation blue board, push button Table 2. Relay Option Card Identification Information NOTE: Only second generation cards (blue boards) can have the firmware updated in the field. - Page 3 880 panel mount backplate. 11. Reconnect the power supply board to the backplate with the two previously removed screws. © Rice Lake Weighing Systems ● All Rights Reserved...
-
Page 4: Universal Mount Installation
880 Performance Series Relay Option Card Installation 12. Slide backplate with boards into the controller assembly enclosure, ensuring that each board is seated correctly in the grooves of the enclosure. NOTE: Before securing the backplate, verify the display connector aligns properly with the front cutout. If not aligned, remove the backplate with boards and re-insert so the display connector aligns with the front cutout. -
Page 5: Connection Pin Assignments
The use of external fusing to limit current is recommended. Relay COM-NO are transient protected to 400V @ 600W Relay Contacts: Displayed as Slot 1, Bit 1-4 in the setpoint configuration menu © Rice Lake Weighing Systems ● All Rights Reserved... - Page 6 © Rice Lake Weighing Systems Content subject to change without notice. 230 W. Coleman St. • Rice Lake, WI 54868 • USA USA: 800-472-6703 • International: +1-715-234-9171 May 6, 2024 PN 200274 Rev B www.ricelake.com...
