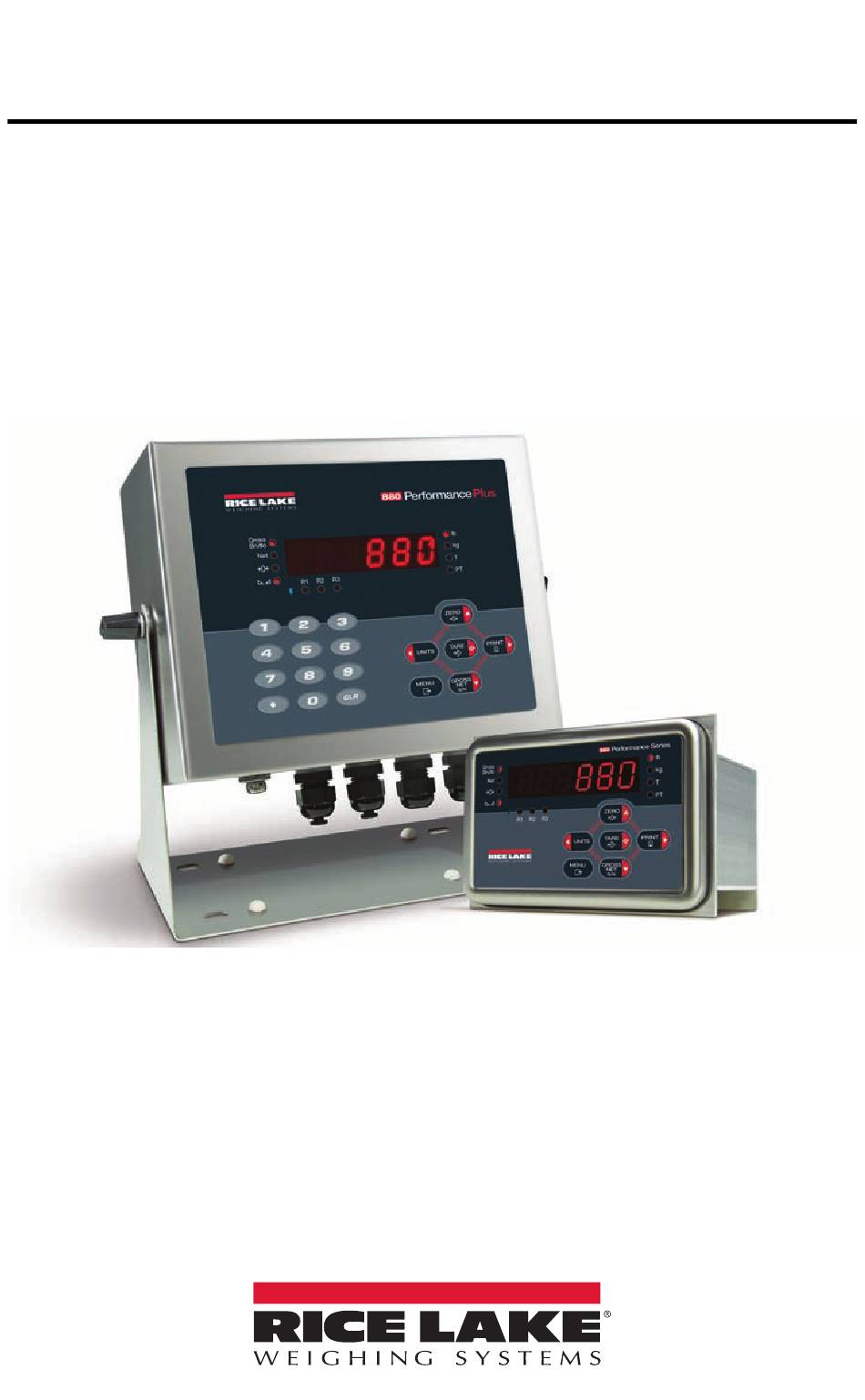

880 Performance™ Series
Controller/Indicator
Operation Manual
PN 152240 Rev A
July 30, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 880 Performance Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rice Lake 880 Performance Series

Summary of Contents for Rice Lake 880 Performance Series

  • Page 1 880 Performance™ Series Controller/Indicator Operation Manual PN 152240 Rev A July 30, 2019...
  • Page 2 All information contained within this publication is, to the best of our knowledge, complete and accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.

  • Page 3: Table Of Contents

    Format Menu ......... . . 19 Technical training seminars are available through Rice Lake Weighing Systems.
  • Page 4 3.1 Error Messages ......... . . 30 Compliance................31 Specifications................32 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. Visit our website...

  • Page 5: Introduction

    The 880 Technical Manual (PN 158387) is referred to in this manual is available online at www.RiceLake.com. Manuals can be viewed or downloaded from the Rice Lake Weighing Systems website at www.RiceLake.com/manuals Warranty information can be found at www.RiceLake.com/warranties...

  • Page 6: Safety

    General Safety Do not operate or work on this equipment unless this manual has been read and all instructions are understood. Contact any Rice Lake Weighing Systems dealer for replacement manuals. WARNING Failure to heed may result in serious injury or death.

  • Page 7: Overview

    • 62 K of non-volatile RAM can be allocated to databases using the Revolution database editor • Custom event-driven programs can be written with the iRite language up to 102 K in program size © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 8: Operating Modes

    880 Performance Series Controller/Indicator Operating Modes The three modes of operation for the 880 are described in the following sections. 1.3.1 Weigh Mode In this mode, the indicator displays gross or net weights to indicate the type of weight value displayed and annunciators to indicate scale status.

  • Page 9: Front Panel Display

    The keys are used to navigate through menus, select digits within numeric values, and increment/decrement values. Gross Brutto ZERO TARE PRINT UNITS MENU GROSS Figure 1-1. 880 Front Panel Display (Universal Model) © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 10 880 Performance Series Controller/Indicator Item No. Function Sets the current gross weight to zero; used to navigate to other menus or to select another digit when editing a value Sends an on-demand print format to a communications port, provided the conditions for standstill are met;...

  • Page 11: Menu Structures And Parameter Descriptions

    The decimal point begins flashing if a decimal value is allowed. Use the navigation keys to move the decimal point left or right. Press when done. TARE See the 880 Technical Manual (PN 158387) for more information. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 12: Alphanumeric Entry Procedure

    880 Performance Series Controller/Indicator 1.5.3 Alphanumeric Entry Procedure Use the following scheme for alphanumeric entry when using the five-button keypad. Level 1 Level 1 Parameter Parameter Level 2 Level 2 Parameter Parameter Display first 6 Scroll left in format string.

  • Page 13: Indicator Operations

    OIML mode). Display shifts to gross weight and ZERO TARE the Gross LED is lit. If keyed tares are allowed, press to open the keyed tare prompt. Note TARE To clear the tare, press again. TARE © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 14: Preset Tare (Keyed Tare)

    880 Performance Series Controller/Indicator 1.6.6 Preset Tare (Keyed Tare) Note Tare mode must be set to keyed or both for the preset tare feature to function. . 000000 1. With the scale empty and zero weight on the display, press TARE displays with the focused digit flashing.

  • Page 15: Displaying Audit Trail Information

    For complete list of settings see the 880 Technical Manual (PN 158387) for more information. 8. When all settings have been made, press to return to weigh mode. MENU Note Setpoints are now accessible from the front panel menu. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 16: Display Or Edit Setpoint Value

    880 Performance Series Controller/Indicator 1.6.11 Display or Edit Setpoint Value . Audit is displayed. 1. Press MENU until Setpts is displayed. 2. Press 3. Press and the first available setpoint number is displayed. 4. Press to toggle through each setpoint which is operator accessible.

  • Page 17: Set Time And Date

    5. While the accumulator value is displayed, press to print the value. PRINT The format of the print output can be configured using the accumulator print Note format. See the 880 Technical manual (PN 158387) for more information. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 18: Clear The Accumulator

    880 Performance Series Controller/Indicator 1.6.15 Clear the Accumulator to enter the user setup mode. Audit is displayed. 1. Press MENU until Accum is displayed. 2. Press until CLR Y is displayed. 3. Press then press to clear the accumulator. Clear displays briefly and returns to 4.

  • Page 19: Configuration

    Configuration using the EDP port can be accomplished using either the EDP command set described in the 880 Technical Manual or Version 3.0 or later of the Revolution ® configuration utility. © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 20: Revolution® Configuration

    880 Performance Series Controller/Indicator ® 2.1.1 Revolution Configuration The Revolution configuration utility provides the preferred method for configuring the 880 indicator. When Revolution configuration is complete, configuration data is downloaded to the indicator. Note See the 880 Technical Manual (PN 158387) for more information.

  • Page 21: Menu Structures And Parameter Descriptions

    Figure 2-3. Audit Menu Structure Parameter Choices Description Legally relevant firmware version 000000 CALIB Displays total calibration events (read only) 000000 Displays total configuration events (read only) Table 2-2. Audit Menu Parameters © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 22: Setup Menu

    880 Performance Series Controller/Indicator 2.2.2 Setup Menu AUDIT SETUP T & D ACCUM SETPTS TARE SCALE FEATUR PORTS PFORMT SETPTS DIGIO ALGOUT VERS Figure 2-4. Setup Menu Structure 2.2.3 Scale Menu ..SETUP ..SCALE SPLIT FORMAT ZTRKBN ZRANGE...

  • Page 23: Format Menu

    888888 888888 8.88888 888880 888880 88.8888 8.88888 8.88888 888.888 88.8888 88.8888 8888.88 888.888 888.888 88888.8 NONE 8888.88 8888.88 If SPLIT = 2RNG, 3RNG, 2INTVL, or 3INTVL Figure 2-6. Format Menu Structure © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 24: Calibration Menu

    880 Performance Series Controller/Indicator 2.2.5 Calibration Menu ..SETUP ..SCALE ..CALIBR WZERO WVAL WSPAN WLIN REZERO LAST TEMP Previous A/D raw Previous A/D raw Press Enter to Press Enter to recall Press Enter to Display and edit...

  • Page 25: Feature Menu

    Shown if LOCALE is ON ZERO GRSNET UNITS PRINT TARE UNLOCK UNLOCK UNLOCK UNLOCK UNLOCK LOCK LOCK LOCK LOCK LOCK MENU UNLOCK UNLOCK LOCK UNLOCK LOCK LOCK UNLOCK LOCK Figure 2-8. Feature Menu Structure © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 26: Region Menu

    880 Performance Series Controller/Indicator 2.2.7 Region Menu ..SETUP ..FEATUR REGION REGWOR DECFMT TIME DATE REGULA NTEP GROSS DFORMT D SEP CANADA BRUTTO COMMA MMDDY4 SLASH 000000 INDUST DDMMY4 DASH NONE Y4MMDD SEMI OIML Y4DDMM TFORMT T SEP...

  • Page 27: Ports Menu

    PRFBUS Figure 2-11 Figure 2-12 NONE Address Address on page 24 on page 25 BYTE number number BOTH LOAD SAVE? ALL ? CFG ? CAL ? Figure 2-10. Ports Menu Structure © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 28: Com And Usbcom Menu

    880 Performance Series Controller/Indicator 2.2.9 Com and USBCOM Menu ..SETUP ..PORTS USBCOM TRIGGE TERMIN ECHO RESPNS EOLDLY PRNMSG SFMT CR/LF 0-255 COMAND format STRIND Menu structure STRLFT if TRIGGE is set PROGIN to STRIND or STRLFT.

  • Page 29: Ethernet Communications Menu

    ECHO RESPNS ECHO RESPNS SFMT ALPHA/NUM Figure 2-12. Ethernet Communications Menu Structure 2.2.11 USB Host LOAD SAVE? ALL ? CFG ? CAL ? Figure 2-13. USB Host Menu Structure © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 30: Print Format Menu

    880 Performance Series Controller/Indicator 2.2.12 Print Format Menu ..SETUP ..PFORMT GFMT NFMT ACCFMT SPFMT HDRFMT format PORT format USBCOM ETH-S ETH-C USBMEM Figure 2-14. Print Format Menu Structure 2.2.13 Setpoint Menu ..SETUP ..
  • Page 31 SLOT 1 If BATSEQ is ON SLOT1 – If RELAY option board is installed. SLOT 0 – If any DIGIO are configured as OUTPUT. Figure 2-16. Setpoint Menu Structure – Layout A © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 32 880 Performance Series Controller/Indicator Setpoint Menu – Layout B PAUSE, DELAY, WAITSS, COUNTR, AUTJOG CLRACM CLRTAR PSHACM PSHPRT PSHTAR VALUE number ONQUIE WAITSS DELAY, WAITSS and AUTJOG setpoints only. ACCESS NAME SLOT DIGOUT SENSE BRANCH NONE 6ALPHA NORMAL BIT 1-4...

  • Page 33: Digital Input/Output Menu

    0-20MA HOLD PROGIN 4-20MA ZEROSC Figure 2-20. Analog Output Menu Structure 2.2.16 Version Menu ..SETUP ..VERS SOFTWR DEFALT VX.XX.XX LRV X.XX Figure 2-21. Version Menu Structure © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 34: Troubleshooting

    880 Performance Series Controller/Indicator Troubleshooting This section provides an overview of common troubleshooting procedures. Error Messages The 880 provides a number of front panel error messages to assist in problem diagnosis. Table 3-1 lists these messages and their meanings. Error Message...

  • Page 35: Compliance

    Compliance DECLARATIONOF CONFORMITY 880 indicator series 2014/30/EU EMC EN 55011:2009+A1:2010, EN 61326-1:2006 2014/35/EU LVD IEC 60950-1 ed.2 2011/65/EU RoHS EN 50581:2012 __________________________ _____________ ________ __________________________ May 3, 2019 __________________________ __________________________ __________________________ © Rice Lake Weighing Systems ● All Rights Reserved...

  • Page 36: Specifications

    880 Performance Series Controller/Indicator Specifications Power Line Voltages Input Voltage: 100–240 VAC, 9–36 VDC Input Frequency: 47–63 Hz Power Consumption AC: 15 W DC: 20 W Analog Specifications Full Scale Input Signal -45 mV–+45 mV Excitation Voltage 10 VDC ± 8 x 350Ω or 16 x 700Ω load cells...
  • Page 37 Display Bezel NEMA Type 4X, IP69K Universal Mount Enclosure Dimensions 6.7'' x 8.1'' x 4.3'' (170 mm x 206 mm x 110 mm) Weight 7.5 lb (190 kg) Rating/Material Display Bezel NEMA Type 4X, IP69K © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 38 880 Performance Series Controller/Indicator Certifications and Approvals NTEP CoC Number:13-080 Accuracy ClassIII/IIILn : 10 000 Measurement Canada Approval: AM-5931C Accuracy ClassIII/IIIHD n : 10 000 File Number: Pending Panel Mount only. Universal pending. UL Listings Universal Model File Number: E151461...
  • Page 40 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
