880 Performance

Relay Option Card Installation

The Relay Option Card provides four normally open relays for an 880 indicator when installed. The Relay Option Card attaches
to the 880 CPU board. Depending on the desired output of the Relay Option Card, SLOT 1 must be configured in the Setpoints
Menu (SETPTS) and BIT 1-4 in the Digital I/O Menu (DIGIO) within the Setup Menu of the 880 indicator. Refer to the 880
Technical Manual (158387) for additional information on the configuration of relays.
The indicator automatically recognizes all installed option cards when the unit is powered on. No hardware-specific
configuration is required to identify an installed option card to the system.
Manuals and additional resources are available from the Rice Lake Weighing Systems website at
Warranty information can be found on the website at
Always disconnect power before opening an enclosure or controller assembly. Option card is not hot swappable.
WARNING
Procedures requiring work inside the indicator must be performed by qualified service personnel only.
A grounding wrist strap must be worn to protect components from electrostatic discharge (ESD) when working
CAUTION
inside an enclosure or controller assembly.

Parts Breakdown

The Relay Option Card kit (179157) contains the necessary items used for installation of the option card.
Item No. Part No.
1
179687
Faceplate, Relay Option
2
164974
Board Assembly, Relay
3
14822
Screw, Machine 4-40 NC x 1/4
4
157176
Label, Relay Option 880
152381
Connector, 8 Position Screw Terminal
April 7, 2021
Series
3
2
1
4

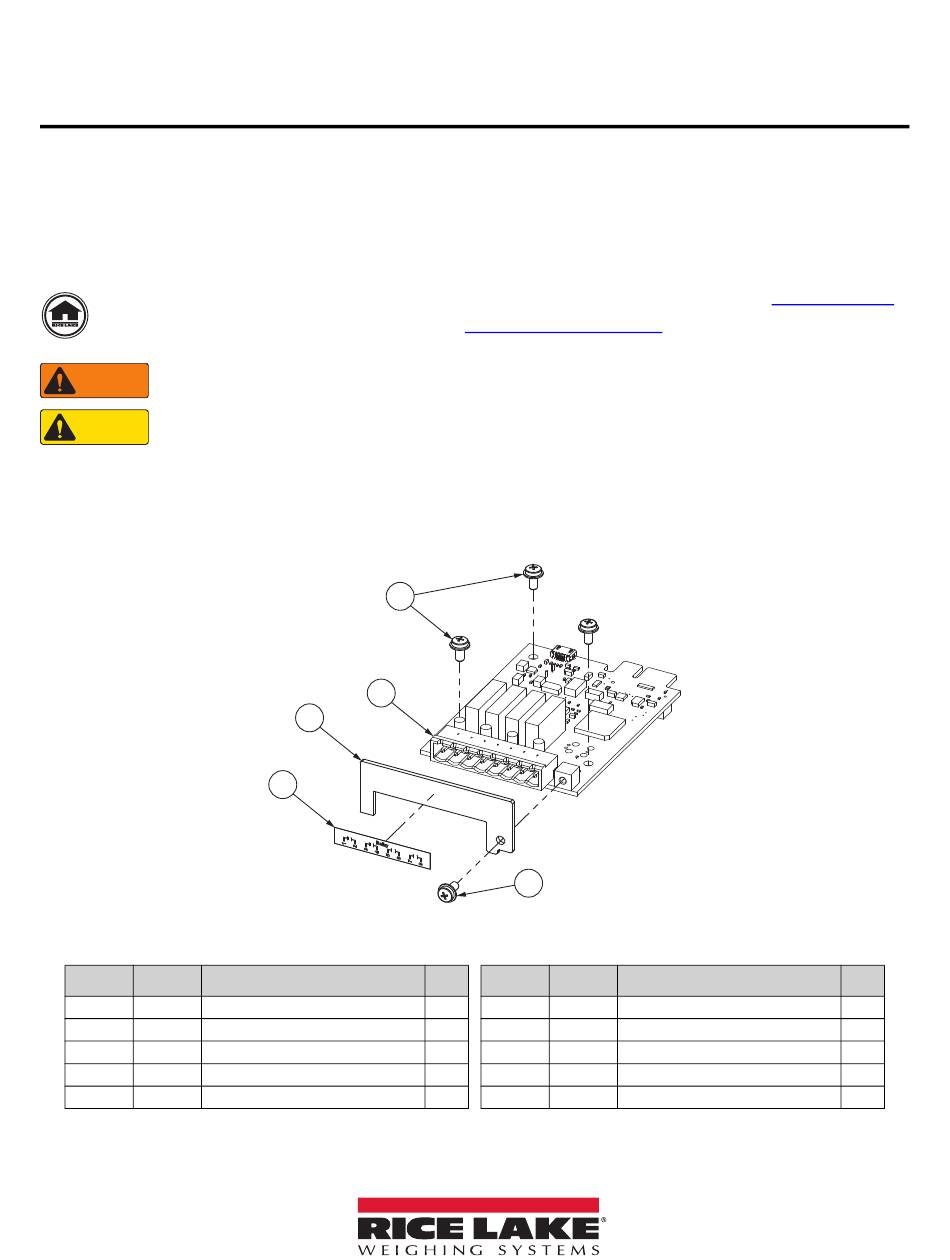

Figure 1. Relay Option Card Parts Breakdown
Description
Table 1. Relay Option Card Parts List
www.ricelake.com/warranties
3
Qty.
Item No. Part No.
1
53075
1
67550
4
15139
1
14621
1
200273
www.ricelake.com
Description
Clamp, Ground Cable Shield, 0.078''
Clamp, Ground Cable Shield, 0.125''
Washer, No. 10 Lock
Nut, Keps 6-32 Hex
Addendum, Analog Output Card
PN 200274 Rev A
Qty.
1
1
1
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Performance 880 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Rice Lake Performance 880 Series

  • Page 1 The indicator automatically recognizes all installed option cards when the unit is powered on. No hardware-specific configuration is required to identify an installed option card to the system. Manuals and additional resources are available from the Rice Lake Weighing Systems website at www.ricelake.com Warranty information can be found on the website at www.ricelake.com/warranties...
  • Page 2 880 Relay Option Card Installation Panel Mount Installation 1. Disconnect power to the indicator. 2. Unhook the controller assembly from the front panel DIN rail by inserting a flat blade screwdriver into the bottom tab and sliding the mounting plate down (Figure 2).
  • Page 3 SLOT 1 must be configured in the Setpoints Menu (SETPTS) and BIT 1-4 in the Digital I/O Menu (DIGIO) within the Note Setup Menu of the 880 indicator for the desired output. © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 4 880 Relay Option Card Installation Universal Mount Installation 1. Disconnect power to the indicator. 2. Remove the backplate of the enclosure as instructed in the 880 technical manual (158387) to access the CPU board. 3. Carefully align the J5 connector on the bottom of the option card board with the J8 connector on the 880 CPU board. Connector Threaded Standoffs...
  • Page 5 The use of external fusing to limit current is recommended. Relay COM-NO are transient protected to 400V @ 600W Relay Contacts: Displayed as Slot 1, Bit 1-4 in the setpoint configuration menu © Rice Lake Weighing Systems ● All Rights Reserved...
  • Page 6 Specifications subject to change without notice. Rice Lake Weighing Systems is an ISO 9001 registered company. 230 W. Coleman St. • Rice Lake, WI 54868 • USA U.S. 800-472-6703 • Canada/Mexico 800-321-6703 • International 715-234-9171 • Europe +31 (0)26 472 1319...
