Codec Type
Packet Period
VAD
DTMF Relay

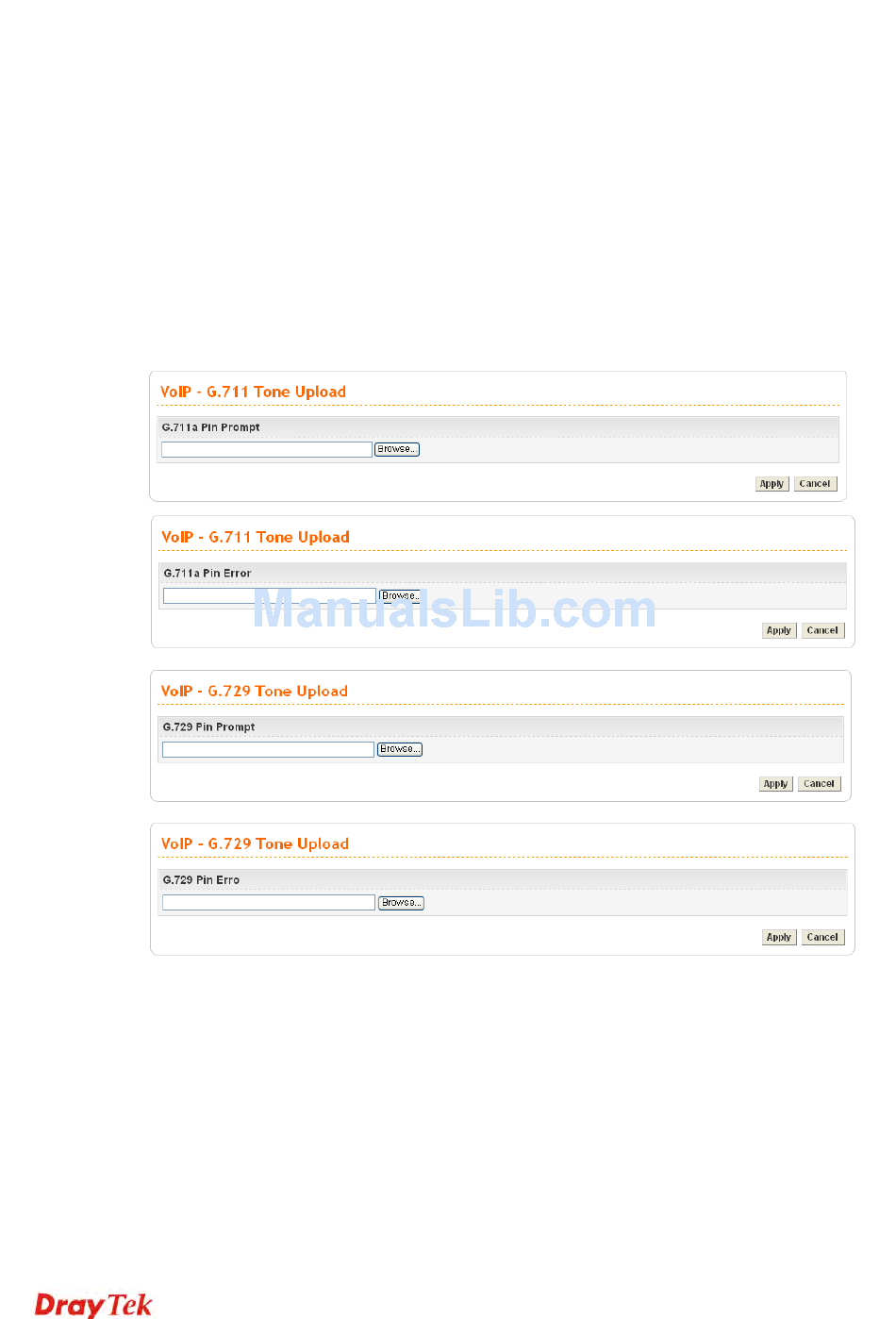

4.7.11 Tone Upload
This page allows you to upload tone settings such as G.711a Pin Prompt, G.711a Pin Error,
G.729 Pin Prompt and G.729 Pin Error to Vigor3300 series. Click Browse.. to choose the
file and click Apply to upload it.
When a user wants to dial out via FXO port, a sound would be played to ask the user typing
PIN code first. If the PIN code is correct, the user can dial out. If not, prompt sound of PIN
Error would be played.
Received; OR: Octets Received; PL: Packets Lost; JI:
Interarrival Jitter Estimate (ms); LA: Average TX Delay(ms)).
The Codec mode used for this phone calling.
The period of time for sampling on voice signal.
The status of VAD.
The status of DTMF.
208
Vigor3300V+ Series User's Guide
