For the web pages for incoming class setup and outgoing class setup (incoming class filter
and outgoing class filter) are similar, they will be explained in the same sections.

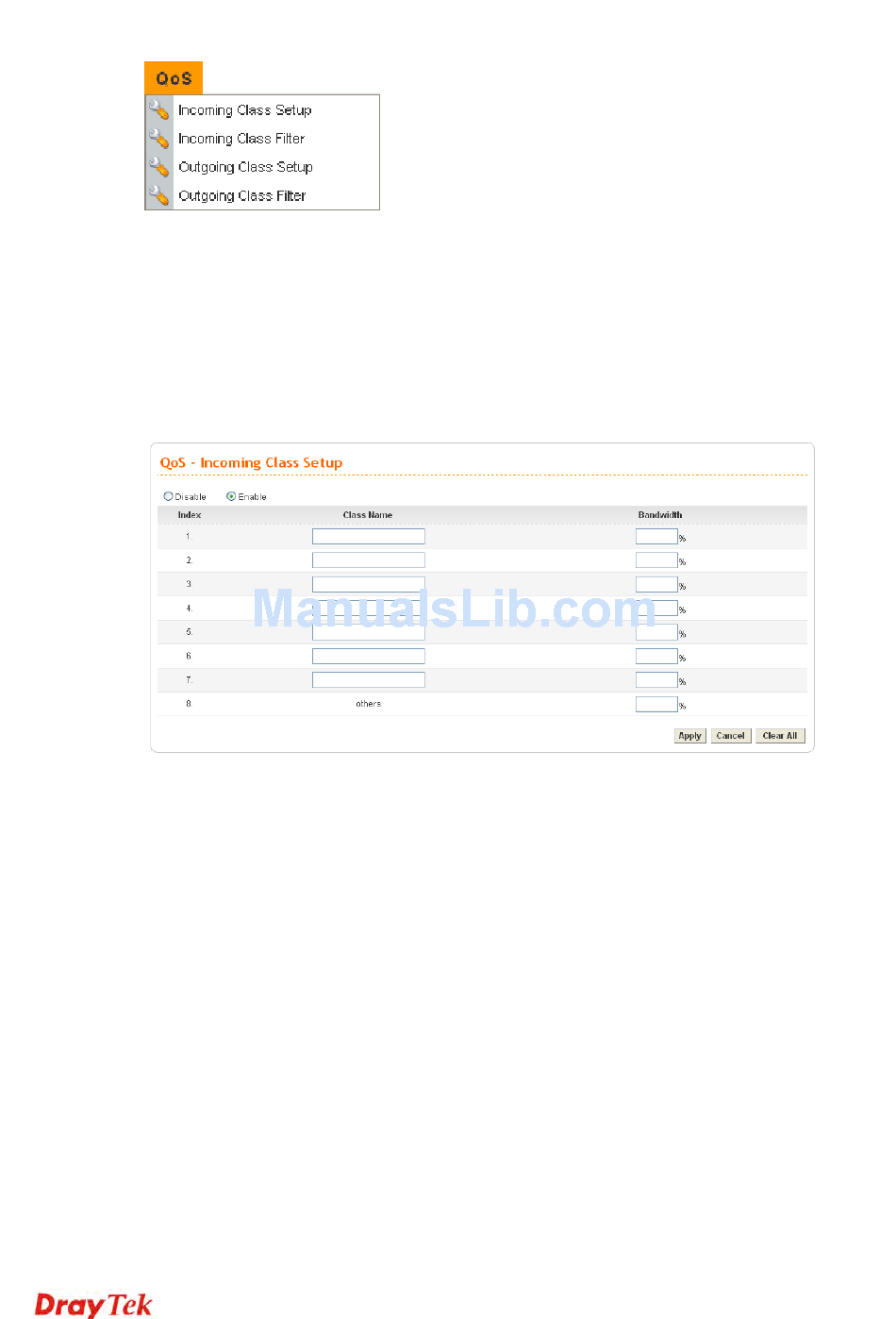

4.5.1 Incoming/Outgoing Class Setup

Incoming/Outgoing Class Setup allows you to configure bandwidth percentage for data and
voice signals transmission. Click the QoS option and choose Incoming Class
Setup/Outgoing Class Setup. There are eight queues that can be configured. The total sum
of bandwidth has to be 100 percent for all configured queues. Any leftover bandwidth is
assigned to eight queues to meet 100 percent totally.
Disable/Enable
Index
Class Name
Bandwidth
Apply
Click Disable to close this setting. Click Enable to activate
this setting.
It represents the number for each queue.
Please type the name for each queue.
Please type the usage percentage for each queue.
Click this button to apply all the settings set in this page.
