4.2.3 Auto Load Balance

Because the network between China Telecom and China CNC are disconnected, such
function is designed to do auto load balance and separate the packets among China Telecom,
China CNC and other regions via different WAN interfaces. For example, if you check
WAN1 and WAN4 for China Telecom, packets belong to China Telecom will pass through
the specified WAN interfaces only; and load balance will be done between WAN1 and
WAN4.

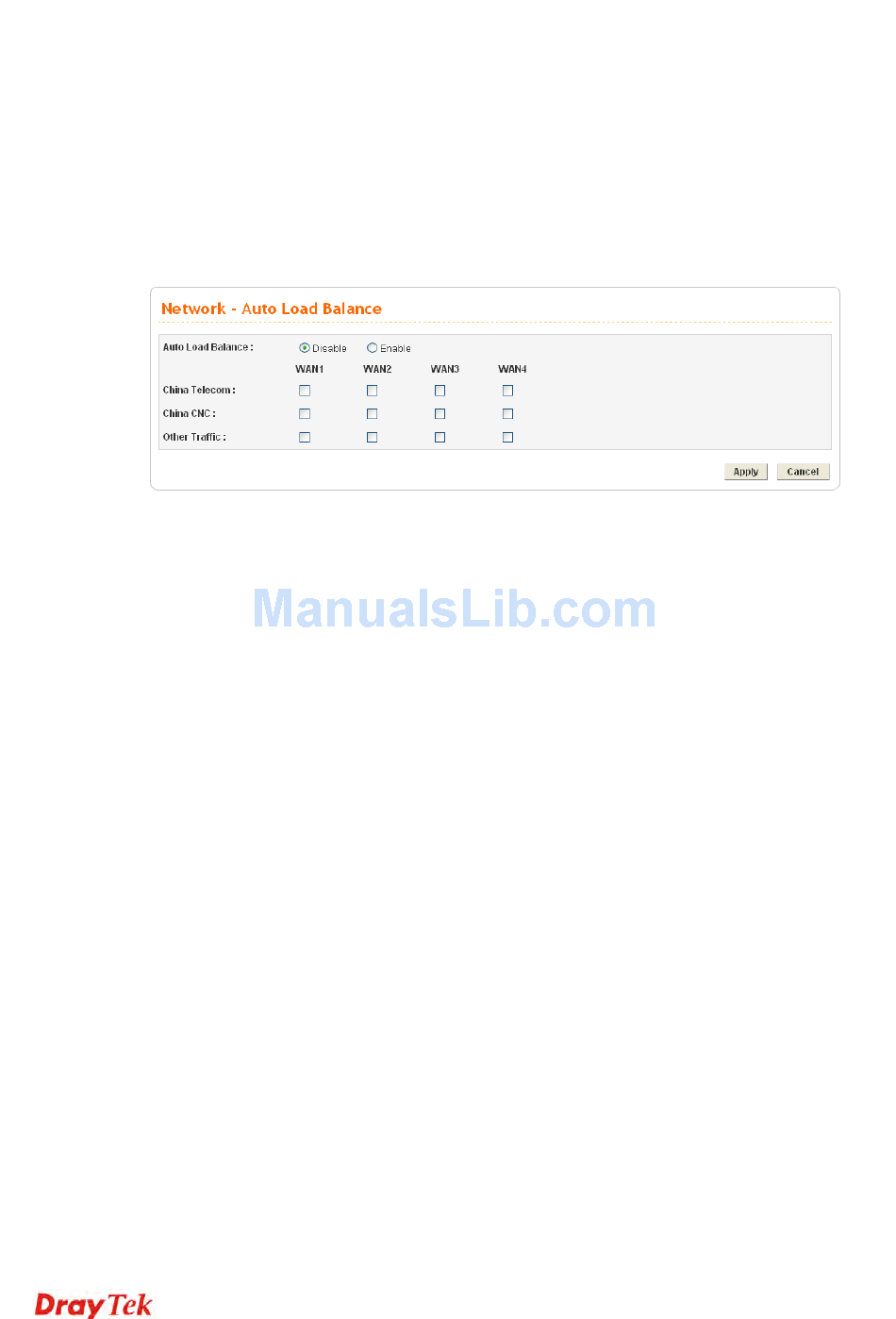

Auto Load Balance
China Telecom
China CNC
Other Traffic
Apply

4.2.4 LAN

Local Area Network (LAN) is a group of subnets regulated and ruled by router. The design
of network structure is related to what type of public IP addresses coming from your ISP.
The most generic function of Vigor router is NAT. It creates a private subnet of your own. As
mentioned previously, the router will talk to other public hosts on the Internet by using
public IP address and talking to local hosts by using its private IP address. What NAT does is
to translate the packets from public IP address to private IP address to forward the right
packets to the right host and vice versa. Besides, Vigor router has a built-in DHCP server that
assigns private IP address to each local host.
Choose Enable to invoke the auto load balance function for
your devices.
A telecom company.
A telecom company.
Regions that are not belonged to China Telecom and China
CNC.
Click Apply to save all configurations.
112
Vigor3300V+ Series User's Guide
