Protocol
Public IP
Private IP
Subnet Mask

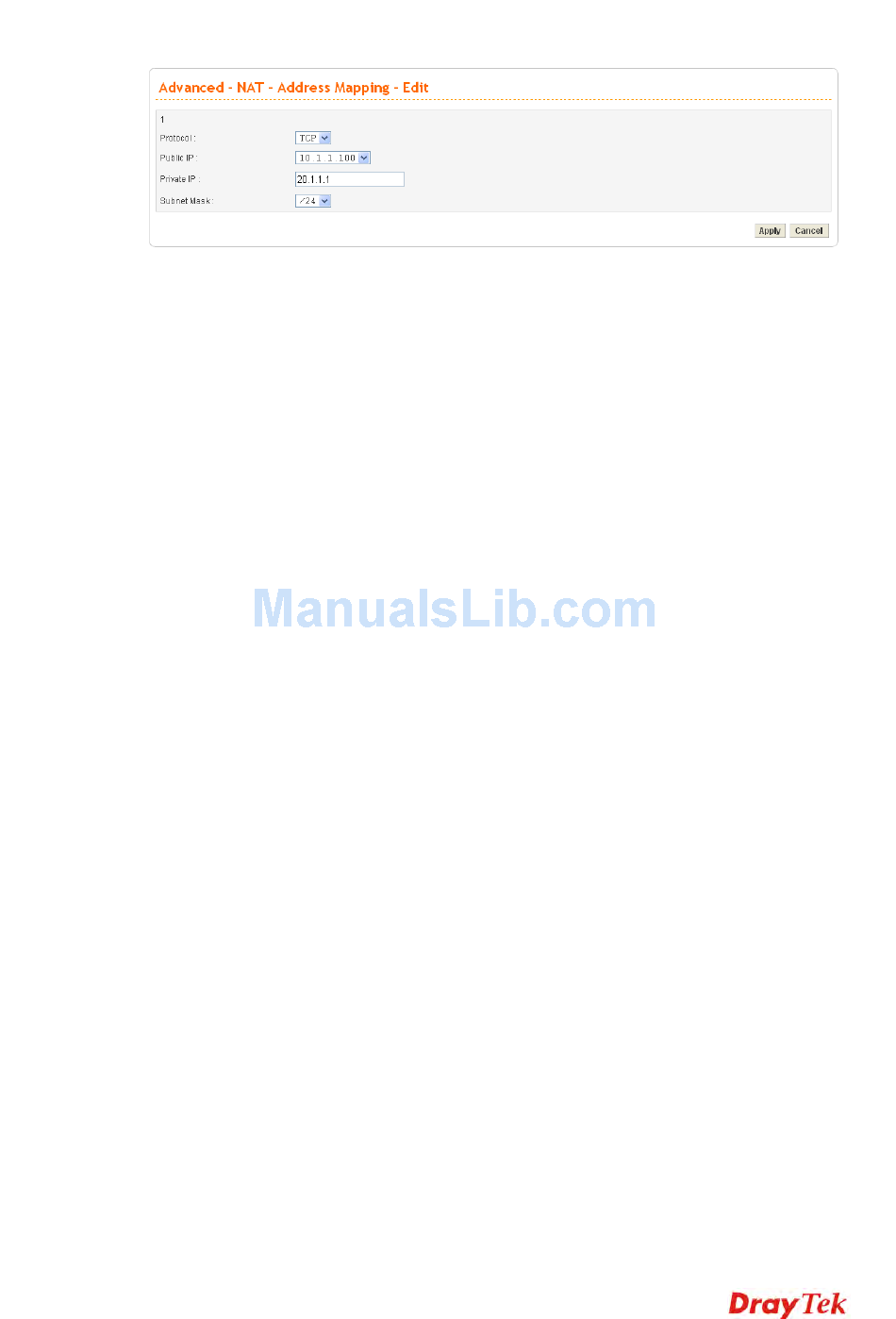

Click Apply to reboot the system and apply the settings.
By the way, user can click Delete to remove one current existed NAT entry in the
Advanced – NAT – Address Mapping page and click Delete All to remove all entries.
D
M
Z
H
D
M
Z
H
In computer networks, a DMZ (De-Militarized Zone) is a computer host or small network
inserted as a neutral zone between a company's private network and the outside public
network. It prevents outside users from getting direct access to company network. A DMZ is
an optional and more secure approach to a firewall and effectively acts as a proxy server as
well. In a typical DMZ configuration for a small company, a separate computer (or host in
network terms) receives requests from users within the private network for access to Web
sites or other companies accessible on the public network. The DMZ host then initializes
sessions for these requests on the public networks. However, the DMZ host is not able to
initiate a session back into the private network. It can only forward packets that have already
been requested. Users of the public network outside the company can access only the DMZ
host. The DMZ may typically also have the company's Web pages so these could be
served to the outside world. If an outside user penetrated the DMZ host's security, only the
Web pages will be corrupted but other company information would not be exposed.
Vigor3300V+ Series User's Guide
Select the transport layer protocol. It could be TCP, UDP, or
All for selection.
Select an IP address (the selections provided here are set in IP
Alias List of Network >>WAN interface). Local host can use
this IP to connect to Internet.
If you want to choose any on of the Public IP settings, you
must specify some IP addresses in the IP Alias List of the
Static/DHCP Configuration page first. If you did not type in
any IP address in the IP Alias List, the Public IP setting will
be empty in this field. When you click Apply, a message will
appear to inform you.
Assign an IP address or a subnet to be compared with the
source IP address for incoming packets.
Select a value of subnet mask for private IP address.
o
s
t
o
s
t
127
