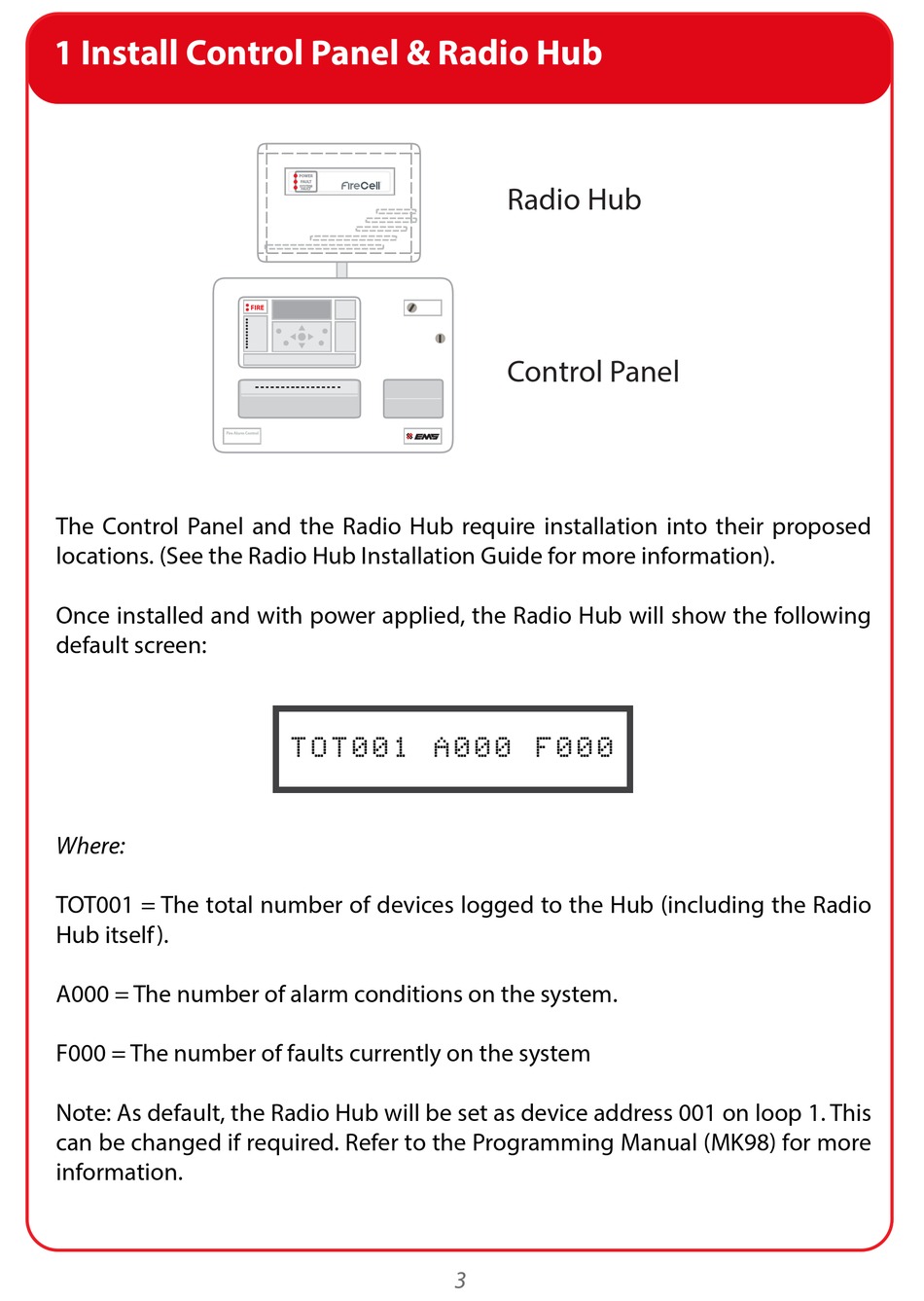

1 Install Control Panel & Radio Hub
Fire Alarm Control
The Control Panel and the Radio Hub require installation into their proposed
locations. (See the Radio Hub Installation Guide for more information).
Once installed and with power applied, the Radio Hub will show the following
default screen:
Where:
TOT001 = The total number of devices logged to the Hub (including the Radio
Hub itself ).
A000 = The number of alarm conditions on the system.
F000 = The number of faults currently on the system
Note: As default, the Radio Hub will be set as device address 001 on loop 1. This
can be changed if required. Refer to the Programming Manual (MK98) for more
information.
POWER
FAULT
SYSTEM
FAULT
FIRE
TOT001 A000 F000
Radio Hub
Control Panel
3
