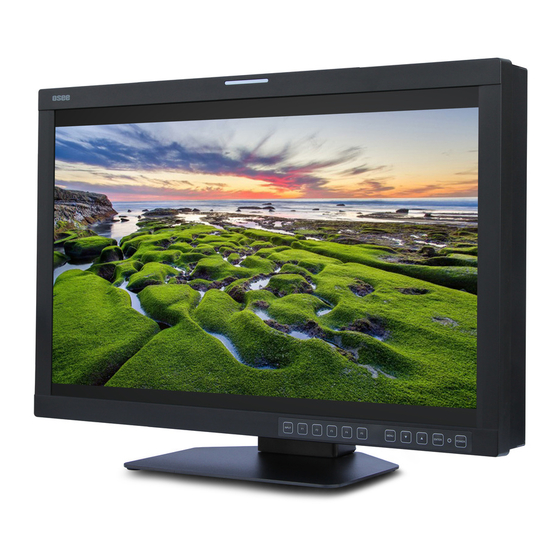

XCM-240

LCD Monitor

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCM-240 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OSEE XCM-240

Summary of Contents for OSEE XCM-240

  • Page 1: Lcd Monitor

    XCM-240 LCD Monitor User Manual...
  • Page 3 Product Information XCM-240 LCD Monitor Model: Version: V010000 Release Date: March 17th, 2014 Company Beijing Osee Digital Technology Ltd. Customer Support No.22 Building, No.68 zone, Beiqing Road, Haidian District, Address: Beijing, China Post Code: 100094 (+86) 010-62434168 Tel: Fax: (+86) 010-62434169 http://www.osee-dig.com/...

  • Page 4: Contents

    The user manual applies to the following device types:  XCM-240-3HSV The images of XCM-240 are adopted in the following descriptions. Any of the different specifications between the device types are elaborated. Before reading the manual, please confirm the device type.

  • Page 5: Table Of Contents

    Chapter 1 Overview ..................1 Chapter 2 Safety ..................... 3 Chapter 3 Unpack and Installation ............... 5 Chapter 4 XCM-240 Features ................ 7 4.1 Front Panel Features ................9 4.1.1 Arrangement of Front Panel ............. 9 4.1.2 Operation of Front Panel ..............10 4.2 Rear Panel Features ................
  • Page 6 6.2.1 ADJUST Menu ................60 6.2.2 VIDEO DISPLAY Menu ..............62 6.2.3 SYSTEM Menu ................62 6.2.4 Other Menus ................... 64 6.3 Parameter Settings ................64 Chapter 7 Specifications ................69...

  • Page 7: Chapter 1 Overview

    By adopting the advanced 10-bit digital signal processing technology plus 3D comb filter, de-interlacing capability and accurate scaling ensures the XCM-240 series LCD Monitor to achieve a better effect of smoother and more natural image. The XCM-240 series LCD Monitor supports up to 2Ch 3G/HD/SD-SDI/analog input/output, 2Ch CVBS(LINE1, LINE2) input/output, IGRP Y/C input/output, IGRP YPbPr input/output, and 1Ch HDMI input.
  • Page 8 Overview  Using 10-bit signal processing technology plus advanced conversion technology between the interlacing and the progressive  Featuring PBP and PIP, dual 3G-SDI capable under PBP mode  Supporting waveform/vector scope, audio metering bar, TC, IMD and  Supporting varied color temperature, varied scan modes, flexibility in marker setting, Blue Only/Monochrome mode Functionality ...

  • Page 9: Chapter 2 Safety

    Safety Chapter 2 Safety Read, keep and follow all of these instructions for your safety. Heed all warnings. Device  Install in accordance with the manufacturer's instructions.  Do not beat with a hard object or scratch the LCD display. ...
  • Page 10 Safety  Do not use this unit near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that product heat.  A nameplate indicating operating voltage, etc., is located on the rear panel.  The socket-outlet shall be installed near the equipment and shall be easily accessible.

  • Page 11: Chapter 3 Unpack And Installation

    Chapter 3 Unpack and Installation Unpack: When unpacking the components of XCM-240 monitor, please verify that none of the components listed in Table 3.1 are damaged or lack. If there is any missing, contact your distributors or Beijing Osee Digital Technology Ltd. for it.
  • Page 12 Unpack and Installation As a final step, turn on each screen of the device by pressing the corresponding power switch located on the front panel.  The pedestal and the monitor are packaged separately.  Connect a standard signal lines to the corresponding input port. All BNC connector impedance must be 75Ω.

  • Page 13: Chapter 4 Xcm-240 Features

    XCM-240 Features Chapter 4 XCM-240 Features This chapter describes the features of XCM-240 monitor. The features of XCM-240monitor are as shown in Figure 4-1 after installed and powered on: Status Information SDI1 AFD CC 1080I59.94 Area Marker Safe Marker Audio Meter...
  • Page 14 XCM-240 Features image. You can set whether to display it or not in MARKER menu. Audio Meter It is displayed for audio monitoring. You can set its groups, direction, position and mode in AUDIO menu. Timecode It is displayed at the bottom of the image, the format is HH:MM:SS:FF, if there is no timecode available, the monitor will display --:--:--:--.

  • Page 15: Front Panel Features

    There are a series of buttons at the bottom of the screen, and these buttons are used to control the screen menu items. Figure 4.1-1 the Buttons in Front Panel As shown in Figure 4.1-1, take the left screen of XCM-240 for example, these buttons are as follows: INPUT...

  • Page 16: Operation Of Front Panel

    XCM-240 Features 4.1.2 Operation of Front Panel The functionality and usage of the buttons at the front panel are as follows: INPUT Select the input signal. Press this button to display the input source menu at the right top corner of the screen, as shown in Figure 4.1-2. Use it to select an input signal source, press it again to toggle among these input signal items.
  • Page 17 XCM-240 Features Figure 4.1-3 Correspondence between Source Menu and Interface This button is a FUNCTION button. The function can be set via the FUNCTION menu. Open the FUNCTION menu after the first time, the selected function will remain.  OPERATION: Press F1 to display the function menu list in the center of the screen, as shown in Figure 4.1-6.
  • Page 18 XCM-240 Features CUNCTION SCAN NORMAL NATIVE AStECT WIN SELECT MAIN Figure 4.1-4 Function Menu List  After you have loaded the function menu list, it will be closed automatically if you do nothing operation with it in 10s.  If the value related to the function button can’t be modified, the value shows in blue.
  • Page 19 XCM-240 Features CACTORY RESET Cactory Reset Now? Figure 4.1-5 Reset Menu List It is used to activate to F3 function button. The operation is as the same as F1's. It is used to activate to F4 function button. The operation is as the same as F1's.
  • Page 20 XCM-240 Features  Enter into the next level menu: press ENTER button, you will enter into the menu item as this relationship: the Main menu list sub-menu list sub-menu value list, the current editable object is in yellow control icon;...

  • Page 21: Rear Panel Features

    It will introduce the arrangement and the operations of the interfaces in rear of the panel in the following. 4.2.1 Arrangement of Rear Panel As shown in Figure 4.2-1, there are various input and output interfaces at the rear panel of XCM-240 monitor.
  • Page 22 XCM-240 Features Figure 4.2-1 The Rear Panel of XCM-240 Monitor The interfaces numbered from 1 to 8 in red dotted rectangle are described as follows: Power Switch Power Input Video Input: SDI1 IN, SDI2 IN HDMI Input Video Output: SDI1 OUT, SDI2 OUT...

  • Page 23: Operations Of Rear Panel

    XCM-240 Features Video Input: LINE2(CVBS/Y) IN, feed the composited LINE2, and component Y signals. Video Output: LINE2(CVBS/Y) OUT, output the composited LINE2, and component Y signals. Video Input: LINE2(Pb/C) IN, feed the component Pb, and component C signals. Video Output: LINE2(Pb/C) OUT, output the component Pb, and component C signals.
  • Page 24 XCM-240 Features Video Input Interface (BNC) It provides two SDI input interfaces, one is labeled as SDI1 IN, and the other is SDI2 IN. HDMI It provides one HDMI input interface, HDMI Type-A connector with a fastener. Video Output Interface (BNC) It provides two SDI output interfaces.
  • Page 25 XCM-240 Features Support for dynamic IMD and updating the new firmware. The Comparison of Pins and Input/output connectors for RS485 is shown as in Table 4.2-1: Table 4.2-2 The Comparison of Pins and Input/output connectors for RS485 PIN No. RS485 IN Terminal Signal RS485 OUT Terminal Signal Audio Input interface It provides four audio(2 pairs) input interfaces, 5dBu, impedance≥47K,...

  • Page 26: Supported Signal Format

    XCM-240 Features Figure 4.2-3 Video Input/Output Interfaces 4.3 Supported Signal Format The supported signal format for this device is as shown in Table 4.3-1: Table 4.3-1 Supported Signal Format VIDEO HDMI YPBPR     NTSC   ...
  • Page 27 XCM-240 Features VIDEO HDMI YPBPR    720P50    720P60/59.94    1080SF24/23.97    1035I60/59.94    1080I50    1080I60/59.94    1080P24/23.97    1080P25   ...

  • Page 29: Chapter 5 Functionality Of The Main Menu

    Functionality of the Main Menu Chapter 5 Functionality of the Main Menu This chapter describes the structure and functionality of the main menu, and introduces how to modify and customize the menu settings. The main menu includes the following menu items, as shown in Figure5-1. Figure 5-1 Main Menu 5.1 Main Menu Press the MENU button at the bottom of the front panel, the main menu is...
  • Page 30 Functionality of the Main Menu Figure 5.1-1 the Structure of the Main Menu The menu interface is divided into three parts: Main Menu List It contains the title of the Main menu and several sub-menu items. The title of this list is MAIN. Press UP or DOWN to access the corresponding menu item.
  • Page 31 Functionality of the Main Menu  The sub-menu item value is editable when the control icon which is in yellow highlight is at the back of the item value. The control icon of the main menu has the following status when in different positions, as shown in the red rectangle of the following figures: ...
  • Page 32 Functionality of the Main Menu Figure 5.1-4 A Sub-menu Item Is Selected  when in the sub-menu item value, it shows that this sub-menu item value is selected, and the value is displayed in yellow, as shown in Figure 5.1-5: Figure 5.1-5 A Sub-menu Item Value Is Selected...

  • Page 33: Status Menu

    Functionality of the Main Menu The following will introduce the contents and functionality of these sub-menu items in sorts. 5.1.1 STATUS Menu The STATUS menu items are used to describe the current status information of the monitor, the menu items are as shown in Figure 5.1-6: Figure 5.1-6 STATUS Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-1:...

  • Page 34: Input Select Menu

    MODE  UNDER FAST OFF/ON Show the fast mode. MODE Show screen SD ASPECT 16:9 16:9/4:3 Aspect Ratio. Show the production MODEL XCM-240-3HSV model. SERIAL Show serial XCM2402013070001 NUMBER number. 192.168.1.86 Show the IP address. ADDRESS Show color COLOR 65535-255-255.65535 --...
  • Page 35 Functionality of the Main Menu Figure 5.1-7 INPUT SELECT Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-2: Table 5.1-2 The Description of INPUT SELECT Menu Items Default Items Domain Range Description Value SDI1...

  • Page 36: Marker Menu

    Functionality of the Main Menu 5.1.3 MARKER Menu The MARKER menu items are used to adjust the marker parameters, the menu items are as shown in Figure 5.1-8: Figure 5.1-8 MARKER Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-3: Table 5.1-3 The Description of MARKER Menu Items Default...
  • Page 37 Functionality of the Main Menu Default Items Domain Range Description Value  OFF: close area marker   15:9  14:9  13:9  1.85:1  2.35:1 when display aspect is 4:3, images show with the following scale:  OFF: close area marker ...

  • Page 38: Audio Menu

    Functionality of the Main Menu  The AREA MARKER, CENTER MARKER and SAFETY MARKER feature are available only when the MARKER item is set to ON.  The marker will not display in PBP mode even if you have opened the marker switch.
  • Page 39 Functionality of the Main Menu Default Items Domain Range Description Value  AUDIO2: external HDMI/SDI1/SDI2, signal2 select only  UNDEF: no signal UNDEF, AUDIO1 AUDIO2. When the audio source is Left speaker, select a SPEAK EBD CH1 EBD, the range of this item channel according to the OUT L is EDB CH1~ EDB CH16.

  • Page 40: Display Menu

    Functionality of the Main Menu Default Items Domain Range Description Value  MODE1: simple audio meter  MODE2: audio meter METER DIS Select displayed MODE1 with channel number MODE mode for audio meter.  MODE3: audio meter with channel number and dB value Select reference...
  • Page 41 Functionality of the Main Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-5: Table 5.1-5 The Description of DISPLAY SETUP Menu Items Default Items Domain Range Description Value Set whether to display STD information.
  • Page 42 Functionality of the Main Menu Default Items Domain Range Description Value   D-VITC Set whether to display TC, and TIME CODE  select a mode for TC display.  VITC Thereinto, the value of LINE WFM is different according to the type of input signal, as shown in Table 5.1-6.

  • Page 43: Close Caption Menu

    Functionality of the Main Menu TYPE to switch to PIP mode or PBP mode. Refer to "5.1.7 CONFIG Menu" for details.  Please refer to the international standard SMPTE2016-1-2007 for the details about AFD display. 5.1.6 CLOSE CAPTION Menu The CLOSE CAPTION menu items are used to adjust the parameters displayed on the screen, the menu items are as shown in Figure 5.1-10: Figure 5.1-12 CLOSE CAPTION Menu The relationship of Items, Default Value, Domain Range and Description...

  • Page 44: Config Menu

    Functionality of the Main Menu Default Items Domain Range Description Value   TEXT1  TEXT2  TEXT3  TEXT4  Set whether to display SDI CC LOG OFF OFF/ON CC information. 5.1.7 CONFIG Menu The CONFIG menu items are used to adjust the parameters defined by customers, the menu items are as shown in Figure 5.1-13: Figure 5.1-13 CONFIG Menu The relationship of Items, Default Value, Domain Range and Description...
  • Page 45 Functionality of the Main Menu Default Items Domain Range Description Value Set whether in fast FAST MODE OFF/ON mode. FILM MODE Set whether to detect OFF/ON DETECT film mode. Set the arrangement SUB IN TYPE PBP/PIP/OFF mode of screen picture ...
  • Page 46 Functionality of the Main Menu Figure 5.1-14 PIP Mode In PIP mode, it displays the WFM or Audio Meter only for the signal of the main picture.  In PBP mode, the relationship of the main picture and the slave picture is as shown Figure 5.1-15: Figure 5.1-15 PBP Mode In PBP mode, it displays the WFM or Audio Meter only for the signal of...
  • Page 47 Functionality of the Main Menu and the WFM frame of the slave picture displays at the bottom right corner of the screen. Meantime, if Audio Meter was shown up, it could display at the top position of the screen, just at the top left corner or at the top right corner, thus to avoid colliding with the WFM.

  • Page 48: Color Temp Menu

    Functionality of the Main Menu 5.1.8 COLOR TEMP Menu The COLOR TEMP menu items are used to adjust the color temperature parameters and the color balance, the menu items are as shown in Figure 5.1-17: Figure 5.1-16 COLOR TEMP Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-10: Table 5.1-10 The Description of COLOR TEMP Menu Items...

  • Page 49: Function Key Menu

    Functionality of the Main Menu Items Default Value Domain Range Description GAIN BLUE GAIN 128 0~256 Adjust the Blue Gain RED BIAS -50~50 Adjust the Red Offset GREEN -50~50 Adjust the Green Offset BIAS BLUE BIAS 0 -50~50 Adjust the Blue Offset ...
  • Page 50 Functionality of the Main Menu Figure 5.1-17 FUNCTION KEY Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-11: Table 5.1-11 The Description of FUNCTION KEY Menu Items Items Default Value Domain Range Description SCAN, NATIVE, ASPECT, BLUE ONLY, MONO, MARKER, H/V...

  • Page 51: Gpi Menu

    Functionality of the Main Menu This product supports the following scan modes: NORMAL OVER UNDER Set the function button as [SCAN], press the button continuously to activate various scan modes.  OVER: Zooms in/out of the image to 96% of its original size without changing the aspect ratio.
  • Page 52 Functionality of the Main Menu Table 5.1-12 The Description of GPI Menu Items Items Default Value Domain Range Description UNDEF, AREA MARKER, CENTER MARKER, SAFETY MARKER, ASPECT, NATIVE, OVER SCAN, UNDER SCAN, TALLY GPI1 BLUE ONLY, MONO, Set a function to GPI1 GREEN DELAY, DELAY,...

  • Page 53: Imd Menu

    Functionality of the Main Menu Items Function Trigger ASPECT Set the aspect ratio. Low: 16:9; High: 4:3 Switch between MONO Low: MONO; High: NORMAL monochrome and color. Switch scan mode between OVER SCAN Low: OVER; High: NORMAL over and normal. Switch scan mode between UNDER SCAN Low: UNDER;...
  • Page 54 Functionality of the Main Menu Figure 5.1-19 IMD Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 5.1-14: Table 5.1-14 The Description of IMD Menu Items Default Items Domain Range Description Value Set whether to display IMD DISPLAY ON...
  • Page 55 Functionality of the Main Menu Default Items Domain Range Description Value  TSL4.0  TSL5.0  IMAGE VIDEO  NETWORK Set the ID number for IMD ID 0~255 each monitor Set an IMD name for IMD NAME XXXXXXXX each screen. 2400/4800/9600/19200 Select a baud rate for BAUD RATE...

  • Page 56: Key Inhibit Menu

    Functionality of the Main Menu enable but only to set the KEY INHIBIT item, or there is a “KEY INHIBIT” prompt displayed on the screen when using other keys. 5.1.12 KEY INHIBIT Menu The KEY INHIBIT menu items are used to adjust the parameters displayed on the screen, the menu items are as shown in Figure 5.1-10: Figure 5.1-20 KEY INHIBIT Menu The relationship of Items, Default Value, Domain Range and Description...

  • Page 57: Menu Settings

    Functionality of the Main Menu key can be enable but only to set the KEY INHIBIT item, or there is a “KEY INHIBIT” prompt displayed on the screen when using other keys. 5.2 Menu Settings When checking or modifying the value of the menu item, cooperating with the following buttons: MENU, UP, DOWN, ENTER.
  • Page 58 Functionality of the Main Menu After entering to a sub-menu item or a sub-menu item value, press MENU button to back to the upper level menu area.  Close the Main menu Press MENU button to close the Main menu when the control icon is in the Main menu item.
  • Page 59 Functionality of the Main Menu Operations to sub-menu item value  Switch sub-menu item value When the control icon is in sub-menu item value, press UP or DOWN button to switch among its value list.  Confirm the modification to sub-menu item value Press ENTER button to confirm the selection of a value, and the control icon is back to the corresponding sub-menu item.
  • Page 60 Functionality of the Main Menu Figure 5.2-3 Select the Value of Language Step 3 Confirm the modification of the value of sub-item Click DOWN button to select the sub-item LANGUAGE to Chinese, as shown in Figure 5.2-4, press ENTER button to confirm the modification. Figure 5.2-4 Switching the Value of LANGUAGE...
  • Page 61 Functionality of the Main Menu Step 4 Exit the main menu Click MENU button to exit the main menu.

  • Page 63: Chapter 6 Network Control

     The network address of the computer which is connected with XCM-240 and the network address of XCM-240 must be in the same segment. This chapter will introduce how to set and check the parameters of XCM-240 in Internet Explorer.

  • Page 64: Menu Control

    Network Control Figure 6.1-1 Network Control Page 6.2 Menu Control Open the management interface as shown in Figure 6.2-1, the menu items listed in the left part are almost as the same as the main menu items.
  • Page 65 Network Control Figure 6.2-1 Management Interface As shown in Figure 6.2-1, the management interface is divided into the following parts: Input Source Selection Button It is used to selecting an input source as the input signal, such as: SDI1, SDI2, LINE1, LINE2(CVBS), HDMI. The selecting box of "Apply to All" at the right side is used to synchronize the settings for all the other kinds of input sources.

  • Page 66: Adjust Menu

    Network Control The title in the yellow rectangle of the parameter list and the parameter list will change with the navigation menu when switched. Figure 6.2-2 Parameter List • There may be a “(S)” icon followed by some parameter name in the parameter list, it is mean that this parameter is only a local parameter for the current selected signal source, otherwise, the parameter is global and the modification is valid for all signal sources.
  • Page 67 Network Control Figure 6.2-3 ADJUST Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 6.2-3: Table 6.2-1 The Description of ADJUST Menu Items Items Default Value Domain Range Description Adjust picture CONTRAST 0~100 contrast...

  • Page 68: Video Display Menu

    Network Control Items Default Value Domain Range Description Enable/disable FREEZE OFF/ON current picture to be stopped or played. picture displaying mode in full WIN SOURCE MAIN MAIN/SUB mode or in sub-picture mode VOLUME 0~31 Adjust the volume 6.2.2 VIDEO DISPLAY Menu It will introduce VIDEO DISPLAY menu.
  • Page 69 Network Control Click SYSTEM button at the left navigation menu list, it will display the system parameters, as shown in Figure 6.2-5: Figure 6.2-5 System Menu The relationship of Items, Default Value, Domain Range and Description of the sub-item is shown in Table 6.2-3: Table 6.2-3 The Description of System Menu Items Domain Items...

  • Page 70: Other Menus

    Network Control 6.2.4 Other Menus For the menu items in management interface are almost as the same as the menu items in the Main menu on screen, there will be no further description about their meanings and value range in this chapter, refer to “Chapter 5 Functionality of the Main Menu”...
  • Page 71 Network Control Figure 6.3-2 Screen Main Menu for AUDIO Click button to display the drop-down value list for the parameter, as shown in Figure 6.3-3, for example, modify “CH1-2” to “G1”. Figure 6.3-3 Display the Drop Down Value List of Meter Select(S)
  • Page 72 Network Control Click button to confirm the selection and the page is refreshed. You can check the modification on the screen menu, the results are the same as shown in Figure 6.3-4 and Figure 6.3-5: Figure 6.3-4 Modify the Value of a Parameter ...
  • Page 73 Network Control Figure 6.3-5 The Value is Modified Simultaneously on Screen Menu Likewise, if you modify the value of a parameter on screen menu first, you may check the same changing result in management interface through network connection.

  • Page 75: Chapter 7 Specifications

    Specifications Chapter 7 Specifications Product detailed information Specification Values LCD Dimension 24”, 569.9(H) x 380.7(V) x 97.4(D) Aspect Ratio 16:10 Display Area(mm) 518.4(H)×324.0(V) 178°(H)x178°(V) Viewing Angle Color Depth 1.073G colors (RGB 10-bits) Resolution 1920(H)×1200(V) Pixel Pitch(mm) 0.270(H)×0.270(V) Contrast 1000:1(Typ.) Luminance (cd/㎡) 250 (Typ.) Response Time (ms Typ.) <6 Backlight...
  • Page 76 Specifications Specification Values 3G-SDI /HD-SDI /SDI-SDI Input/Output SMPTE 424M, SMPTE 292M, SMPTE 259M, Signal Type SMPTE 297M Connector BNC per IEC 169-8 75Ω Impedance >18 dB 5 to 270 MHz Return Loss >15 dB 270 MHz to 1.5 GHz >10 dB up to 3 GHz Maximum Signal Level 800 mV pk-pk 10% Signal Amplitude...
  • Page 77 Specifications OVERSCAN NATIVE FULL/NORMAL Refresh Color OUTPUT Rate Matrix Input Output Input Output INPUT ALL NORMAL 1024X768 1024X768 720P24 1216X684 1366X768 1280x720 1280x720 1280x720 1366X768 720P25 1216X684 1366X768 1280x720 1280x720 1280x720 1366X768 720P30 1216X684 1366X768 1280x720 1280x720 1280x720 1366X768 720P50 1216X684 1366X768 1280x720...
  • Page 78 Specifications Figure 7-1 Front Panel(Unit: mm) Figure 7-2 Rear Panel(Unit: mm)
  • Page 79 Specifications Figure 7-3 Top View(Unit: mm) Figure 7-4 Side View(Unit: mm)  Specifications are subject to change without notice. ------------------No Text Below------------------...
  • Page 80 FOR MORE INFORMATION PLEASE VISIT: http://www.osee-dig.com/ No.22 Building, No.68 zone, Beiqing Road, Haidian District, Beijing, China Tel: (+86) 010-62434168, Fax: (+86) 010-62434169 E-mail: sales@osee-dig.com...
