- Page 1 LM-150 SERIES LCD MONITOR USER MANUAL...
- Page 2 PRODUCT INFORMATION MODEL: LM-150 SERIES LCD MONITOR Version: V030100 Release Date: 2010-1-25 COMPANY NAME Beijing Osee Digital Technology Ltd. CONTACT INFORMATION Address: Room 702, Tower D, Jinyujiahua Building, No.9, 3rd Shangdi Street, Haidian District, Beijing, China Post code: 100085 Tel: 8610-62968823 Fax: 8610-62977165 Http://www.osee-dig.com...
- Page 3 About The USER MANUAL The user manual applies to the following device types: LM-150V-D LM-150V-Z LM-150S-D LM-150S-Z The images of LM-150S-Z are adopted in the following descriptions. Any of the different specifications between the device types are elaborated. Before reading the manual, please confirm the device type.
-
Page 4: Table Of Contents
Contents Chapter 1 Product Overview ....................1 Chapter 2 Unpacking and Installation ................2 Chapter 3 Dimensions ......................3 Chapter 4 Operation ......................5 Status Display ..........................5 4.2 Input Signals ..........................5 4.3 Rear Panel Terminals ......................... 6 4.4 Front Panel Control Buttons And Functions ................9 4.4.1 Power Standby/ON ...................... -
Page 5: Chapter 1 Product Overview

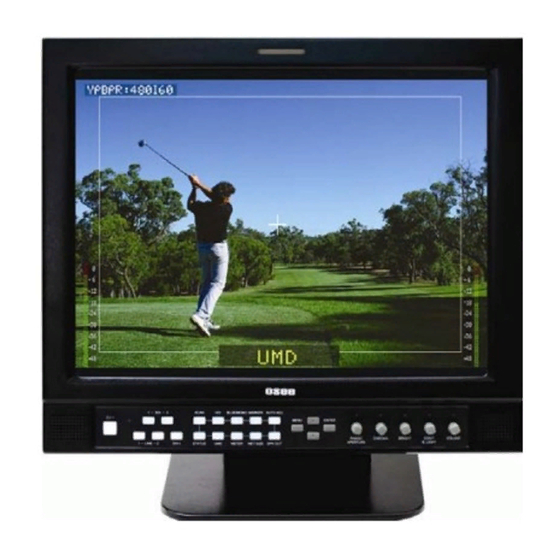

LM-150 SERIES LCD MONITOR Operating Manual Chapter 1 Product Overview The LM-150S is a 15" multiple function TFT-LCD Monitor with 1024X768 screen resolution (4:3 native aspect). Interlaced signals are processed with utilizing a 3D comb filter and 3D de-interlacer. Analog signals are internally digitized with a high quality 10 bit over sampled Analog to Digital converter. -
Page 6: Chapter 2 Unpacking And Installation
LM-150 SERIES LCD MONITOR Operating Manual Chapter 2 Unpacking and Installation Unpack the LM-150 Monitor and inspect for any apparent physical damage that may have occurred in transit. In addition to the monitor, the packaging should contain a power cord, warranty card, and, if ordered, the optional table stand. -
Page 7: Chapter 3 Dimensions
LM-150 SERIES LCD MONITOR Operating Manual Chapter 3 Dimensions Front View Rear View Unit: mm REMOTE IN 1 IN 2 Pin1:GREEN Pin2:RED Pin3-7:NC Pin8:GND LINE 1 VIDEO RS232 LINE 2 LINE 2 C/Pb VIDEO/Y LINE 2 DVI-I DVI-D /VGA /HDMI... - Page 8 LM-150 SERIES LCD MONITOR Operating Manual Side View Unit: mm Top Side View Unit: mm Bottom Side View —4—...
-
Page 9: Chapter 4 Operation
LM-150 SERIES LCD MONITOR Operating Manual Chapter 4 Operation Status Display TALLY Indicator Signal format MARKER Audio Meter Speakers 4.2 Input Signals The following input signals are supported by the LM-150 monitor: Signal Type Input Terminal Signal Format Of Input Terminal... -
Page 10: Rear Panel Terminals
LM-150 SERIES LCD MONITOR Operating Manual 4.3 Rear Panel Terminals A. Audio and Video Connections The specifications of terminals are as follows ： SDI IN1 : SDI 1 Input Terminal SD-SDI input signal which is in compliance with SMPTE259M and ITU-R BT656 standard. - Page 11 LM-150 SERIES LCD MONITOR Operating Manual LINE2 (C/Pb): LINE 2 Input terminal Chroma (C) signal of Y/C or Pb(Blue) component of YPbPr . LINE2 (Pr): LINE 2 Input terminal Pr (Red) component of YPbPr . DVI-I(DVI-D/VGA/HDMI): DVI-I Input terminal DVI analog/digital. Requires adapter for VGA signals. Don’t support HDMI input signal.
- Page 12 LM-150 SERIES LCD MONITOR Operating Manual The specifications of terminals are as follows ： GPI ：GPI Terminal Female RJ-45 Receptacle TALLY Lamp Status GPI 1 Pin GPI 2 Pin Green Open Open Orange 2 CONFIG ：Configuration Terminal It is used to update the program only.
-
Page 13: Front Panel Control Buttons And Functions
LM-150 SERIES LCD MONITOR Operating Manual 4.4 Front Panel Control Buttons And Functions 4.4.1 Power Standby/ON （1）POWER : Power Standby / ON Switch Press this switch to turn on the power of this unit or to set this unit in the standby mode. -
Page 14: Functional Button Operation Area
LM-150 SERIES LCD MONITOR Operating Manual （6）DVI-I : DVI-I Input Terminal Select Button/Lamp From this button, two types of input terminal signal can be selected, which are analog VGA and Digital in turn. When you press the button, the DVI-I button lamp lights. Repeatedly press the button, you can toggle the signal. -
Page 15: Menu Configuration Area
LM-150 SERIES LCD MONITOR Operating Manual For the other mode, you will turn on the UMD display. Note: For VGA or DVI-D input signal, its default mode is OFF and this button does not work. （14）METER: METER Button From this button, it can be chosen to switch the display modes of audio meter, which are METER1, METER2, METER1+METER2 and OFF. - Page 16 LM-150 SERIES LCD MONITOR Operating Manual AUD1R, AUD2L, AUD2R. You can select the audio mode mentioned above by pressing the button "UP, DOWN". 3. When the input signal is VGA and DVI-D, no audio mode can be selected. METER1R: the same as METER1L.
-
Page 17: Adjustment Knob Operation Area
LM-150 SERIES LCD MONITOR Operating Manual There are the characters displayed on the screen. Press "UP, DOWN" to select specific character in the character library. 3. Repeatedly press ENTER button, the cursor will move to the right position. Follow the second procedure as above, you can edit each UMD character. - Page 18 LM-150 SERIES LCD MONITOR Operating Manual 3. When the adjustment is active, the indicator above the knob will illuminate. Indicating adjustment is now allowed. 4. After adjusting you can toggle the function off by once again pushing the knob. 5. If one of the adjustment functions is enabled and left unattended, the menu will automatically close after 15 seconds.
-
Page 19: Chapter 5 Technical Specifications
LM-150 SERIES LCD MONITOR Operating Manual Chapter 5 Technical Specifications Product detailed information: Display Area 15” diagonal (11.97” x 8.98”, 304.13mm x 228.10mm) Viewing Angles 160 degree H and V Color Depth 16.7M Resolution 1024H x 768V Dot Pitch 0.297mm x 0.297mm... -
Page 20: Chapter 6 Supplied Accessories
LM-150 SERIES LCD MONITOR Operating Manual When the signal successfully displays on the screen, each of the available buttons on the front panel are not the same, depending on the input terminal or the input signal type. The detailed corresponding...
