Application Examples

6 Application Examples

6.1.1 Start/Stop

Terminal 18 = start/stop 5-10 Terminal 18 Digital Input [8]
Start
Terminal 27 = No operation 5-12 Terminal 27 Digital Input
[0] No operation (Default coast inverse)
•
5-10 Terminal 18 Digital Input = Start (default)
•
5-12 Terminal 27 Digital Input = coast inverse
(default)
6 6
Speed
Start/Stop
[18]

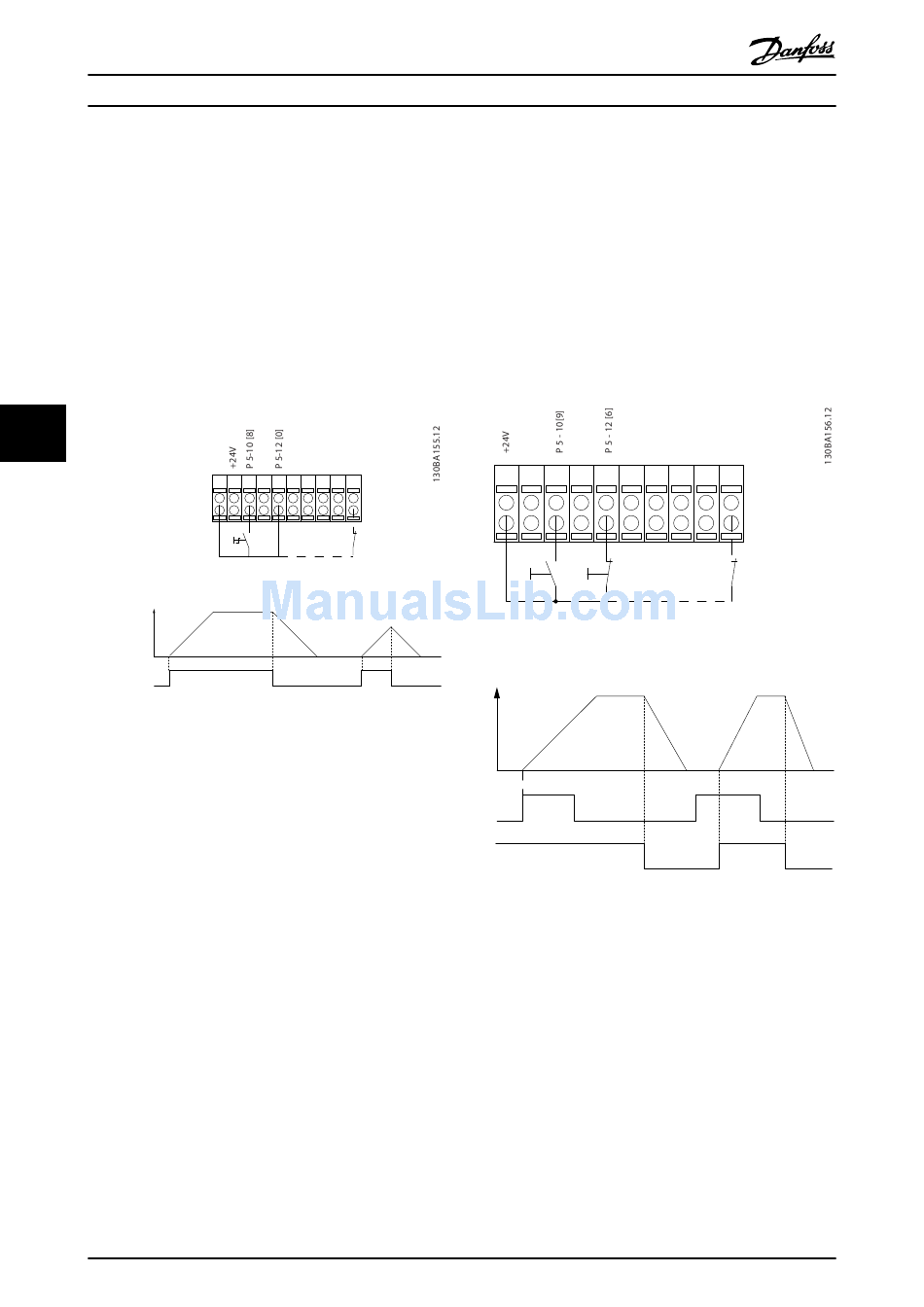

Illustration 6.1 Terminal 37: Available only with STO Function
160
Design Guide
12 13 18 19 27 29 32 33 20 37
Start/Stop Safe Stop
Danfoss A/S © Rev. 05/2014 All rights reserved.

6.1.2 Pulse Start/Stop

Terminal 18 = start/stop 5-10 Terminal 18 Digital Input [9]
Latched start
Terminal 27= Stop 5-12 Terminal 27 Digital Input [6] Stop
inverse
•
5-10 Terminal 18 Digital Input = Latched start
•
5-12 Terminal 27 Digital Input = Stop inverse
12 13 18 19 27 29 32
Start Stop inverse
Speed
Start (18)
Start (27)
Illustration 6.2 Terminal 37: Available only with STO Function
33 20 37
Safe Stop
MG16C202
