5.2.5 Gland/Conduit Entry - IP21 (NEMA 1)
and IP54 (NEMA12)
Cables are connected through the gland plate from the
bottom. Remove the plate and plan where to place the

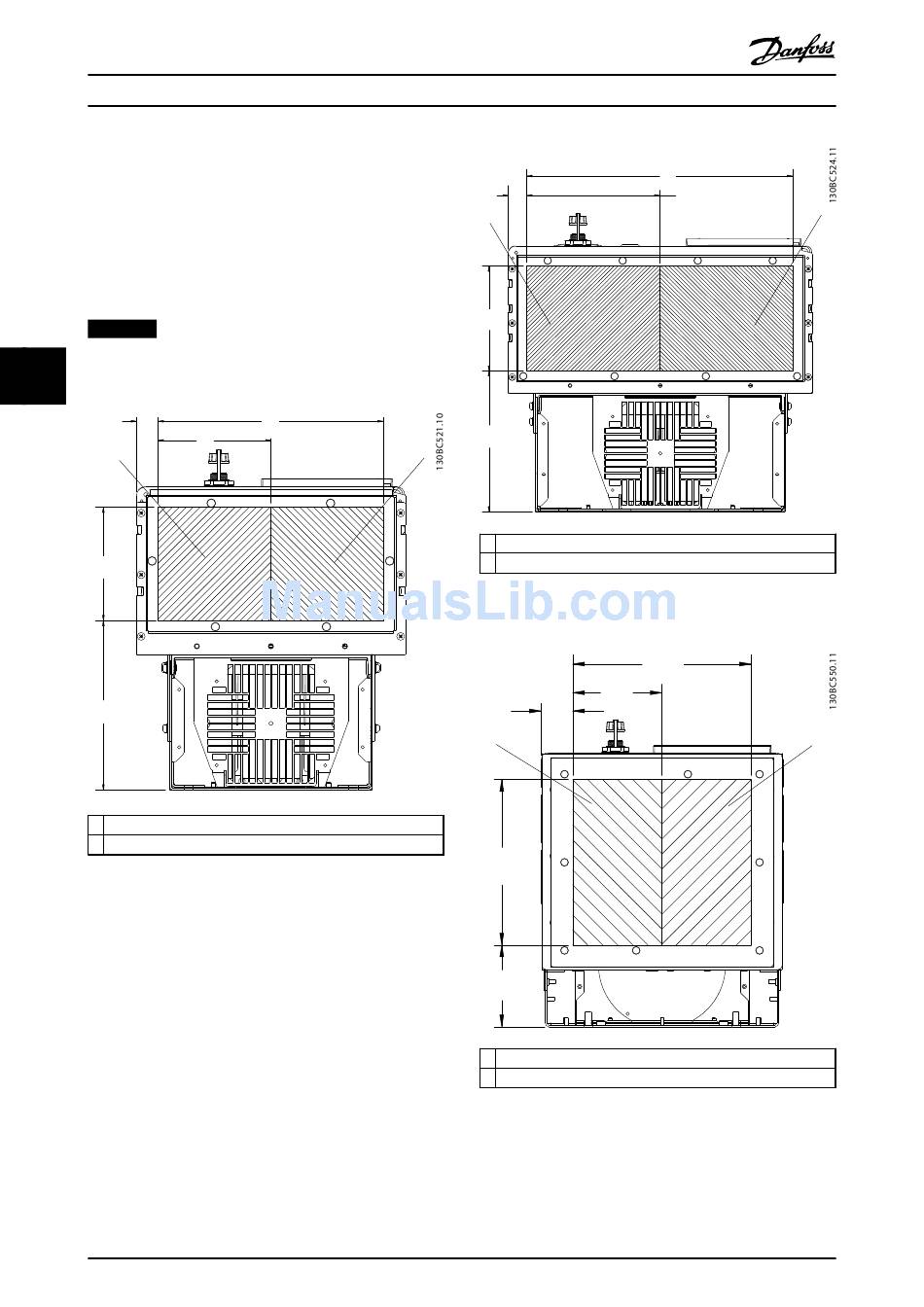

entry for the glands or conduits. The following illustrations
show the cable entry points viewed from the bottom of
various frequency converters.
NOTICE
Fit the gland plate to the frequency converter to ensure
5 5
the specified protection degree.
27
[1.0]
1
138
[5.4]
205
[8.1]
1 Mains side
2 Motor side
Illustration 5.36 D1h, Bottom View
104
Design Guide
274
[10.8]
137
[5.4]
Danfoss A/S © Rev. 05/2014 All rights reserved.
27
[1.0]
1
145
[5.7]
196
[7.7]
2
1 Mains side
2 Motor side
Illustration 5.37 D2h, Bottom View
43
[1.7]
1
224
[8.8]
111
[4.4]
1 Mains side
2 Motor side
Illustration 5.38 D5h & D6h, Bottom View
369
[14.5]
185
[7.3]
242
[9.5]
121
[4.8]
