1 How to Read this Design Guide

1.1 How to Read This Design Guide
This guide can be used with all
®
VLT
converters with software version
The full software version number
15-43 Software Version.
Table 1.1 Software Version Information
This contains information proprietary to Danfoss. By
accepting and using this manual, the reader agrees that
the information contained herein will be used solely for
operating units from Danfoss or equipment from other
vendors provided that such equipment is intended for
communication with Danfoss units over a serial communi-
cation link. This publication is protected under the
copyright laws of Denmark and most other countries.
Danfoss does not warrant that a software program
produced according to the guidelines provided in this
manual functions properly in every physical, hardware, or
software environment.
Although Danfoss has tested and reviewed the documen-
tation within this manual, Danfoss makes no warranty or
representation, neither expressed nor implied, with respect
to this documentation, including its quality, performance,
or fitness for a particular purpose.
In no event shall Danfoss be liable for direct, indirect,
special, incidental, or consequential damages arising out of
the use, or the inability to use information contained in
this manual, even if advised of the possibility of such
damages. In particular, Danfoss is not responsible for any
costs, including but not limited to those incurred as a
result of lost profits or revenue, loss or damage of
equipment, loss of computer programs, loss of data, the
costs to substitute these, or any claims by third parties.
8
Design Guide
®
VLT HVAC Drive
FC 102 Series
HVAC Drive frequency
3.9x.
can be read from
Danfoss A/S © Rev. 05/2014 All rights reserved.
Danfoss reserves the right to revise this publication at any
time and to change its contents without prior notice or
any obligation to notify former or present users of such
revisions or changes.

1.1.1 Available Literature

•
®
The VLT HVAC Drive Operating Instructions are
shipped with the unit and include information on
installation and startup.
•
®
The VLT HVAC Drive Design Guide includes all
technical information about the frequency
converter, frames D, E, and F, and customer
design and applications.
•
®
The VLT HVAC Drive Programming Guide provides
information on how to programme and includes
complete parameter descriptions.
•
Application Note, Temperature Derating Guide.
•
PC-based configuration tool MCT 10, enables
configuration the frequency converter from a
™
Windows based PC environment.
•
®
Danfoss VLT Energy Box software at
www.danfoss.com/BusinessAreas/DrivesSolutions/
Softwaredownload/
•
Operating Instructions VLT
•
Operating Instructions VLT
•
Operating Instructions VLT
•
®
VLT Frequency Converters Safe Torque Off
Operating Instructions
Danfoss technical literature is available in print from local
Danfoss sales offices or online at:
www.danfoss.com/BusinessAreas/DrivesSolutions/Documen-
tations/VLT+Technical+Documentation.htm

1.1.2 Approvals

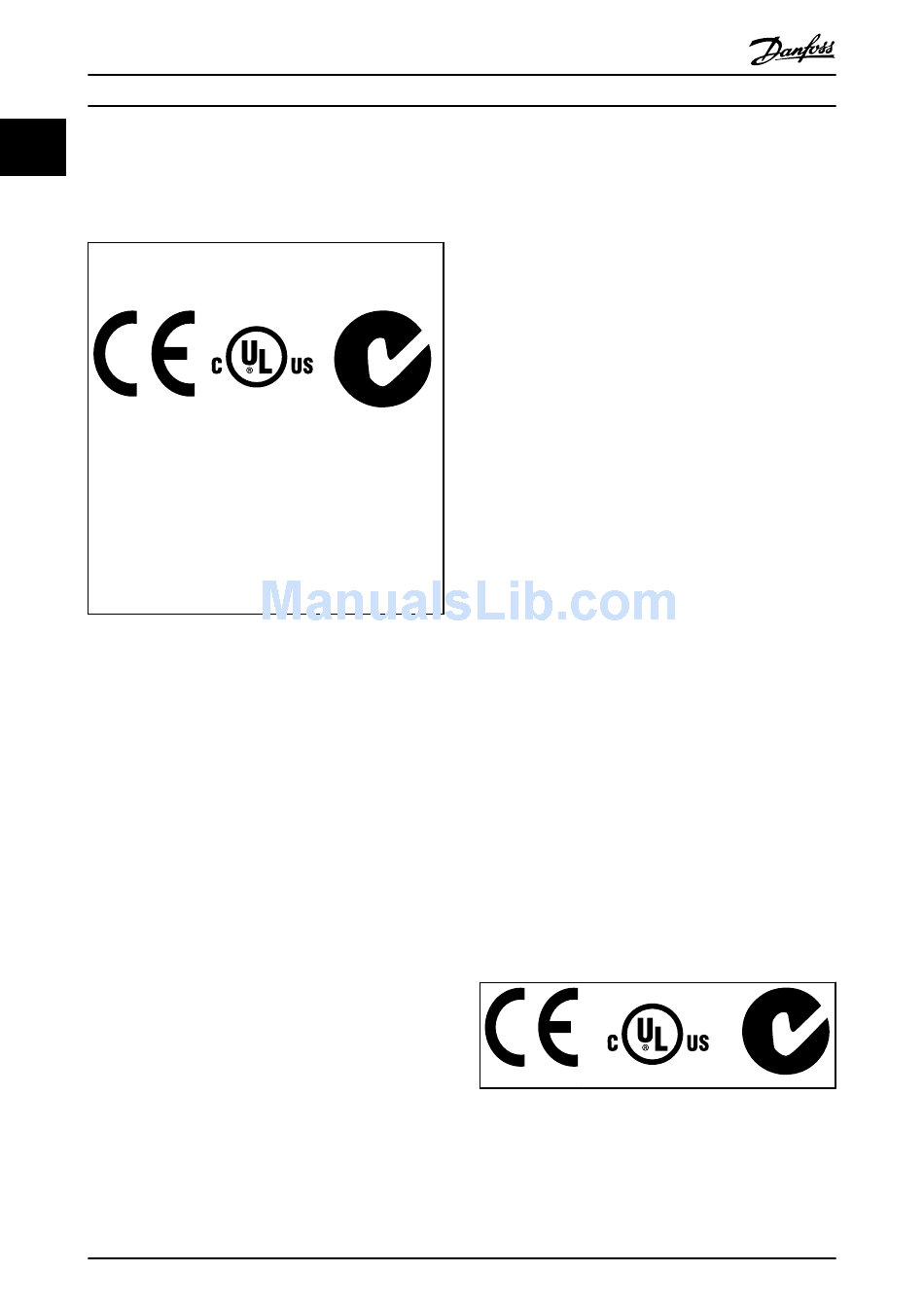

Table 1.2 Compliance Marks: CE, UL, and C-Tick
The frequency converter complies with UL508C thermal
memory retention requirements. For more information,
refer to chapter 2.13.1 Motor Thermal Protection.
®
HVAC Drive BACnet.
®
HVAC Drive Metasys.
®
HVAC Drive FLN.
MG16C202
