How to Install
26
61
[1.0]
[2.4]
128
[5.0]
844
[33.2]
660
[26.0]
495
[19.5]
1 Ceiling
2 Air space outlet minimum 225 mm [8.9 in]
3 Air space inlet minimum 225 mm [8.9 in]
4 Floor

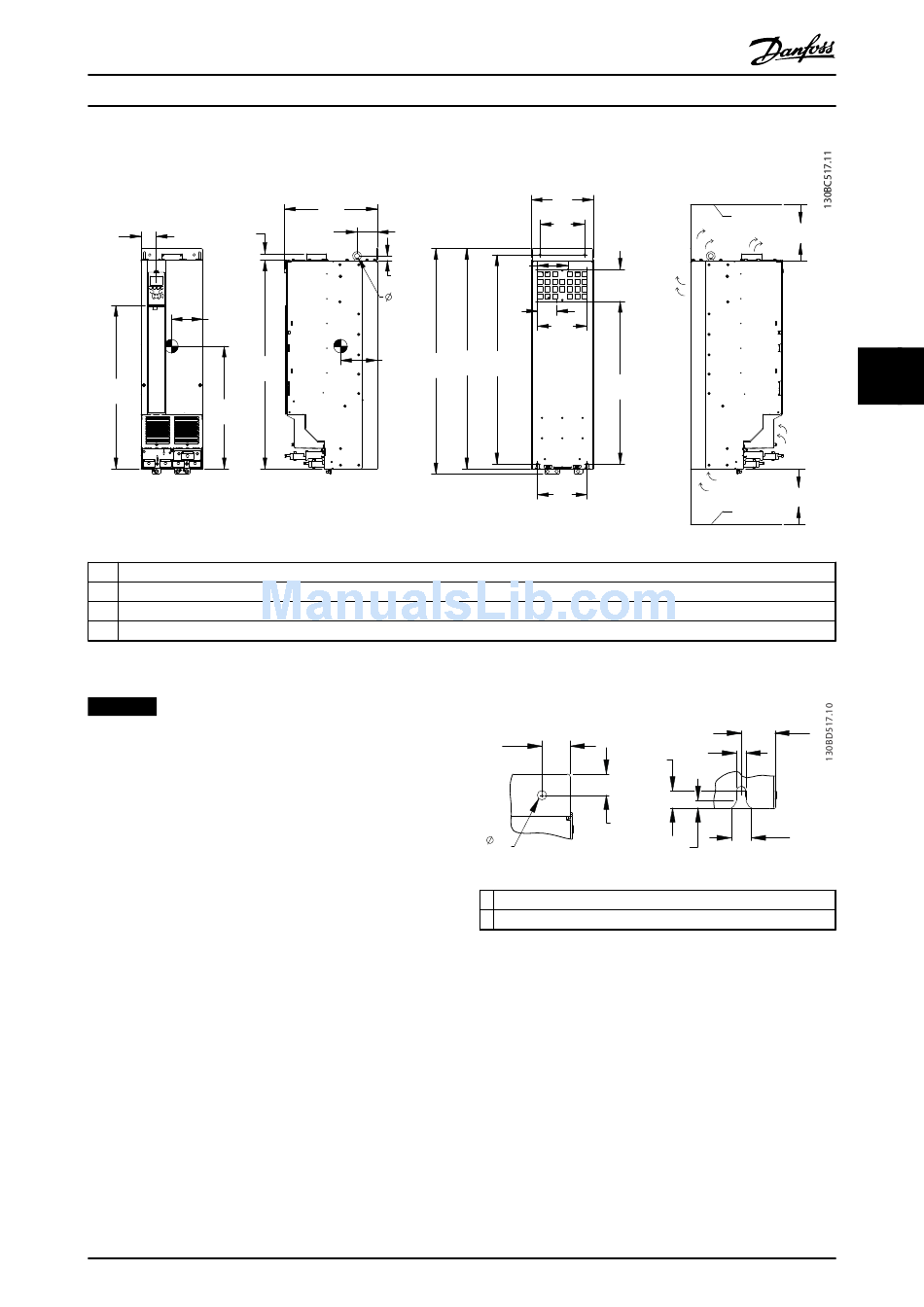

Illustration 5.5 Mechanical Dimensions, D3h
NOTICE
If using a kit to direct the airflow from the heat sink to
the outside vent on the back of the frequency converter,
the required ceiling clearance is 100 mm.
MG16C202
Design Guide
375
[14.8]
82
[3.2]
18
[0.7]
20
[0.8]
889 844
148
909
[35.0] [33.2]
[5.8]
[35.8]
[0.4]
1 Top mounting hole detail
2 Bottom mounting slot detail
Illustration 5.6 Detail Dimensions, D3h
