• Micro SD card connector
• Audio codec w/ four 3.5mm jacks
• Serial Flash
• Five Pmod ports
• USB HID Host for mice, keyboards and USB MSD Host for storage
The Genesys 2 can be programmed from various sources, like USB thumb drive, microSD, the on-board non-volatile Flash or
the on-board USB-JTAG programmer circuit.
The Genesys 2 is compatible with Xilinx's new high-performance Vivado® Design Suite as well as the ISE toolset. Included in
the box is a voucher that unlocks the Design Edition of Vivado that is device-locked to the Genesys 2. This allows designs to
be implemented straight out of the box at no additional cost. The Design Edition of Vivado also unlocks the Logic Analyzer
tool and still includes the ability to create Microblaze soft-core processor projects.

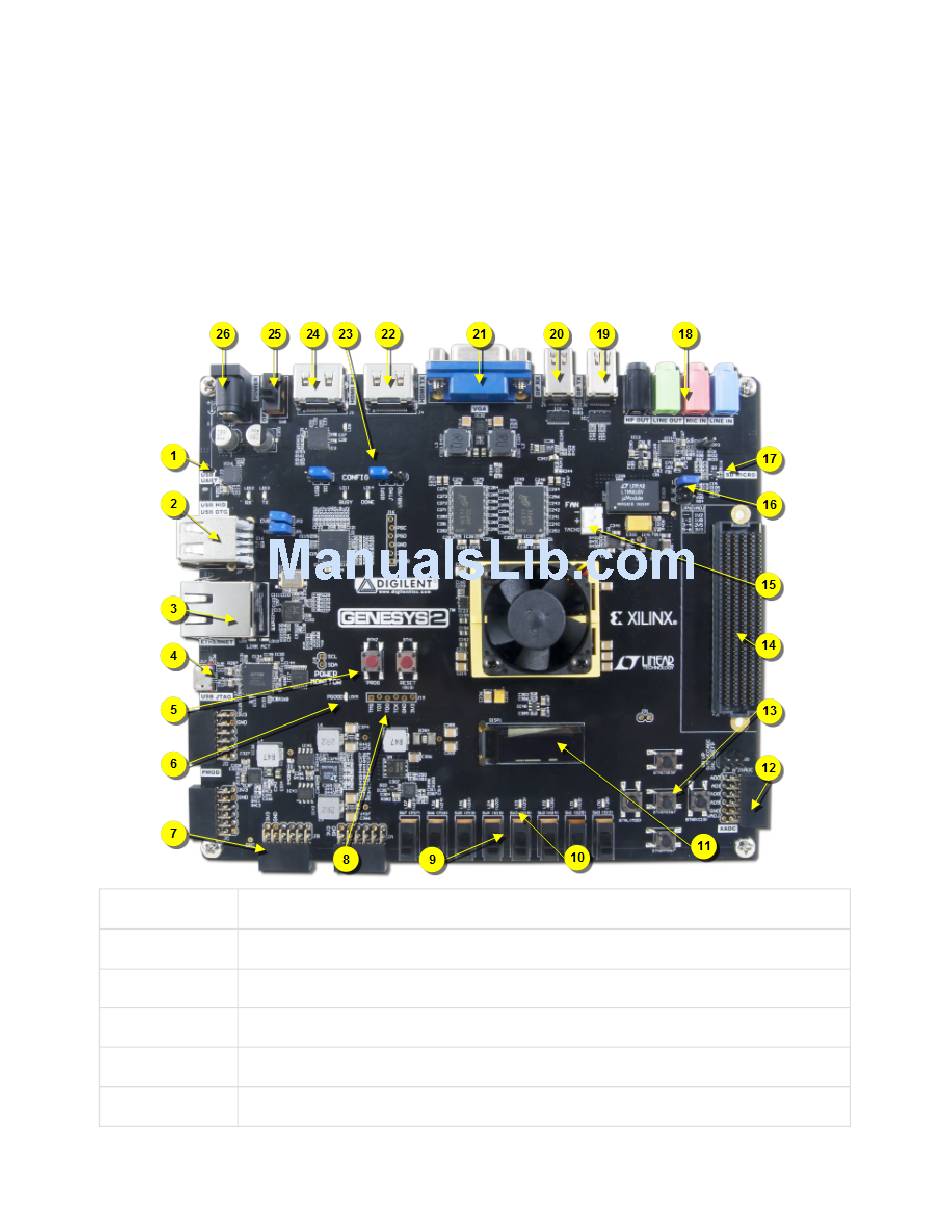

Callout Component Description
1 USB-UART bridge
2 User-USB (bottom) & USB MSD/HID (top)
3 Ethernet RJ-45 10/100/1000
4 USB-JTAG bridge
5 PROG and user reset buttons
