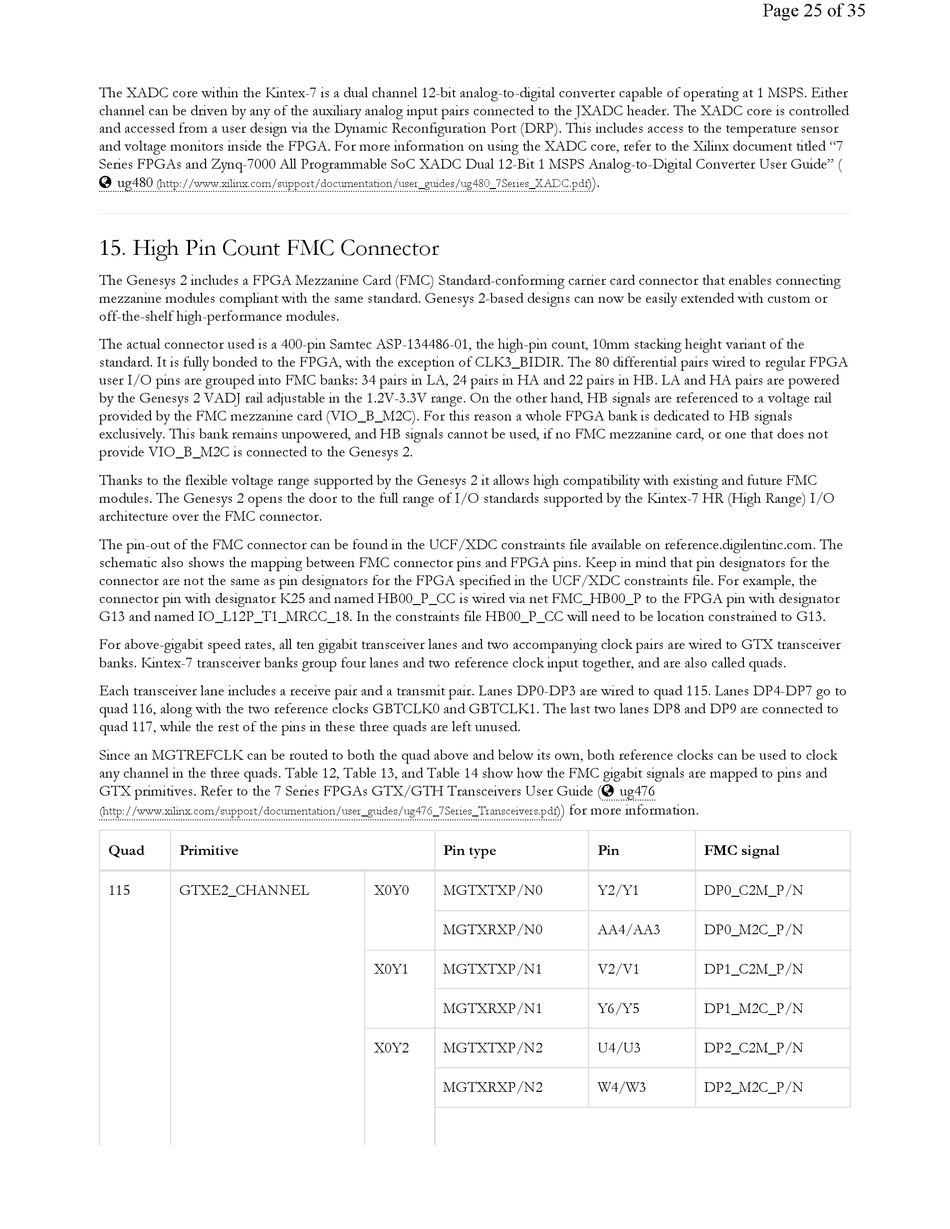

The XADC core within the Kintex-7 is a dual channel 12-bit analog-to-digital converter capable of operating at 1 MSPS. Either
channel can be driven by any of the auxiliary analog input pairs connected to the JXADC header. The XADC core is controlled
and accessed from a user design via the Dynamic Reconfiguration Port (DRP). This includes access to the temperature sensor
and voltage monitors inside the FPGA. For more information on using the XADC core, refer to the Xilinx document titled "7
Series FPGAs and Zynq-7000 All Programmable SoC XADC Dual 12-Bit 1 MSPS Analog-to-Digital Converter User Guide" (
 ug480
(http://www.xilinx.com/support/documentation/user_guides/ug480_7Series_XADC.pdf)
15. High Pin Count FMC Connector
The Genesys 2 includes a FPGA Mezzanine Card (FMC) Standard-conforming carrier card connector that enables connecting
mezzanine modules compliant with the same standard. Genesys 2-based designs can now be easily extended with custom or
off-the-shelf high-performance modules.
The actual connector used is a 400-pin Samtec ASP-134486-01, the high-pin count, 10mm stacking height variant of the
standard. It is fully bonded to the FPGA, with the exception of CLK3_BIDIR. The 80 differential pairs wired to regular FPGA
user I/O pins are grouped into FMC banks: 34 pairs in LA, 24 pairs in HA and 22 pairs in HB. LA and HA pairs are powered
by the Genesys 2 VADJ rail adjustable in the 1.2V-3.3V range. On the other hand, HB signals are referenced to a voltage rail
provided by the FMC mezzanine card (VIO_B_M2C). For this reason a whole FPGA bank is dedicated to HB signals
exclusively. This bank remains unpowered, and HB signals cannot be used, if no FMC mezzanine card, or one that does not
provide VIO_B_M2C is connected to the Genesys 2.
Thanks to the flexible voltage range supported by the Genesys 2 it allows high compatibility with existing and future FMC
modules. The Genesys 2 opens the door to the full range of I/O standards supported by the Kintex-7 HR (High Range) I/O
architecture over the FMC connector.
The pin-out of the FMC connector can be found in the UCF/XDC constraints file available on reference.digilentinc.com. The
schematic also shows the mapping between FMC connector pins and FPGA pins. Keep in mind that pin designators for the
connector are not the same as pin designators for the FPGA specified in the UCF/XDC constraints file. For example, the
connector pin with designator K25 and named HB00_P_CC is wired via net FMC_HB00_P to the FPGA pin with designator
G13 and named IO_L12P_T1_MRCC_18. In the constraints file HB00_P_CC will need to be location constrained to G13.
For above-gigabit speed rates, all ten gigabit transceiver lanes and two accompanying clock pairs are wired to GTX transceiver
banks. Kintex-7 transceiver banks group four lanes and two reference clock input together, and are also called quads.
Each transceiver lane includes a receive pair and a transmit pair. Lanes DP0-DP3 are wired to quad 115. Lanes DP4-DP7 go to
quad 116, along with the two reference clocks GBTCLK0 and GBTCLK1. The last two lanes DP8 and DP9 are connected to
quad 117, while the rest of the pins in these three quads are left unused.
Since an MGTREFCLK can be routed to both the quad above and below its own, both reference clocks can be used to clock
any channel in the three quads. Table 12, Table 13, and Table 14 show how the FMC gigabit signals are mapped to pins and
GTX primitives. Refer to the 7 Series FPGAs GTX/GTH Transceivers User Guide (
(http://www.xilinx.com/support/documentation/user_guides/ug476_7Series_Transceivers.pdf)
Quad Primitive
115 GTXE2_CHANNEL
Pin type
X0Y0 MGTXTXP/N0
MGTXRXP/N0
X0Y1 MGTXTXP/N1
MGTXRXP/N1
X0Y2 MGTXTXP/N2
MGTXRXP/N2
).
ug476

) for more information.
Pin FMC signal
Y2/Y1 DP0_C2M_P/N
AA4/AA3 DP0_M2C_P/N
V2/V1 DP1_C2M_P/N
Y6/Y5 DP1_M2C_P/N
U4/U3 DP2_C2M_P/N
W4/W3 DP2_M2C_P/N
