Digilent Genesys 2 Reference Manual page 29

Quad Primitive
118 GTXE2_CHANNEL
IBUFDS_

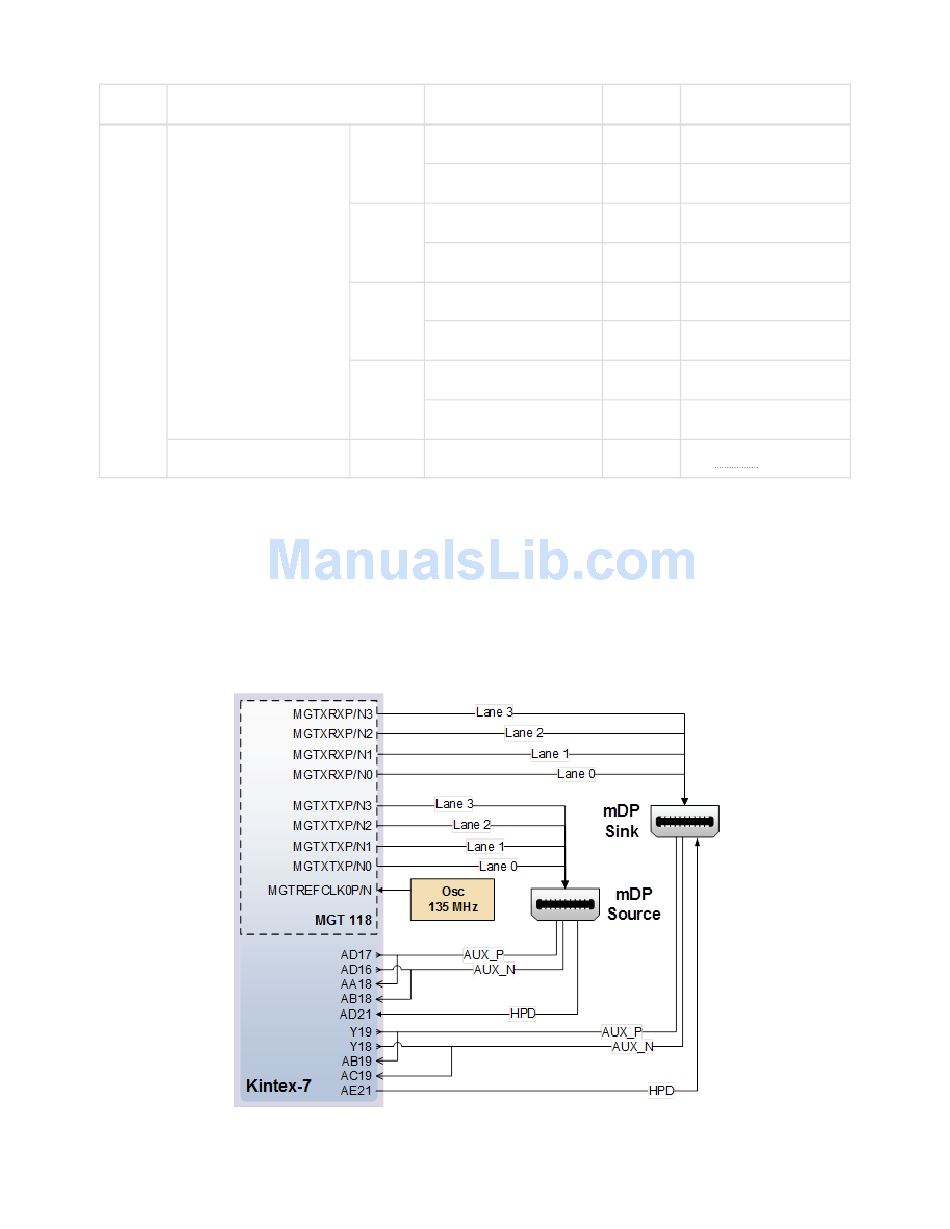

Table 17. DisplayPort quad pinout.
The auxiliary channel is a bidirectional LVDS bus. Depending on the Xilinx tool/IP version, instantiating a differential I/O
buffer with LVDS signaling standard might not be possible. The work-around is to have two pairs of pins wired and shorted
together as seen in Figure 19. One pair should be implemented as input-only and the other as output-only.
If the tool/IP allows bidirectional LVDS buffers, only one of the pairs needs to be used (it does not matter which), while the
other declared as input and not used.
The hot-plug detect (HPD) signal connects to a general user I/O pin and should be configured as an input.
Pin type
X0Y12 MGTXTXP/N0
MGTXRXP/N0
X0Y13 MGTXTXP/N1
MGTXRXP/N1
X0Y14 MGTXTXP/N2
MGTXRXP/N2
X0Y15 MGTXTXP/N3
MGTXRXP/N3
X0Y6 MGTREFCLKP/N0
Page 29 of 35
Pin DisplayPort signal
D2/D1 Source Lane 0
E4/E3 Sink Lane 0
C4/C3 Source Lane 1
D6/D5 Sink Lane 1
B2/B1 Source Lane 2
B6/B5 Sink Lane 2
A4/A3 Source Lane 3
A8/A7 Sink Lane 3
C8/C7 135 MHz ()
