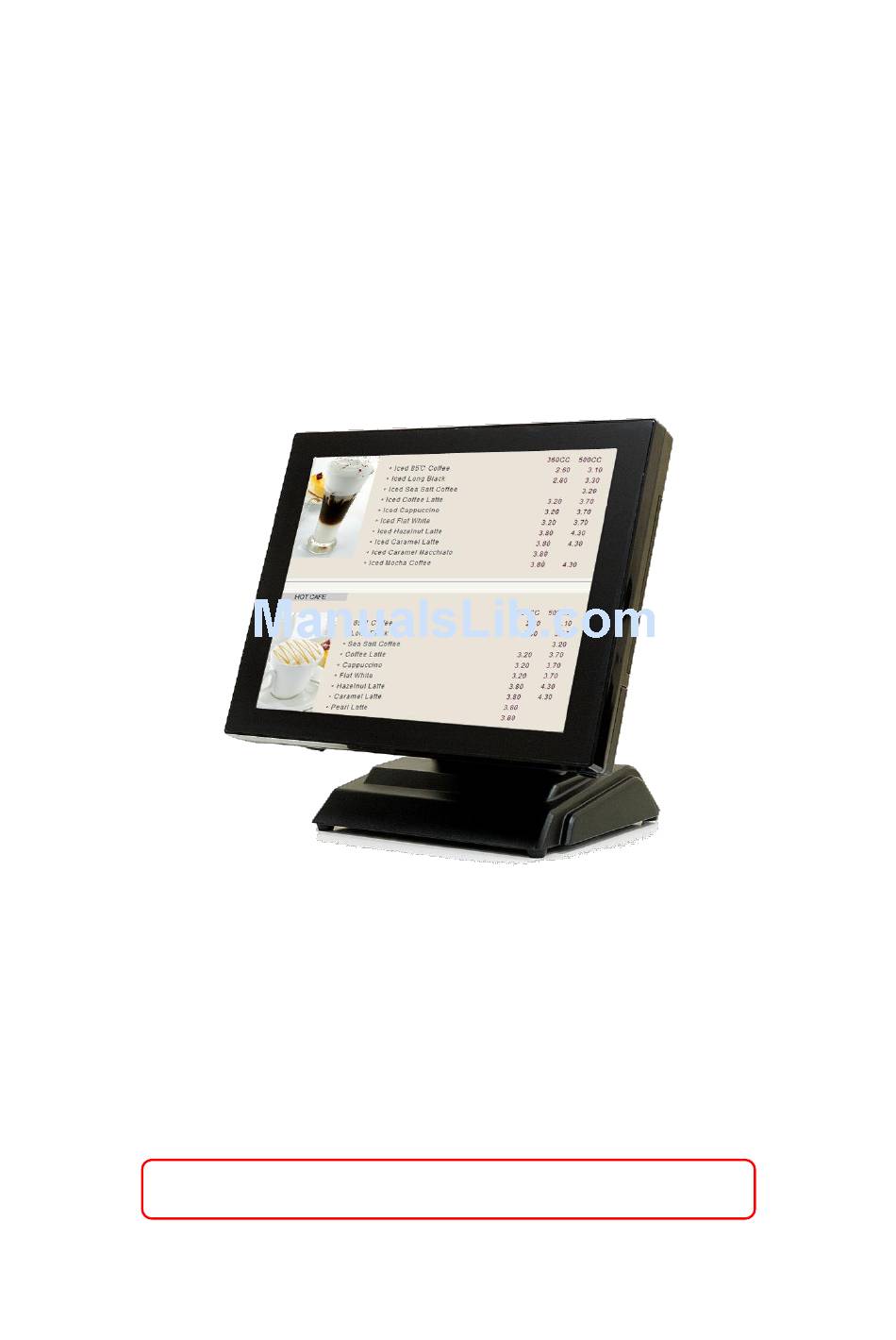

WP-75XX Series
Bezel Free All-in-One Modular Wall-Mount POS System
User Manual
Before installing and operating the unit, please read this
user manual thoroughly and retain for reference.
Ver 2.1_2013/07/26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP-75**-**10/40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech WP-75**-**10/40

Summary of Contents for Advantech WP-75**-**10/40

  • Page 1 WP-75XX Series Bezel Free All-in-One Modular Wall-Mount POS System User Manual Before installing and operating the unit, please read this user manual thoroughly and retain for reference. Ver 2.1_2013/07/26...

  • Page 2: How To Use This Manual

    How to Use This Manual This manual contains information to set up and use the WP-75XX. In addition, instructions are included for added hardware, software, upgrades, and optional items. Chapter 1 An introduction to what you find in the box and an overview of product specifications, appearance, and interface.

  • Page 3: Federal Communications Commission (Fcc) Notice

    Federal Communications Commission (FCC) Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 4: Copyright

    Copyright The information in this guide is subject to change without prior notice. The manufacturer shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. This manual contains information protected by copyright.

  • Page 5: Precautions

    Precautions 1. Please read these safety instructions carefully. 2. Keep this User Manual for later reference. 3. Disconnect this equipment from the AC outlet before cleaning. Do not use liquid or spray detergent for cleaning. Use only a moistened sheet or cloth. 4.

  • Page 6: Table Of Contents

    Contents How to Use This Manual Federal Communications Commission (FCC) Notice Copyright Precautions Chapter 1 Introduction ....................1 Features ............................. 1 Specifications ............................1 Package Contents ..........................3 Base System ............................4 Expandable Main Display ........................5 Convertible Pole-Type 2nd Display (optional) ..................6 Dimensions ............................
  • Page 7 Abon Touch Screen Driver Installation ....................46 eGalax Touch Screen Driver Installation ....................48 Audio Driver Installation ........................50 Ethernet Driver Installation for Windows XP ..................51 Ethernet Driver Installation for Windows 7 ..................51 Wireless LAN Driver Installation (optional) ................... 52 Rear Mount VFD USB-to-Serial Driver Installation (optional) ..............

  • Page 8: Introduction

    Chapter 1 Introduction Features  15” TFT LCD with Bezel Free Resistive or P-CAP touch(optional) ® ®  Fanless operation with Intel Luna Pier D525 1.8GHz, Intel Cedar Trail Processor D2550 1.86 GHz ® or Intel IVY Bridge Series Processor ...
  • Page 9 LCD Touch Panel Resolution Size 15” TFT LCD / 1280 x 1024 Brightness 250cd/m Bezel free ELO resistive touch(Default) Touch Screen Type Bezel free P-CAP touch(Option) WP-75XX- I/O Ports WP-75XX-XX40 WP-75XX-XX30 WP-75XX-XX60 XX10/20 6 x External: 6 x External: 6 x External: 6 x external: 4 normal, 6 normal...

  • Page 10: Package Contents

    Package Contents POS System AC Power Cord Utility and Main Wall Mount Board Chipset Swing Arm Kit Driver CD (optional) Options  Magnetic Stripe Reader (MSR) Module: triple track  2-in-1 Module (Magnetic Stripe Reader + Fingerprint Reader)  2-in-1 Module (Magnetic Stripe Reader + I-Button Reader) ...

  • Page 11: Base System

    Base System Before you begin, take a few moments to become familiar with the WP-75XX. 15” Bezel Free Touch Screen Base Option Parts: Color & Logo Customizable Stand Base...

  • Page 12: Expandable Main Display

    Expandable Main Display The four sides of the main display are specially designed for expandable functions and connect with one of the available internal USB ports or PS/2 for operation. Optimized for simple installation, these interfaces do not require any voltage setting adjustments. ...

  • Page 13: Convertible Pole-Type 2Nd Display (Optional)

    Convertible Pole-Type 2nd Display (optional) The pole-type 2nd display is for use with the POS system to display purchase prices and change amounts to customers. It is also capable of displaying advertising messages and announcements. Five types of pole mount display choices are available: a 8.9” LCD monitor, a 10.1” LCD monitor, a 12” LCD monitor, a 15”...

  • Page 14: Dimensions

    Dimensions (Unit: mm)

  • Page 15: Connector Panel

    Connector Panel The WP-75XX's primary connector panel is located at the rear. For WP-75XX-XX10 Power Button 12V/24V Cash Drawer Switch 12V POWER USB COM1/2/5 (RI/5V/12V) 4 x USB 12 VDC IN HDMI Line-Out Cash Drawer 12V output 24V POWER USB For WP-75XX-XX20 12V/24V Cash Power Button...
  • Page 16 For WP-75XX-XX30 Power Button 12V/24V Cash Drawer Switch 12V POWER USB 4 x USB COM1/2/5 (RI/5V/12V) 12 VDC IN Line-Out HDMI 12V output Cash Drawer 24V POWER USB For WP-75XX-XX40 Power Button COM1/2/5 (RI/5V/12V) 4 x USB 12 VDC IN HDMI Line-Out Cash Drawer...

  • Page 17: Standard Hardware And Upgrades

    Chapter 2 Standard Hardware and Upgrades Precautions Before performing hardware changes, be sure to carefully read all of the applicable instructions, cautions, and warnings in this guide. WARNING! To reduce the risk of personal injury from electrical shock, hot surfaces, or fire: Disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.

  • Page 18: Opening System Box

    Opening System Box CAUTION: To prevent loss of work and damage to the system or drive: If you are inserting or removing a drive, shut down the operating system properly, turn off the system, and unplug the power cord. Do not remove a drive while the system is on or in standby mode.
  • Page 19 6. For easier access place the main LCD display upside down, then Remove four screws and detach the right side cover and left side cover. WARNING! To avoid scratching the panel while dismantling the system, first place a piece of cloth or cushion on your work surface.
  • Page 20 9. Unscrew eight screws on the back cover of main LCD display as shown below to remove it.

  • Page 21: Clearing Cmos

    Clearing CMOS The WP-75XX's configuration (CMOS) may occasionally be corrupted. If it is, it will be necessary to clear the CMOS memory using jumper JP1. Please refer to Chapter 4 for the exact JP1 pin positions. 1. Turn off the system power properly through the operating system, then turn off any external devices.

  • Page 22: Memory Installation

    Memory Installation The memory sockets on the main board can be populated with up to an industry-standard DIMM. The WP-75XX comes standard with one preinstalled DIMM. To achieve maximum memory performance, up to 4GB of memory can be added. CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory cards.
  • Page 23 4. Unplug all cables from the IO ports of the POS system. Unscrew two screws that attach the monitor to the hinge as shown below to remove it. Next, slide main LCD display upward slowly from hing and remove 6. For easier access place the main LCD display upside down, then Remove four screws and detach the right side cover and left side cover.
  • Page 24 9. Unscrew eight screws on the back cover of main LCD display as shown below to remove it. 10. If an existing memory card or cards need to be replaced, pull the ends of both metal latches away from the card to release it. NOTE: A memory card can be installed in only one way.

  • Page 25: Removing And Replacing The Sata Hard Disk

    Removing and Replacing the SATA Hard Disk NOTE: This system does not support Parallel ATA (PATA) hard drives. Before removing the original hard drive, be sure to back up its data so that you can transfer the data to the replacement hard drive. Also, if you are replacing the primary hard drive, make sure you have a recovery disc set to restore the operating system, software drivers, and any software applications that were preinstalled on the system.
  • Page 26 5. Remove a screw and pull the mylar stuck on the HDD to remove HDD. 4. Press the HDD to release the HDD from the HDD tray as shown below. Next, insert the replacement hard disk into the HDD tray. 5.

  • Page 27: Chapter 3 Optional Components And Peripherals

    Chapter 3 Optional Components and Peripherals MSR/Fingerprint/I-Button/IC Card Module Installation NOTE: The MSR module can only be installed to its designated position and socket; the same with the wireless module. Their locations are not interchangeable. 1. Turn off the system power properly through the operating system, then turn off any external devices.
  • Page 28 5. Reconnect the power cord and any external devices, then turn on the system. NOTE: The MSR module configuration tool is in the included CD. If you need configure MSR module, please execute the utility according to the procedure specified in Chapter 5.

  • Page 29: Rear Mount Vfd Installation

    Rear Mount VFD Installation 1. Turn off the system power properly through the operating system, then turn off any external devices. 2. Disconnect the power cord from the power outlet and disconnect any external devices. CAUTION: Regardless of the power-on state, voltage is always present on the main board as long as the system is plugged into an active AC outlet.
  • Page 30 6. Reconnect the power cord and any external devices, then turn on the system. NOTE: The rear mount VFD module configuration utility is in the included CD. If you need configure VFD module, please execute the utility according to the procedure specified in Chapter 5.

  • Page 31: Pole Mount 2 Nd Display Installation

    Pole Mount 2 Display Installation 1. Turn off the system power properly through the operating system, then turn off any external devices. 2. Disconnect the power cord from the power outlet and disconnect any external devices. CAUTION: Regardless of the power-on state, voltage is always present on the main board as long as the system is plugged into an active AC outlet.
  • Page 32 5. Secure the pole display module with two screws. 6. Connect VGA cable and 12V cable as shown below. 7. Reconnect the power cord and any external devices, then turn on the system.

  • Page 33: Cash Drawer Installation

    Cash Drawer Installation NOTE: Before connecting cash drawer to the system, please make sure the driver voltage and cable pin assignment of the cash drawer matches the definition of the system's cash drawer port. Before installing the cash drawer to the system, please make sure the system driver has been installed.

  • Page 34: Swing Arm Kit Installation

    Swing Arm Kit Installation Select a flat surface of adequate strength, ensuring there will be proper ventilation and maneuvering space. Please use the right tools and accessories according to the surface material (drywall, concrete, solid wood, etc.) to securely support the system box. A fully equipped system may weigh up to 5.5 kg. 1.
  • Page 35 3. Secure the VESA holder to the main LCD display with four screws. 4. Affix the main LCD display to the swing arm by sliding the holder plate back into its swing arm holder. 5. After the main unit is attached, replace the two thumb screws to secure the panel.

  • Page 36: Chapter 4 Main Board Configuration

    Chapter 4 Main Board Configuration Jumper and Connector Locations of PEB-973J...
  • Page 37 Connector Allocations Jump Function CMOS RAM charge/discharge setup LVDS Panel VDD input voltage selection LVDS Panel Backlight enable voltage selection JP7;JP8;JP9; COM Port RI Voltage selection JP13;JP14;JP16 JP11 Backlight control voltage level Mode JP12 Cash Drawer Voltage selection JP15; JP18; JP19 COM1 &...

  • Page 38: Jumper Settings Of Peb-973J

    Jumper Settings of PEB-973J To set jumper positions, place the jumper shunt over the pins designated in the table (SHORT) or remove (NC) it from the jumper pins and store for future use. Default settings are indicated with a star sign (). CMOS RAM charge/discharge setup Function 1-2 short...
  • Page 39 NOTE: Wrong voltage selection may damage the COM Port device. Please survey COM port device’s RI before setting this jumper setting. JP11 Backlight control voltage level Mode JP11 Function 3.3V JP12 Cash Drawer Voltage selection JP12 Function  JP15；JP18；JP19 COM1 & COM 2 & COM5 Console Selection Header PIN No.
  • Page 40 Audio Jack for AMP Function Function 1 ; 3 ; 5 ON For AMP Function  2 ; 4 ; 6 OFF 2 ; 4 ; 5 ;6 ON No AMP Function 1 ; 3 OFF KBTR COM Port & keyboard Function Selection Function Keyboard Function ...

  • Page 41: Jumper And Connector Locations Of Peb-973L

    Jumper and Connector Locations of PEB-973L...
  • Page 42 Connector Allocations Jump Function DDR3Connector / Reverse Type DDR3Connector / Standard Type LVDS Backlight Adjustment Connector LVDS Panel Connector LVDS Backlight Inverter Module Connector VGA Pin Header SATA Connector& SATA Power Pin Header(SATA 3.0) SATA Connector (Black) J8、J11 J12、J41 SATA Connector (Blue, SATA 3.0) J9、J10, J49 SATA Power Connector HDMI Connector...
  • Page 43 JP12 COM2 Port RI Voltage Selection JP14 COM6 Port RI Voltage Selection JP16 COM3 Port RI Voltage Selection JP18 COM4 Port RI Voltage Selection JP19 COM5 Port RI Voltage Selection JP10 Keyboard 5V Enabled JP15 Cash Drawer Voltage Selection JP17 KBTR COM Port &...

  • Page 44: Jumper Settings Of Peb-973L

    Jumper Settings of PEB-973L To set jumper positions, place the jumper shunt over the pins designated in the table (SHORT) or remove (NC) it from the jumper pins and store for future use. Default settings are indicated with a star sign (). CMOS RAM Charge/Discharge setup Function NORMAL ...
  • Page 45 JP8(COM1)，JP11(COM2)，JP13(COM5) COM Console Selection Header Function RS232 1-3 ; 2-4 JP9(COM1)，JP12(COM2)，JP14(COM6) JP16(COM3)，JP18(COM4)，JP19(COM5) COM Port RI / Voltage Selection Function VDD=5V RI#  VDD=12V JP10 Keyboard 5V Enabled JP10 Function Open Disable PS2 Keyboard Short Enabled PS2 Keyboard  JP15 Cash Drawer Voltage Selection JP15 Function + 12V ...
  • Page 46 LVDS panel type selector. 0 = Switch ON, 1= Switch OFF SW1[3..0] Panel model name Resolution 0000 800x600x18bit, single channel 0001 AUO G150XG01 V3 1024x768x18bit, single channel 0010 1024x768x24bit, single channel 0011 1280x768x18bit, single channel 0100 1280x800x18bit, single channel 0101 1280x960x18bit, single channel 0110 1280x1024x24bit, dual channel...

  • Page 47: Chapter 5 Software Setup

    Chapter 5 Software Setup Pre-Installation Requirements This system comes with a variety of drivers for different operating systems. A software CD is included in the package contents. The following section documents the procedures used to install the peripheral. 1. Insert sofeware CD into a system. 2.
  • Page 48 elect your POS model Number. 6. Select the peripheral driver that you want to install and then follow on-screen instructions to install your driver or refer to following procedures specifying how every driver is to be installed.

  • Page 49: Intel Chipset Driver Installation

    Intel Chipset Driver Installation 1. Click the Next button on the Welcome screen. 2. Click Yes on the License Agreement screen. 3. Click Next on the Information screen. 4. When installation is complete, click Finish.

  • Page 50: Intel Graphics Driver Installation

    Intel Graphics Driver Installation Click Next on the Starup screen. 2. Click Next on the Welcome screen. 3. Click Yes on the License Agreement screen. 4. Click Next on the Information screen. 6. When installation is complete, click Finish and 5.

  • Page 51: Elo Touch Screen Driver Installation

    ELO Touch Screen Driver Installation 1. Click OK on the Welcome screen. 2. Click Unzip on the WinZip Self-Extractor screen. 4. Select Install Serial Touchscreen Drivers, click 3. Select Default installation language, click Next. Next. 5. Click Yes on the License Agreement screen. 6.
  • Page 52 7. Select COM3, click Next. 8. Click Next to confirm COM port selection. 9. Click Finish. 10. Click Restart Now to apply these change.

  • Page 53: Abon Touch Screen Driver Installation

    Abon Touch Screen Driver Installation 1. Click Next on the Welcome screen. 2. Click Next to confirm destination location. 3. Select Install RS232 driver and click Next. 4. Click Install to begin installation. 6. For Windows 7 operating system, click Install 5.
  • Page 54 7. For Windows XP operating system, click 8. Click OK to reboot the system. Continue anyway. 10. Select Advance and click on the 4 Pts. 9. Run the Touch Tool on the desktop. Calibration button.

  • Page 55: Egalax Touch Screen Driver Installation

    eGalax Touch Screen Driver Installation 2. Select Install RS232 interface driver and click 1. Click Next on the Welcome screen. Next. 4. Select Support Multi-Monitor System and click 3. Select None and click Next. Next. 5. Choose Destination Location and click Next. 6.
  • Page 56 7. Select to creat a shortcut and click Next. 8. New software installation.

  • Page 57: Audio Driver Installation

    Audio Driver Installation 2. When installation is complete, click Finish to 1. Click Next on the Welcome screen. restart the system.

  • Page 58: Ethernet Driver Installation For Windows Xp

    Ethernet Driver Installation for Windows XP 1. Click Next. 2. Click Install. 3. Click Finish. Ethernet Driver Installation for Windows 7 1. Click Install. 2. Click Finish.

  • Page 59: Wireless Lan Driver Installation (Optional)

    Wireless LAN Driver Installation (optional) Enter the LR802UKN3_802.11bgn folder and then run the IS_AP_STA_RT2870_D.exe. 2. Click Accept on the License Agreement screen. 3. Alternative, and then click Next. 4. For Windows XP operating system, select 5. Click Install. Configuration Tool. 6.
  • Page 60 8. When installation is complete, the WLAN utility will automatically appear on the desktop.

  • Page 61: Rear Mount Vfd Usb-To-Serial Driver Installation (Optional)

    Rear Mount VFD USB-to-Serial Driver Installation (optional) The WP-75X0 VFD port is a USB interface. The 9mm VFD uses a Serial interface, so in order to enable it, you must install the included USB-to-Serial interface driver. 1. First, plug in the VFD Module. 2.

  • Page 62: Rfid Driver Installation (Optional)

    RFID Driver Installation (optional) 1. First, plug in the RFID Module. 2. Enter the MF320U folder and then run the MifareDemoSetup_PSW00020.exe. 3. Click Next. 4. Click Next to accept the Destination Directory. 5. Click Next after making sure the folder. 6.

  • Page 63: Msr Driver Installation (Optional)

    MSR Driver Installation (optional) 1. Plug in MSR module. 2. Select your MSR interface PS2 or USB. 3. For PS2 interface: Run the MSRfgSetup_V1_4R7_PSW00025.exe. For USB interface: Enter the Software folder and then run the HISD_MSR_PSW00003.exe. 4. Follow on-screen instructions to install your MSR driver.

  • Page 64: Fingerprint Reader Driver Installation (Optional)

    Fingerprint Reader Driver Installation (optional) 1. Plug in the 2-in-1 Fingerprint Reader and MSR module. 2. Enter the SDK folder and then run the setup.exe. 3. Click Next on the Welcome screen. 4. Click Next on the License Agreement screen. 5.
  • Page 65 9. Wait as the driver is installed. 10. Click Finish. 11. Click Yes to restart the system (required).

  • Page 66: Ic Card Reader Driver Installation (Optional)

    IC Card Reader Driver Installation (optional) 1. Plug in the 3-in-1 MSR/I-Button/IC Card Reader module. 2. Enter the EZ100PU Driver folder. 3. Select your POS operating system and then run the setup.exe. 4. Select language, click OK. 5. Click Next on the Welcome screen. 6.

  • Page 67: System Driver Installation

    System Driver Installation 1. Click Next on the Welcome screen. 2. Click Install on the Ready to Install screen. 3. Click Finish on the Completing installation screen. A system restart is required to complete the installation.

  • Page 68: Opos Cco Driver Installation

    OPOS CCO Driver Installation The OPOS driver for the WP-75XX supports the MSR, I-Button (KeyLock), RFID, VFD (Line-Display) and Scanner. Before installing the OPOS driver, please make sure the System Driver has been installed. 1. Click Next on the Welcome screen. 2.
  • Page 69 7. Click Finish on the Installation Complete screen.

  • Page 70: Opos Driver Installation

    OPOS Driver Installation 1. Click Next on the Welcome screen. 2. Click Install on the Setup screen. 3. Click Finish on the Completing installation screen.

  • Page 71: Appendix A. Sample C++ Cash Drawer Code For Windows

    Appendix A. Sample C++ Cash Drawer Code for Windows NOTE: Requires installation of System Driver. Refer to the System Driver Installation section for instructions. //1. Open Cash Drawer // IOCTL Codes #define GPD_TYPE 40000 #define ADV_OPEN_CTL_CODE CTL_CODE(GPD_TYPE, 0x900, METHOD_BUFFERED, FILE_ANY_ACCESS) #define ADV_STATUS_CTL_CODE CTL_CODE(GPD_TYPE, 0x901, METHOD_BUFFERED,...
  • Page 72 bRet = DeviceIoControl(hFile, ADV_STATUS_CTL_CODE, NULL, 0, &ReadByte, sizeof(ReadByte), &ulBytesReturned, NULL); (bRet == FALSE || ulBytesReturned != 1) AfxMessageBox("Failed to Read from cash drawer driver"); CloseHandle(hFile); return; else AfxMessageBox(ReadByte ? “Drawer Open”: “Drawer Closed”); CloseHandle(hFile);...

  • Page 73: Appendix B. Sample Vb.net Cash Drawer Code For Windows

    Appendix B. Sample VB.NET Cash Drawer Code for Windows NOTE: Requires installation of System Driver. Refer to the System Driver Installation section for instructions. Private Declare Function CreateFile "kernel32" Alias "CreateFileA" (ByVal lpFileName String, ByVal dwDesiredAccess Integer, ByVal dwShareMode Integer, ByVal lpSecurityAttributes IntPtr,...
  • Page 74 (iRet = 0 iBytesRtn <> 1) Then MsgBox("Error opening ADVSYS.sys. Error = " & Err.LastDllError) End If End Sub Private Sub Timer1_Tick(ByVal sender System.Object, ByVal System.EventArgs) Handles Timer1.Tick iBytesRtn As Integer iRet Integer, iStatus As Integer ' Get Drawer Status iRet = DeviceIoControl(DeviceHandle, ADV_STATUS_CTL_CODE, 0, 0, iStatus, 4, iBytesRtn, 0) (iRet = 0 iBytesRtn <>...

  • Page 75: Appendix C. Sample Vb6.0 Cash Drawer Code For Windows

    Appendix C. Sample VB6.0 Cash Drawer Code for Windows NOTE: Requires installation of System Driver. Refer to the System Driver Installation section for instructions. Option Explicit On Private Declare Function CreateFile "kernel32" Alias "CreateFileA" (ByVal lpFileName String, ByVal dwDesiredAccess Long, ByVal dwShareMode Long,...
  • Page 76 Private Sub Form_Load() '-1673527296 Come from c code (40000 <<16) ADV_OPEN_CTL_CODE = CTL_CODE(-1673527296, &H900, METHOD_BUFFERED, FILE_ANY_ACCESS) ADV_STATUS_CTL_CODE = CTL_CODE(-1673527296, &H901, METHOD_BUFFERED, FILE_ANY_ACCESS) DeviceHandle = CreateFile("\\.\ADVSYS", GENERIC_READ GENERIC_WRITE, FILE_SHARE_READ FILE_SHARE_WRITE, SA, OPEN_EXISTING, FILE_ATTRIBUTE_NORMAL, 0) DeviceHandle = INVALID_HANDLE_VALUE Then 'Failed to Open Cash Drawer Driver MsgBox("Error opening ADVSYS.sys.
