Summary of Contents for Advantech UPOS-211
- Page 1 User Manual UPOS-211 Intel® Celeron®J1900/Core™ i5 6300U/Core™ i3 6100U/Celeron® 3955U Processor-based Ubiquitous POS with 15" TFT...
- Page 2 The documentation and the software included with this product are copyrighted 2017 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
-
Page 3: Packing List
To assist us in improving this manual, we welcome any comments and constructive criticisms. Please send all feedback in writing to support@advantech.com Technical Support and Assistance Visit the Advantech website at http://support.advantech.com to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. -
Page 4: Safety Instructions
The sound pressure level at the operator position does not exceed 70 dB (A) in accordance with IEC 704-1:1982. DISCLAIMER: These instructions are provided according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. - Page 5 Don't touch any components on the CPU card or other cards while the PC is on. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive elec- tronic components. UPOS-211 User Manual...
- Page 6 UPOS-211 User Manual...
-
Page 7: Table Of Contents
System Setup ........5 Quick Tour of the Device................6 Figure 2.1 Front view of UPOS-211..........6 Figure 2.2 Rear view of UPOS-211 ..........6 Figure 2.3 IO Connectors of UPOS-211 ........7 Installation Procedures................7 2.2.1 Connecting the Power Cord............7 2.2.2... - Page 8 BIOS Setup ..................... 62 4.2.1 Main Menu .................. 62 4.2.2 Advanced BIOS Features ............63 4.2.3 Chipset Configuration Setting ............. 75 4.2.4 Security Configuration Setting ............ 79 4.2.5 Boot Configuration ..............80 4.2.6 Save & Exit Configuration Setting..........81 UPOS-211 User Manual viii...
-
Page 9: Chapter 1 General Information
Chapter General Information This chapter provides basic information regarding UPOS-211. Introduction Specifications Dimensions... -
Page 10: Introduction
3955U processors, UPOS-211 ensures high-performance computing and reliable data processing, while supporting flexible customization for diverse applications. The IP65-rated front panel is water and dust resistance. UPOS-211 is a competitive cost, and energy effective platform built for retail and hospitality. -
Page 11: Lcd Specifications
Luminance: 250 cd/m2 Note! The color LCD display installed in the UPOS-211 is high-quality and reli- able. However, it may contain a few defective pixels which do not always illuminate. With current technology, it is impossible to completely eliminate defective pixels. Advantech is actively working to improve the technology. - Page 12 UPOS-211 User Manual...
-
Page 13: Chapter 2 System Setup
Chapter System Setup This chapter details the system setup process for UPOS-211. Quick Tour of the Device Installation Procedures Installing System Software Installing the HDD Peripheral Cable Connection & Arrangement How to select Windows 7 ... -
Page 14: Quick Tour Of The Device

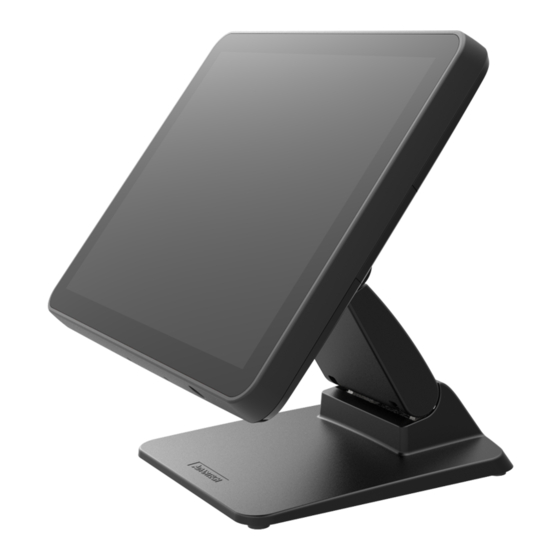

Figure 2.1 Front view of UPOS-211 Turn the computer to view the I/O, as shown in Figure 2.2 and 2.3. The I/O interfaces include serial ports, USB slots, VGA port, Ethernet port, RJ-11, DP, and power inlet. -
Page 15: Installation Procedures
Figure 2.3 IO Connectors of UPOS-211 2.2 Installation Procedures 2.2.1 Connecting the Power Cord This product only supports DC power (12 VDC, max. 60 W). Be sure to hold the plug end when plugging or unplugging the power cord. 2.2.2 Connecting the Mouse and Keyboard Connect the mouse and keyboard via the USB ports located in the I/O section at the rear of the computer. -
Page 16: Installing System Software
Note! The drivers and utilities of UPOS-211 are subject to change without notice. If in doubt, check Advantech’s website or contact our application engineers for the latest information regarding drivers and utilities. -
Page 17: Installing The Hdd
2.4 Installing the HDD Take the HDD bracket and screws out of the accessory box. Assemble the HDD and fasten the screws. UPOS-211 User Manual... - Page 18 Take out the POS system and push the screen upward. UPOS-211 User Manual...
- Page 19 Remove the plastic cover. Remove the plates. UPOS-211 User Manual...
- Page 20 Install the HDD and fasten the screws. Replace the plates and fasten the screws. UPOS-211 User Manual...
- Page 21 Replace the plastic cover. Push the screen back to the original position. UPOS-211 User Manual...
-
Page 22: Peripheral Cable Connection & Arrangement
2.5 Peripheral Cable Connection & Arrangement Take out the POS system and push the screen upward. UPOS-211 User Manual... - Page 23 Remove the plastic covers. Note! Please remove the cover in the direction indicated by the red arrow in the above and use your finger to pull the semicircle opening. UPOS-211 User Manual...
- Page 24 First, make the I/O cables traverse the base as shown below, then connect the cables to the I/O board of the screen. Replace the plastic covers. UPOS-211 User Manual...
- Page 25 Push the screen back to the original position and straighten the cables. UPOS-211 User Manual...
-
Page 26: How To Select Windows 7
2.6 How to select Windows 7 UPOS-211 supports Win 7 Pro, Win 8.1 Industry Pro & Win10 IoT. The default OS in BIOS is Win 8.1 & Win10. So, if a user wants to install Windows 7, just go to the BIOS Setup screen and select Windows 7, same with the other OS. -
Page 27: Jumpers And Connectors
PIN2 LCD POWER PIN3 3.3V COM RI/+5V/+12V Select (COM_RI) This jumper allows you to select the power mode of COM PORT, default RI. JP_CASHV1 PIN1 12V PIN2 cash drawer power Pin3 24V Note: PCB silkscreen “ ▽ ”mark pin1. UPOS-211 User Manual... -
Page 28: Table 2.2: Connectors
DISPLAYPORT CN58 12V power for 2nd display CN59 12V power for power USB CN60 R Touch connector KBMS1 KBMS connector LPT1 LPT connector RJ11 Cash drawer connector COM1,COM2 Real COM COM4,COM5,COM6 Internal COM connector DIMM1 Memory socket UPOS-211 User Manual... -
Page 29: Penmount 6000 Multiple-Monitors Set Sop
Before you can use multiple monitors you need to map each monitor. Enabling Multiple Monitors Enable the multiple display function as follows: In the PenMount Control Panel, under Multiple Monitors tag, check the “Multiple Monitor Support” box. Then click “Map Touchscreens” to assign touch control- lers to displays. UPOS-211 User Manual... - Page 30 If you change the resolution of display or screen address, you have to redo Map Touchscreens so the system understands where the displays are. If you have multiple monitors but only one touchscreen, press ‘S’ to skip the mapping step. UPOS-211 User Manual...
-
Page 31: Capacitive Touch Extends Display Setup
2.9 Capacitive touch extends display setup If you use Dual display, refer to the instructions below. Open Control Panel, choose Tablet PC as below. Double click “Tablet PC setup’’, choose Touch screen, then click setup. UPOS-211 User Manual... - Page 32 ”Enter” on the keyboard. On the second display (see same picture), if the second display has a touch function, touch it; if the second display no touch function, then just press “Enter”. Then click ”ok” to finish. UPOS-211 User Manual...
-
Page 33: Peripheral And Base
2.10 Peripheral and base 2.10.1 MSR Remove the plastic cover. Install the MSR. UPOS-211 User Manual... -
Page 34: Vesa Mount
Replace the plastic cover and fasten the screws. 2.10.2 VESA mount Assemble the VESA mount and fasten the screws. UPOS-211 User Manual... -
Page 35: 10-Inch Screen
2.10.3 10-inch screen Assemble the 10-inch screen. Fasten the screws. UPOS-211 User Manual... -
Page 36: 2Nd Display
Adjust the angle of the 10-inch screen. 2.10.4 2nd display Connect the cables to the I/O board. UPOS-211 User Manual... - Page 37 Fasten the screws. UPOS-211 User Manual...
- Page 38 Assemble the plastic cover and fasten the screws. UPOS-211 User Manual...
-
Page 39: Vdf
2.10.5 VDF Remove the plastic cover. Connect the cables to the I/O board. UPOS-211 User Manual... - Page 40 Fasten the screws. Adjust the angle of the VDF. UPOS-211 User Manual...
-
Page 41: Barcode Scanner
2.10.6 Barcode scanner Fasten the screws. Connect the cables to the I/O board and fasten the screws. UPOS-211 User Manual... - Page 42 Replace the plastic cover. Push the screen back to the original position. UPOS-211 User Manual...
-
Page 43: Wall Mount
2.10.7 Wall mount Assemble the wall mount and fasten the screws. UPOS-211 User Manual... - Page 44 Clasp the UPOS-211 to the wall. UPOS-211 User Manual...
-
Page 45: Bios Setup (Upos-211D)37
Chapter BIOS Setup (UPOS-211D) -
Page 46: Introduction
With the AMI BIOS Setup program, you can modify BIOS settings to control the spe- cial features of your computer. The Setup program uses a number of menus for mak- ing changes. This chapter describes the basic navigation of the UPOS-211 setup screens. -
Page 47: Main Menu
System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time must be entered in HH:MM:SS format. UPOS-211 User Manual... -
Page 48: Advanced Bios Features
BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced BIOS Setup options are described in this section. The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages. UPOS-211 User Manual... - Page 49 OS. ACPI Sleep State [S3(Suspend to RAM) ] Select ACPI sleep state the system will enter when the SUSPEND button is pressed. Lock Legacy Resources [Disabled ] Enables or Disables Lock of Legacy Resources. UPOS-211 User Manual...
- Page 50 3.2.2.2 NCT6106D Super IO Configuration Super IO Chip [NCT6106D] Serial Port 1 Configuration – Serial Port [Enabled] – Device Settings: IO=3F8h; IRQ =4 UPOS-211 User Manual...
- Page 51 Serial Port 2 Configuration – Serial Port [Enabled] – Device Settings: IO=2F8h; IRQ =3 Serial Port 3 Configuration – Serial Port [Enabled] – Device Settings: IO=3E8h; IRQ =5 UPOS-211 User Manual...
- Page 52 Serial Port 4 Configuration – Serial Port [Enabled] – Device Settings: IO=2E8h; IRQ =7 Serial Port 5 Configuration – Serial Port [Enabled] – Device Settings: IO=2F0h; IRQ =7 UPOS-211 User Manual...
- Page 53 Serial Port 6 Configuration – Serial Port [Enabled] – Device Settings: IO=2E0h; IRQ =10 Parallel Port Configuration UPOS-211 User Manual...
- Page 54 – Parallel Port [Enabled] To enable or disable Parallel Port – Device Settings: IO=278h; IRQ =6 – Change Settings [Auto] To select an optimal setting for parallel port. – Device Mode [STD Printer Mode] 3.2.2.3 Hardware Monitor UPOS-211 User Manual...
- Page 55 3.2.2.4 S5 RTC Wake Settings UPOS-211 User Manual...
- Page 56 3.2.2.5 CPU Configuration Intel Virtualization Technology [Enabled] Enabled or Disable Intel Virtualization Technology. UPOS-211 User Manual...
- Page 57 3.2.2.6 PPM Configuration UPOS-211 User Manual...
- Page 58 3.2.2.7 IDE Configuration SATA Speed Support [ Gen2 ] SATA Speed Support Gen1/Gen2. Serial-ATA Port 0 [ Enable] Enable or disable SATA Function. Serial-ATA Port 1 [ Enable] Enable or disable SATA Function. UPOS-211 User Manual...
- Page 59 3.2.2.8 CSM Configuration UPOS-211 User Manual...
- Page 60 USB Mass Storage Driver Support [ Enabled ] USB hardware delays and time-outs USB Device transfer & reset time-out and delay setting. Mass Storage Devices [ Auto ] Shows USB mass storage device information. UPOS-211 User Manual...
-
Page 61: Configuration Setting
Users can select any item in the left frame of the screen, such as North Bridge Con- figuration to go to the sub menu for that item. The Chipset Setup screens are shown below. The submenus are described on the following pages. UPOS-211 User Manual... - Page 62 3.2.3.1 North Bridge Configuration Setting Choose Intel IGD Configuration Primary IGFX Boot Display [Auto] Boot display Auto/CRT/DP/LVDS. UPOS-211 User Manual...
- Page 63 XHCI Mode [ Enabled ] Enable or Disable XHCI mode. Restore AC Power Loss [ Power off ] AC power loss power off/Power on/Last State. Mini PCIE Socket [ mSATA ] The Socket Function choose mSATA/PCIE. UPOS-211 User Manual...
- Page 64 Internal Speaker [Enabled ] Enable or disable speaker function. UPOS-211 User Manual...
- Page 65 UPOS-211 User Manual...
-
Page 66: Security Configuration Setting
Select this option and press <ENTER> to access the sub menu, and then type in the password. Set the Administrator password. User Password Select this option and press <ENTER> to access the sub menu, and then type in the password. Set the User Password. UPOS-211 User Manual... -
Page 67: Boot Configuration
User the <+> and <-> keys to adjust the number of seconds to wait for setup activation key. Bootup NumLock State [ On ] On or Off power on state for the NumLock. Boot Option #1/#2/#3 Choose boot priority from boot device. UPOS-211 User Manual... -
Page 68: Save & Exit Configuration Setting
In particular, do not use the defaults if the user's computer is experiencing system configuration problems. Select Restore Defaults from the Exit menu and press <Enter>. Boot Override Shows the boot device types on the system. UPOS-211 User Manual... -
Page 69: Chapter 4 Bios Setup
Chapter BIOS Setup (UPOS-211F) -
Page 70: Introduction
With the AMI BIOS Setup program, you can modify BIOS settings to control the spe- cial features of your computer. The Setup program uses a number of menus for mak- ing changes. This chapter describes the basic navigation of the UPOS-211 setup screens. -
Page 71: Advanced Bios Features
BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced BIOS Setup options are described in this section. The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages. UPOS-211 User Manual... - Page 72 Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep State [S3(Suspend to RAM) ] Select ACPI sleep state the system will enter when the SUSPEND button is pressed. UPOS-211 User Manual...
- Page 73 4.2.2.2 AMT Configuration 4.2.2.3 PCH-FW Configuration UPOS-211 User Manual...
- Page 74 4.2.2.4 NCT6106D Super IO Configuration Super IO Chip [ NCT6106D ] Serial Port 1 Configuration – Serial Port [Enabled] – Device Settings: IO=2E0h; IRQ =10 UPOS-211 User Manual...
- Page 75 Serial Port 2 Configuration – Serial Port [Enabled] – Device Settings: IO=2F0h; IRQ =7 Serial Port 4 Configuration – Serial Port [Enabled] – Device Settings: IO=3E8h; IRQ =6 UPOS-211 User Manual...
- Page 76 Serial Port 5 Configuration – Serial Port [Enabled] – Device Settings: IO=2F8h; IRQ =3 Serial Port 6 Configuration – Serial Port [Enabled] – Device Settings: IO=3F8h; IRQ =4 UPOS-211 User Manual...
- Page 77 Parallel Port Configuration – Parallel Port [Enabled] To enable or disable Parallel Port – Device Settings: IO=378h; IRQ =5 – Device Mode [EPP-1.9 and SPP Mode] 4.2.2.5 Hardware Monitor UPOS-211 User Manual...
- Page 78 4.2.2.6 S5 RTC Wake Settings UPOS-211 User Manual...
- Page 79 4.2.2.7 CPU Configuration UPOS-211 User Manual...
- Page 80 SATA Mode Selection [ AHCI ] SATA Speed Support Gen1/Gen2. Serial-ATA Port 0 [ Enable] Enable or disable SATA Function. Serial-ATA Port 1 [ Enable] Enable or disable SATA Function. mSATA Port2 [ Enable] Enable or disable mSATA Function. UPOS-211 User Manual...
- Page 81 4.2.2.9 CSM Configuration UPOS-211 User Manual...
- Page 82 Enables support for legacy USB. Auto option disables legacy support if no USB devices are connected. XHCI Hand-off [ Enabled ] USB Mass Storage Driver Support [ Enabled ] Mass Storage Devices [ Auto ] Shows USB mass storage device information. UPOS-211 User Manual...
-
Page 83: Chipset Configuration Setting
Users can select any item in the left frame of the screen, such as North Bridge Con- figuration to go to the sub menu for that item. The Chipset Setup screens are shown below. The submenus are described on the following pages. UPOS-211 User Manual... - Page 84 4.2.3.1 North Bridge Configuration Setting Graphics Configuration UPOS-211 User Manual...
- Page 85 Primary IGFX Boot Display [VBIOS Default] Boot display VBIOS Default /LVDS/CRT/DP++. Memory Configuration UPOS-211 User Manual...
- Page 86 4.2.3.2 PCH-IO Configuration Setting Restore AC Power Loss [ Power off ] AC power loss power off/Power on. Wake on LAN [Enable ] Enable or disable Wake on LAN function. UPOS-211 User Manual...
-
Page 87: Security Configuration Setting
Select this option and press <ENTER> to access the sub menu, and then type in the password. Set the Administrator password. User Password Select this option and press <ENTER> to access the sub menu, and then type in the password. Set the User Password. UPOS-211 User Manual... -
Page 88: Boot Configuration
User the <+> and <-> keys to adjust the number of seconds to wait for setup activation key. Bootup NumLock State [ On ] On or Off power on state for the NumLock. Boot Option #1/#2/#3 Choose boot priority from boot device. UPOS-211 User Manual... -
Page 89: Save & Exit Configuration Setting
In particular, do not use the Defaults if the user's computer is experiencing system configuration problems. Select Restore Defaults from the Exit menu and press <Enter>. Boot Override Shows the boot device types on the system. UPOS-211 User Manual... - Page 90 UPOS-211 User Manual...
- Page 91 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2017...
