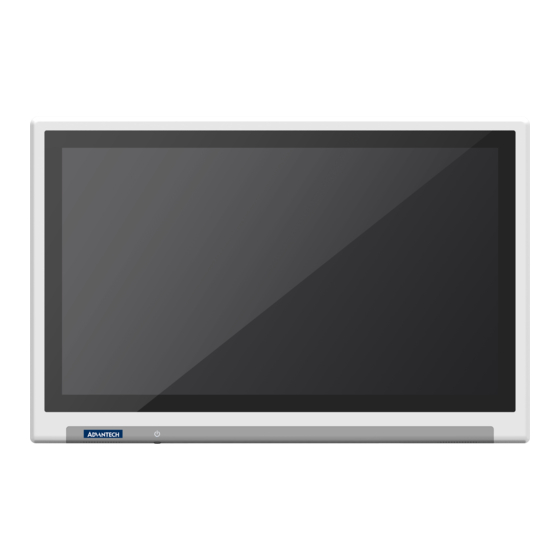

- Page 1 User Manual POC-W213L Series Point-of-Care Terminal with Intel® Core™ i7/i5/i3 and Celeron Processor, and a 21.5" TFT LCD...
- Page 2 Note! A NOTE provides additional information intended to avoid inconve- niences during operation. Part No. 2008213L10 Edition 1 Printed in China Nov 2018 POC-W213L Series User Manual...
-
Page 3: Safety Instructions
Repair of the device may also only be carried out by trained service personnel. Advantech recommends that a service contract be obtained with Advantech Service and that all repairs also be carried out by them. Otherwise the correct functioning of the device may be compromised. - Page 4 Caution! When servicing the device, always use replacement parts that are quali- fied to Advantech standards. Advantech Medical cannot warrant or endorse the safe performance of third-party replacement parts for use with our medical device.
- Page 5 List of Accessories Before installing your Point of Care Terminal, ensure that the following materials have been received: POC-W213L Series Point-of-Care Terminal Accessories for POC-W213L Series Mounting kits and packet of screws.
- Page 6 Otherwise the correct functioning of the device may be compromised. Additional Information and Assistance Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before you call: ...
-
Page 7: Table Of Contents
......1 Introduction ....................2 Specifications .................... 2 Dimensions ....................4 Figure 1.1 Dimensions of the POC-W213L Series ...... 4 Figure 1.2 VESA Mounting of the POC-W213L Series....4 Figure 1.3 POC-W213L SERIES Front Panel ......5 1.3.1 Optional modules ................5 1.3.2... - Page 8 POC-W213L Series User Manual viii...
-
Page 9: Chapter 1 General Information
Chapter General Information... -
Page 10: Introduction
LCD and sealed ports. Intended use - The POC-W213L series is intended to serve as a Point-of-Care ter- minal (POC) for integration with the systems. POC-W213L series is designed for general purpose computing in the environment, for data collection and for displaying information. - Page 11 Storage Either one of 2.5" SATA SSD Dimensions 550 x 360mm x 65 mm (21.65" x 14.17" x 2.56") (W x D x H) Physical Weight Characteristics 6.9kg(15.2lb) (Bare system) VESA Mount 100x100 mm, 75x75 mm POC-W213L Series User Manual...
-
Page 12: Dimensions
Figure 1.1 Dimensions of the POC-W213L Series VESA Mounting: 75 x 75 mm; 100 x 100 mm Please use M4x12L (Maximum) screw. Figure 1.2 VESA Mounting of the POC-W213L Series Warning! Use suitable mounting apparatus to avoid risk of injury. POC-W213L Series User Manual... -
Page 13: Optional Modules
Figure 1.3 POC-W213L SERIES Front Panel 1.3.1 Optional modules WLAN & Bluetooth: 4th Generation Intel 802.11ac,Dual Band,2x2 WiFi + Blue- tooth*4.2. For information about Camera and RFID module. contact Advantech Sales team 1.3.2 Point-of-Care Terminal Cleaning and Disinfecting During normal use of the POC (Point-of-Care Terminal) the device may become dirty and should be regularly cleaned. -
Page 14: Operating Principle
I/O ports or through its LAN/WLAN connections. The device is able to store data in its storage, and when the device is turned off, still maintain the data in the memory units of the storage. POC-W213L Series User Manual... -
Page 15: Chapter 2 System Setup
Chapter System Setup... -
Page 16: A Quick Tour Of The Poc-W213L Series
A Quick Tour of the POC-W213L Series Before you start to set up the POC-W213L, take a moment to become familiar with the locations and purposes of the controls, drives, connections and ports, which are illustrated in the figures below. -
Page 17: Installation Procedures
Connect the female end of the power cord to the DC power adapter Connect the 3-pin male plug of the power cord to an electrical outlet. Figure 2.4 Connecting the power cord Warning! The POC-W213L SERIES is supplied by a 84 watt power supply and a special. POC-W213L Series User Manual... -
Page 18: Connecting The Ground Pin
2.5) Running the BIOS Setup Program Your POC-W213L series was probably set up and configured by your dealer prior to delivery. You may still find it necessary to use the BIOS (Basic Input-Output System) setup program to change system configuration information, such as the current date and time or your type of hard drive. -
Page 19: Installing System Software
When system behaves abnormally, such as: 1. Failure to power on 2. Failure to power off 3. Power LED ON but no DC power output 4. AC power in and all switches ON, but system doesn't power on POC-W213L Series User Manual... - Page 20 Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before you call: Product name and serial number Description of your peripheral attachments ...
-
Page 21: Chapter 3 Operation And Safety
Chapter Operation and Safety... -
Page 22: General Safety Guide
Thermal The vent hole of the POC-W213L series rear cover functions as a cooling air flow inlet and outlet. These air inlets and outlets transfer heat from inside the computer to the cooler air outside. Do not block these holes/vents with any soft material. -
Page 23: Disconnect The Power
may cause injury. Set POC-W213L on a stable work surface. To lift or move your system, hold its sides. When you move your system, do not hit the surface of the glass. POC-W213L Series User Manual... - Page 24 POC-W213L Series User Manual...
-
Page 25: Poc-W213L Series Vesa Mounting
Appendix POC-W213L Series VESA Mounting... -
Page 26: Install Vesa Mounting
Install VESA Mounting The POC-W213L Series also provides standard VESA mounting to help system inte- grators conveniently integrate the panel PC into their system. Never use mounting brackets except as provided by Advantech to prevent unreliable mounting of the POC-W213L Series. VESA mount installation should be carried out by a professional technician;... - Page 27 POC-W213L Series User Manual...
- Page 28 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2018...
