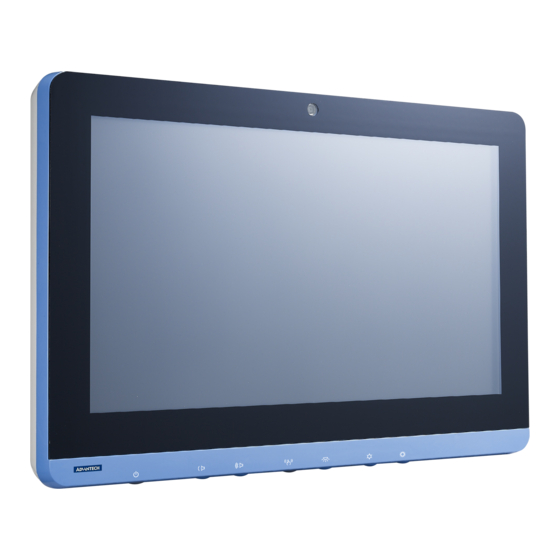

- Page 1 User Manual POC-W152/W152C Point- of-Care Terminal with Intel® Core™ Haswell / Intel® J1900 Processor and a 15.6’’ VA LCD (Computer)
-
Page 2: Safety Instructions
Repair of the device may only be carried out by trained service personnel. Advantech recommends that a service contract be obtained with Advantech Service and that all repairs also be carried out by them. Otherwise the correct functioning of the device may be compromised. - Page 3 Improper installation of VESA mounting can result in serious personal injury! VESA mount installation should be operated by professional technician, please contact the service technician or your retailer if you need this service. The detail operating procedure is specified in Appendix A. POC-W152/W152C User Manual...
- Page 4 Caution! When servicing the device, always use replacement parts that are quali- fied to Advantech standards. Advantech Digital Healthcare cannot war- rant or endorse the safe performance of third-party replacement parts for use with our medical device.
- Page 5 IEC 60878 and ISO 3864-B.3.6 : Warning: dangerous voltage ISO 7000-0434 : Caution, consult ACCOMPANYING DOCUMENTS. ISO 7000-1641 : Follow operating instructions or consult instructions for use. IEC 60417 -5009 : STAND-BY. IEC 60417-5031 : Direct current. IEC 60417-5021 : Equipotentiality. POC-W152/W152C User Manual...
- Page 6 Consult the dealer or an experienced radio/TV technician for help Warning! Any changes or modifications made to the equipment which are not expressly approved by the relevant standard’s authority could void your authority to operate the equipment. POC-W152/W152C User Manual...
- Page 7 Otherwise the correct functioning of the device may be compromised. Additional Information and Assistance Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before you call: ...
- Page 8 POC-W152/W152C User Manual viii...
-
Page 9: Table Of Contents
General Information ......1 Introduction ....................2 Specifications .................... 2 Dimensions ....................4 Figure 1.1 Dimensions of the POC-W152/W152C ...... 4 Figure 1.2 VESA Mounting of the POC-W152/W152C....4 Figure 1.3 POC-W152/W152C Front Panel......... 5 1.3.1 Optional Modules ................5 1.3.2 Cleaning and Disinfecting ............. - Page 10 POC-W152/W152C User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information... -
Page 12: Introduction
POC-W152/W152C is a user-friendly computer. For system integrators, this highly integrated multimedia system lets you easily build a Point-of-Care Termi- nal into your applications. The POC-W152/W152C makes it an ideal and safe point- of-care solution for patients and hospital practitioners. - Page 13 Environment Humidity 5 ~90% (non condensing) (Storage) 5 ~90% (Transportation) 700-1013 hPa (Operation) Pressure 375 mmHg to 760 mmHg (Storage) 375 mmHg to 760 mmHg (Transportation) Dimensions 405.53mmx274mmx60.82mm Physical (W x H x D) Characteristics Weight 4.65Kg POC-W152/W152C User Manual...
-
Page 14: Dimensions
405.53 60.82 Figure 1.1 Dimensions of the POC-W152/W152C VESA Mounting: 75 x 75 mm; 100x100 mm Please use M4x12L (Maxium)screw. Figure 1.2 VESA Mounting of the POC-W152/W152C Warning! Use suitable mounting apparatus to avoid risk of injury. POC-W152/W152C User Manual... -
Page 15: Optional Modules
Figure 1.3 POC-W152/W152C Front Panel Power Volume Down/Up Touchscreen Status Control Read Light Control Brightness Decrease / Increase 1.3.1 Optional Modules WLAN: Integrated wireless 802.11 a/b/g/n. Bluetooth: Bluetooth 4.0. Smart card reader: 1x Smart card reader. RFID: Passive RFID. 1.3.2... - Page 16 POC-W152/W152C User Manual...
-
Page 17: Chapter 2 System Setup
Chapter System Setup... -
Page 18: A Quick Tour Of The Poc-W152/W152C
A Quick Tour of the POC-W152/W152C Before you start to set up the POC-W152/W152C, take a moment to become familiar with the locations and purposes of the controls, drives, connections and ports, which are illustrated in the figures below. When you place the POC-W152/W152C upright on the desktop, its front panel appears as shown in Figure 2.1. -
Page 19: Bottom View
Power switch (10) Equipotential terminal (11) Add on card bracket PCIe and Battery Pack can switchable for only one interface Note! Equipotential terminal need link to hospital ground/earth system before system boot to protect operator and system. POC-W152/W152C User Manual... -
Page 20: Installation Procedures
Installation Procedures 2.2.1 Connecting the Power Cord The POC-W152/W152C can only be powered by a DC power adapter (Sinpro Model HPU101-107). Be sure to always handle the power cords by holding the plug ends only. Follow these procedures in order: Connect the female end of the power adapter to the DC jack of the panel PC. -
Page 21: Running The Bios Setup Program
Running the BIOS Setup Program Your POC-W152/W152C was probably set up and configured by your dealer prior to delivery. You may still find it necessary to use the BIOS (Basic Input-Output System) setup program to change system configuration information, such as the current date and time or your type of hard drive. -
Page 22: Installing The Drivers
Power LED ON but no DC power output AC power in and all switches ON, but system doesn't power on Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before you call: ... - Page 23 1 kV line(s) to ± 1 kV line(s) to Main power quality should be Surge line(s) ± that of a typical commercial or line(s) 2 kV ± IEC 61000-4-5 2 kV line(s) to hospital environment. line(s) to earth earth POC-W152/W152C User Manual...
- Page 24 Field strengths from fixed RF transmit- ters, as determined by an electromag- netic site survey, should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol: POC-W152/W152C User Manual...
- Page 25 If abnormal performance is observed, additional measures may be neces- sary, such as reorienting or relocating the unit. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. POC-W152/W152C User Manual...
- Page 26 POC-W152/W152C User Manual...
-
Page 27: Chapter 3 Operation And Safety Information
Chapter Operation and Safety Information... -
Page 28: General Safety Guide
Thermal The vent hole of the POC-W152/W152C rear cover functions as a cooling air flow inlet and outlet. These air inlets and outlets transfer heat from inside the computer to the cooler air outside. Do not block these holes/vents with any soft material. -
Page 29: Disconnect The Power
Never place anything on system case before turning off the computer. Never turn on your computer unless all of its internal and external parts are in place. Operating the computer when it is open or missing parts can be danger- ous and can damage the system. POC-W152/W152C User Manual... - Page 30 POC-W152/W152C User Manual...
-
Page 31: Appendix A Install Vesa Mounting
Appendix Install VESA Mounting... -
Page 32: Install Vesa Mounting
Install VESA Mounting The POC-W152/W152C also provides standard VESA mounting to help system inte- grators conveniently integrate the panel PC into their system. Never use mounting brackets except as provided by Advantech to prevent unreliable mounting of the POC-W152/W152C. VESA mount installation should be carried out by a professional technician;... - Page 33 POC-W152/W152C User Manual...
- Page 34 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2015...
