4) Use the ESC button to return to previous menu.

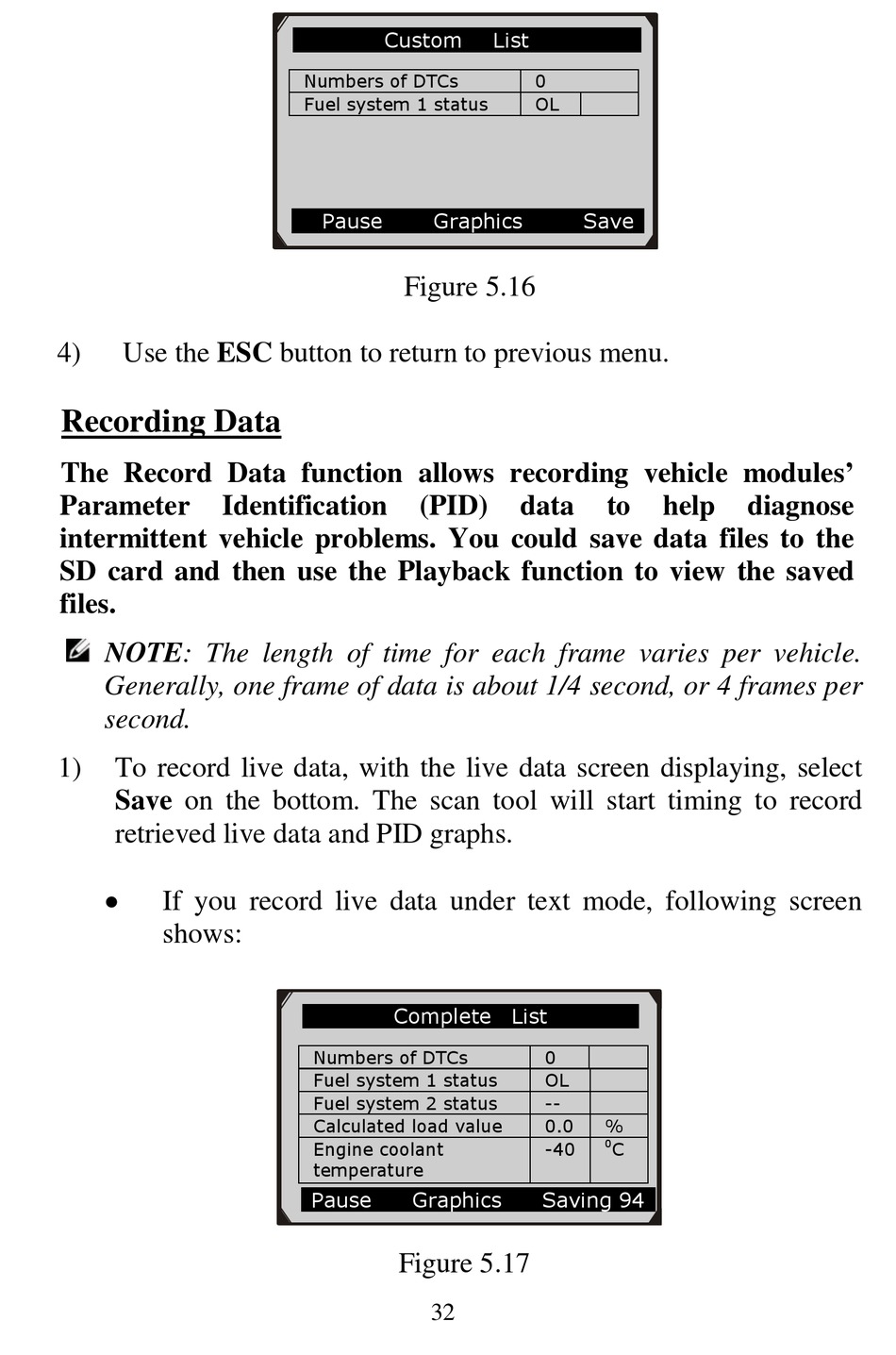

Recording Data

The Record Data function allows recording vehicle modules'
Parameter Identification
intermittent vehicle problems. You could save data files to the
SD card and then use the Playback function to view the saved
files.
NOTE: The length of time for each frame varies per vehicle.
Generally, one frame of data is about 1/4 second, or 4 frames per
second.
1) To record live data, with the live data screen displaying, select
Save on the bottom. The scan tool will start timing to record
retrieved live data and PID graphs.

If you record live data under text mode, following screen
shows:
Custom
Numbers of DTCs
Fuel system 1 status
Pause Graphics
Figure 5.16
(PID)
Complete List
Numbers of DTCs
Fuel system 1 status
Fuel system 2 status
Calculated load value
Engine coolant
temperature
Pause Graphics
Figure 5.17
32
List
0
OL
Save
data to
0
OL
--
0.0 %
0
-40 C
Saving 94
help diagnose
