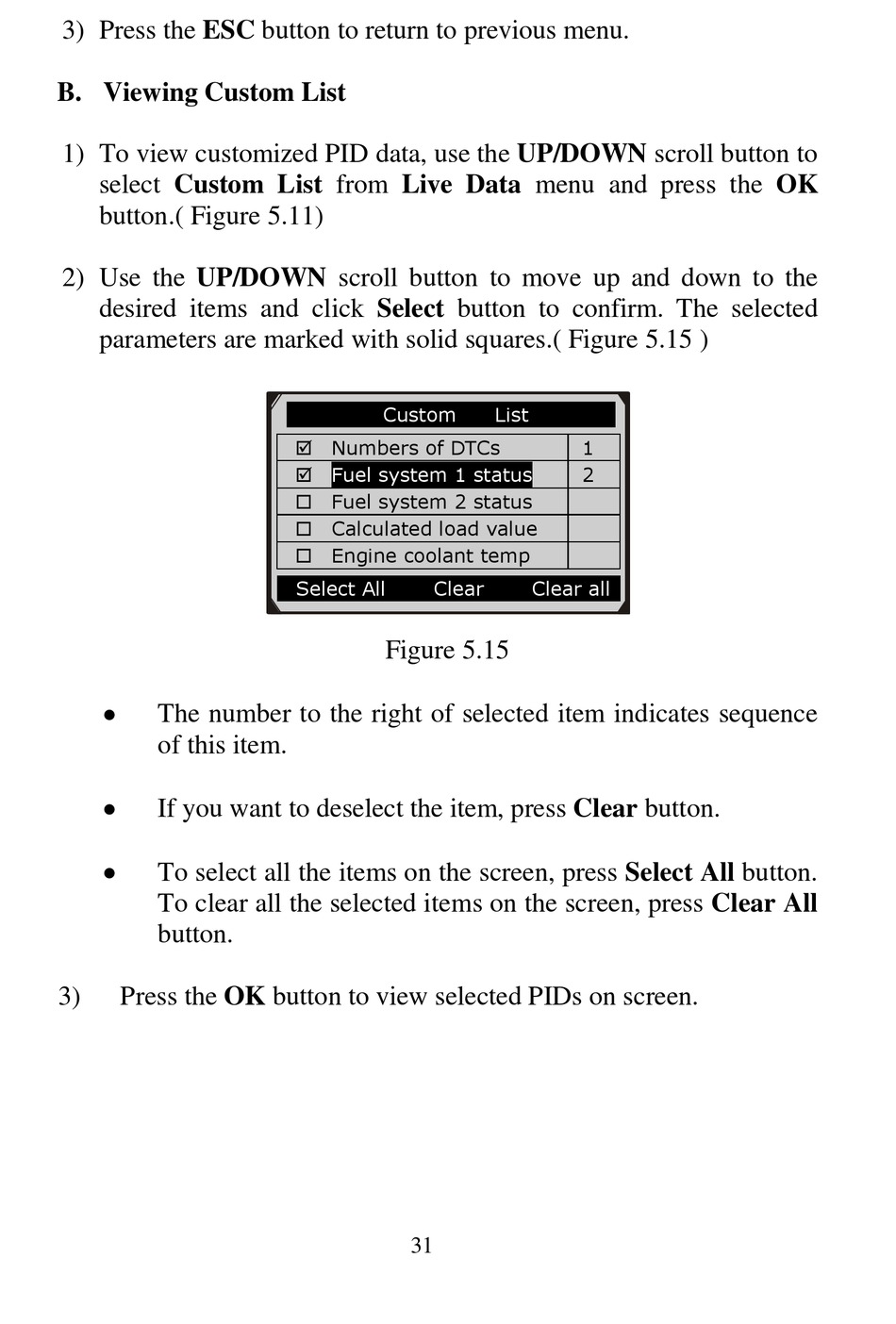

Autel Autolink AL619 Manual page 32

3) Press the ESC button to return to previous menu.
B. Viewing Custom List
1) To view customized PID data, use the UP/DOWN scroll button to
select Custom List from Live Data menu and press the OK
button.( Figure 5.11)
2) Use the UP/DOWN scroll button to move up and down to the
desired items and click Select button to confirm. The selected
parameters are marked with solid squares.( Figure 5.15 )

The number to the right of selected item indicates sequence
of this item.

If you want to deselect the item, press Clear button.

To select all the items on the screen, press Select All button.
To clear all the selected items on the screen, press Clear All
button.
3) Press the OK button to view selected PIDs on screen.
............ ..Custom
 Numbers of DTCs
Fuel system 1 status

 Fuel system 2 status
 Calculated load value
 Engine coolant temp
Select All Clear
Figure 5.15
31
List
1
2
Clear all
