3. Using the Scan Tool

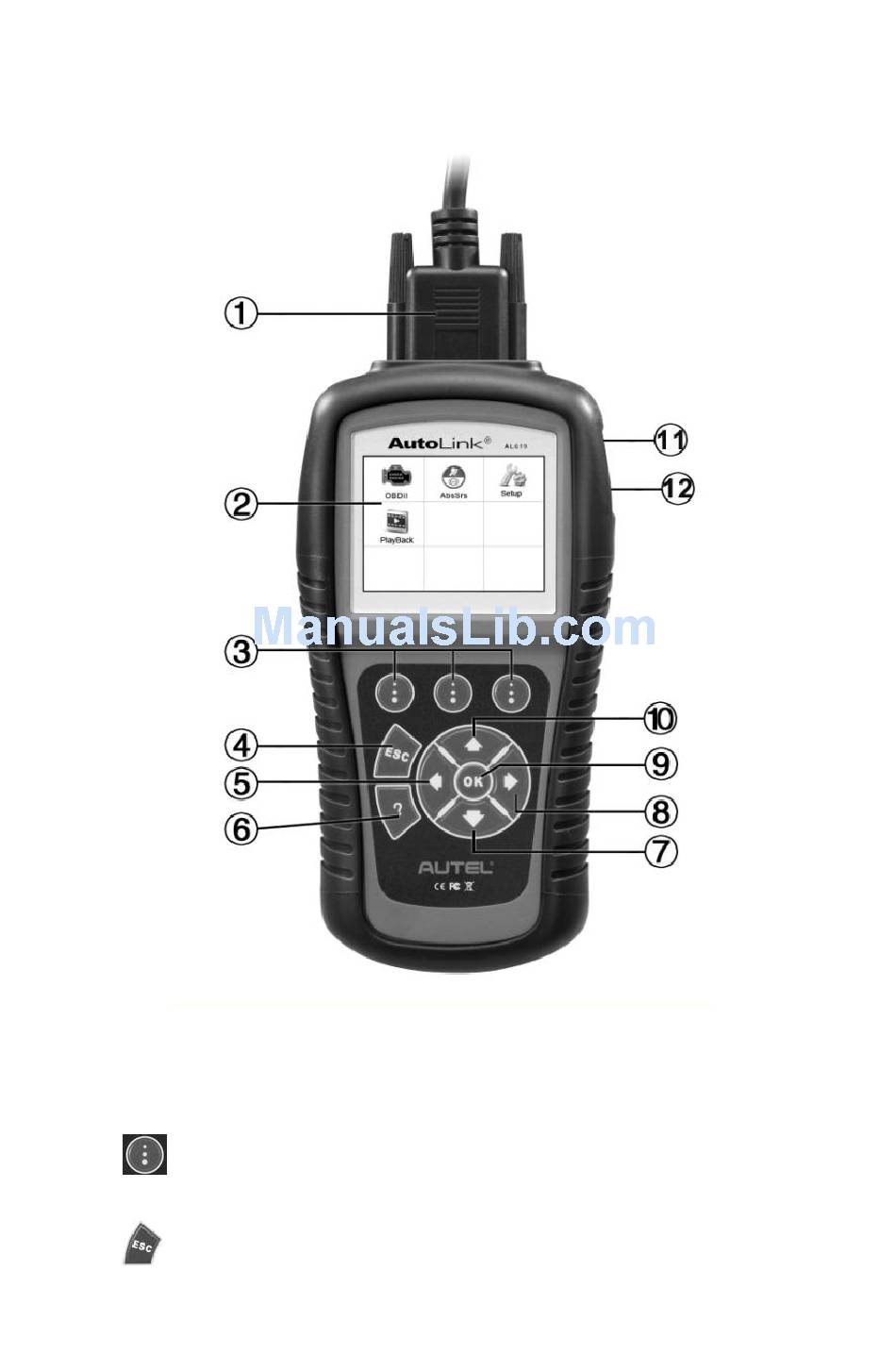

3.1 Tool Description
OBD II CONNECTOR – Connects the scan tool to the
1)
vehicle's Data Link Connector (DLC).
LCD DISPLAY – Indicates test results.
2)
FUNCTION BUTTONS – Corresponds with "buttons" on
3)
screen for executing commands.
4)
menu or returns to the previous screen.
ESC BUTTON – Cancels a selection (or action) from a
10
