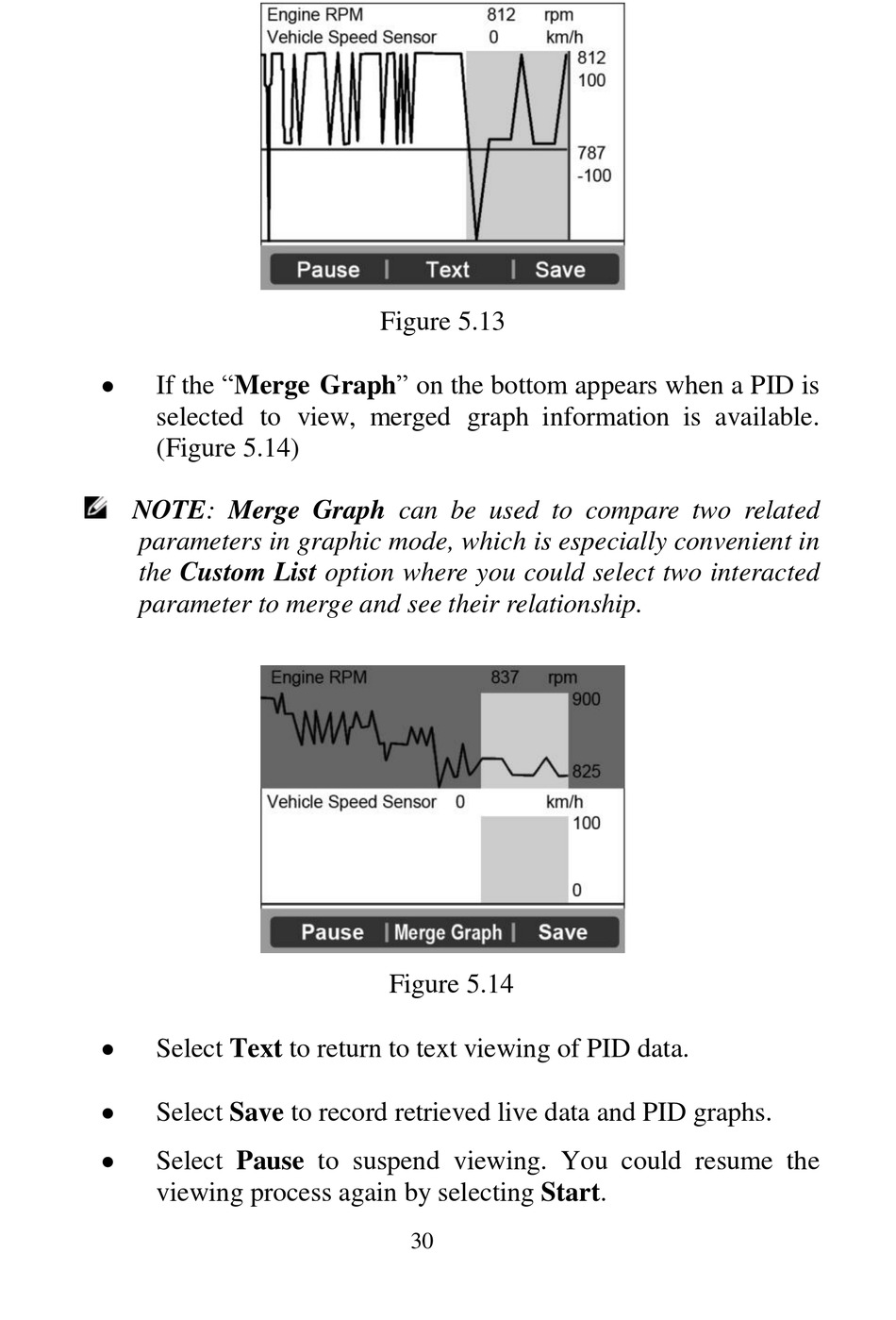

If the "Merge Graph" on the bottom appears when a PID is
selected to view, merged graph information is available.
(Figure 5.14)
NOTE: Merge Graph can be used to compare two related
parameters in graphic mode, which is especially convenient in
the Custom List option where you could select two interacted
parameter to merge and see their relationship.

Select Text to return to text viewing of PID data.

Select Save to record retrieved live data and PID graphs.

Select Pause to suspend viewing. You could resume the
viewing process again by selecting Start.
Figure 5.13
Figure 5.14
30
