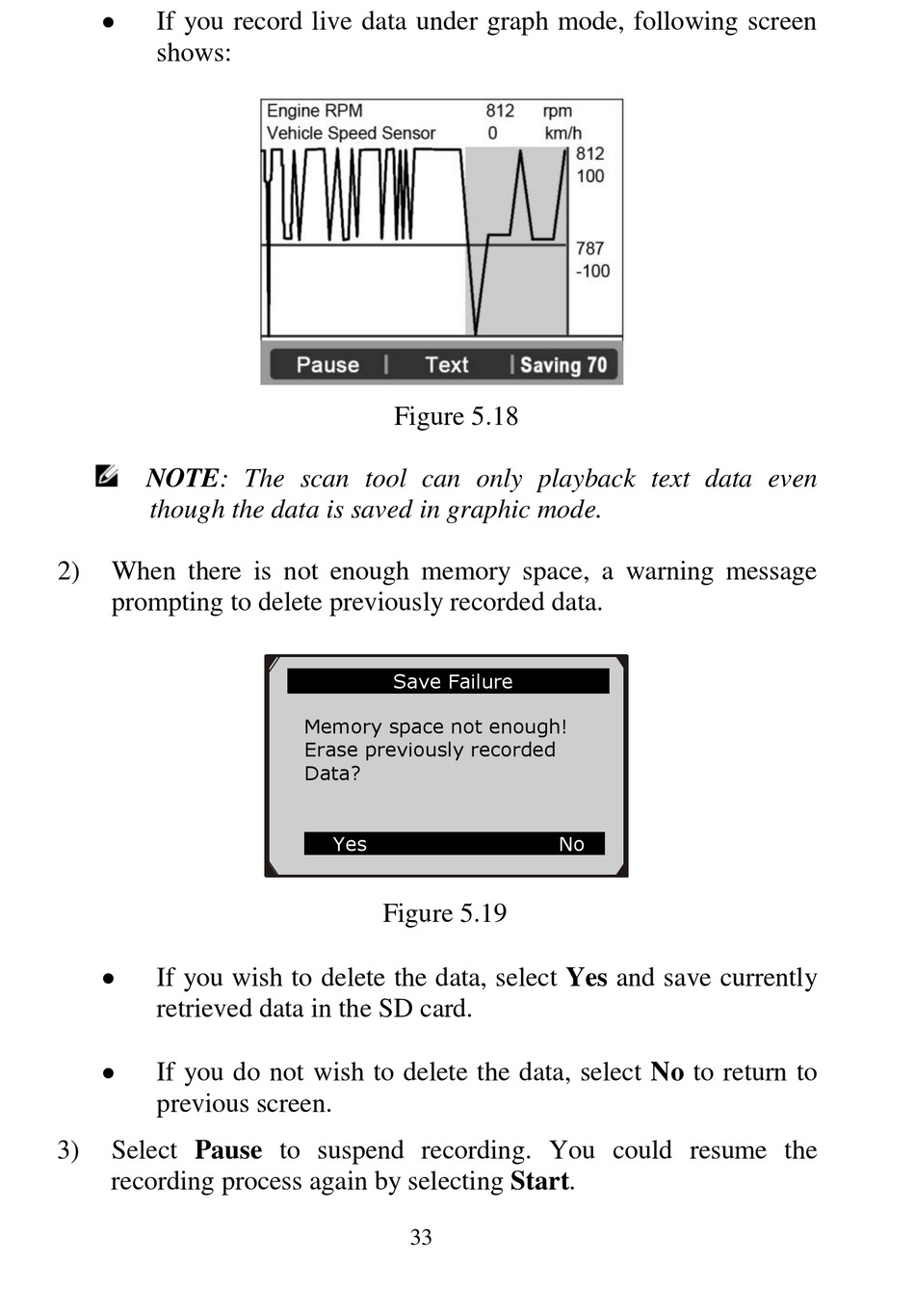

Autel Autolink AL619 Manual page 34


If you record live data under graph mode, following screen
shows:
NOTE: The scan tool can only playback text data even
though the data is saved in graphic mode.
2) When there is not enough memory space, a warning message
prompting to delete previously recorded data.

If you wish to delete the data, select Yes and save currently
retrieved data in the SD card.

If you do not wish to delete the data, select No to return to
previous screen.
3) Select Pause to suspend recording. You could resume the
recording process again by selecting Start.
Figure 5.18
Save Failure
Memory space not enough!
Erase previously recorded
Data?
Yes
Figure 5.19
33
No
