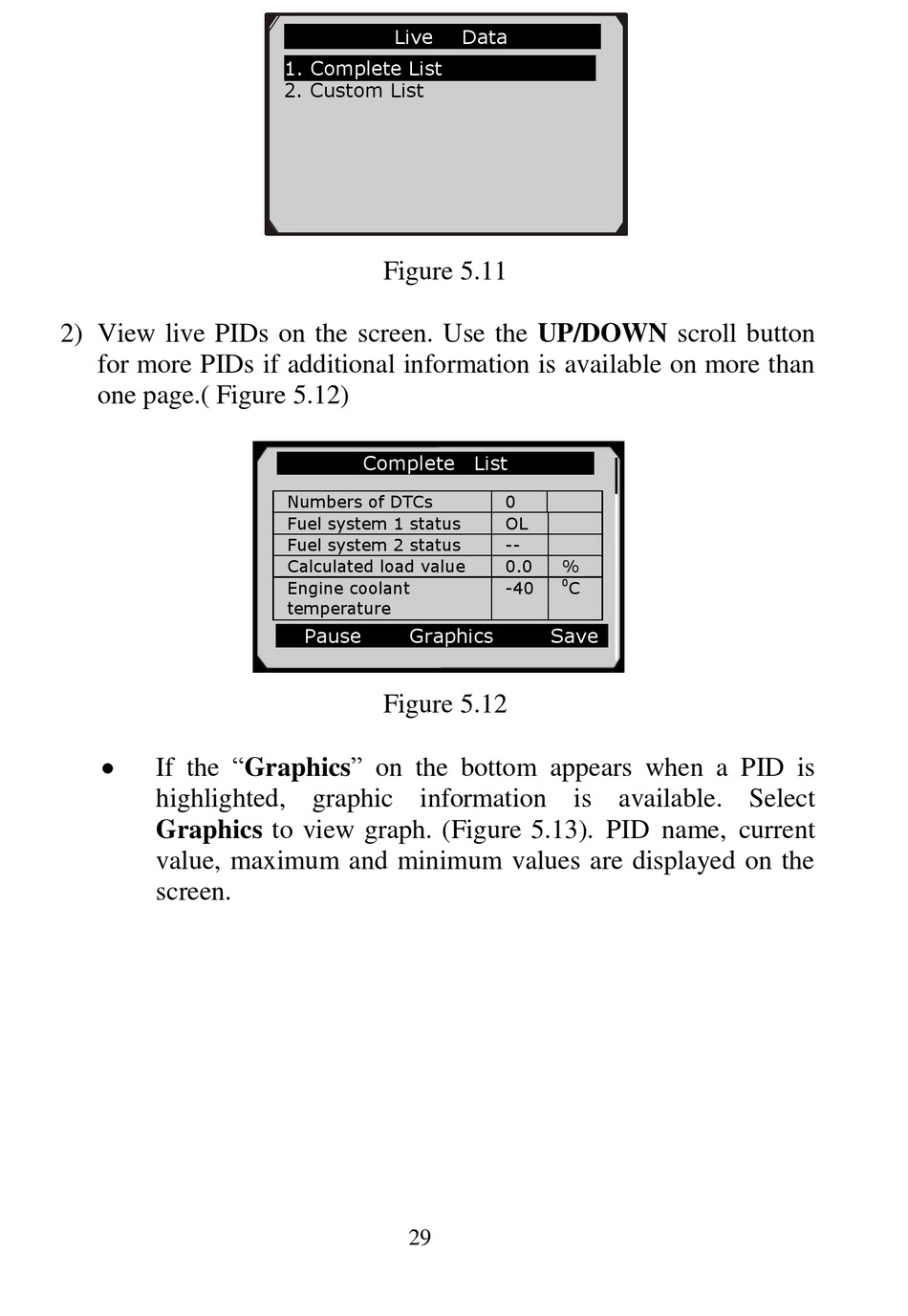

2) View live PIDs on the screen. Use the UP/DOWN scroll button
for more PIDs if additional information is available on more than
one page.( Figure 5.12)

If the "Graphics" on the bottom appears when a PID is
highlighted, graphic information is available. Select
Graphics to view graph. (Figure 5.13). PID name, current
value, maximum and minimum values are displayed on the
screen.
.....................Live
1. Complete List
2. Custom List
Figure 5.11
Complete List
Numbers of DTCs
Fuel system 1 status
Fuel system 2 status
Calculated load value
Engine coolant
temperature
Pause Graphics
Figure 5.12
29
Data .
0
OL
--
0.0 %
0
-40 C
Save
