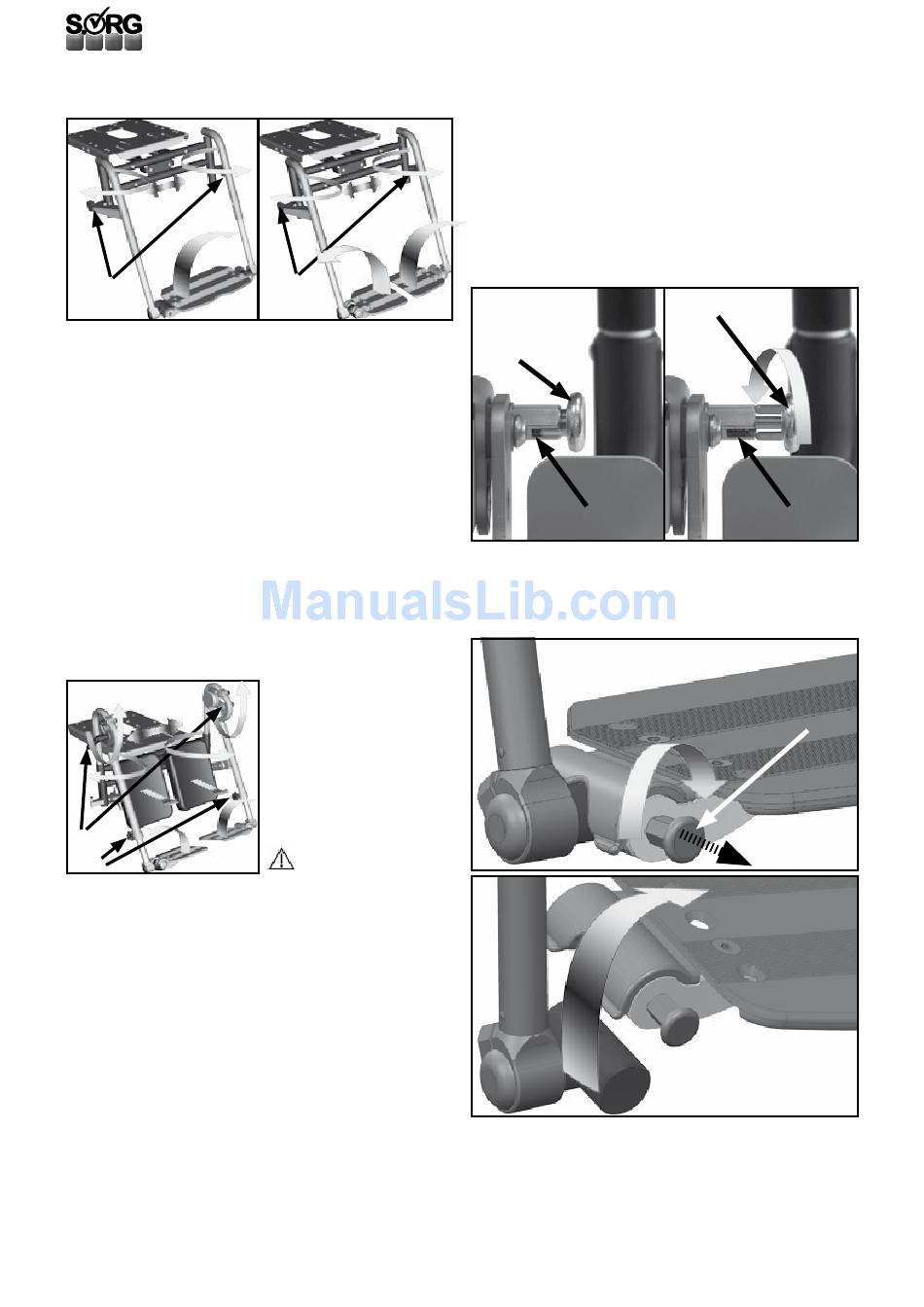

3.5.4 Leg support: detachable and swings to
the side, continuous or divided footrest
(A)
In order to get in and out of the wheelchair flip the
footrest/s up to the side, push the locking lever (A)
and fold the leg support 90° to the side, on both
sides.
To detach the whole leg support, pull the outward
flipped part up out of the holding pipe.
To place the leg support back on guide the 90°
outward flipped part back into the holding pipe and
turn it 90° so that it snaps into place in the locking
pin. This is the only way that the locking lever will
close again.
3.5.5 Leg support: detachable, can be eleva-
(8)
(A)
(B)
be sure that the leg support wing snaps into the
locking pin, which is inside the holding pipe. The
leg support cannot be turned when carrying weight.
In order to elevate the individual leg support parts
loosen the clamp lever (A), adjust to the wanted
measurements and tighten the clamp lever (A).
In order to change the length unlock the star knob
screws (B), adjust to the wanted measurements and
lock the screw tightly (B).
The calf support is adjusted to your measurements by
your rehab technician.
20
(6)
(A)
ted and folded to the
side
In order to get in or
out please proceed as
previously described.
To detach the leg
support, just pull it up
out of the holding pipe.
ATTENTION
When putting back in

3.5.6 Locking

The leg supports N° (1) to (4) can be locked in a
(7)
vertical position at the backside of the footrest.
(9) To loosen the lock:
• pull the latch (A) out of the slot (B)
• and turn it 90°.
Do the opposite in order to lock.
(9)
(A)
(B)
(10) Locking of the leg support N°(6) occurs with
the same procedure but at thelocking part, at the
front left of the footrest. Please proceed in the same
manner.
(10)
(A)
(B)
(A)
