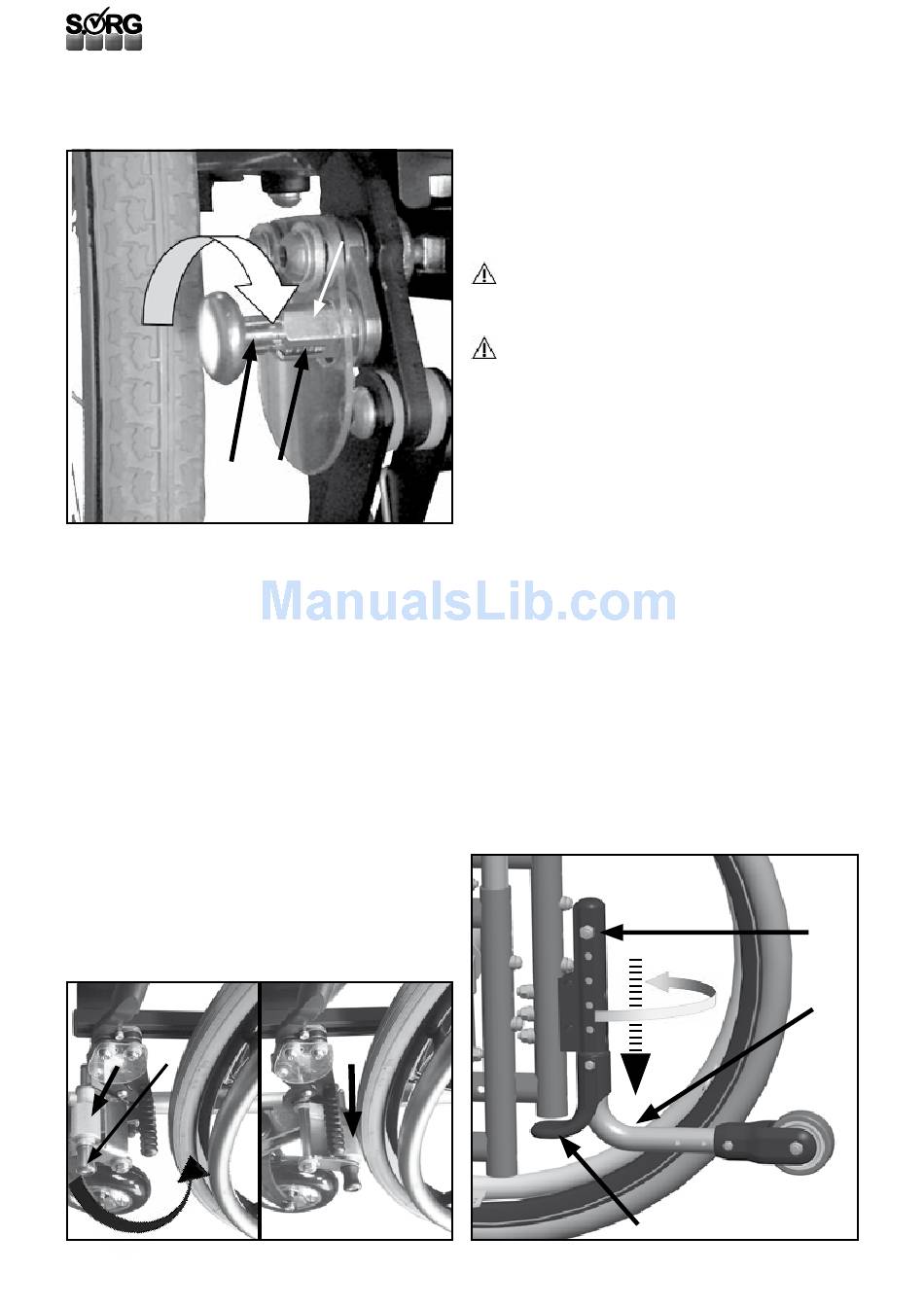

3.6.4 Locking the wheel lock

(1) Several wheel locks can be locked in the open or
closed position.
(1)
Unlocking
Pull the locking bolts on both sides (A) out of the
holders (B) and turn them 90° so that they do not
stick in the slots (C) anymore. Place the brakes in the
wanted function.
Locking
Turn the bolts (A) back 90° so that they slide back
into the slots (C) and snap into place.

3.6.5 Reverse gear stop

(2) The reverse gear stop blocks rolling backwards
at a max. load capacity of 90 kg. (incl. seat shell) to
a max. slope of 12,3% (=7°) without hindering the
forward drive.
To activate
On both sides, clasp with the red levers (A) the
locking pin (B) to the rear wheel.
To deactivate
Flip back both locking pins (B).
(2)
(A)
(B)
22
(B)
(A) (C)
(B)

3.6.6 Anti-tipper

(1) To activate, push the anti-tipper (A) down using
the tread element (B). Then turn the anti-tipper (A) by
180° and let go so the positioning slot snaps into the
arresting bolt (C) inside the pipe.
(2) To deactivate, push the anti-tipper on the bar (A)
slightly further down, turn it by 180° and let go so it
snaps into the positioning slot.
ATTENTION
Please read the respective chapters of the SAFETY
INTRUCTIONS.
ATTENTION
Make sure that the extension is always firmly
snapped into its final position because a loose an-
ti-tipper cannot fulfil its function properly and may
cause injuries of the assistant's ankle area.
(3)
(B)
(1)
(C)
(A)
