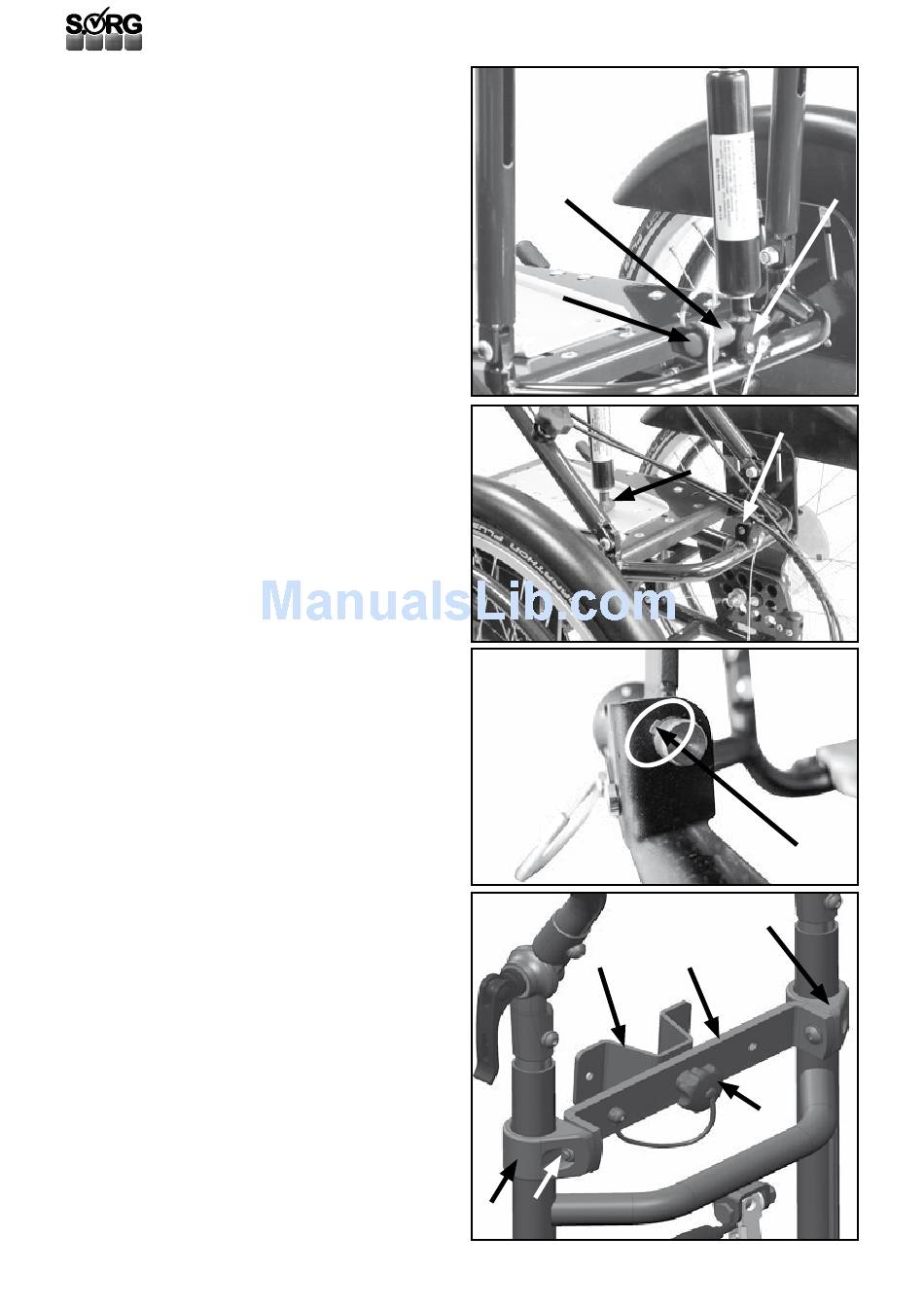

3.4.7 Folding the back part down

(1+2) To fold it down
• place the push handle in the lowest position (
because of the Bowden cables for tilting and
drum brakes),
• press the red button (A) on the plug bolt (B)
and
• holding the button, pull it out of its holder (C).
• Now you can fold the back down towards the
front.
To put the push hands back in
• raise the push handle,
• glide the bolt end (D) back into the holding
(C) and
• place the plug bolt (B), while pushing the red
button (A), back into the holding (C).
• (3) The locking lug of the plug bolt has to be
visibly sticking out of the opposite end of the
holder(C) (see picture 3, chapter 3.4.1).

3.4.8 Back guide for the seat shell

(4+5) In order to set the back guide
• bring the shell back with connection part (A)
in a vertical position,
• place the lever (B) of the back guide element
in the guide rail, by the star knob (F),
• turn the lever (B) on the star knob (F) 90°
until the spring pressure pieces (D) snap into
the guide slots (E).
• To remove, proceed correspondingly
18
(1)
(B)
(A)
(2)
(3)
(4)
(A)
(E)
(C)
(C)
(C)
(D)
(A)
(C)
(B)
(D)
