LOOSEN SUPPORT

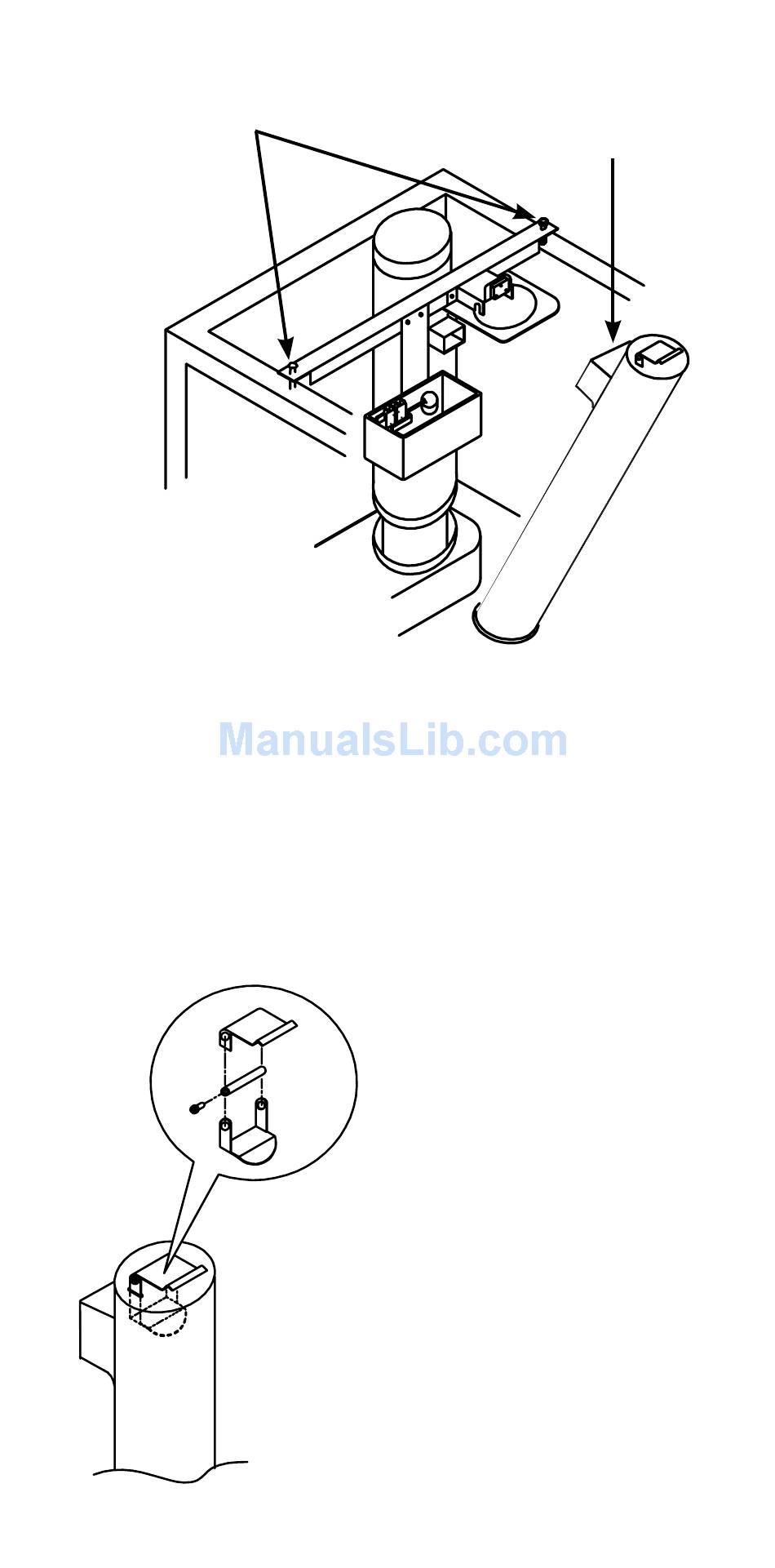

ICE CHUTE SWITCH ACTUATOR REMOVAL
RFS0300/RF0650/RF1200/RFS1200/RF2300/RFS2300
1. Pull to remove nylon end cap.
2. Slide pin to remove.
3. Remove both sections of the pressure switch
bracket.
Part Number 000007661 11/16
BOLTS
INCORRECT REASSEMBLY CAN
TIP TOP OF ICE
CHUTE BACK AND
LIFT TO REMOVE
RESULT IN AN ICE MACHINE
THAT WILL NOT RUN
35
