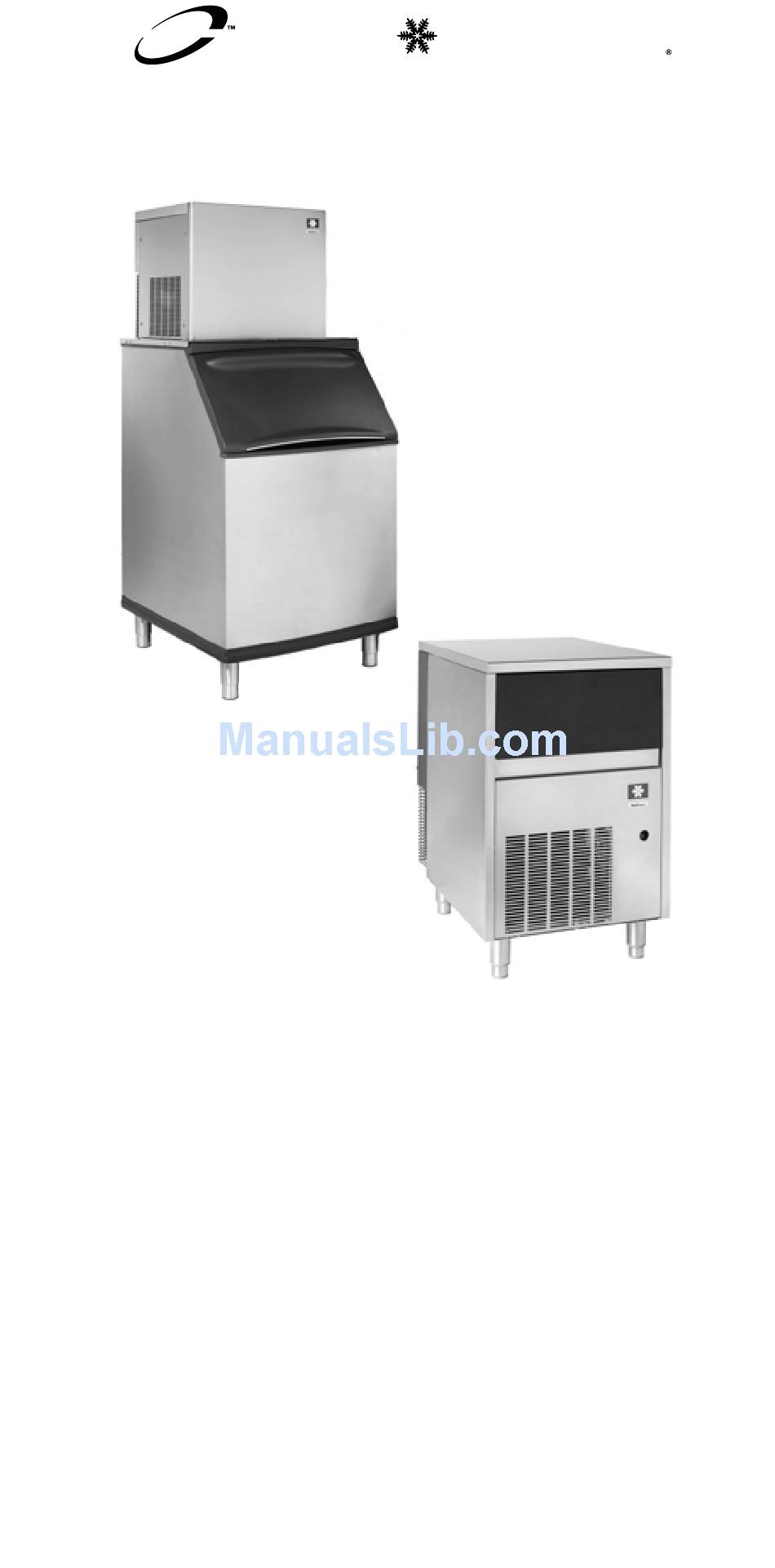

Page 1 Manitowoc R Model Flake & Nugget Technician’s Handbook This manual is updated as new information and models are released. Visit our website for the latest manual. www.manitowocice.com America’s #1 Selling Ice Machine Part Number 000007661 6/13...
Page 3: Safety Notices
Safety Notices As you work on Manitowoc equipment, be sure to pay close attention to the safety notices in this handbook. Disregarding the notices may lead to serious injury and/or damage to the equipment. Throughout this handbook, you will see the following...
Page 4 Procedural Notices As you work on Manitowoc equipment, be sure to read the procedural notices in this handbook. These notices supply helpful information which may assist you as you work. Throughout this handbook, you will see the following types of procedural notices:...
Page 5 Warning Do not use electrical appliances or accessories other than those supplied by Manitowoc for your ice machine model. Warning Two or more people or a lifting device are required to lift this appliance.
Page 6 Warning This equipment contains high voltage electricity and refrigerant charge. Installation and repairs are to be performed by properly trained technicians aware of the dangers of dealing with high voltage electricity and refrigerant under pressure.The technician must also be certified in proper refrigerant handling and servicing procedures.
Page 7 Warning Do not obstruct machine vents or openings. Warning Do not store gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. Warning Do not clean with water jet. Warning It is the responsibility of the equipment owner to perform a Personal Protective Equipment Hazard Assessment to ensure adequate protection during maintenance procedures.
Page 8 Warning When using electric appliances, basic precautions must always be followed, including the following: a. Read all the instructions before using the appliance. b. To reduce the risk of injury, close supervision is necessary when an appliance is used near children. c.
Page 9: Table Of Contents
Model/Serial Number ....17 Manitowoc Cleaner and Sanitizer ..17 Ice Machine Warranty Information ..17 Installation Installation Requirements .
Page 10 Maintenance Cleaning and Sanitizing ... . . 45 Exterior Cleaning ....45 RF/RFS/RNS Models Cleaning/Sanitizing Procedures .
Page 11 RF1200R/RFS1200R Troubleshooting . . 94 Head Section For Rack Refrigeration Systems ..... . . 94 Rotation Sensor Operation ..94 Electrical Diagnostic Flowchart .
Page 12 Flake Models ..... . 165 RF0244A & RFS0244 ... . . 165 RF0266A .
Page 13 Diagrams Wiring Diagrams ....195 Flake Models ..... . . 196 RF0244/RNS0244/RF0266/RF0385/ RNS0385/RF0388/RF0399 Air-Cooled 196 RF0300 Air-Cooled .
Page 14 Refrigeration Tubing Schematics ..228 Flake Models ..... . 228 RF0244/RFS0244/RF0266/RF0300/ RF0385/RF0388/RF0399/RF0644/RF0650 ......228 RF1200/RFS1200 Air-cooled .
Page 15: General Information
General Information Model Numbers SELF CONTAINED  AIR & WATER-COOLED MODELS Flake Models Modular Modular Self Storage Self Storage Water- Air-Cooled Water-Cooled Air-Cooled Cooled RF0244A – – – RF0266A – – – RF0385A – – – RF0388A – – –...
Page 16: Quietqube Models With Remote Condensing Units
QUIETQUBE MODELS WITH REMOTE CONDENSING UNITS Flake Models RCU Remote QuietQube Head Condensing Unit RF1278C RCU1075 RFS1278C RCU1075 RF2378C RCU2375 RFS2378C RCU2375 Nugget Models RCU Remote QuietQube Head Condensing Unit RN1078C RCU1075 RN1278C RCU1275 RACK UNITS Flake Models Rack Remote Head Section Condensing Unit RF1279R...
Page 17: Model/Serial Number
Model/Serial Number These numbers are required when requesting information from your local Manitowoc Distributor, or Manitowoc Ice. The model and serial number are listed on the MODEL/SERIAL NUMBER DECAL affixed to the ice machine. Manitowoc Cleaner and Sanitizer Manitowoc Ice Machine Cleaner and Sanitizer are available in 16 oz.
Page 18 This Page Intentionally Left Blank Part Number 000007661 6/13...
Page 19: Installation
Installation Installation Requirements The location selected for the ice machine must meet the following criteria. If any of these criteria are not met, select another location. • Air temperature: RF or RFS Flake Models - Minimum 50°F (10°C), Maximum 110°F (43°C) RN Nugget Models - Minimum 50°F (10°C), Maximum 100°F (38°C)...
Page 20: Potable Water Requirements
If water pressure exceeds maximum pressure (70 psig [483 kPa] RN1000; 80 psig [552 kPa] for all other models) obtain a water pressure regulator from your Manitowoc distributor. • A water shut-off valve is required to clean the ice machine.
Page 21: Ice Machine Clearance Requirements
Ice Machine Clearance Requirements Self- Self- Head QuietQube Contained Contained Sections Air-Cooled Air-Cooled Water-Cooled* Back 5" (12.7 cm) 5" (12.7 cm) 0" (0 cm) Sides/Top 8" (20.3 cm) 8" (20.3 cm) 0" (20 cm) RCU Units Remote Condensing Unit* Front/Back 24"...
Page 22: Electrical Service
Electrical Service Warning All wiring must conform to local, state and national codes. VOLTAGE The maximum allowable voltage variation is ± 10% of the rated voltage on the ice machine model/serial number plate at compressor start-up. FUSE/CIRCUIT BREAKER A separate fuse/circuit breaker must be provided for each ice machine.
Page 23: Operation
Operation Ice Making Sequence of Operation NOTE: Flake ice machines use an auger to remove ice from the evaporator. Occasional noises (creaks, groans, squeaks, or pops) are a normal part of the ice making process. RF0244/RNS0244/RF0266/RF0385/RFS0385/ RNS0385/RF0388/RF0399 Self-Contained Air-Cooled When the toggle switch is placed in the “ON” position the following controls must be in the closed position before the ice machine will start: A.
Page 24: Rf0300
RF0300 Self-Contained Air-Cooled When the toggle switch is placed in the “ON” position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. Ice Chute Safety Switch C. Low Water Level Switch D.
Page 25: Rfs0300/Rns0308
RFS0300/RNS0308 Self-Contained Air-Cooled When the toggle switch is placed in the “ON” position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. Ice Chute Safety Switch C. Low Water Level Switch D.
Page 26: Rf0644/Rf0650/Rf1200/Rfs1200/ Rf2300/Rfs2300
RF0644/RF0650/RF1200/RFS1200/RF2300/ RFS2300 Self-Contained Air-Cooled When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. High Pressure Cut-out Switch C. Ice Chute Safety Switch D.
Page 27: Rf1200C/Rf2300C
RF1200C/RF2300C QuietQube Remote Air-cooled Models with Remote Condensing Unit When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. High Pressure Cut-out Switch C.
Page 28: Rf1200C/Rf2300C
RF1200C/RF2300C Head Section with Rack Refrigeration system When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. Ice Chute Safety Switch C.
Page 29: Rn0400
RN0400 Self-Contained Air-Cooled & Water-Cooled NOTE: Ice machines use an auger to remove ice from the evaporator. Occasional noises (creaks, groans, squeaks, or pops) are a normal part of the ice making process. Operation The ice machine will not start until: A.
Page 30 Step 1 Initial Startup With power supplied to the control board the PWR (power) light is energized. The bin thermostat closes (BE light on) and the water level probe checks for water. Part Number 000007661 6/13...
Page 31 Step 2 Gear Motor & Compressor Startup The WTR light energizes and the gear motor, compressor and fan motor start.Two additional lights energize DR (drive) and C (compressor). Part Number 000007661 6/13...
Page 32 Step 3 When the current to the compressor and gear motor drops, the current relays open. The PWR, DR, C, WTR and BE lights remain energized throughout the freeze cycle. Part Number 000007661 6/13...
Page 33 Step 4 The bin/dispenser fills and the bin thermostat opens. The BE light de-energizes and 10 seconds later the BT light energizes and the C light de- energizes. The compressor and fan motor stop, although the gear motor will run for an additional 60 seconds.
Page 34 Step 5 The BT light is energized for 20 minutes to indicate the machine is in the 20 minute time delay period. Pressing the control board reset button cancels the time delay. Part Number 000007661 6/13...
Page 35 Step 6 After 20 minutes the BT light de-energizes. The PWR and WTR lights remain energized. When the bin thermostat closes the ice machine starts at step 1. Part Number 000007661 6/13...
Page 36: Rn1000/Rn1400
RN1000/RN1400 Self-Contained Air-Cooled & Water-Cooled NOTE: Ice machines use an auger to remove ice from the evaporator. Occasional noises (creaks, groans, squeaks, or pops) are a normal part of the ice making process. Operation The ice machine will not start until: A.
Page 37 RN1000/RN1400 Indicator lights INDICATOR LIGHT LEGEND ON or OFF FLASHING • With line voltage supplied the green Power light is on and the CPU light flashing a heartbeat indicates the central processing unit is working. • Yellow lights indicate normal off conditions. •...
Page 38 Step 2 Time delay cycle normal light operation The bin fills with ice, the Low Bin light de-energizes and the Time delay light energizes. The compressor and gear motor immediately turn off and the condenser fan continues to run for 10 minutes before turning off.
Page 39: Rn1000C/Rn1200C
RN1000C/RN1200C QuietQube Remote Air-cooled Model with Remote Condensing Unit NOTE: Ice machines use an auger to remove ice from the evaporator. Occasional noises (creaks, groans, squeaks, or pops) are a normal part of the ice making process. Operation The ice machine will not start until: A.
Page 40 RN1000/RN1400 Indicator lights INDICATOR LIGHT LEGEND ON or OFF FLASHING • With line voltage supplied the green Power light is on and the CPU light flashing a heartbeat indicates the central processing unit is working. • Yellow lights indicate normal off conditions. •...
Page 41 Step 2 Time delay cycle normal light operation The bin fills with ice, the Low Bin light de-energizes and the Time delay light energizes. The compressor and gear motor immediately turn off and the condenser fan continues to run for 10 minutes before turning off.
Page 42 Ice Production/Quality Check QUALITY CHECK Ice quality varies with ambient and water temperatures, and is measured by the amount of water in the ice. Generally speaking, higher incoming water temperature results in lower ice quality. Lower water temperature results in higher ice quality. ICE PRODUCTION CHECK NOTE: Ice production checks that are within 10% of the charted capacity are considered normal due to...
Page 43: Thermostat Settings
Thermostat Settings Bin Thermostat: The bin thermostat sensing bulb is located in the ice chute on modular models and in the bin thermostat holder on the right side of the bin on self storage models. The bin thermostat turns the ice machine on and off as the level of ice in the bin changes.
Page 44 Thermostat Setting Chart NOTE: Settings are for reference only. Factory setting is indicated on control label and overrides information listed on this page. Evaporator Model Thermostat Thermostat Setting Setting RF0244 RFS0244 RNS0244 RF0266 RF0300 RFS0300 RNS0308 RF0385 RNS0385 RF0388 RF0399 RF0644 RF0650 RFS0650...
Page 45: Cleaning And Sanitizing
Maintenance procedures covered in this manual are not covered by the warranty. ! Caution Use only Manitowoc approved Ice Machine Cleaner (part number 000000084) and Sanitizer (part number 9405653). Do not mix Cleaner and Sanitizer solutions together. It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling.
Page 46: Rf/Rfs/Rns Models Cleaning/Sanitizing Procedures
RF/RFS/RNS MODELS CLEANING/SANITIZING PROCEDURES Cleaning/Sanitizing Procedure This procedure must be performed once every month. • All ice must be removed from the bin • The ice machine and bin must be disassembled cleaned and sanitized • The ice machine produces ice with the cleaner and sanitizer solutions •...
Page 47 Step 6 Fill the evaporator and reservoir with cleaning solution. Prop Float Up to Prevent Low Water Level Shutdown Step 7 Move the toggle switch to the ON position. The ice machine will make ice with the cleaning solution and deposit the ice in the bin. Add the remaining cleaner/water solution as the water level in the reservoir drops.
Page 48 Step 9 Place the toggle switch in the OFF position. Step 10 Refer to disassembly for cleaning/sanitizing and remove parts for hand cleaning/sanitizing. • Hand clean all parts • Rinse all parts with clear potable water • Sanitize all parts - do not rinse after sanitizing •...
Page 49 Step 13 Refer to chart and premix water and sanitizer. Amount of Water Amount of Sanitizer 1 Gallons (4 L) Water 1/2 ounce (15 ml) Step 14 Fill the evaporator and reservoir with sanitizer/water solution. Step 15 Move the toggle switch to the ON position. The ice machine will make ice with the sanitizer/water solution and deposit the ice in the bin.
Page 50 Heavily Scaled Cleaning Procedure Perform this procedure if you have some or all of these symptoms. • Excessive grinding, popping or squealing noises from the evaporator • Grinding noise from gearbox • Ice machine trips speed sensor NOTE: A Cleaning/Sanitizing Procedure must be performed after this procedure.
Page 51 Step 5 Refer to chart below: Premix cleaner with lukewarm water in a  non-metallic container. Mix Cleaner and Water Use Ice machine nickel safe Water cleaner, part number Model Reservoir 000000084 only Capacity Cleaner Water RF0244 RNS0244 RF0266 RNS0308 RF0385 14 oz (400 ml) 9 oz (266 ml)
Page 52: Parts Removal For Cleaning/Sanitizing
PARTS REMOVAL FOR CLEANING/SANITIZING Warning Disconnect electric power to the ice machine at the electric switch box and wear rubber gloves and safety goggles (or face shield) while handling cleaner or sanitizer. ! Caution Do not mix Cleaner and Sanitizer solutions together.
Page 53 4. Use a soft-bristle brush or sponge (NOT a wire brush) to carefully clean the parts. 5. Use the solution and a brush or sponge to clean all disassembled components and the inside of the bin. 6. Rinse all cleaned parts with clear water. 7.
Page 54: Ice Chute Removal - Rfs & Rns Models
ICE CHUTE REMOVAL - RFS & RNS MODELS RFS0300/RNS0308/RFS1200/RFS2300 NOTE: A limited number of RF models have this type of ice chute also. 1. Place the toggle switch in the OFF position, turn off the water supply and disconnect electrical power to the ice machine.
Page 55 Part Number 000007661 6/13...
Page 56: Ice Chute Removal - Rf Models
ICE CHUTE REMOVAL - RF MODELS RF0300/RF0650/RF1200/RF2300 NOTE: A limited number of these models have the ice chute listed on the previous page. 1. Place the toggle switch in the OFF position, turn off the water supply and disconnect electrical power to the ice machine.
Page 57: Ice Chute Switch Actuator Removal
ICE CHUTE SWITCH ACTUATOR REMOVAL RFS0300/RF0650/RF1200/RFS1200/RF2300/ RFS2300 1. Pull to remove nylon end cap. 2. Slide pin to remove. 3. Remove both sections of the pressure switch bracket. INCORRECT REASSEMBLY CAN RESULT IN AN ICE MACHINE THAT WILL NOT RUN Part Number 000007661 6/13...
Page 58: Rn Models Cleaning/Sanitizing Procedure
RN MODELS CLEANING/SANITIZING PROCEDURE Use Ice Machine Cleaner part number 000000084. Use Ice Machine Sanitizer part number 94-0565-3. Step 1 Remove all ice from the bin/dispenser. Step 2 Remove front and top covers. Step 3 Mix a solution of cleaner and water. Amount of Cleaner Amount of Luke Warm Water...
Page 59 Step 9 Press the OFF switch, then unscrew the ice chute connector. Step 10 Using disposable food service grade gloves insert one dry sponge into the transport tube going to the evaporator (NOT the tube going to the bin), then insert one sponge soaked in the sanitizer water solution.
Page 60: Cleaning The Air Filter And Condenser
CLEANING THE AIR FILTER AND CONDENSER Warning Disconnect electric power to the ice machine at the electric service switch before cleaning condenser. The condenser fins are sharp. Use care when cleaning them. Air-Cooled Condenser Clean the condenser at least every six months. Follow the steps below.
Page 61: Removal From Service/Winterization
Removal from Service/Winterization ! Caution If water is allowed to remain in the ice machine in freezing temperatures, severe damage to some components could result. Damage of this nature is not covered by the warranty. Follow the procedure below. 1. Disconnect the electric power at the circuit breaker or the electric service switch.
Page 62 This Page Intentionally Left Blank Part Number 000007661 6/13...
Page 63: Troubleshooting
Troubleshooting Diagnostic troubleshooting for the ice machine involves following flowcharts that are dependent on symptoms of the failed machine. Follow the flowcharts for the failure symptom and model you are working on. NOTE: Refer to the sequence of operation to determine where in the sequence the ice machine has failed.
Page 64: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart - RF0244/RF0266/RF0385/RFS0385 RF0388/RF0399 AIR & WATER Power Supplied to Ice Plug In Ice Machine, Reset Breaker Machine? Toggle Switch In ON Move Switch To ON Position Position? Switch Illuminated? Replace Switch...
Page 65 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Remove Ice - Allow Verify New Setting Cycles To Warm And Retest Machine On/Off Evaporator Safety Adjusting Closes Evaporator Cold? Replace Thermostat Thermostat Closed? Thermostat? Allow Evaporator To Verify New Setting Cycles Machine On/Off Warm And Retest...
Page 66 Replace Switch or Float Assembly Water Level Switch Closed? Reservoir Full Of Power To Water Repair Wiring Water? Inlet Valve? Restore Water Supply / Replace Water Inlet Valve Low Water Level Replace Switch or Float Assembly Switch Closed?
Page 67 Line Voltage To Remove Auger Gear Motor Runs? Gear Motor Runs? Gear motor? From Evaporator Repair Wiring Replace Gear Motor Ice In Evaporator? Thaw Evaporator Line Voltage To Wiring From Compressor Relay Replace Gear Motor Rebuild Gearmotor Intact? Coil? Evaporator Repair Wiring...
Page 68 Relay Closed? Replace Relay Line Voltage To Repair Wiring Compressor? Verify: Compressor Overload is Closed Start Components Function Fan Cycling Control Functions Condenser Fan Motor Functions Water cooled only: Water Regulating Valve Functions...
Page 69: Rf0300 Troubleshooting
RF0300 Troubleshooting SELF-CONTAINED AIR-COOLED Normal Operation When the toggle switch is placed in the “ON” position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. Low Evaporator Temperature Thermostat C. Ice Chute Safety Switch D.
Page 70: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart - RF0300 Power Supplied to Ice Plug In Ice Machine, Reset Breaker Machine? Toggle Switch In ON Move Switch To ON Position Position? Switch Illuminated? Replace Switch...
Page 71 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Remove Ice - Allow Verify New Setting Cycles To Warm And Retest Machine On/Off Evaporator Safety Adjusting Closes Evaporator Cold? Replace Thermostat Thermostat Closed? Thermostat? Allow Evaporator To Verify New Setting Cycles Warm And Retest Machine On/Off Chute Switch...
Page 72 Replace Switch or Float Assembly Water Level Switch Closed? Reservoir Full Of Power To Water Repair Wiring Water? Inlet Valve? Restore Water Supply / Replace Water Inlet Valve Low Water Level Replace Switch or Float Assembly Switch Closed?
Page 73 Disconnect Line Voltage To Gear Motor Runs? Evaporator From Gear Motor Runs? Gear motor? Gear Motor Repair Wiring Replace Gear Motor Ice In Evaporator? Thaw Evaporator Gear Motor Line Voltage To Centrifugal Switch Repair Wiring Compressor Time Rebuild Closed? Delay? Replace Evaporator Replace Gear Motor...
Page 74 10 Minute Time Wait 10 Minutes - Do Not Install Delay Expired? Compressor Time Delay Jumper Repair Wiring Install Line Voltage To Compressor Time Compressor Contactor Power To Contactor Coil? Coil? Delay Jumper Replace Time Delay Relay Contactor Closed? Replace Contactor Verify: Repair Wiring Compressor Overload is Closed...
Page 75: Rfs0300/Rns0308 Troubleshooting
RFS0300/RNS0308 Troubleshooting SELF-CONTAINED AIR-COOLED When the toggle switch is placed in the “ON” position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. Ice Chute Safety Switch C. Low Water Level Switch D.
Page 76: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart - RF 0300 Power Supplied to Ice Plug In Ice Machine, Reset Breaker Machine? Toggle Switch In ON Move Switch To ON Position Position? Switch Illuminated? Replace Switch...
Page 77 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Remove Ice - Allow Verify New Setting Cycles Machine On/Off To Warm And Retest Evaporator Cold? Replace Closed? Allow Evaporator To Warm And Retest Chute Switch Ice Contacting Adjust Or Replace Actuator Functions? Closed? Actuator?
Page 78 Replace Switch or Float Assembly Water Level Switch Closed? Reservoir Full Of Power To Water Repair Wiring Water? Inlet Valve? Restore Water Supply / Replace Water Inlet Valve Low Water Level Replace Switch or Float Assembly Switch Closed?
Page 79 Disconnect Line Voltage To Gear Motor Runs? Evaporator From Gear Motor Runs? Gear motor? Gear Motor Repair Wiring Replace Gear Motor Ice In Evaporator? Thaw Evaporator Gear Motor Line Voltage To Centrifugal Switch Repair Wiring Compressor Time Rebuild Closed? Delay? Replace Evaporator Replace Gear Motor...
Page 80 10 Minute Time Wait 10 Minutes - Do Not Install Delay Expired? Compressor Time Delay Jumper Repair Wiring Install Line Voltage To Compressor Time Compressor Contactor Power To Contactor Coil? Coil? Delay Jumper Replace Time Delay Relay Contactor Closed? Replace Contactor Verify: Repair Wiring Compressor Overload is Closed...
Page 81: Rf0644/Rf0650/Rf1200/Rfs1200 Troubleshooting
RF0644/RF0650/RF1200/RFS1200 Troubleshooting SELF-CONTAINED AIR-COOLED Normal Operation When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. High Pressure Cut-out Switch C. Ice Chute Safety Switch D.
Page 82: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart – RF0644/RF0650/RF1200/RFS1200 AIR & WATER Power Supplied to Ice Plug In Ice Machine, Reset Breaker Machine? Toggle Switch In ON Move Switch To ON Position Position? Switch Illuminated? Replace Switch...
Page 83 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Verify New Setting Cycles Remove Ice - Allow To Warm And Retest Machine On/Off Low Pressure Refrigerant Pressure Evaporator Cold? Replace LPCO Control Closed? Below Cut-out? Repair Refrigerant Leak, Allow Evaporator To Warm And Retest Evacuate, Recharge...
Page 84 Chute Switch Ice Contacting Adjust Or Replace Actuator Functions? Closed? Actuator? Actuator Remove Ice And Replace Switch Retest Water Level Replace Switch or Float Assembly Switch Closed? Reservoir Full Of Power To Water Repair Wiring Water? Inlet Valve? Restore Water Supply / Replace Water Inlet Valve Low Water Level Replace Switch or Float Assembly Switch Closed?
Page 85 Disconnect Line Voltage To Gear Motor Runs? Evaporator From Gear Motor Runs? Gear motor? Gear Motor Replace Gear Motor Repair Wiring Ice In Evaporator? Thaw Evaporator 10 Minute Time Wait 10 Minutes - Do Not Install Delay Expired? Compressor Time Delay Jumper Rebuild Replace Evaporator...
Page 86 Install Line Voltage To Compressor Time Compressor Contactor Power To Contactor Coil? Repair Wiring Coil? Delay Jumper Contactor Closed? Replace Contactor Replace Rotation Sensor/Time Delay Relay Verify: Line Voltage To Compressor Overload is Closed Repair Wiring Compressor? Start Components Function Fan Cycling Control Functions Condenser Fan Motor Functions Water cooled only:...
Page 87: Rf1200C/Rfs1200C Troubleshooting
RF1200C/RFS1200C Troubleshooting QUIETQUBE REMOTE AIR-COOLED MODELS WITH REMOTE CONDENSING UNIT Normal Operation When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B.
Page 88: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Power Supplied Immediately Restore Power, Reset Breaker to Ice Machine? Trips? Toggle Switch In Test Run Off Position? Toggle Switch In ON Position? Isolate And Ohm Each Move Switch To ON Position TRIPS Component - Then Each Wire If Required Switch Isolate And Ohm Switch...
Page 89 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Remove Ice - Allow Verify New Setting Cycles To Warm And Retest Machine On/Off Chute Switch Ice Contacting Adjust Or Replace Actuator Functions? Closed? Actuator? Actuator Remove Ice And Replace Switch Retest Reservoir Full Of...
Page 90 Low Water Level Replace Switch or Switch Closed? Float Assembly Gear Motor Runs? Disconnect Evaporator From Replace Gear Motor Gear Motor Line Voltage To Gear Motor Runs? Gear motor? Ice In Repair Wiring Thaw Evaporator Evaporator? 10 Minute Time Wait 10 Minutes - Do Not Install Delay Expired? Compressor Time Delay Jumper Rebuild...
Page 91 Install Line Voltage To Compressor Time Power To Left Time Repair Wiring Left Delay Relay Coil? Delay Jumper On Delay Relay Coil? Left Evaporator Delay Relay Contacts Delay Relay Contacts Replace Rotation Replace Relay Closed? Closed? Sensor/Time Delay Replace Relay...
Page 92 High Pressure Refrigerant Pressure Resets? Control Closed? Above Cut-out? Replace HPCO Resets & Line Voltage To Trips Compressor Clean Condenser, Contactor Coil? Check Fan Motor, Clean Condenser, Check Fan Cycle Control & Check Fan Motor Refrigeration System Check Fan Cycle Control Replace Relay Low Pressure Control Closed?
Page 93 Contactor Replace Contactor Closed? Line Voltage To Repair Wiring Compressor? Verify: Compressor Overload is Closed Start Components Function Fan Cycling Control Functions Condenser Fan Motor Functions...
Page 94: Rf1200R/Rfs1200R Troubleshooting
RF1200R/RFS1200R Troubleshooting HEAD SECTION FOR RACK REFRIGERATION SYSTEMS Normal Operation When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. Ice Chute Safety Switch C.
Page 95: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart RF1200R/RFS1200R Power Supplied Immediately Restore Power, Reset Breaker to Ice Machine? Trips? Toggle Switch In Off Position? Isolate And Ohm Each Toggle Switch In Trips Component - Then Each Move Switch To ON Position ON Position? Wire If Required Ohm Toggle Switch, Time Delays, Gear Motors,...
Page 96 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Verify New Setting Cycles Remove Ice - Allow Machine On/Off To Warm And Retest Chute Switch Ice Contacting Adjust Or Replace Actuator Functions? Closed? Actuator? Actuator Remove Ice And Replace Switch Retest...
Page 97 Float Switch Replace Switch or Float Assembly Closed? Reservoir Full Of Power To Water Repair Wiring Water? Inlet Valve? Restore Water Supply / Replace Water Inlet Valve Low Water Level Replace Switch or Float Assembly Switch Closed?
Page 98 Disconnect Line Voltage To Evaporator From Gear Motor Runs? Gear Motor Runs? Gear motor? Gear Motor Repair Wiring Replace Gear Motor Ice In Evaporator? 10 Minute Time Wait 10 Minutes - Do Not Install Delay Expired? Compressor Time Delay Jumper Thaw Evaporator Rebuild Replace Evaporator...
Page 99 Install Line Voltage To Power To Time Compressor Time Repair Wiring Delay Relay Coil? Delay Relay Coil? Delay Jumper Delay Relay Delay Relay Replace Rotation Replace Relay Contacts Closed? Contacts Closed? Sensor/Time Delay Line Voltage To Repair Wiring Contactor Coil? Contactor Closed? Replace Contactor...
Page 100 Line Voltage To Check Contactor Contacts On Both Contactors Suction Line Solenoid? Repair Wiring Line Voltage To Liquid Repair Wiring Line Solenoid? Suction And Liquid Line Replace Defective Valve Solenoid Valves Open? Determine Refrigeration System Issue...
Page 101: Rf2300/Rfs2300 Troubleshooting
RF2300/RFS2300 Troubleshooting SELF-CONTAINED AIR-COOLED Normal Operation When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. High Pressure Cut-out Switch C. Ice Chute Safety Switch D.
Page 102: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart – RF2300 Air & Water Power Supplied Immediately Restore Power, Reset Breaker to Ice Machine? Trips? Toggle Switch In Off Position? Isolate And Ohm Each Toggle Switch In Trips Component - Then Each Move Switch To ON Position ON Position? Wire If Required Ohm Compressor...
Page 103 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Remove Ice - Allow Verify New Setting Cycles Machine On/Off To Warm And Retest High Pressure Refrigerant Pressure Resets? Replace HPCO Control Closed? Above Cut-out? Clean Condenser, Resets Clean Condenser, Check Fan Motor, &...
Page 104 Right Side Chute Ice Contacting Adjust Or Replace Actuator Functions? Switch Closed? Actuator? Actuator Remove Ice And Replace Switch Retest Low Pressure Refrigerant Pressure Evaporator Cold? Replace LPCO Control Closed? Below Cut-out? Allow Evaporator To Repair Refrigerant Leak, Warm And Retest Evacuate, Recharge Water Level Replace Switch or Float Assembly...
Page 105 Low Water Level Replace Switch or Float Assembly Switch Closed? Disconnect Line Voltage To Evaporator From Gear Motor Runs? Gear Motor Runs? Gear motor? Gear Motor Repair Wiring Replace Gear Motor Ice In Evaporator? Thaw Evaporator 10 Minute Time Wait 10 Minutes - Do Not Install Delay Expired? Compressor Time Delay Jumper Rebuild...
Page 106 Install Compressor Time Line Voltage To Power To Left Time Repair Wiring Delay Jumper On Left Delay Relay Coil? Delay Relay Coil? Left Evaporator Left Delay Relay Left Delay Relay Replace Left Rotation Replace Relay Contacts Closed? Sensor/Time Delay Contacts Closed? Install Compressor Time Power To Right Time...
Page 107 Line Voltage To Compressor Contactor Repair Wiring Coil? Contactor Closed? Replace Contactor Line Voltage To Repair Wiring Compressor? Verify: Compressor Overload is Closed Start Components Function Fan Cycling Control Functions Condenser Fan Motor Functions Water cooled only: Water Regulating Valve Functions...
Page 108: Rf2300C/Rfs2300C Troubleshooting
RF2300C/RFS2300C Troubleshooting QUIETQUBE REMOTE AIR-COOLED MODELS WITH REMOTE CONDENSING UNIT Normal Operation When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B.
Page 109: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart - RF2300C/RFC2300 QuietQube Power Supplied Immediately Restore Power, Reset Breaker to Ice Machine? Trips? Toggle Switch In Test Run Off Position? Toggle Switch In ON Position? Isolate And Ohm Each Move Switch To ON Position TRIPS Component - Then Each Wire If Required...
Page 110 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Verify New Setting Cycles Remove Ice - Allow Machine On/Off To Warm And Retest Left Side Chute Ice Contacting Adjust Or Replace Actuator Functions? Switch Closed? Actuator? Actuator Remove Ice And Replace Switch Retest Right Side Chute...
Page 111 Water Level Replace Switch or Float Assembly Switch Closed? Reservoir Full Of Power To Water Water? Inlet Valve? Repair Wiring Restore Water Supply / Replace Water Inlet Valve Gear Motor Runs? Low Water Level Replace Switch or Float Assembly Switch Closed? Replace Gear Motor Disconnect Evaporator From...
Page 112 10 Minute Time Wait 10 Minutes - Do Not Install Delay Expired? Compressor Time Delay Jumper Install Line Voltage To Compressor Time Power To Left Time Repair Wiring Left Delay Relay Coil? Delay Jumper On Delay Relay Coil? Left Evaporator Left Delay Relay Left Delay Relay Replace Left Rotation...
Page 113 Repair Wiring Install Compressor Time Line Voltage To Power To Right Time Delay Jumper On Right Delay Relay Coil? Delay Relay Coil? Right Evaporator Right Delay Relay Contacts Closed? Right Delay Relay Replace Relay Contacts Closed? Replace Right Rotation Sensor/Time Delay Replace Relay...
Page 114 High Pressure Refrigerant Pressure Resets? Control Closed? Above Cut-out? Replace HPCO Resets & Trips Line Voltage To Clean Condenser, Compressor Check Fan Motor, Clean Condenser, Contactor Coil? Check Fan Cycle Control & Check Fan Motor Refrigeration System Check Fan Cycle Control Replace Relay Low Pressure Control Closed?
Page 115 Contactor Replace Contactor Closed? Line Voltage To Repair Wiring Compressor? Verify: Compressor Overload is Closed Start Components Function Fan Cycling Control Functions Condenser Fan Motor Functions...
Page 116: Rf2300R/Rfs2300R Troubleshooting
RF2300R/RFS2300R Troubleshooting HEAD SECTION FOR RACK REFRIGERATION SYSTEMS Normal Operation When the toggle switch is placed in the ON position the following controls must be in the closed position before the ice machine will start: A. Bin Thermostat B. Ice Chute Safety Switch C.
Page 117: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart - RF Power Supplied Immediately Restore Power, Reset Breaker to Ice Machine? Trips? Toggle Switch In Off Position? Isolate And Ohm Each Toggle Switch In Move Switch To ON Position Trips Component - Then Each ON Position? Wire If Required Ohm Toggle Switch, Time...
Page 118 Bin Thermostat Ice Contacting Adjusting Closes Replace Thermostat Closed? Thermostat? Thermostat? Verify New Setting Cycles Remove Ice - Allow To Warm And Retest Machine On/Off Left Side Chute Ice Contacting Adjust Or Replace Actuator Functions? Switch Closed? Actuator? Actuator Remove Ice And Replace Switch Retest Right Side Chute...
Page 119 Float Switch Replace Switch or Float Assembly Closed? Reservoir Full Of Power To Water Repair Wiring Water? Inlet Valve? Restore Water Supply / Replace Water Inlet Valve Low Water Level Replace Switch or Float Assembly Switch Closed?
Page 120 Disconnect Line Voltage To Evaporator From Gear Motor Runs? Gear Motor Runs? Gear motor? Gear Motor Repair Wiring Replace Gear Motor Ice In Evaporator? 10 Minute Time Wait 10 Minutes - Do Not Install Delay Expired? Compressor Time Delay Jumper Thaw Evaporator Rebuild Replace Evaporator...
Page 121 Install Compressor Time Line Voltage To Power To Left Time Repair Wiring Delay Jumper On Left Delay Relay Coil? Delay Relay Coil? Left Evaporator Left Delay Relay Left Delay Relay Replace Left Rotation Replace Relay Contacts Closed? Contacts Closed? Sensor/Time Delay Install Compressor Time Power To Right Time...
Page 122 Line Voltage To Repair Wiring Contactor Coil? Contactor Closed? Replace Contactor Check Contactor Contacts On Both Contactors Line Voltage To Suction Line Solenoid? Repair Wiring...
Page 123 Line Voltage To Liquid Repair Wiring Line Solenoid? Replace Defective Suction And Liquid Line Solenoid Valves Open? Valve Determine Refrigeration System Issue...
Page 124: Rn0400 Troubleshooting
RN0400 Troubleshooting NOTE: Refer to “RN0400” on page 29 for normal sequence of operation. OVER-TORQUE FAILURE Step 1 The ice machine stops and the 20M light energizes. The PWR, WTR and BE lights remain energized. The ice machine restarts after 20 minutes. Part Number 000007661 6/13...
Page 125 Step 2 Successful restart and normal operation - The 20M light de-energizes and the 60M light energizes. After 60 minutes of normal operation the 60M light de- energizes. Part Number 000007661 6/13...
Page 126 Step 3 Unsuccessful restart or abnormal operation - The 60M light de-energizes and the 2ND light energizes. The reset button on the control board must be pressed to restart the ice machine. Part Number 000007661 6/13...
Page 127: Water Loss Failure
Water Loss Failure The ice machine stops and the BT light energizes and the WTR light de-energizes. If water is restored the WTR light will flash as an indicator. The flashing WTR light can be cleared by pressing the reset button on the control board.
Page 128: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart – RN0400 Power Supplied to Ice Control Board Plug In Ice Machine, Reset Breaker Machine Control board? PWR Light On? Replace Control Board Bin Empty (BE) Bin Thermostat Light On? Closed? Ice Contacting Adjusting Closes Replace Thermostat Thermostat? Thermostat?
Page 129 Time Delay (BT) 20 Minute Time Delay Period – Depress Control Board Reset Button To Override Delay Period Light Off? Water Supply OK? Supply Water To Ice Machine Water (WTR) Line Voltage To Light On? Reservoir Full? Replace Water Inlet Valve Water Inlet Valve? Disconnect Clean, Repair, Or...
Page 130 WTR Light 20 Minute Time Delay Period BT Light On? Flashing? Depress Control Board Reset Button To Override Delay Period Press Control Board Reset Button – Flashing Determine Cause Of Water Loss Stops, Gear Motor And Compressor Energize Disconnect/Reconnect Power, Replace Control Board If Ice Machine Will Not Run Move Switch To On Position...
Page 131 Line Voltage @ Control Board Compressor And NO or Only One Component Has Line Voltage Replace Control Board Fan Terminals? Verify: Clearances & Ambient Are OK Filter & Condenser Are Clean HPCO Closed? Condenser Fan Motor Functions Water cooled Models: Water Regulating Valve Functions Reset Or Replace High Pressure Cut Out Line Voltage To...
Page 132 20 Minute Time Delay Period - Verify No Ice In Evaporator 20M Light Depress Control Board Reset Button To Override Delay Period Perform Heavily Scaled Cleaning Procedure Locked Out Due To Over Torque Condition Verify No Ice In Evaporator Lights on? 2nd Light On? Gear Motor Runs? Depress Control Board Reset Button...
Page 133: Rn1000/Rn1400 Troubleshooting
RN1000/RN1400 Troubleshooting NOTE: Refer to “RN1000/RN1400” on page 36 for normal sequence of operation INDICATOR LIGHT OPERATION The lights on the control board can be used as quick failure mode indicators. If the failure mode isn’t obvious from the light indicators, use the flowchart to systematically eliminate issues.
Page 134 3. In time delay mode and bin is not full • Shuttle is jammed or damaged • Thermostat is out of position or defective 4. Locked in purge cycle, no ice • Drain solenoid valve not opening • Drain obstructed 5.
Page 135 6. No ice, Drain Clog and Service lights on • Drain obstructed • Defective drain solenoid valve 7. Ice is excessively wet • Water inlet valve doesn’t close 100% • Water sensor failure 8. No ice, Lo Water light on •...
Page 136: Control Board Errors
CONTROL BOARD ERRORS The control board monitors the following: Low water Gear motor amperage High pressure Clogged drain There are two different errors - Soft errors and hard errors. • Soft errors can be reset by cycling power on/off. • Hard errors can not be cleared by cycling power on/off and must be reset by pressing the control board reset button.
Page 137 HI AMPS - GEAR MOTOR AMPERAGE EXCEEDS 3.8 AMPS Soft Error The control board stops the ice machine, energizes the Hi Amps & Service lights and initiates a time delay period. The ice machine will restart after the 60 minute delay.
Page 138: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowchart – RN1000 Air & Water Control Board CPU Rocker Switch in ON Turn On Switch Light Flashing? position? Control Board Power Supplied to Ice Plug In Ice Machine, Reset Breaker PWR Light On? Machine Control board? Replace Control Board Remove &...
Page 139 Time Delay Time Delay Light OFF? Wait For Delay To Expire Period Expired? Shuttle in up Light On Sensor Low Bin Light On? Check Wiring, Repair Or Replace position? Illuminated? Depress Reset Button On Control Board Replace Control Board If Required Ice Holding Repair Or Replace Shuttle Shuttle Open?
Page 140 Purge Rocker Switch Purge Light Off? Move Switch To Off Position In Off Position? Remove & Restore Line Line Voltage At Voltage, Then Depress No Power @ Solenoid Drain Solenoid? Reset Button On Control Board Replace Control Board Power @ Solenoid Water Drains From Clear Drain Or Replace Drain Solenoid Evaporator?
Page 141 Drain Clog Water In Drain Trough? Clear Drain Light Off? Disconnect Clean and Dry Light On Sensor From Light On Replace Control Board Drain Sensor Control Board Light Off Replace Sensor Light Off Test Run To Verify Operation Verify: Clearances & Ambient Are OK Filter &...
Page 142 Reset Breaker - Press Control Board Circuit Breaker On HI AMPS Light Off? Control Box Tripped? Reset Button To Clear Error Press Control Line Voltage To Replace Control Board Reset Button To Gear Motor? Board Clear Error Check Wires & Connections Gear Motor Runs? Replace Gear Motor Clean Ice Machine - Install Water Filter - Increase...
Page 143 Sensor Wires Low Water Connect Sensor Wires Connected? Light Off? Reservoir Full Water is Supplied? Restore Water Supply Of Water? Clean and Voltage @ Water Replace Water Inlet Valve Dry Water Inlet Valve? Level Probes Voltage @ Water Reservoir Full Inlet Valve? Of Water? Press Control Board Reset Button...
Page 144 Control Board Press Control Board Reset Button High Water Sending Line Voltage To Light Off? Replace Control Board Water Valve? Voltage @ Water Replace Water Inlet Valve Inlet Valve? Clean, Dry & Reinsert Water Water Flows Replace Sensor – Control Board if Required Level Probes Water Flow Stops Press Control Board Reset Button To Clear Error...
Page 145 Line Voltage @ Compressor Control Board Compressor Replace Control Board Running? Terminals Line Voltage At Repair Wiring Compressor? Verify: Compressor Compressor Overload is Closed Running? Start Components Function Compressor Windings Are OK Ice Has Excessive Test Run To Verify Operation Water Content? Verify Water Inlet Valve Closes 100% &...
Page 146: Rn1000C/Rn1200C Troubleshooting
RN1000C/RN1200C Troubleshooting NOTE: Refer to “RN1000C/RN1200C” on page 39 for normal sequence of operation INDICATOR LIGHT OPERATION The lights on the control board can be used as quick failure mode indicators. If the failure mode isn’t obvious from the light indicators, use the flowchart to systematically eliminate issues.
Page 147 3. In time delay mode and bin is not full • Shuttle is jammed or damaged • Thermostat is out of position or defective 4. Locked in purge cycle, no ice • Drain solenoid valve not opening • Drain obstructed 5.
Page 148 6. No ice, Drain Clog and Service lights on • Drain obstructed • Defective drain solenoid valve 7. Ice is excessively wet • Water inlet valve doesn’t close 100% • Water sensor failure 8. No ice, Lo Water light on •...
Page 149: Control Board Errors
CONTROL BOARD ERRORS The control board monitors the following: Low water Gear motor amperage High pressure Clogged drain There are two different errors - Soft errors and hard errors. • Soft errors can be reset by cycling power on/off. • Hard errors can not be cleared by cycling power on/off and must be reset by pressing the control board reset button.
Page 150 HI AMPS - GEAR MOTOR AMPERAGE EXCEEDS 3.8 AMPS Soft Error The control board stops the ice machine, energizes the Hi Amps & Service lights and initiates a time delay period. The ice machine will restart after the 60 minute delay.
Page 151: Electrical Diagnostic Flowchart
ELECTRICAL DIAGNOSTIC FLOWCHART Electrical Flowc art – RN1000 QuietQube Remote Control Board CPU Rocker Switch in ON Turn On Switch Light Flashing? position? Control Board Power Supplied to Ice Plug In Ice Machine, Reset Breaker PWR Light On? Machine Control board? Replace Control Board Remove &...
Page 152 Time Delay Time Delay Light OFF? Wait For Delay To Expire Period Expired? Shuttle in up Light On Sensor Low Bin Light On? Check Wiring, Repair Or Replace position? Illuminated? Depress Reset Button On Control Board Replace Control Board If Required Ice Holding Repair Or Replace Shuttle Shuttle Open?
Page 153 Purge Rocker Switch Purge Light Off? Move Switch To Off Position In Off Position? Remove & Restore Line Line Voltage At Voltage, Then Depress No Power @ Solenoid Drain Solenoid? Reset Button On Control Board Replace Control Board Power @ Solenoid Water Drains From Clear Drain Or Replace Drain Solenoid Evaporator?
Page 154 Drain Clog Water In Drain Trough? Clear Drain Light Off? Disconnect Clean and Dry Light On Sensor From Light On Replace Control Board Drain Sensor Control Board Light Off Replace Sensor Light Off Test Run To Verify Operation Verify: Clearances & Ambient Are OK Press Control Board Reset High Pressure Condenser Is Clean...
Page 155 Circuit Breaker On Reset Breaker - Press Control Board HI AMPS Light Off? Reset Button To Clear Error Control Box Tripped? Press Control Line Voltage To Replace Control Board Reset Button To Gear Motor? Board Clear Error Check Wires & Connections Gear Motor Runs? Replace Gear Motor Clean Ice Machine - Install Water Filter - Increase...
Page 156 Sensor Wires Low Water Connect Sensor Wires Light Off? Connected? Reservoir Full Water is Supplied? Restore Water Supply Of Water? Clean and Voltage @ Water Replace Water Inlet Valve Dry Water Inlet Valve? Level Probes Voltage @ Water Reservoir Full Inlet Valve? Of Water? Press Control Board Reset Button...
Page 157 Control Board High Water Press Control Board Reset Button Sending Line Voltage To Replace Control Board Light Off? Water Valve? Voltage @ Water Replace Water Inlet Valve Inlet Valve? Clean, Dry & Reinsert Water Water Flows Replace Sensor – Control Board if Required Level Probes Water Flow Stops Press Control Board Reset Button To Clear Error...
Page 158 Line Voltage @ Compressor Control Board Compressor Replace Control Board Running? Terminals Line Voltage At Repair Wiring Liquid Line Solenoid Valve? Verify: Refrigerant Pressure is Higher Than LPCO Cut-in Both Shut-off Valves are Open Low Pressure Repair/Replace Liquid Line Solenoid Control Closed? Locate and Repair Refrigerant Leak Replace LPCO Switch...
Page 159 Contactor Coil Has Line Repair Wiring Voltage? Contactor Closed? Replace Contactor Line Voltage At Repair Wiring Compressor? Verify: Compressor Compressor Overload is Closed Running? Start Components Function Compressor Windings Are OK Test Run To Verify Operation...
Page 160 Ice Has Excessive Test Run To Verify Operation Water Content? Verify Water Inlet Valve Closes 100% & Water Level Probe Functions...
Page 161: Refrigeration Troubleshooting
Refrigeration Troubleshooting CAPILLARY TUBE MODELS If the gear motor and/or compressor are not energized refer to Electrical Troubleshooting Refer to Operational Pressure Charts for normal pressures and temperatures Low on Overcharge of Non Condensible Restricted Capillary Refrigerant Refrigerant in System Tube Discharge Pressure High...
Page 162: Thermostatic Expansion Valve Models
THERMOSTATIC EXPANSION VALVE MODELS If the gear motor and/or compressor are not energized refer to Electrical Troubleshooting Refer to Operational Pressure Charts for normal pressures and temperatures Liquid Line Restriction, Overcharge Flooding Expansion Low on Suction Line Restriction, Condensible In Valve or Loose Sensing Refrigerant Or Expansion Valve...
Page 163: Total System Refrigerant Charge
Serial plate information overrides information listed on this page. Model Refrigerant Charge RF0244A 7.5 oz / 210 g RNS0244A 7.5 oz / 210 g RF0266A 7.5 oz / 210 g RF0300A/RFS0300A 11.25 oz / 320 g RNS0308 15.5 oz / 440 g...
Page 164: Ice Production & Refrigerant Pressure
Ice Production & Refrigerant Pressure These charts are used as guidelines to verify correct ice machine operation. Accurate collection of data is essential to obtain the correct diagnosis. • Zero out manifold gauge set before obtaining pressure readings to avoid misdiagnosis. •...
Page 165: Flake Models
Flake Models RF0244A & RFS0244 SELF STORAGE AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 182 lbs 21°C/10°C 82 kgs 90°F/70°F 151 lbs 32°C/21°C 68 kgs OPERATING PRESSURES PSIG & kPa...
Page 166: Rf0266A
RF0266A SELF STORAGE AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 1821lbs 21°C/10°C 82 kgs 90°F/70°F 151 lbs 32°C/21°C 68 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering Discharge Suction...
Page 167: Rf0300A & Rfs0300A
RF0300A & RFS0300A SELF CONTAINED AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Model Water Temperature Ice Production 70°F/50°F 311 lbs RF0300 21°C/10°C 141 kgs 90°F/70°F 259 lbs 32°C/21°C 117 kgs 70°F/50°F 384 lbs RFS0300 21°C/10°C 174 kgs 90°F/70°F...
Page 168: Rf0385A
RF0385A SELF STORAGE AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 329 lbs 21°C/10°C 149 kgs 90°F/70°F 273 lbs 32°C/21°C 124 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering Discharge Suction...
Page 169: Rf0388A
RF0388A SELF STORAGE AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 332 lbs 21°C/10°C 151 kgs 90°F/70°F 270 lbs 32°C/21°C 122 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering Discharge Suction...
Page 170: Rf0399A
RF0399A SELF STORAGE AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 332 lbs 21°C/10°C 151 kgs 90°F/70°F 270 lbs 32°C/21°C 122 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering Discharge Suction...
Page 171: Rf0644A
RF0644A AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 688 lbs 21°C/10°C 312 kgs 90°F/70°F 510 lbs 32°C/21°C 231 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering Discharge Suction Condenser...
Page 172: Rf0650A & Rfs0650
RF0650A & RFS0650 AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Model Water Temperature Ice Production 70°F/50°F 671 lbs RF0650A 21°C/10°C 305 kgs 90°F/70°F 545 lbs 32°C/21°C 248 kgs 70°F/50°F 747 lbs RFS0650A 21°C/10°C 339 kgs 90°F/70°F 540 lbs 32°C/21°C...
Page 173: Rf0650W
RF0650W WATER-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Model Water Temperature Ice Production 70°F/50°F 716 lbs RF0650W 21°C/10°C 325 kgs 90°F/70°F 597 lbs 32°C/21°C 271 kgs 70°F/50°F 726 lbs RFS0650W 21°C/10°C 329 kgs 90°F/70°F 586 lbs 32°C/21°C 266 kgs...
Page 174: Rf1200A & Rfs1200A
RF1200A & RFS1200A AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Model Water Temperature Ice Production 70°F/50°F 1186 lbs RF1200A 21°C/10°C 538 kgs 90°F/70°F 864 lbs 32°C/21°C 392 kgs 70°F/50°F 1202 lbs RFS1200A 21°C/10°C 545 kgs 90°F/70°F 874 lbs 32°C/21°C...
Page 175: Rf1200W & Rfs1200W
RF1200W & RFS1200W WATER-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Model Water Temperature Ice Production 70°F/50°F 1204 lbs RF1200W 21°C/10°C 546 kgs 90°F/70°F 1004 lbs 32°C/21°C 455 kgs 70°F/50°F 1339 lbs RFS1200W 21°C/10°C 607 kgs 90°F/70°F 1128 lbs 32°C/21°C...
Page 176: Rf1278C & Rfs1278C With Rcu1075
RF1278C & RFS1278C WITH RCU1075 QUIETQUBE REMOTE AIR COOLED Characteristics vary depending on operating conditions ICE PRODUCTION 24 Hour Air Temperature Water Temperature Ice Production -20°F/50°F 1413 lbs -29°C/10°C 641 kgs 70°F/50°F 1092 lbs 21°C/10°C 495 kgs 90°F/70°F 958 lbs 32°C/21°C 435 kgs 120°F/70°F...
Page 177: Rf2300A
RF2300A AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 2301 lbs 21°C/10°C 1044 kgs 90°F/70°F 1665 lbs 32°C/21°C 755 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering Discharge Suction Condenser...
Page 178: Rf2300W
RF2300W WATER-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 2608 lbs 21°C/10°C 1183 kgs 90°F/70°F 2201 lbs 32°C/21°C 998 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Around Ice Machine Discharge Suction °F/°C...
Page 179: Rf2378C & Rfs2378C With Rcu2375
RF2378C & RFS2378C WITH RCU2375 QUIETQUBE REMOTE AIR COOLED Characteristics vary depending on operating conditions ICE PRODUCTION 24 Hour Air Temperature Water Temperature Ice Production -20°F/50°F 2403 lbs -29°C/10°C 1090 kgs 70°F/50°F 2063 lbs 21°C/10°C 936 kgs 90°F/70°F 1702 lbs 32°C/21°C 772 kgs 120°F/70°F...
Page 180: Nugget Models
Nugget Models RNS0244A SELF STORAGE AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 155 lbs 21°C/10°C 70 kgs 90°F/70°F 105 lbs 32°C/21°C 48 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering Discharge...
Page 181: Rns0308A
RNS0308A SELF CONTAINED AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 315 lbs 21°C/10°C 143 kgs 90°F/70°F 251 lbs 32°C/21°C 114 kgs * Indicates Preliminary Data OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering...
Page 182: Rns0385A
RNS0385A SELF STORAGE AIR-COOLED Characteristics vary depending on operating conditions. ICE PRODUCTION 24 hour Air Temperature Water Temperature Ice Production 70°F/50°F 270 lbs 21°C/10°C 122 kgs 90°F/70°F 223 lbs 32°C/21°C 101 kgs OPERATING PRESSURES PSIG & kPa Freeze Cycle Air Temperature Entering Discharge Suction...
Page 183: Rn0408A
RN0408A AIR-COOLED Characteristics vary depending on operating conditions ICE PRODUCTION 24 Hour Air Temperature Water Temperature Ice Production 70°F/50°F 385 lbs 21°C/10°C 175 kgs 90°F/70°F 294 lbs 32°C/21°C 133 kgs OPERATING PRESSURES PSIG/kPa Air Temperature Freeze Cycle Around Ice Discharge Suction Machine Pressure...
Page 184: Rn1008A
RN1008A AIR-COOLED Characteristics vary depending on operating conditions 24-HOUR ICE PRODUCTION IN LB/KG Water Temperature Temperature °F/°C Entering Condenser 50/10 60/16 70/21 80/27 90/32 °F/°C 60°F 1135 1070 1015 16°C 70°F 1100 1000 21°C 80°F 27°C 90°F 32°C 100°F 38°C OPERATING PRESSURES PSIG/kPa Air Temperature Freeze Cycle...
Page 185: Rn1009W
RN1009W WATER-COOLED Characteristics vary depending on operating conditions 24-HOUR ICE PRODUCTION IN LB/KG Water Temperature Temperature °F/°C Around Ice Machine 50/10 60/16 70/21 80/27 90/32 °F/°C 60°F 1071 1025 16°C 70°F 1035 21°C 80°F 27°C 90°F 32°C 100°F 38°C OPERATING PRESSURES PSIG/kPa Air Temperature Freeze Cycle Around Ice...
Page 186: Rn1408A
RN1408A AIR-COOLED Characteristics vary depending on operating conditions ICE PRODUCTION 24 Hour Air Temperature Water Temperature Ice Production 50°F/50°F 1528 lbs 10°C/10°C 693 kgs 70°F/50°F 1490 lbs 21°C/10°C 676 kgs 90°F/70°F 1318 lbs 32°C/21°C 598 kgs 110°F/70°F 1019 lbs 43°C/21°C 462 kgs OPERATING PRESSURES PSIG/kPa Air Temperature...
Page 187: Rn1409W
RN1409W WATER-COOLED Characteristics vary depending on operating conditions ICE PRODUCTION 24 Hour Air Temperature Water Temperature Ice Production 50°F/50°F 1581 lbs 10°C/10°C 717 kgs 70°F/50°F 1490 lbs 21°C/10°C 676 kgs 90°F/70°F 1318 lbs 32°C/21°C 598 kgs 110°F/70°F 1100 lbs 43°C/21°C 499 kgs OPERATING PRESSURES PSIG/kPa Air Temperature...
Page 188: Rn1078C With Rcu1075
RN1078C WITH RCU1075 QUIETQUBE REMOTE AIR COOLED Characteristics vary depending on operating conditions ICE PRODUCTION 24 Hour Air Temperature Water Temperature Ice Production -20°F/50°F 1105 lbs -29°C/10°C 501kgs 70°F/50°F 880 lbs 21°C/10°C 399kgs 90°F/70°F 713 lbs 32°C/21°C 323kgs 120°F/70°F 490 lbs 49°C/21°C 222kgs OPERATING PRESSURES PSIG/kPa...
Page 189: Rn1278C With Rcu1275
RN1278C WITH RCU1275 QUIETQUBE REMOTE AIR COOLED Characteristics vary depending on operating conditions ICE PRODUCTION 24 Hour Air Temperature Water Temperature Ice Production -20°F/50°F 1201 lbs -29°C/10°C 545kgs 70°F/50°F 1100 lbs 21°C/10°C 499kgs 90°F/70°F 962 lbs 32°C/21°C 436kgs 120°F/70°F 761 lbs 49°C/21°C 345 kgs OPERATING PRESSURES PSIG/kPa...
Page 190: Rack Models
Rack Models RF1279R QUIETQUBE REMOTE AIR COOLED Characteristics vary depending on operating conditions 24-HOUR ICE PRODUCTION IN LB/KG Water Temperature 24 hr Ice Production °F/°C 50°F- 10°C 1092 lbs - 495 kgs 70°F- 21°C 958 lbs - 435 kgs SUCTION PRESSUREPSIG/kPa Freeze Cycle Acceptable Suction Liquid Line...
Page 191: Rfs1279R
RFS1279R QUIETQUBE REMOTE AIR COOLED Characteristics vary depending on operating conditions 24-HOUR ICE PRODUCTION IN LB/KG Water Temperature 24 hr Ice Production °F/°C 50°F- 10°C 1092 lbs - 495 kgs 70°F- 21°C 958 lbs - 435 kgs SUCTION PRESSUREPSIG/kPa Freeze Cycle Acceptable Suction Liquid Line Pressure...
Page 192: Rf2379R
RF2379R QUIETQUBE REMOTE AIR COOLED Characteristics vary depending on operating conditions 24-HOUR ICE PRODUCTION IN LB/KG Water Temperature 24 hr Ice Production °F/°C 50°F- 10°C 2063 lbs - 936 kgs 70°F- 21°C 1702 lbs - 772 kgs SUCTION PRESSUREPSIG/kPa Freeze Cycle Acceptable Suction Liquid Line Pressure...
Page 193: Rfs2379R
RFS2379R QUIETQUBE REMOTE AIR COOLED Characteristics vary depending on operating conditions 24-HOUR ICE PRODUCTION IN LB/KG Water Temperature 24 hr Ice Production °F/°C 50°F- 10°C 2063 lbs - 936 kgs 70°F- 21°C 1702 lbs - 772 kgs SUCTION PRESSUREPSIG/kPa Freeze Cycle Acceptable Suction Liquid Line Pressure...
Page 194 This Page Intentionally Left Blank Part Number 000007661 6/13...
Page 195: Wiring Diagrams
Diagrams Wiring Diagrams The following pages contain electrical wiring diagrams. Be sure you are referring to the correct diagram for the ice machine you are servicing. Warning Always disconnect power before working on electrical circuitry. Part Number 000007661 6/13...
Page 196: Flake Models
Flake Models RF0244/RNS0244/RF0266/RF0385/RNS0385/ RF0388/RF0399 AIR-COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 197 WIRING DIAGRAM LEGEND RF0244/RNS0244/RF266/RF0385/RNS0385/RF0388/ RF0399 Gear Motor Compressor Condenser fan motor Water Inlet valve Evaporator low temperature safety or Low pressure control Low water level safety Bin thermostat High temperature limit (snap disc) Fan cycle control Water level switch Compressor relay On/Off switch Gear motor centrifugal switch Wire Color Designation...
Page 198: Rf0300 Air-Cooled
RF0300 AIR-COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 199 WIRING DIAGRAM LEGEND RF0300 Gear Motor Compressor Condenser fan motor Water inlet valve Evaporator low temperature safety Low pressure control Low water level safety Bin thermostat Fan cycle control Water level switch Ice chute safety switch Compressor relay On/Off switch Compressor time delay Gear motor centrifugal switch Compressor time delay by-pass...
Page 200: Rfs0300 Air-Cooled
RFS0300 AIR-COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 201 WIRING DIAGRAM LEGEND RFS0300 Gear Motor Compressor Condenser fan motor Water inlet valve Low water level safety Bin thermostat Fan cycle control Water level switch Ice chute safety switch High Pressure Safety Switch Compressor relay On/Off switch Compressor time delay Gear motor centrifugal switch Low Pressure Safety Switch Compressor time delay by-pass...
Page 202: Rf0650/Rf1200/Rfs1200 Air-Cooled
RF0650/RF1200/RFS1200 AIR-COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 203 WIRING DIAGRAM LEGEND RF0650/RF1200/ RFS1200 Gear Motor Compressor Condenser fan motor Water inlet valve Low water level safety Bin thermostat Fan cycle control Contactor Water level switch Ice chute safety switch High pressure cut out Compressor relay On/Off switch Compressor time delay Low pressure cut out Rotation sensor Compressor time delay by-pass...
Page 204: Rf1200/Rfs1200 Water-Cooled
RF1200/RFS1200 WATER-COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 205 WIRING DIAGRAM LEGEND RF1200/RFS1200 WATER-COOLED Gear Motor Compressor Condenser fan motor Water inlet valve Low water level safety Bin thermostat Fan cycle control Contactor Water level switch Ice chute safety switch High pressure cut out Compressor relay On/Off switch Compressor time delay Low pressure cut out Rotation sensor Compressor time delay by-pass...
Page 206: Rf1200C/Rfs1200C Quietqube Head Section
RF1200C/RFS1200C QUIETQUBE HEAD SECTION To Remote Panel Remove Jumper when used Supply Power To RCU Condensing Unit Part Number 000007661 6/13...
Page 207 WIRING DIAGRAM LEGEND RF1200C/RFS1200C Gear Motor Water inlet valve Low water level safety Bin thermostat Water level switch Ice chute safety switch Compressor Relay On/Off switch Rotation sensor Compressor time delay by-pass Solenoid Valve Wire Color Designation White Blue Grey Brown Black Violet...
Page 208: Rf2300/Rfs2300 Air-Cooled & Water- Cooled
RF2300/RFS2300 AIR-COOLED & WATER- COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 209 WIRING DIAGRAM LEGEND RF2300/RFS2300 AIR & WATER COOLED Gear Motor Compressor Condenser fan motor (air-cooled only) Water inlet valve Low water level safety Bin thermostat Fan cycle control Contactor Water level switch Ice chute safety switch High pressure cut out On/Off switch Compressor time delay Low pressure cut out...
Page 210: Rf2378C/Rfs2378C Quietqube Head Section
RF2378C/RFS2378C QUIETQUBE HEAD SECTION Part Number 000007661 6/13...
Page 211 WIRING DIAGRAM LEGEND RF2300C/RFS2300 HEAD SECTION Gear Motor Water inlet valve Low water level safety Bin thermostat Water level switch Ice chute safety switch Compressor Relay On/Off switch Rotation sensor Compressor time delay by-pass Solenoid Valve Wire Color Designation White Blue Grey Brown...
Page 212: Condensing Units
Condensing Units RCU CONDENSING UNIT 1PH Part Number 000007661 6/13...
Page 213: Rcu Condensing Unit 3Ph
RCU CONDENSING UNIT 3PH Part Number 000007661 6/13...
Page 214: Rack Models
Rack Models RF1279R/RFS1279R HEAD SECTION Power Supply To Remote Electrical Panel (Remove Bypass) To Refrigerating Plant Part Number 000007661 6/13...
Page 215 WIRING DIAGRAM LEGEND RF1279R Gear Motor Water inlet valve Low water level safety Bin thermostat Water level switch Ice chute safety switch Compressor Relay On/Off switch Rotation sensor Compressor time delay by-pass Suction Line Solenoid Valve Liquid Line Solenoid Valve Wire Color Designation White Blue...
Page 216: Rf2379R/Rfs2379R Head Section
RF2379R/RFS2379R HEAD SECTION Power Supply To Remote Electrical Panel (Remove Bypass) To Refrigerating Plant Part Number 000007661 6/13...
Page 217 WIRING DIAGRAM LEGEND RF2379R Gear Motor Water inlet valve Low water level safety Bin thermostat Water level switch Ice chute safety switch Compressor Relay On/Off switch Rotation sensor Compressor time delay by-pass Suction Line Solenoid Valve Liquid Line Solenoid Valve Wire Color Designation White Blue...
Page 218: Nugget Models
Nugget Models RNS0244/RNS0385 AIR-COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 219 WIRING DIAGRAM LEGEND RNS0244/RNS0385 Gear Motor Compressor Condenser fan motor Water Inlet valve Evaporator low temperature safety or Low pressure control Low water level safety Bin thermostat High temperature limit (snap disc) Fan cycle control Water level switch Compressor relay On/Off switch Gear motor centrifugal switch Wire Color Designation...
Page 220: Rns0308 Air-Cooled
RNS0308 AIR-COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 221 WIRING DIAGRAM LEGEND RF0300/RFS0300 Gear Motor Compressor Condenser fan motor Water inlet valve Low pressure control Low water level safety Bin thermostat Fan cycle control Water level switch Ice chute safety switch Compressor relay On/Off switch Compressor time delay Gear motor centrifugal switch Compressor time delay by-pass Wire Color Designation White...
Page 222: Rn0400 115V/60Hz/1Ph
RN0400 115V/60HZ/1PH BL ACK WHITE Part Number 000007661 6/13...
Page 223: Rn0400 230V/60Hz/1Ph
RN0400 230V/60HZ/1PH VIOLET VIOLET WHITE BLACK BLACK BLUE Part Number 000007661 6/13...
Page 224: Rns1000 Air-Cooled
RNS1000 AIR-COOLED Refer to Nameplate for Voltage Rating Part Number 000007661 6/13...
Page 225 WIRING DIAGRAM LEGEND RNS1000 Gear Motor Compressor Condenser fan motor Water inlet valve Low water level safety Bin thermostat Fan cycle control Contactor Water level switch Ice chute safety switch High pressure cut out Compressor relay On/Off switch Compressor time delay Low pressure cut out Rotation sensor Compressor time delay by-pass...
Page 226: Rn1000/Rn1400 Air & Water Cooled
RN1000/RN1400 AIR & WATER COOLED CPU (G) LO WATER (R) HI WATER (R) DRAIN CLOG (R) LO PRESS (R) CONTROL PC BOARD HI PRESS (R) HI AMPS (R) SERVICE (R) PURGE (Y) CLEANING (Y) TIME DELAY (Y) REFRIG ON (G) AUGER ON (G) LOW BIN (G) POWER (G)
Page 227: Rn1000C/Rn1200C Quietqube Head Section
RN1000C/RN1200C QUIETQUBE HEAD SECTION CPU (G) LO WATER (R) HI WATER (R) DRAIN CLOG (R) CONTROL PC BOARD LO PRESS (R) HI PRESS (R) HI AMPS (R) SERVICE (R) PURGE (Y) CLEANING (Y) TIME DELAY (Y) REFRIG ON (G) AUGER ON (G) LOW BIN (G) POWER (G) Part Number 000007661 6/13...
Page 228: Refrigeration Tubing Schematics
Refrigeration Tubing Schematics Flake Models RF0244/RFS0244/RF0266/RF0300/RF0385/RF0388/ RF0399/RF0644/RF0650 Part Number 000007661 6/13...
Page 229 TUBING DIAGRAM LEGEND Compressor Condenser Liquid Line Drier Capillary tube Accumulator Heat Exchanger Evaporator Part Number 000007661 6/13...
Page 230: Rf1200/Rfs1200 Air-Cooled
RF1200/RFS1200 AIR-COOLED Part Number 000007661 6/13...
Page 231 TUBING DIAGRAM LEGEND Compressor Condenser Liquid Line Drier Liquid Line Solenoid Valve Suction Accumulator Thermostatic Expansion Valve Liquid Accumulator Evaporator Part Number 000007661 6/13...
Page 232: Rf1200/Rfs1200 Water-Cooled
RF1200/RFS1200 WATER-COOLED Part Number 000007661 6/13...
Page 233 TUBING DIAGRAM LEGEND Compressor Condenser Liquid Line Drier Liquid Line Solenoid Valve Suction Accumulator Thermostatic Expansion Valve Liquid Accumulator Evaporator Part Number 000007661 6/13...
Page 234: Rf2300/Rfs2300 Air-Cooled
RF2300/RFS2300 AIR-COOLED Part Number 000007661 6/13...
Page 235 TUBING DIAGRAM LEGEND Compressor Condenser Liquid Line Drier Liquid Line Solenoid Valve Suction Accumulator Thermostatic Expansion Valve Liquid Accumulator Evaporator Part Number 000007661 6/13...
Page 236: Rf2300/Rfs2300 Water-Cooled
RF2300/RFS2300 WATER-COOLED Part Number 000007661 6/13...
Page 237 TUBING DIAGRAM LEGEND Compressor Condenser Liquid Line Drier Liquid Line Solenoid Valve Suction Accumulator Thermostatic Expansion Valve Liquid Accumulator Evaporator Part Number 000007661 6/13...
Page 238: Rf1200C/Rfs1200C Quietqube Head Section & Rcu1075 Condensing Unit
RF1200C/RFS1200C QUIETQUBE HEAD SECTION & RCU1075 CONDENSING UNIT Part Number 000007661 6/13...
Page 239 TUBING DIAGRAM LEGEND Compressor Check Valve Head Pressure Control Valve Condenser (air or water cooled) Receiver Condensing unit Liquid Line Drier Liquid Line Shut-off Valve Ice Machine Liquid Line Drier Liquid Line Solenoid Valve Thermostatic Expansion Valve Evaporator Suction Line Shut-off Valve Suction Line Filter Suction Accumulator Part Number 000007661 6/13...
Page 240: Rf2300C/Rfs2300 Quietqube Head Section & Rcu2375 Condensing Unit
RF2300C/RFS2300 QUIETQUBE HEAD SECTION & RCU2375 CONDENSING UNIT Part Number 000007661 6/13...
Page 241 TUBING DIAGRAM LEGEND Compressor Check Valve Head Pressure Control Valve Condenser (air or water cooled) Receiver Condensing unit Liquid Line Drier Liquid Line Shut-off Valve Ice Machine Liquid Line Drier Liquid Line Solenoid Valve Thermostatic Expansion Valve Evaporator Liquid Accumulator Suction Line Shut-off Valve Suction Line Filter Suction Accumulator...
Page 242: Nugget Models
Nugget Models RN0244/RNS0244/RN0385/RNS0385  AIR & WATER-COOLED Part Number 000007661 6/13...
Page 243 TUBING DIAGRAM LEGEND Compressor Condenser (air or water cooled) Liquid Line Drier Heat Exchanger Capillary Tube Evaporator Part Number 000007661 6/13...
Page 244: Rns0308
RNS0308 Part Number 000007661 6/13...
Page 245 TUBING DIAGRAM LEGEND Compressor Condenser (air or water cooled) Liquid Line Drier Heat Exchanger Automatic Expansion Valve Evaporator Part Number 000007661 6/13...
Page 246: Rn0400/Rn1000/Rn1400 Air & Water-Cooled
RN0400/RN1000/RN1400 AIR & WATER-COOLED Part Number 000007661 6/13...
Page 247 TUBING DIAGRAM LEGEND Compressor Condenser (air or water cooled) Liquid Line Drier Heat Exchanger Thermostatic Expansion Valve Evaporator Part Number 000007661 6/13...
Page 248: Rn1000C/Rn1200C Quietqube Head Section & Rcu1075/Rcu1275 Condensing Unit
RN1000C/RN1200C QUIETQUBE HEAD SECTION & RCU1075/RCU1275 CONDENSING UNIT Part Number 000007661 6/13...
Page 249 TUBING DIAGRAM LEGEND Compressor Check Valve Head Pressure Control Valve Condenser (air or water cooled) Receiver Condensing unit Liquid Line Drier Liquid Line Shut-off Valve Ice Machine Liquid Line Drier Liquid Line Solenoid Valve Thermostatic Expansion Valve Evaporator S Trap (20’ + Rise Only) Suction Line Shut-off Valve Suction Line Filter Suction Accumulator...
Page 250 This Page Intentionally Left Blank Part Number 000007661 6/13...
Page 252 Manitowoc Ice 2110 South 26th Street, P.O. Box 1720 Manitowoc, WI 54221-1720, USA Ph: 920-682-0161 Fax: 920-683-7589 Visit us online at: www.manitowocfsg.com © 2012 Manitowoc Part Number 000007661 6/13...

This manual is also suitable for:

Rf0385a Rf0388a Rf0300a Rf0266a Rfs0300a Rf0644a ... Show all

Manitowoc RF0244A Technician's Handbook

General Information

Model Numbers

Model/Serial Number

Manitowoc Cleaner and Sanitizer

Ice Machine Warranty Information

Installation

Installation Requirements

Drain Connections

Potable Water Requirements

Maintenance

Cleaning and Sanitizing

Removal from Service/Winterization

Troubleshooting

RF0244/RF0266/RF0385/RFS0385/RF0388/ RF0399 Troubleshooting

Rf0644/Rf0650/Rf1200/Rfs1200

RF0300 Troubleshooting

RFS0300/RNS0308 Troubleshooting

RF1200R/RFS1200R Troubleshooting

RF2300/RFS2300 Troubleshooting

RF2300C/RFS2300C Troubleshooting

RN1000C/RN1200C Troubleshooting

RF2300R/RFS2300R Troubleshooting

RN0400 Troubleshooting

RN1000/RN1400 Troubleshooting

Charts

Total System Refrigerant Charge

Ice Production & Refrigerant Pressure

Flake Models

Nugget Models

Wiring Diagrams

Flake Models

Condensing Units

Rack Models

Refrigeration Tubing Schematics

Flake Models

Nugget Models

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manitowoc RF0244A

Summary of Contents for Manitowoc RF0244A
