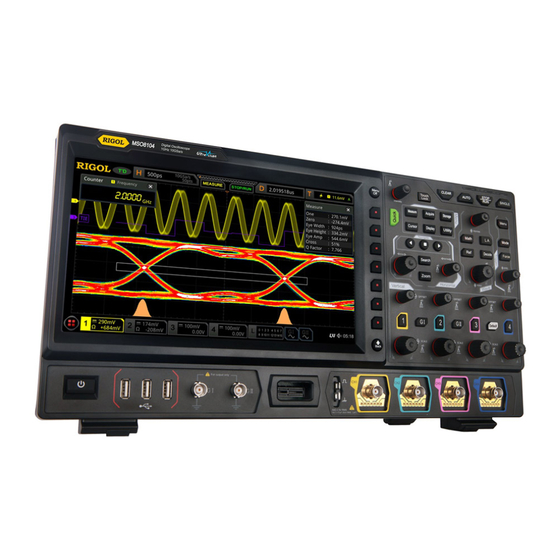

Rigol MSO8000 Series Service Manual
Digital oscilloscope
Hide thumbs
Also See for MSO8000 Series:
- Quick manual (46 pages) ,
- User manual (396 pages) ,
- Manual (8 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Quick Manual
Advertisement
Table of Contents
Related Manuals for Rigol MSO8000 Series
Summary of Contents for Rigol MSO8000 Series
- Page 1 RIGOL Service Guide MSO8000 Series Digital Oscilloscope Jul. 2019 RIGOL (SUZHOU) TECHNOLOGIES INC.
-
Page 3: Guaranty And Declaration
Notices RIGOL products are covered by P.R.C. and foreign patents, issued and pending. RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company’s sole decision. Information in this publication replaces all previously released materials. -
Page 4: Safety Requirement
Do not touch exposed junctions and components when the unit is powered on. Do Not Operate With Suspected Failures. If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel. - Page 5 Use the Battery Properly. Do not expose the battery (if available) to high temperature or fire. Keep it out of the reach of children. Improper change of a battery (lithium battery) may cause an explosion. Use the RIGOL specified battery only.
-
Page 6: Safety Notices And Symbols
RIGOL Safety Notices and Symbols Safety Notices in this Manual: WARNING Indicates a potentially hazardous situation or practice which, if not avoided, will result in serious injury or death. CAUTION Indicates a potentially hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data. -
Page 7: Document Overview
Manuals of this Product The manuals of this product mainly include Quick Guide, User Guide, Programming Guide, Data Sheet, and etc. For the latest version of this manual, download it from the official website of RIGOL (www.rigol.com). MSO8000 Service Guide... -
Page 8: Table Of Contents
RIGOL Contents Contents Guaranty and Declaration ....................I Safety Requirement ......................II General Safety Summary....................II Safety Notices and Symbols ....................IV Document Overview ......................V Chapter 1 Disassembly and Assembly ................ 1-1 Notices to Disassembly and Assembly ................1-1 Exploded View Drawing .................... -
Page 9: Chapter 1 Disassembly And Assembly
RIGOL Chapter 1 Disassembly and Assembly Chapter 1 Disassembly and Assembly Notices to Disassembly and Assembly Notices: Do not disassemble the instrument unless for working requirement. Only authorized personnel are allowed to disassemble the instrument. Cut off the power supply before disassembling the instrument. -
Page 10: Exploded View Drawing
This manual mainly introduces the disassembly and assembly methods for the MSO8000 series digital oscilloscope. The exploded view drawing of MSO8000 (installed with the function/arbitrary waveform generator option) is shown in Figure 1-1. - Page 11 RIGOL Chapter 1 Disassembly and Assembly Table1-1 Replacement Parts List Part No. Qty. Name/Description 1020004447 (MSO8064) Front Label 1020004448 (MSO8104) 1010005810 LCD (Touch Screen Included) 1020003979 LCD Shield 1020000573 M3x8 Torx Pan Head Combination Screw 1020000571 M3x6 Torx Pan Head Combination Screw...
-
Page 12: Disassemble The Rear Panel Components
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Rear Panel Components Handle ① ① ② Rear Panel Components ② Figure 1-2 Disassemble the Rear Panel Components Part Description: ① 2 screws (M3x8 torx pan head combination screw, used for fastening the handle) ②... -
Page 13: Disassemble The Front Bracket
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Front Bracket ① Figure 1-3 Disassemble the Front Bracket Part Description: ① 2 front brackets Disassembly Step: Take off the front brackets gently. MSO8000 Service Guide... -
Page 14: Disassemble The Metal Rear Panel Components
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Metal Rear Panel Components ① ① ① ① ③ ② ③ ② ① ① ① ① Metal Rear Panel Components Figure 1-4 Disassemble the Metal Rear Panel Components Part Description: ① 8 screws (M3x6 torx pan head combination screw, used for fastening the metal front panel and the metal rear panel components) ②... - Page 15 RIGOL Chapter 1 Disassembly and Assembly Disassembly Steps: 1. Use the BNC socket wrench to remove the 3 BNC nuts and 3 lock washers at the BNC connectors of the metal rear panel components. 2. Use the T10 screwdriver to remove 8 screws (①) that fasten the front metal panel and the metal rear panel components.
-
Page 16: Disassemble The Fan Components
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Fan Components Rubber Fan Sleeve Figure 1-5 Disassemble the Fan Components Disassembly Steps: Remove the fan cable from the power supply shield. Disengage the 4 tabs of the rubber fan sleeve from the metal rear panel components. -
Page 17: Disassemble The Power Supply Shield
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Power Supply Shield ① ① ① ① Figure 1-6 Disassemble the Power Supply Shield Part Description: ① 4 screws (M3x8 torx pan head combination screw, used for fastening the power supply shield) Disassembly Steps: Use the T10 screwdriver to rem ove 4 screws (①) that secure the power supply shield. -
Page 18: Disassemble The Power Supply Board
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Power Supply Board ① ① ① ① Figure 1-7 Disassemble the Power Supply Board Part Description: ① 4 screws (M3x8 torx pan head combination screw, used for fastening the power supply board) Disassembly Steps: Remove the AC line from the power supply board. -
Page 19: Disassemble The Metal Front Panel
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Metal Front Panel ① ① ① Metal Front Panel ① Figure 1-8 Disassemble the Metal Front Panel Part Description: ① 4 screws (M3x8 torx pan head combination screw, used for fastening the metal front panel) Disassembly Steps: Use the T10 screwdriver to remove 4 screws (①) that secure the metal front panel. -
Page 20: Disassemble The Main Board
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Main Board ① BeCu Fingerstock ① ① ① ① ① ① ① ① ① ① ② Main Board Figure 1-9 Disassemble the Main Board Part Description: ① 11 screws (M3x8 torx pan head combination screw, used for fastening the main board) ②... -
Page 21: Disassemble The Knob
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Knob ② ② ② ② ① ① ② ② ② ② ① ① ① ① Panel Figure 1-10 Disassemble the Knob Part Description: ① 6 large knobs ② 8 small knobs Disassembly Step: Pull out the large and small knobs from the front panel. -
Page 22: Disassemble The Keypad Board
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Keypad Board ① ① ① ① ① Keypad Board Figure 1-11 Disassemble the Keypad Board Part Description: ① 5 screws (M3x6 torx pan head combination screw, used for fastening the keypad board) Disassembly Steps: Remove the active probe power cable and the touch screen cable from the keypad board. -
Page 23: Disassemble The Lcd
RIGOL Chapter 1 Disassembly and Assembly Disassemble the LCD ① ① ① LCD Shield LCD (Touch Screen Included) Figure 1-12 Disassemble the LCD Part Description: ① 3 screws (M3x8 torx pan head combination screw, used for fastening the LCD assembly) Disassembly Steps: Use the T10 screwdriver to remove 3 screws (①) that secure the LCD assembly (LCD+LCD... -
Page 24: Disassemble The Power Key
RIGOL Chapter 1 Disassembly and Assembly Disassemble the Power Key Power Key Figure 1-13 Disassemble the Power Key Disassembly Step: Remove the Power key from the front panel. 1-16 MSO8000 Service Guide... -
Page 25: Assembly Procedures
RIGOL Chapter 1 Disassembly and Assembly Assembly Procedures The assembly procedures are simply the reversal of the disassembly procedures. Check whether the cables are correctly connected and whether all the screws are installed after completing each assembly procedure. MSO8000 Service Guide... -
Page 27: Chapter 2 Troubleshooting&Maintenance
USB storage device should not exceed 8 GB for this oscilloscope. (4) Restart the instrument and insert the USB storage device to check it. (5) If the USB storage device still cannot work normally, please contact RIGOL. 5. The touch functions cannot be used normally. -
Page 28: Maintenance
RIGOL guarantees free replacement or repair for the defective product. To get repair service, please contact with your nearest RIGOL sales or service office. There is no other warranty, expressed or implied, except such as is expressly set forth herein or other applicable warranty card. -
Page 29: Care And Cleaning
RIGOL Chapter 2 Troubleshooting&Maintenance Care and Cleaning Care Do not store or leave the instrument where it may be exposed to direct sunlight for long periods of time. Cleaning Clean the instrument regularly according to its operating conditions. Disconnect the instrument from all power sources.
