Led Diagnostics - Altronix AL400ULACMCB Installation Manual

Power Supply Board
LED
Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF

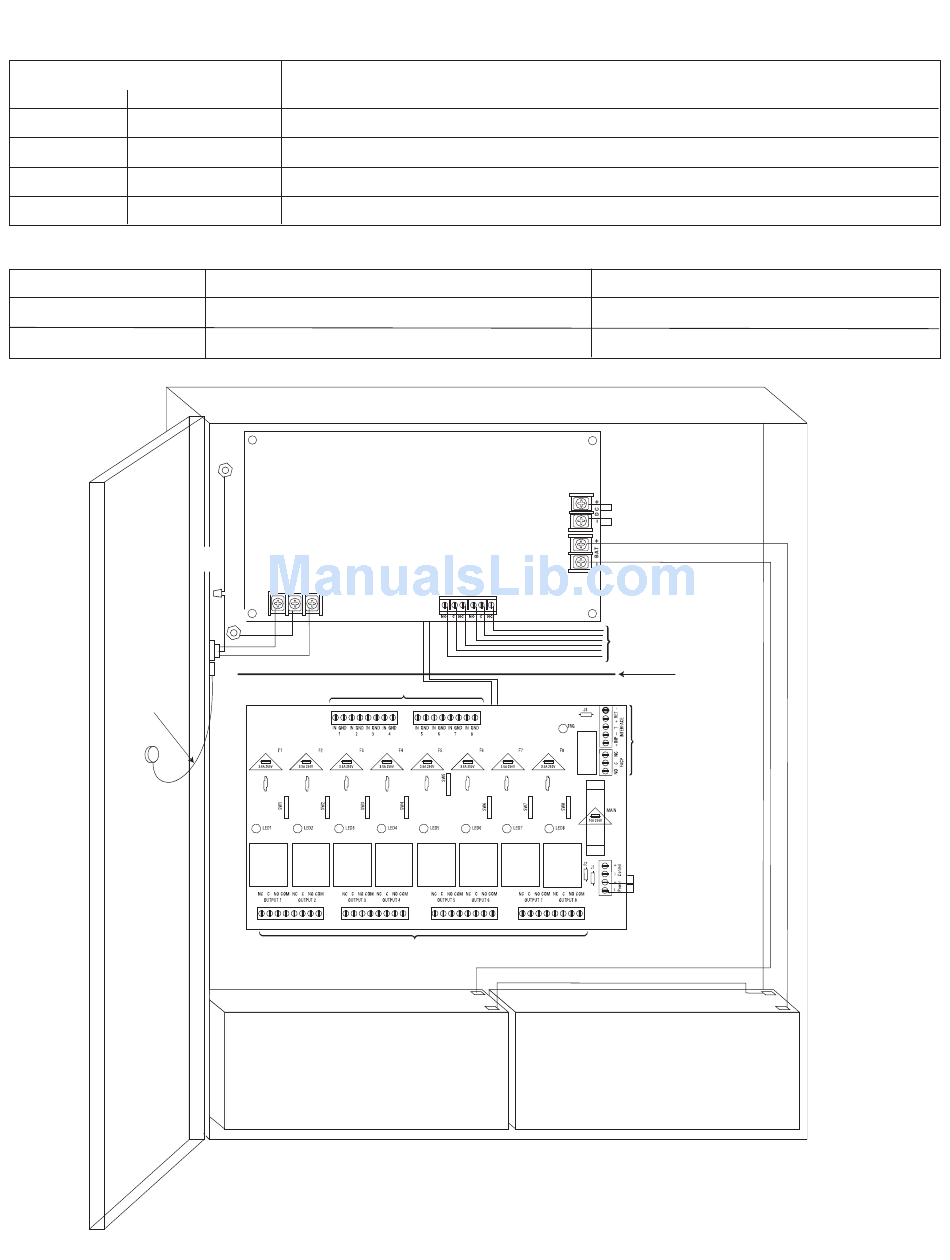

ACM8 Access Power Controller
LED
LED 1- LED 8 (Red)
Trg (Green)
Fig. 2
Door
Wire
Strap
(from
Enclosure
to Door)
- 6 -
Power Supply Status
Normal operating condition.
Loss of AC, Stand-by battery supplying power.
No DC output. Short circuit or thermal overload condition.
No DC output. Loss of AC. Discharged battery.
ON
Output relay(s) energized.
FACP input triggered (alarm condition).
Power Supply Board
CAUTION: De-energize unit prior to servicing.
For continued protection against fire hazard replace
fuse with the same type and rating .
Green
Replace fuse cover before energizing.
Lead
Green
L G N
Lead
unswitched 115VAC
power mains
(non-power limited)
Inputs (power limited)
DC Output to devices (power limited)
12VDC Rechargeable Battery
(optional)
CAUTION: When power supply board is set for 12VDC use only one (1) 12VDC
stand-by battery.
Keep power limited wiring separate from non-power limited. Use minimum .25" spacing.

LED Diagnostics:

ALTRONIX CORP.
BKLYN, N.Y. 11220
MADE IN USA
BAT FAIL
AC FAIL
Battery connection (non-power limited)
OFF
Output relay(s) de-energized.
FACP normal (non-alarm condition).
Battery and AC
Supervision Circuit
(power limited)
Insulating
Barrier
Fire
Alarm
Interface
12VDC Rechargeable Battery
(optional)
ACMCBseries
