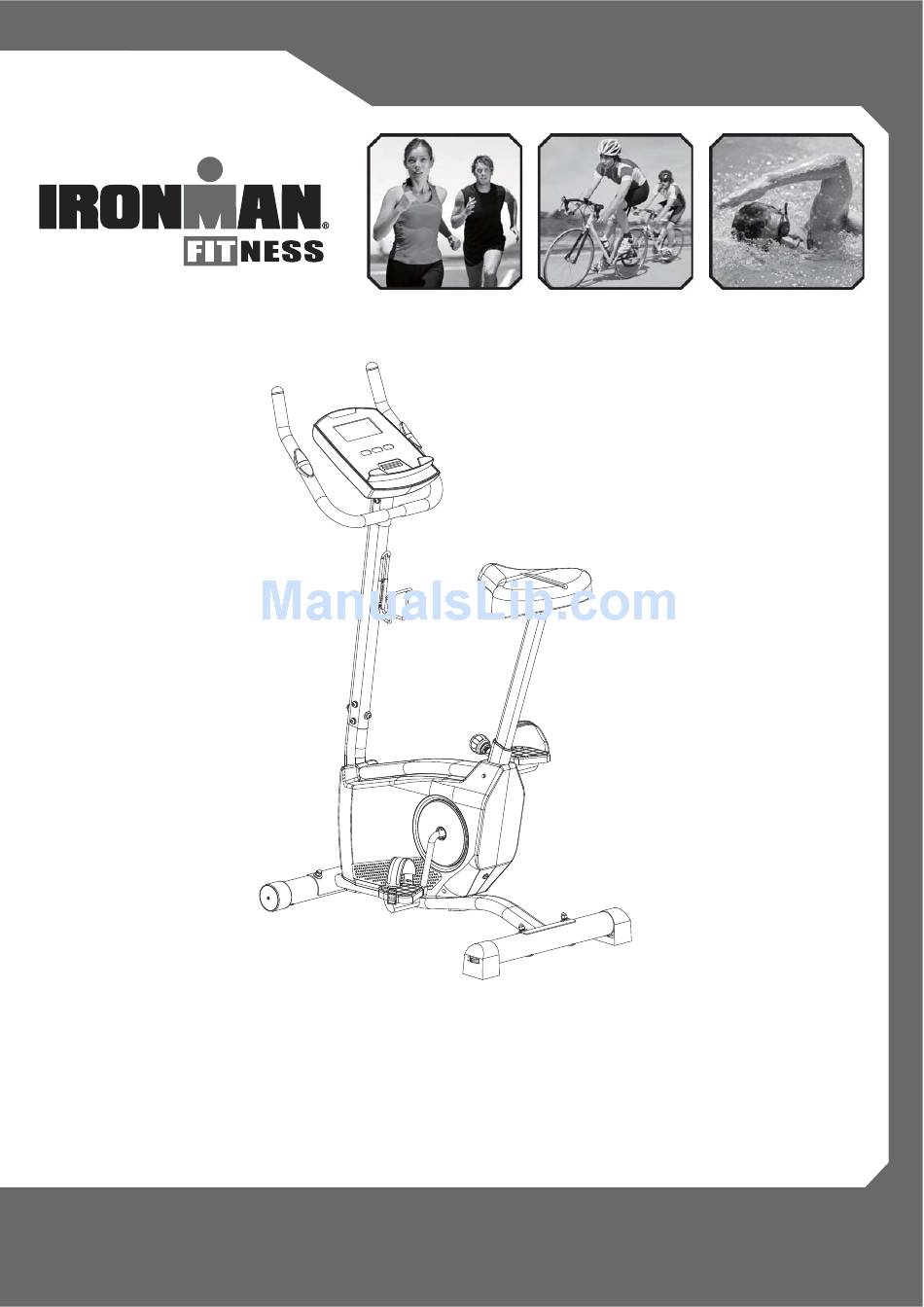

OWNER'S MANUAL
Programmable Upright Bike
6100.4‐061716
The specifications of this product may vary from this photo and are subject to change without notice.
IRONMAN, IRONMAN TRIATHLON and M-DOT are registered trademarks of World Triathlon Corporation.
This product is licensed by the World Triathlon Corporation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6100.4-061716 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironman Fitness 6100.4-061716

Summary of Contents for Ironman Fitness 6100.4-061716

  • Page 1 OWNER’S MANUAL Programmable Upright Bike 6100.4‐061716  The specifications of this product may vary from this photo and are subject to change without notice. IRONMAN, IRONMAN TRIATHLON and M-DOT are registered trademarks of World Triathlon Corporation. This product is licensed by the World Triathlon Corporation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS    SERVICE ----------------------------------------------------------------------- 2 LABEL PLACEMENT -------------------------------------------------------- 3 PRODUCT SAFETY --------------------------------------------------------- 4 OVERVIEW DRAWING ----------------------------------------------------- 5 HARDWARE AND TOOLS LIST ------------------------------------------ 6 PART LIST ---------------------------------------------------------------------- 7 ASSEMBLY --------------------------------------------------------------------- 8 CONSOLE---------------------------------------------------------------------- 15 ADJUSTMENTS-------------------------------------------------------------- 18 MOVING THE BIKE---------------------------------------------------------- 19 TROUBLESHOOTING & MAINTENANCE ---------------------------- 20 WARRANTY ------------------------------------------------------------------- 22 PART REQUEST FORM --------------------------------------------------- 23...

  • Page 4: Service

    SERVICE  IMPORTANT: FOR NORTH AMERICA ONLY For damaged, defective products, questions, replacement parts, or any other service support, please contact our customer service department (8:00 AM - 5:00 PM Pacific Standard Time, Daily) by the below methods: For Best Service, please Email: Service@paradigmhw.com Response Time: 1-2 Business Days Website:...

  • Page 5: Label Placement

    LABEL PLACEMENT    UNDER PENALTY OF LAW THIS TAG NOTICE NOT TO BE REMOVED EXCEPT BY THE CONSUMER This article does not meet ALL NEW MATERIALCONSISTING OF POLYURETHANE FOAM PAD_100% requirements of California REGISTRY NO. VA25302 (CN) Bureau of Home Furnish- ings technical bulletin 117.

  • Page 6: Product Safety

    PRODUCT SAFETY  Basic precautions should always be followed when using this equipment. Read all the instructions before using this equipment which include the following safety instructions: Read all the instructions in this manual and do warm up exercises before using this equipment.

  • Page 7: Overview Drawing

    OVERVIEW DRAWING ...

  • Page 8: Hardware And Tools List

    HARDWARE PACK ...

  • Page 9: Part List

    PART LIST  Description Q’ty Description Q’ty Main Frame Hex Bolt M8*15 Front Post Curved Washer φ16*φ8*1.5 Handlebar Lower Console Wire Seat Post Upper Console Wire Front Stabilizer Sensor Wire Rear Stabilizer Philips Screw M5*10 Left Pedal Strap Bottle Holder Screw ST4.8*15 Right Pedal Strap Power Jack Console...

  • Page 10: Assembly

    ASSEMBLY    Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 1. Stabilizers Installation A. Front Stabilizer: Position the Front Stabilizer (5) in front of the Main Frame (1). Align the bolt holes and attach the Front Stabilizer (5) onto the front curve of the Main Frame (1) with two Carriage Bolts (15), two Big Curved Washers (16), two Spring Washers (21), and two Cap Nuts (17) and tighten with the Multi Hex Tool with Phillips Screwdriver (32) provided.
  • Page 11 ASSEMBLY  Important: Make sure the RIGHT pedal matches up with the RIGHT crank and the LEFT pedal matches up with the LEFT crank. If reversed the cranks may become damaged or stripped. Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 Wrench 1PC The Cranks, Pedals, and Pedal Straps are marked “R”...
  • Page 12 ASSEMBLY    Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 3. Seat Post and Seat Installation A. Seat Installation: Remove the 3 Nylon Nuts (18) and 3 Flat Washers (19) from the Seat (12). Attach the Seat (12) onto the seat bracket of the Seat Post (4), with 3 Nylon Nuts (18), and 3 Flat Washers (19).

  • Page 13: Main Frame (

    ASSEMBLY    6mm Allen Wrench 4. Front Post Installation Remove six Hex Bolts (20), six Spring Washers (21), two Curved Washers (22), and four Flat Washers (19) from the Main Frame (1). Connect the Lower Console Wire (23) from the Main Frame (1) and Upper Console Wire (24) from the Front Post (2), as shown in Fig.

  • Page 14: Front Post (

    ASSEMBLY    6mm Allen Wrench 5. Handlebar Installation Remove four Hex Bolts (20), four Spring Washers (21) and four Flat Washers (19) from the sides of the Front Post (2). Feed the Sensor Wires (25) into the hole on the Front Post (2) as shown in Fig. AA-2. Pull the sensor Wires (25) out from the large hole at the top of the Front Post (2) and leave them hanging outside of the Front Post (2) for the moment.

  • Page 15: Console

    ASSEMBLY  Multi Hex Tool with Phillips Screwdriver S10, S13, S14, S15 6. Console Installation Remove the four Phillip Screws (26) from the backside of the Console (11). Connect the Upper Console Wire (24) and Sensor Wires (25) to the wires at the back of the Console (11), as shown in Fig.
  • Page 16 ASSEMBLY    8. Adaptor Installation Plug the small end of the Adaptor (29) into the Power Jack (28) located at the rear of the Main Frame (1), as shown in Fig. AA-4. Before plugging in, make sure to carefully check the specifications on the Adaptor.
  • Page 17 CONSO OLE  Cons sole Bu uttons START/S STOP BUT TTON: 1. Start ts and Pau uses a wor rkout. 2. Hold ding the bu utton for 3 s seconds w will reset the cons sole for a n new worko DOWN B BUTTON: 1.
  • Page 18 CONSOL LE  PROG GRAM Profile e Progra e console e has 21 Preset P Program options to choos se from to help challen ge you a and meet t your fit tness go als. See the diag gram belo ofile: The f first screen n that appe ears when...
  • Page 19 CONSOL LE  Recov ery Pro ogram: Recovery Program g gives you fe feedback a about the ra ate at whic ch you hea art recovers after a wo orkout. The e recovery rating is a a value with h which yo our persona al fitness c can be judg...

  • Page 20: Adjustments

    ADJUSTMENTS Seat Post Adjustment Loosen Adjustment Knob (13) by first twisting . When loosen, the counter clockwise Adjustment Knob (13) can be pull out slightly to release the Seat Post (4), allowing it to slide up and down. Release the Adjustment Knob (13) at the desired height, allowing it to pop into one of the nearest available holes.

  • Page 21: Moving The Bike

    MOVING THE BIKE  Transporting the Bike Unplug the Adaptor (29) from the Power Jack (28). Stand in front of the bike and firmly grip the Handlebars (3). Tilt the front of the bike downwards to balance the bike on the Front Stabilizer End Caps (34). Carefully roll the bike to your desired location and slowly tilt the bike back down to the ground.

  • Page 22: Troubleshooting & Maintenance

    TROUBLESHOOTING & MAINTENANCE  TROUBLESHOOTING Computer not working correctly  Check that the computer cables are connected securely and are not damaged.  Check that the AC Adaptor (29) is securely connected to the Power Jack (28) and plugged into an electrical outlet. The bike wobbles or shakes when in use ...
  • Page 23 UBLESHO OTING &  MAINTEN NANCE  Correct orrect efore conn necting any y cables, p please mak ke sure the etal prongs s of the cab ble are OK AINTENA ANCE Clea ning The b bike can be e cleaned w with a soft c cloth and m mild deterge ent.

  • Page 24: Warranty

    WARRANTY  MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. Paradigm’s obligation under this warranty applies to the following: COMPONENT LENGTH OF WARRANTY...

  • Page 25: Part Request Form

    PART REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECIEPT OF PURCHASE TO Service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) ____________________________________________ (Night) ____________________________________________ SERIAL#: _____________________________________________________ MODEL#: _____________________________________________________ PURCHASE DATE: _____________________________________________ PLACE OF PURCHASE: _________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS”...
