OWNER'S MANUAL

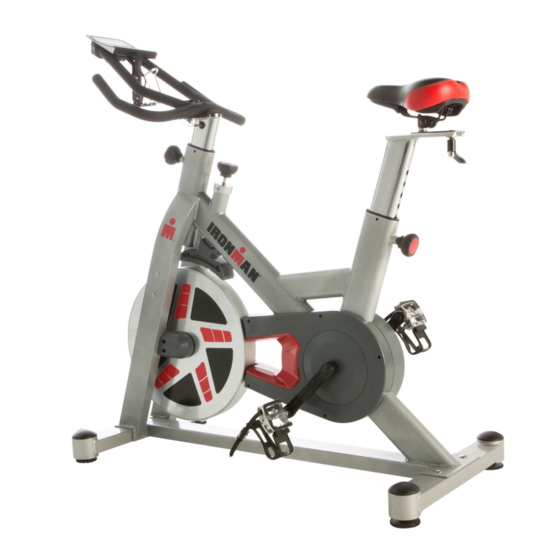

H-Class 520
Magnetic Tension Indoor Training Cycle
Model 6250
The specifications of this product may vary from this photo and are subject to change without notice.
IRONMAN, IRONMAN TRIATHLON and M-DOT are registered trademarks of World Triathlon Corporation.
This product is licensed by the World Triathlon Corporation.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ironman Fitness 6250

Summary of Contents for Ironman Fitness 6250

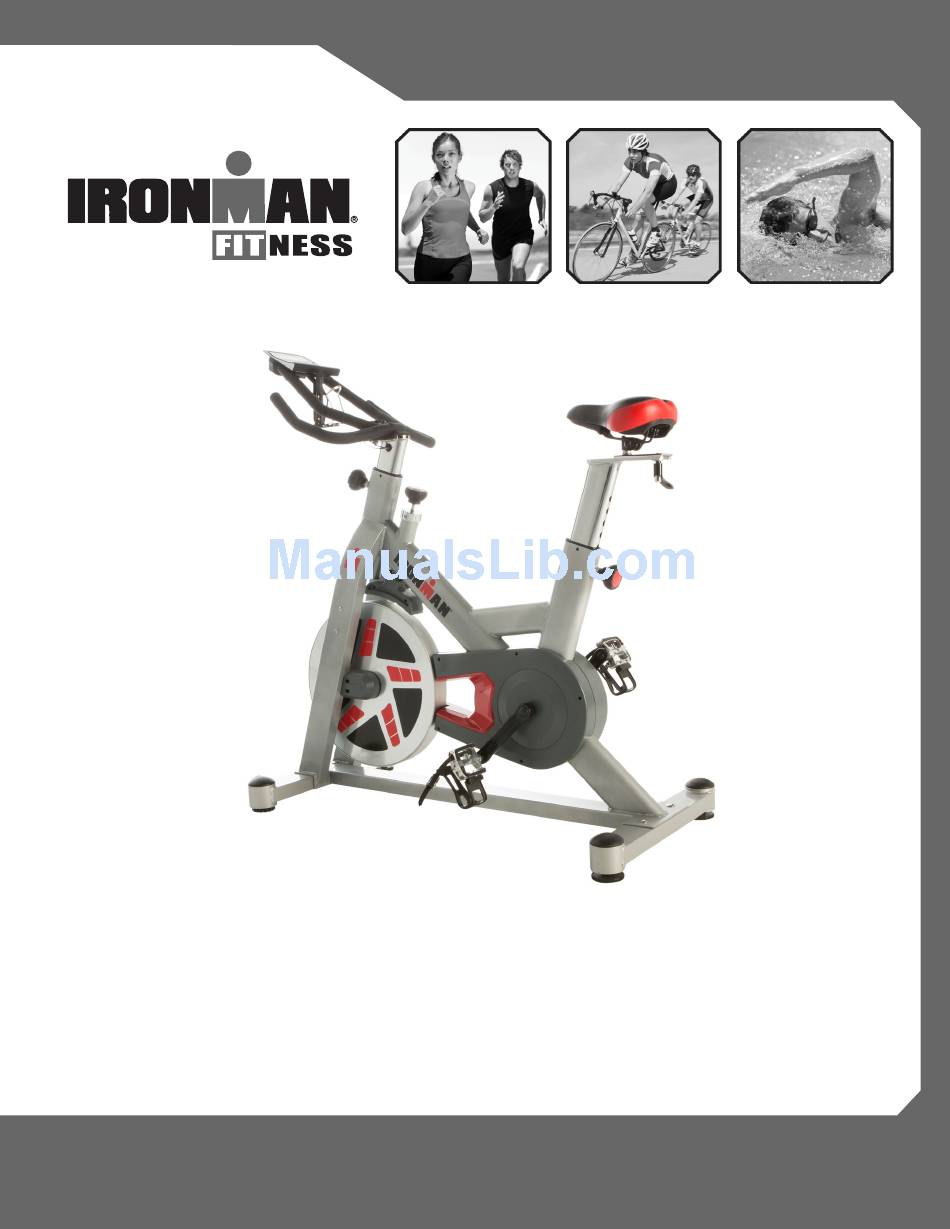

  • Page 1 OWNER’S MANUAL H-Class 520 Magnetic Tension Indoor Training Cycle Model 6250 The specifications of this product may vary from this photo and are subject to change without notice. IRONMAN, IRONMAN TRIATHLON and M-DOT are registered trademarks of World Triathlon Corporation.
  • Page 2 6250.1-120114...

  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE ------------------------------------------------------------------------ 4 LABEL PLACEMENT --------------------------------------------------------- 5 PRODUCT SAFETY ---------------------------------------------------------- 6 OVERVIEW DRAWING ------------------------------------------------------ 7 PARTS LIST -------------------------------------------------------------------- 8 HARDWARE AND TOOL LIST --------------------------------------------- 10 ASSEMBLY --------------------------------------------------------------------- 11 HOW TO US E ----------------------------- ----------------------------------- 17 COMPUTER -------------------------------------------------------------------- 18 HEART RATE CHEST BELT --------------------------------------------- 20 WARM UP ----------------------------------------------------------------------- 21 TROUBLESHOOTING &...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY To request product service and order replacement parts, please call our customer service department at: 1-844-641-7922 Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time, service@paradigmhw.com or email us at: Please visit our website at www.paradigmhw.com. Please have the following information ready when requesting for service: Your name Phone number...

  • Page 5: Label Placement

    LABEL PLACEMENT...

  • Page 6: Product Safety

    PRODUCT SAFETY Basic precautions should always be followed, including the following safety instructions when using this equipment. Read all instructions before using this equipment. Read all the instructions in this manual and do warm up exercises before using this equipment. Before exercising and to avoid injuring your muscles, perform warm-up exercise for each muscle group is highly recommended.

  • Page 7: Overview Drawing

    OVERVIEW DRAWING...

  • Page 8: Parts List

    PA RTS LIST Description Qty No. Description 001 Main Frame 025 Washer 19.5x38x2T Front stabilizer bar 026 Magnet plastic cover 40x80x2T Rear stabilizer bar 027 Support bar 20x20x1.4T 40x80x2T 004 Upright post 40x80x2T 028 Magnet bracket 005 Seat post 40x80x2T 029 Tension control bar 006 Handlebar Φ25.4x2T 030 Fixed cover...
  • Page 9 PARTS LIST Description Qty No. Description Plastic sleeve 051 Washer 20.5x25x1T Φ7.9x12.7x23.5mm 052 Self-tapping screw M4.5x15 073 Fixed plate 053 Self-tapping screw M4.2x10 17 074 Cushion knob M10x25 054 Hex. Bolt M6x35 075 Cap Φ76 055 Idle wheel fixture 076 Transport wheel Φ70 056 Nylon nut M10x6T 077 Tension control knob M10 057 Steel sleeve Φ25.1x32x10T...

  • Page 10: Hardware And Tool List

    HARDWARE & TOOL LIST NO.23 Knob NO. 25 Washer NO. 35Cap nut NO. 37 Washer M10x28 1PCS 19.5x38x2T 1PCS M10 4PCS 10x19x1.5T 4 PCS NO. 24 Lock Nut NO. 46 Washer NO. 82 Bolt NO. 83 Bolt M5x12 M10 1PCS 10x29x2T 2PCS M6x10 2PCS 2PCS...
  • Page 11 ep 1 Place a block of styrofoam underneath the Main Frame (1) for easier installation. Attach the Front Stabilizer (2) to the Main Frame by aligning the bolt holes and installing two Carriage Bolts (36), two Washers (37) and two Cap Nuts (35) as shown below. Tighten the Cap Nuts (35) with the 17mm Wrench Provided.
  • Page 12 Step 2 Attach the Computer Holder (80) onto the Handlebars (6) and tighten using the 2 Bolts (82) and Hex Tool. Insert batteries into the Computer (81) and insert the Computer into the Computer Holder (80). Ensure the computer clicks into position.
  • Page 13 Step 4 Connect the Sensor wire (85) and Sensor connecting wire-2 (86). Turn the Spring Knob (21) on the Main Frame (1) in a counterclockwise direction until it can be pulled out. Pull and hold the Spring Knob, insert the Upright Post (4) into Main Frame (1).

  • Page 14: Assembly

    ASS EMBLY Step 6 Slide the Handlebar (6) onto the front of the Upright Post (4) and attach it by sliding Washer (46) onto Knob (23). Then insert the knob through the handlebar bracket hole and the Upright Post (4) slot. Next, slide Washer (25) and Lock Nut (24) onto the knob and secure by turning the knob clockwise while holding the washer and locknut in place.
  • Page 15 ASS EMBLY Step 7 Plug the lower end of the Sensor Connecting Wire 2 (86) from the left side of the Front Post (4) to Sensor Wire 1 (87) on the handlebars. Plug the upper end of the Sensor Connecting Wire 1 (87) located at the top portion of the handlebars, into the computer (81).
  • Page 16 Step 8 Install the Seat Slide Guide (7) onto the Seat Post (5) and tighten with L-Knob (22) and Washer (46). Install the Seat (9) onto the Seat Slide Guide (7) and tighten with the 13,15mm Wrench. Tool: Hardwa Open End Wrench 13,15MM NO.

  • Page 17: How To Use

    HOW TO USE Tension Adjustment Turn knob clockwise to increase tension Turn knob counter-clockwise to decrease tension Emergency Stop Press down the knob to stop the flywheel Foot Strap Put your foot forward as possible into the shoe cage, pull the foot strap snygly around your shoe to avoid slipping off the pedal, see picture.

  • Page 18: Computer

    COMPUTER BUTTON FUNCTION To select training mode and adjust function value up. DOWN To select training mode and adjust function value down. RESET Total Reset. To reboot the console. MODE Confirm setting or selection. To turn on Bluetooth function DISPLAY FUNCTION TIME Display range 0:00~99:59.
  • Page 19 COMPUTER 2. MANUAL PROGRAM Set Target Time, Distance and Calories by MODE button . 3. BLUETOOTH CONNECTION Press to turn on the Bluetooth (BT) function. BT status light will flash once every 5 seconds when the BT function is on but has not yet connected to a smart device (phone, tablet).

  • Page 20: Heart Rate Chest Belt

    HEART RATE CHEST BELT 1. For the most accurate readings, the transmitter belt must have direct contact with the skin. 2. For accurate readings, stay within 4 feet of the computer. 3. The belt will send your pulse to the computer. clockwise.

  • Page 21: Warm Up

    WARM UP Quadriceps Stretch With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot up. Inner Thigh Stretch Sit with the soles of your feet together with your knees pointing outward.

  • Page 22: Troubleshooting & Maintenance

    TROUBLE SHOOT & MAINTENANCE TROUBLESHOOTING Computer not working correctly Check to make sure the computer cable is connected securely. The bike trainer wobbles or shakes when in use Turn the adjustable leveler on the front stabilizer or rear stabilizer as needed to level the bike trainer.

  • Page 23: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free fromdefects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. Paradigm’s obligation under this warranty applies to the following: COMPONENT LENGTH OF WARRANTY...

  • Page 24: Fax Form

    Paradigm Health & Wellness, Inc. PARTS REQUEST FAX FORM Please fax this form to (1-626-810-2166) OR YOU CAN EMAIL CUSTOMER SERVICE REQUESTS TO service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ (Email Address) ____________________________________ SERIAL#: __________________________________________ MODEL#: __________________________________________ PURCHASE DATE: ______________________________________________...
